10L laboratory vacuum rotary evaporator price
- Category: >>>
- Supplier: Nanbei Instrument Limited
Share on (1600770718338):
Product Overview
Description
Product Description
5L Chemical Lab vacuum rotary evaporator

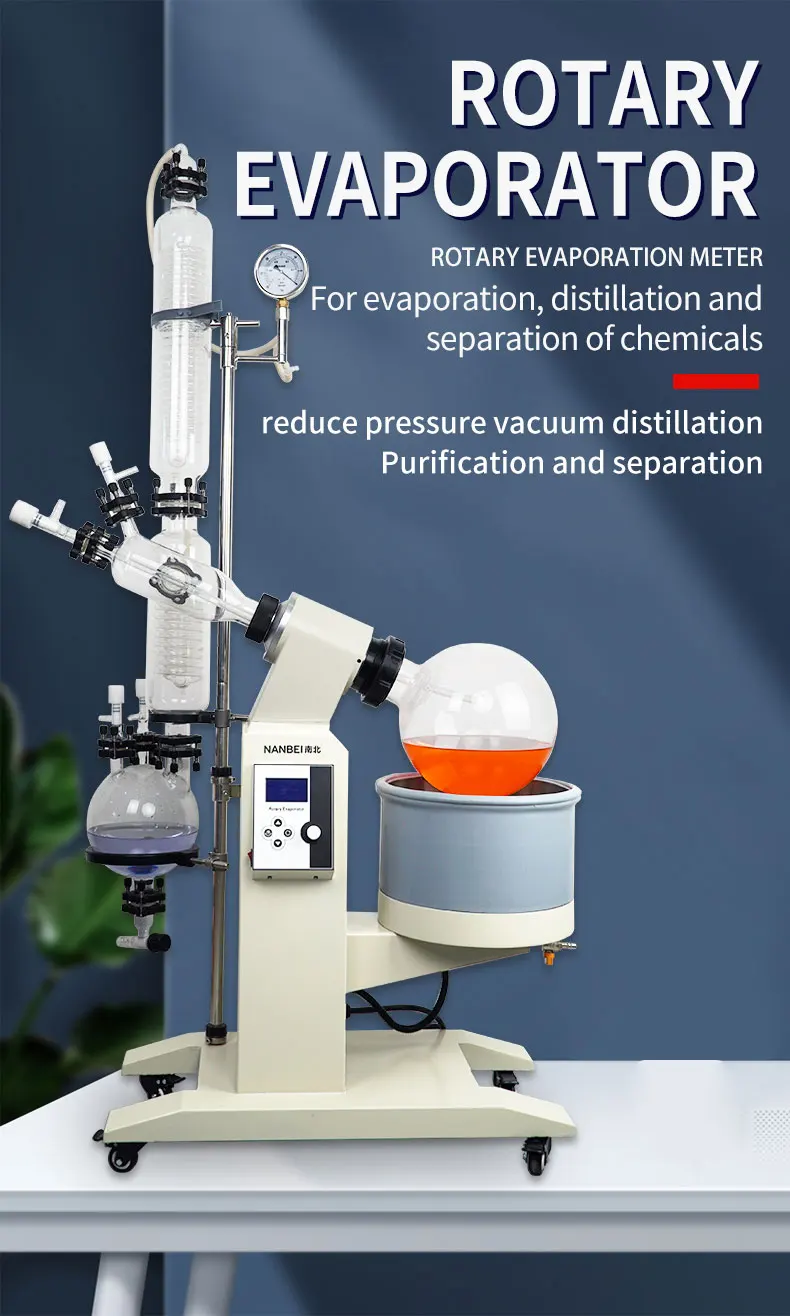

Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.
Characters for rotary evaporator:
1.The main bracket is made of stainless steel and aluminum alloy with reasonable structure and materials. 2. All glass components are borosilicate glass (GG-17), high temperature, anti-corrosion.
1.The main bracket is made of stainless steel and aluminum alloy with reasonable structure and materials. 2. All glass components are borosilicate glass (GG-17), high temperature, anti-corrosion.
3. Sealing system adopts imported fluorine rubber and Teflon two-way combination seal, long corrosion-resistant life, to maintain a high degree of vacuum.
4. Vacuum gauges show real-time vacuum, oil-based table with anti-vibration characteristics.
5. Upright three-layer serpentine coil condenser, main cooler + double cooler, ensuring high recovery.
6. Continuous feeding for customer's convenience, valve type feeding valve socket tube.
7. Collecting bottles are equipped with dropping materials to facilitate the collection and discharge of evaporated extracts.
8. Check valve control, continuous discharge, the machine in working condition, the vacuum switch.
9. All valves use the latest integrated hand wheel valve, sealing is good, the operation is more simple and convenient Microprocessor-based power switch control.
10. LCD full screen display, temperature, speed dual digital display, bath thermostat intelligent control, PT100-type sensor, quickly and accurately transfer temperature.
11. Brushless DC motor, stable rotation, no spark, slow down by force.
12.Bath electric lift, lift part of the deceleration by force motor, lifting process more stable.
12.Bath electric lift, lift part of the deceleration by force motor, lifting process more stable.
13. The pot is made of high-quality 304 stainless steel, corrosion-resistant and durable. The outer layer of the pot is covered with a silicone layer, which makes it safer to use at high temperature.
14.Over-temperature protection function, when the actual temperature exceeds the set temperature of 5 ℃, the machine will automatically power-off heating. China rotary evaporator
15.Anti-dry function, the heating pot lower than the heating pipe, the machine will automatically power off. 16. If there is a sudden power failure while the machine is working, the machine will stop heating automatically when the power is turned on again.
17.Chemical Lab Evaporation Equipment rotary distiller vacuum evaporator could customization. Volume, structure, voltage, plug, all could customization. Customer also could send the drawing, then we could customize as your drawing.
17.Chemical Lab Evaporation Equipment rotary distiller vacuum evaporator could customization. Volume, structure, voltage, plug, all could customization. Customer also could send the drawing, then we could customize as your drawing.

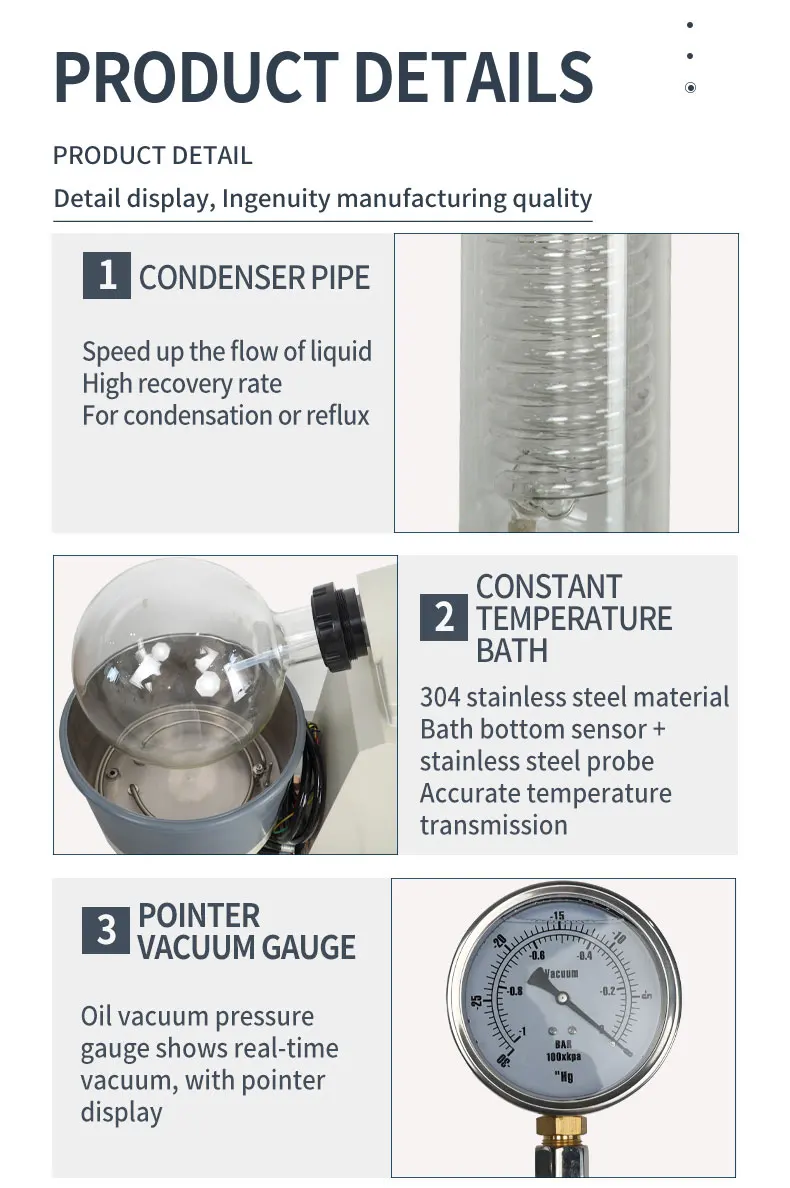

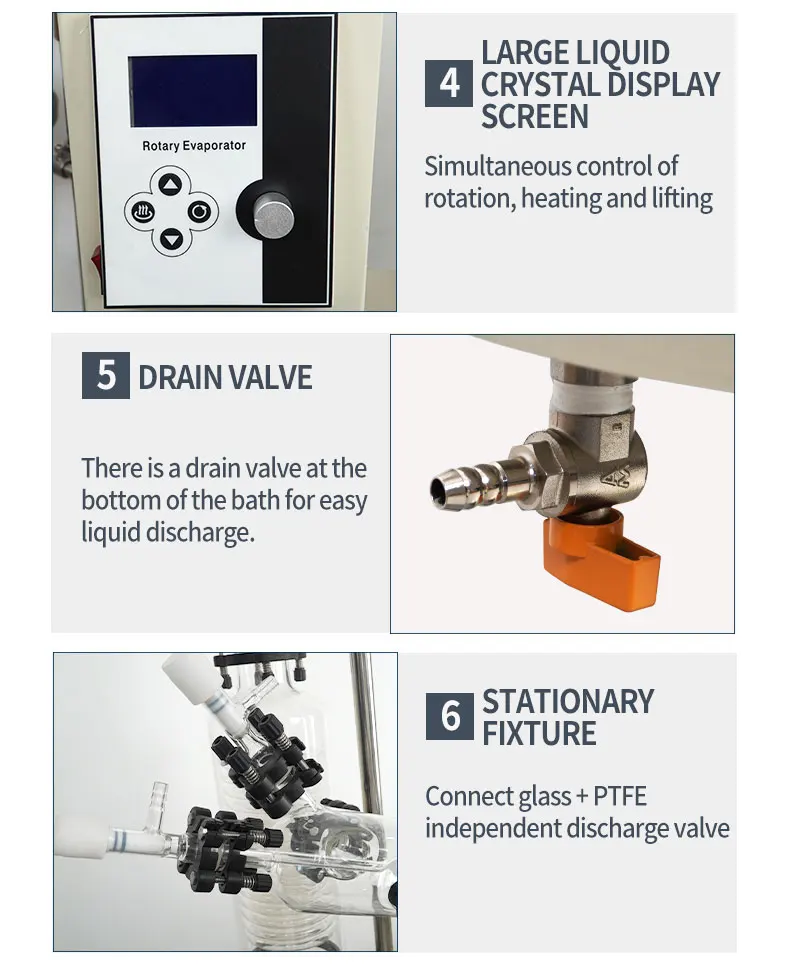

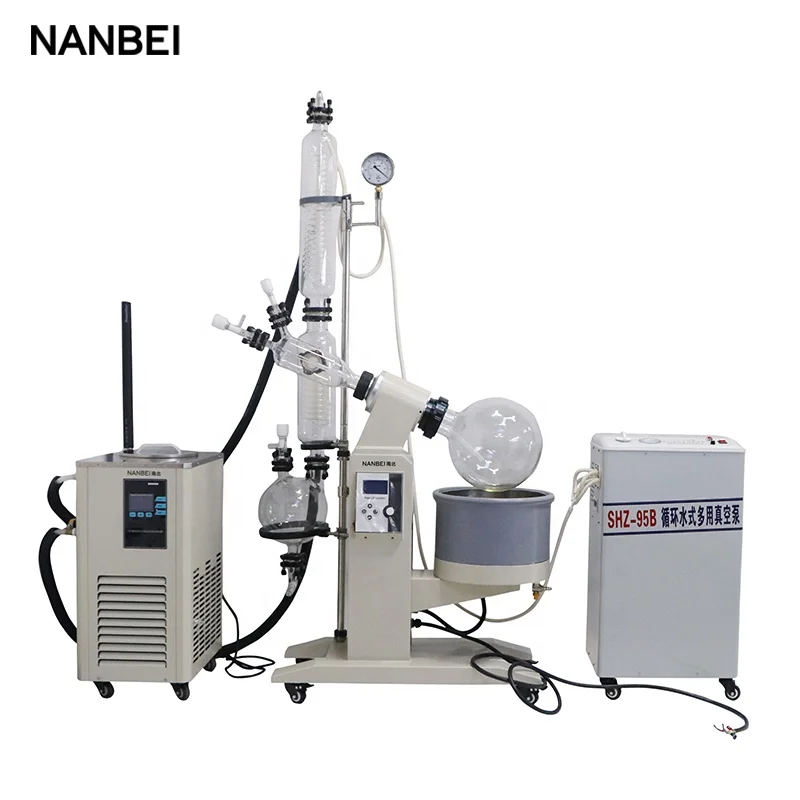

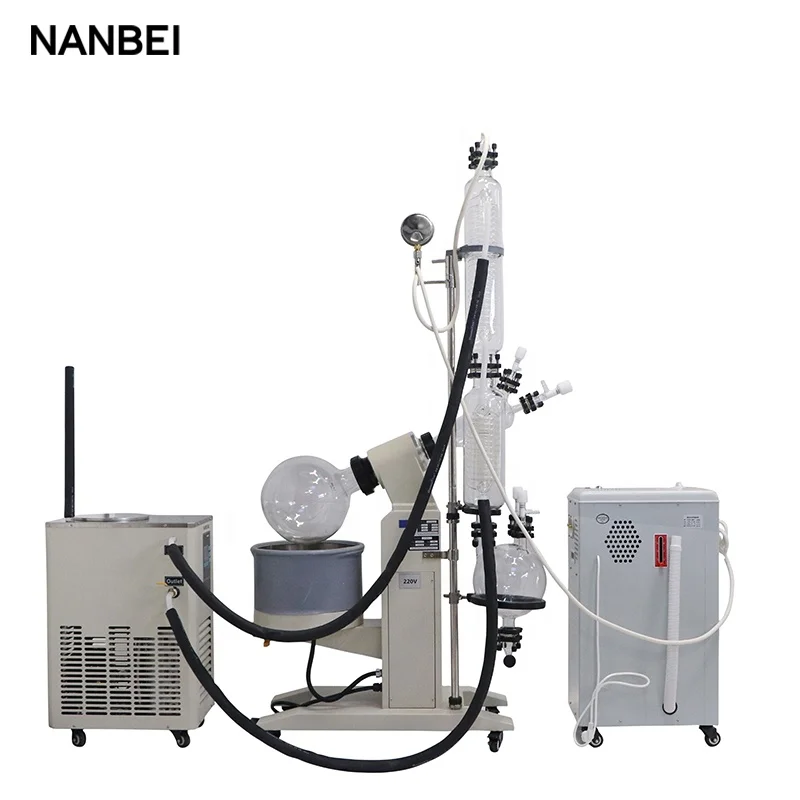

More Details Photos
Specification
Model | NBR-1005 | NBR-1000 | NBR-1020 | NBR-1050 | ||
power supply | 220V/50HZ（various power supply and plug can be customized) | 380V/50HZ | ||||
Rotating motor power | 40W | 60W | 60W | 100W | ||
Lifting motor power | 30W | 40W | 40W | 60W | ||
Heating power | 3kw | 4.5kw | 5KW | 8kw | ||
Rotating flask | 5L | 10L Flange mouth:Φ280mm/Φ95mm | 20L Φ355mm/Φ95mm flange mouth | 50LFlange mouthΦ470mm/Φ125mm | ||
collecting flask | 3L | 5L Flange mouth:Φ230mm/Φ50mm | 10L Φ280mm/Φ60mm flange mouth | 20L Flange mouthΦ355mm/Φ60mm | ||
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa | ||
Rotary speed | 0-120rpm/min | 0-120rpm/min | 0-120rpm/min | 0-120rpm/min | ||
Heating temp. | 0-400C | 0-400C | 0-400℃ | 0-400C | ||
Glass temp range | -80C to 250C | -80C to 250C | -80-250℃ | -80C to 250C | ||
Condenser size(mm) | Vertical double serpentine tube | MainΦ130*640H DeputyΦ130*410H | mainΦ130×680H deputyΦ130×410H | MainΦ160*840H DeputyΦ160*480H | ||
Feed valve | Φ35 flange mouth | Φ35 flange mouth | Φ35 flange mouth | Φ35 flange mouth | ||
Release valve | Φ35 flange mouth*2pcs | Φ35 flange mouth*2pcs | Φ35 flange mouth*2pcs | Φ35 flange mouth*2pcs | ||
Lifting Distance | 0~150mm | 0-180mm | 0-180(mm) | 0-180mm | ||
Temp controlling accuracy | ±1C | ±1C | ±1C | ±1C | ||
Didcharge valve | 15mm glass and lean discharge port | 10mm glass and lean discharge port | ￠10mm glass and lean discharge port | 15mm glass and lean discharge port | ||
Bath size/volume | Φ250*120H(mm) | Φ350*220H(mm) about 21L | Φ450×250H(mm) about39L | Φ550×320H(mm) about76L | ||
Dimension(mm) | 700*335*1009 | 1000*460*1000 | 1200*500*2000 | 1400*600*2250 | ||
packing size | 1040*620*410mm | 1070*520*1210mm(L*W*H) about 0.67m3 | 1070L×520W×1210H(mm) about0.67m3 | 1270L×620W×1440H(mm) about1.133m3 | ||
gross weight | 38kg | 95kg | 102KG | 118KG | ||
