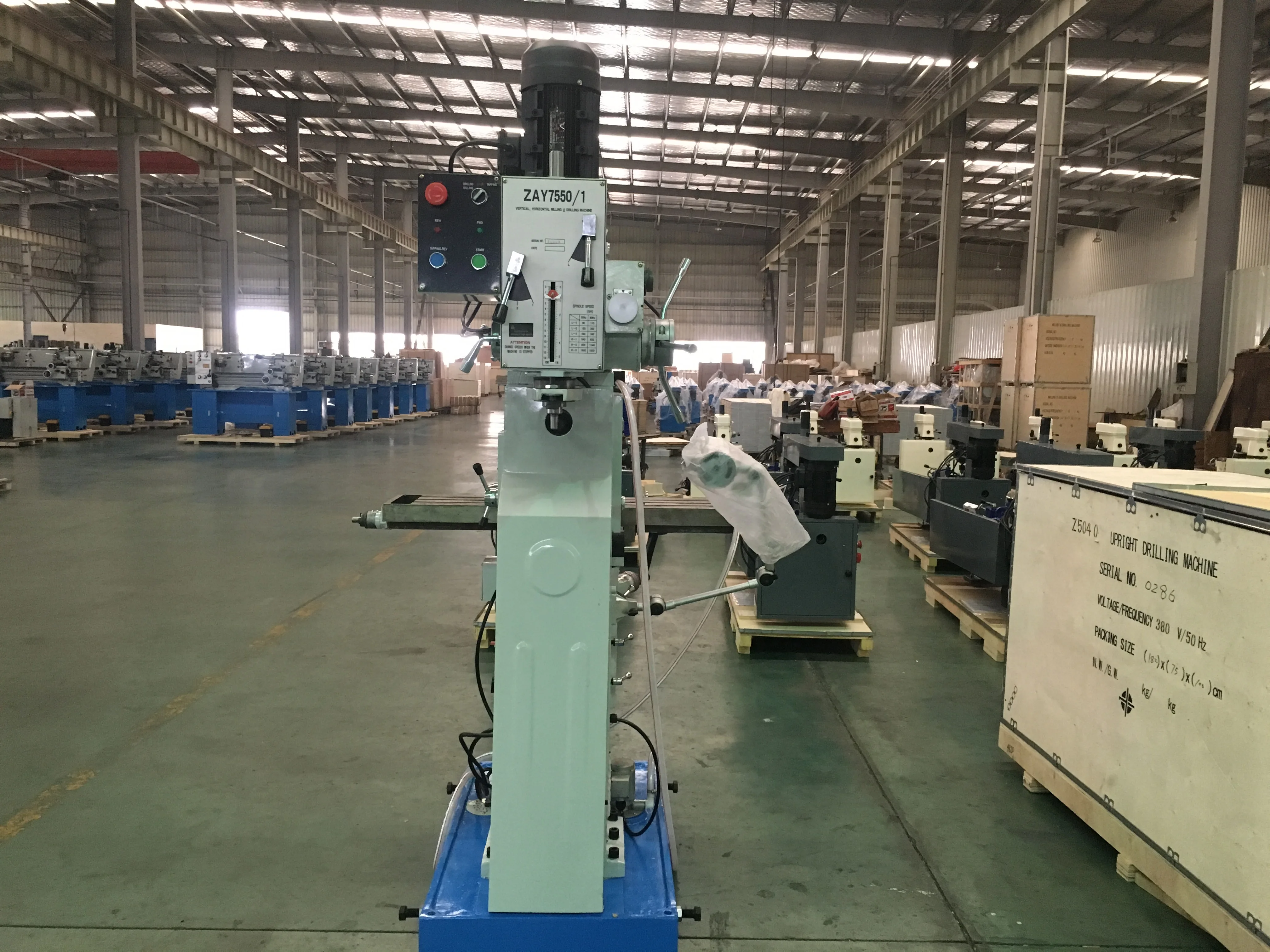

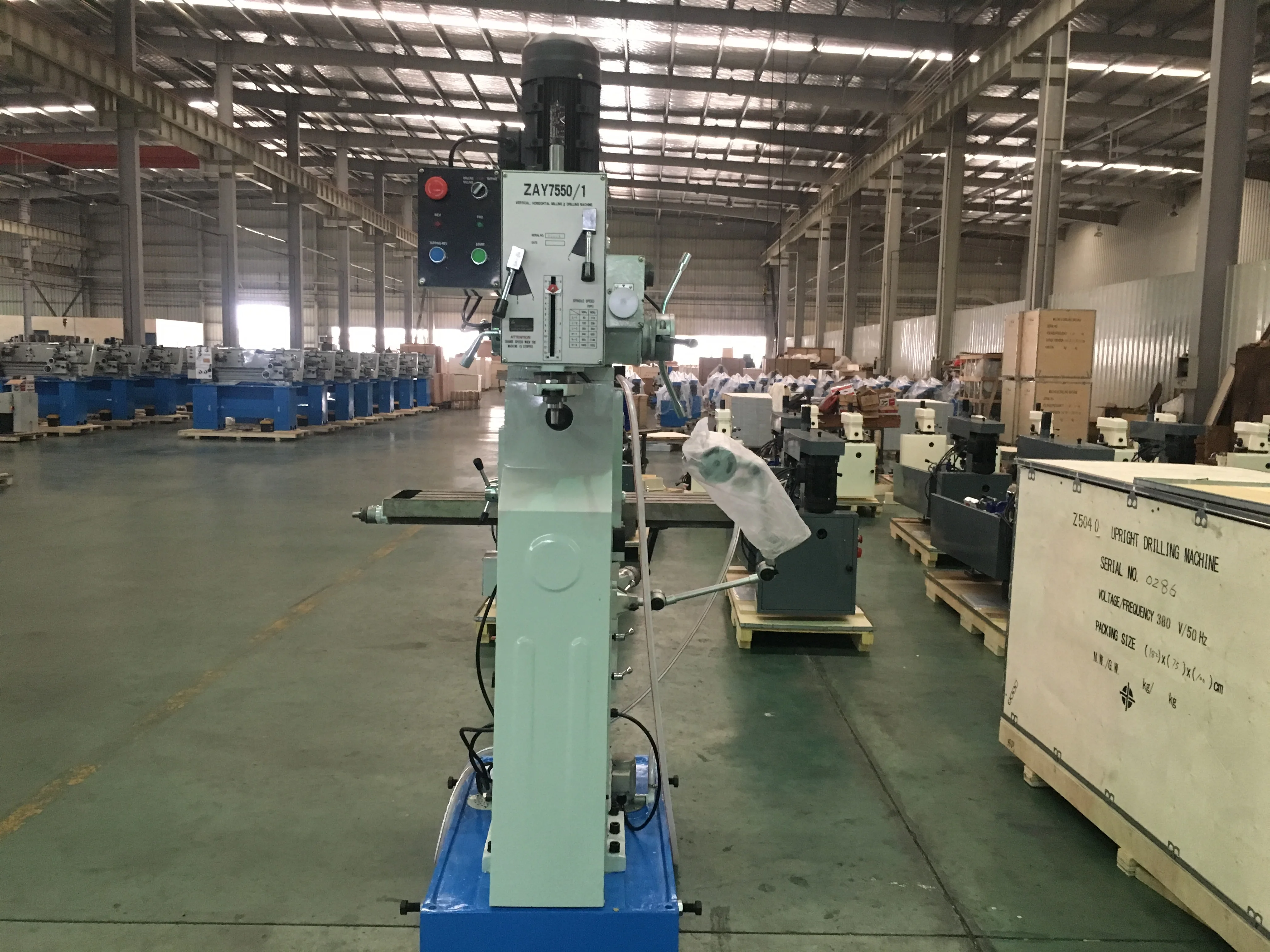

Factory Sales Universal Milling Multifunctional Drilling Machine ZAY7550/1
- Category: >>>
- Supplier: Chizhou Syntop CNC Industrial Co. Ltd.
Share on (1600770729128):
Product Overview
Description
Products Description
Features:
●Vertical milling head can be moved forward or backward.
●Vertical milling head can swivel ±90° vertically and ±360° Horizontaly.
●Adjustable stops on table.
●Manual quill feed.
●High tensile casting iron elevative table.
●Double motor with powerful force.
Specification of ZAY7550/1 | ||
Max.drilling capacity | 50mm | |
Max.milling capacity（end/face） | 32mm/100mm | |
Swivel angle of headstock(perpendicular) | ±90° | |
Spindle taper(end/face) | MT4 | |
Distance from spindle nose to worktable surface | 80-480mm | |
Spindle travel | 130mm | |
Beam travel | 500mm | |
Step of spindle speed(end/face) | 6/12 | |
Range of spindle speed(end/face) 50Hz | 90-1600 /38-1280 (r/min) | |
Range of spindle speed(end/face) 60Hz (4 Poles) | 110-1920 /45-1540 (r/min) | |
Step of spindle auto-feeding(end/face) | 3 | |
Range of spindle auto-feeding(end/face) | 0.12，0.18，0.25 | |
Worktable size | 1000*240mm | |
Forward and afterward travel of worktable | 330mm | |
Left and right travel of worktable | 785mm | |
Vertical travel of worktable | 400mm | |
Min.distance from spindle axis to column | 290mm | |
Power(end/face) | 1.5KW/1.5KW | |
Voltage/Frequency | As customer's requirement | |
Cooling pump power | 0.04kw | |
Net weight/Gross weight | 950kg/1050kg | |
Packing size | 1220*1350*1850mm | |
