medical equipment manufacturer wholesale icu ventilator with air compressor
- Category: >>>
- Supplier: Nanjing Puao Medical Equipment Co. Ltd.
Share on (1600770747630):
Product Overview
Description
Product Description
Product Application
China Manufacture jiangsu nanjing puao medical equipment

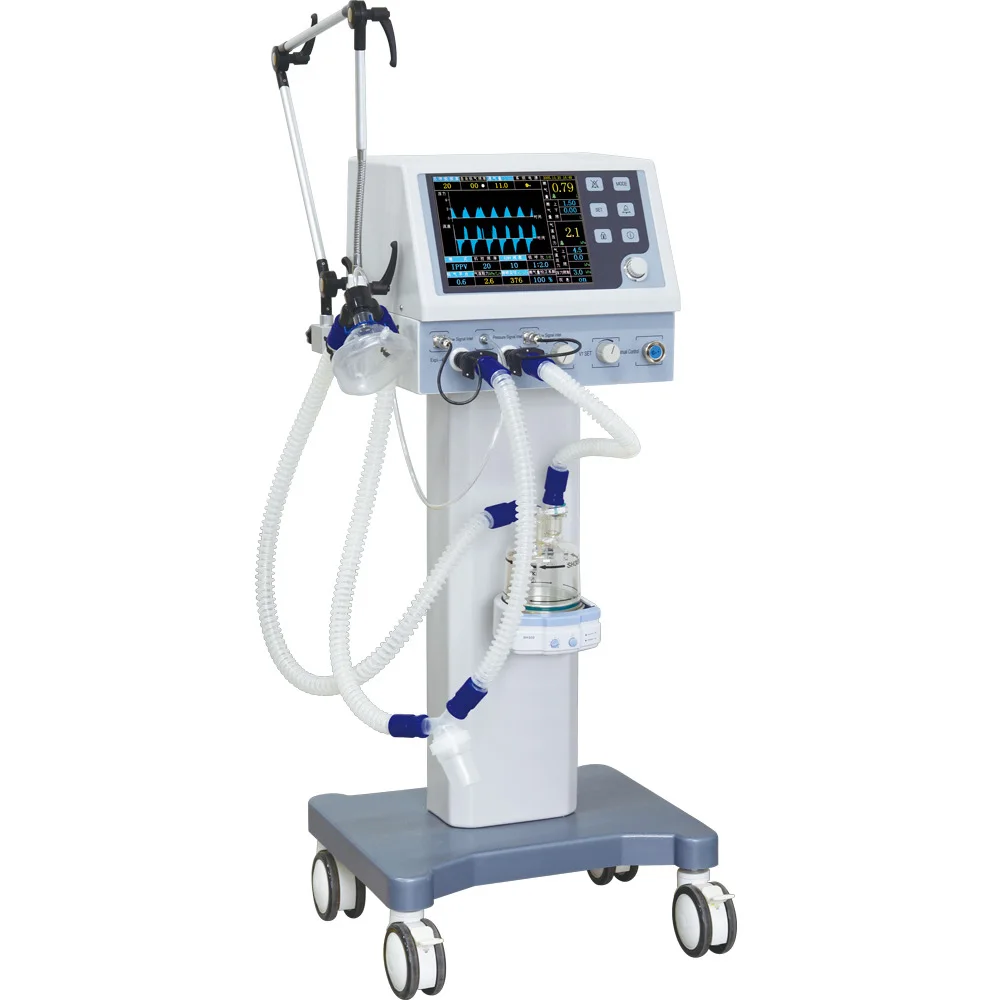

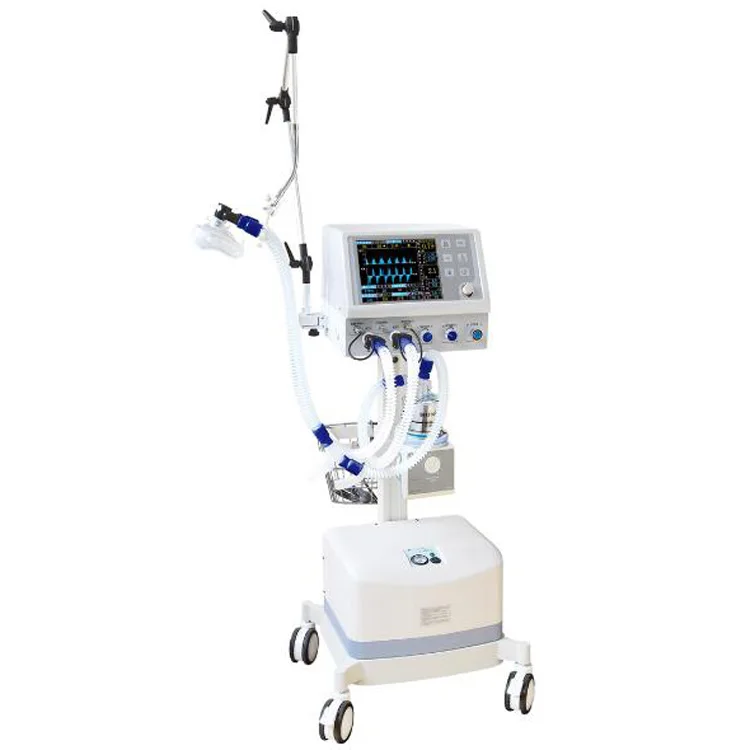

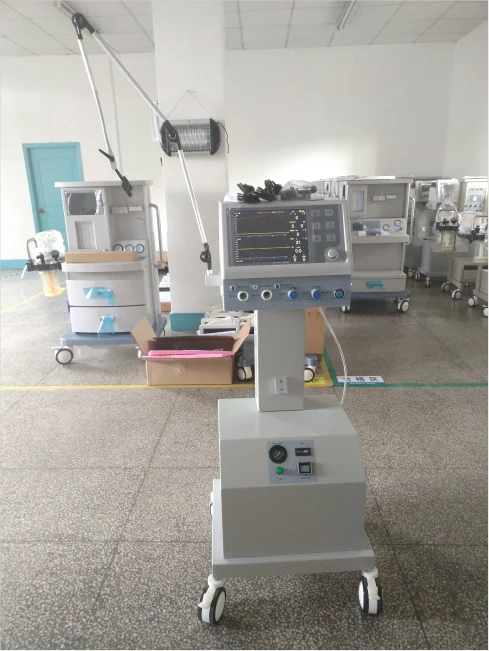

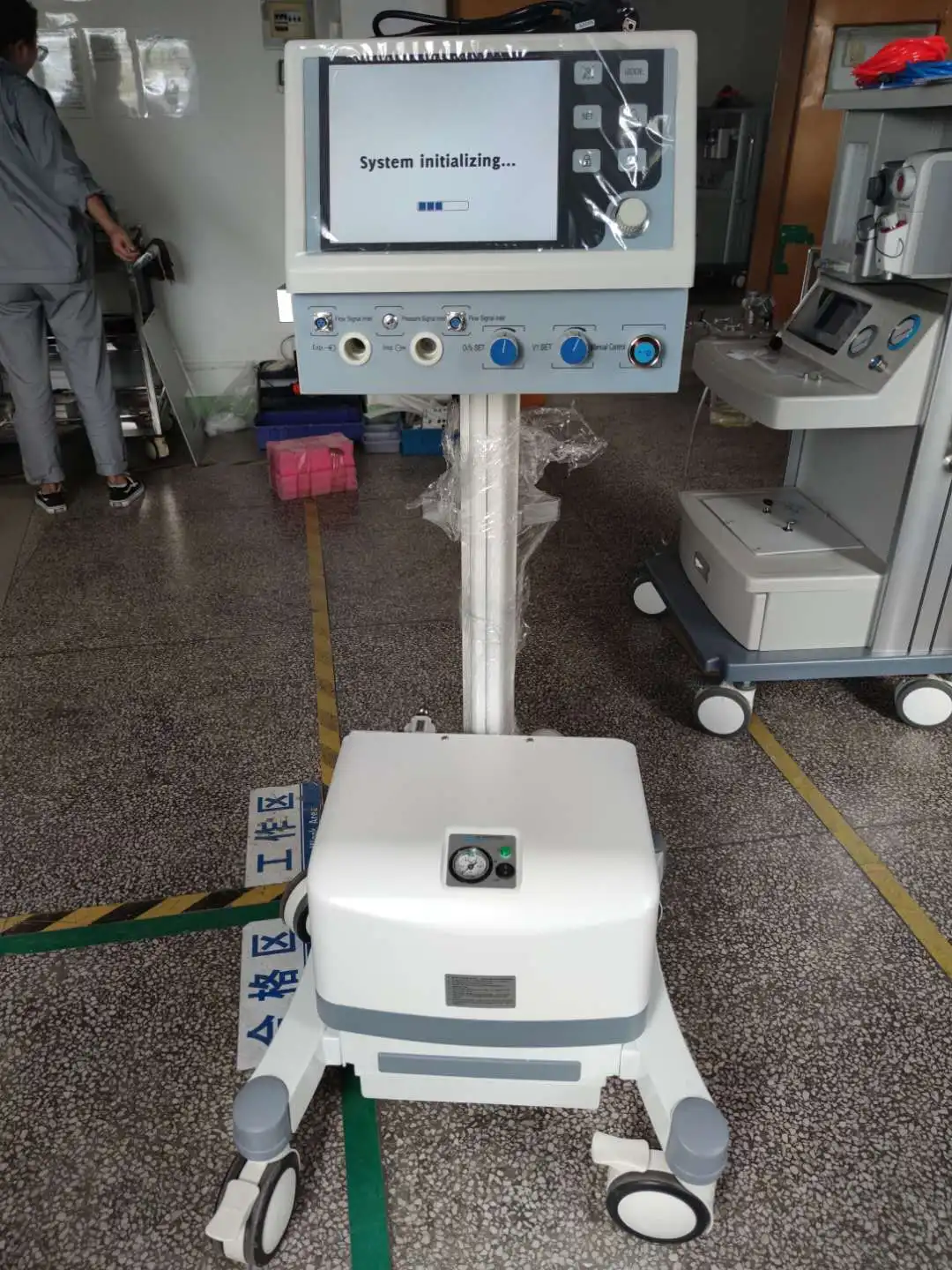

portable PA-700B ICU Hospital clinic surgical medical ventilator

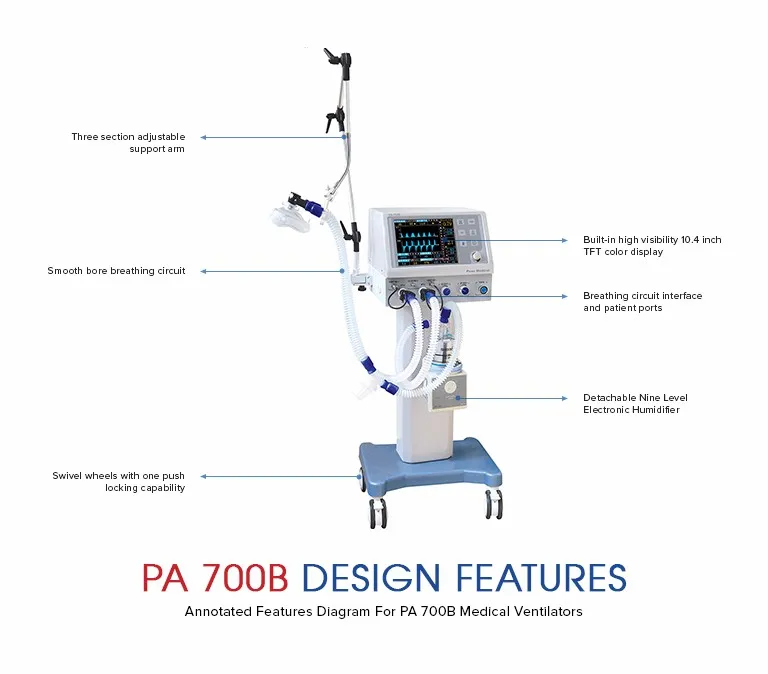

Features
PA-700B ICU Hospital clinic surgical medical ventilator
Common Features
1. Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
2. Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy

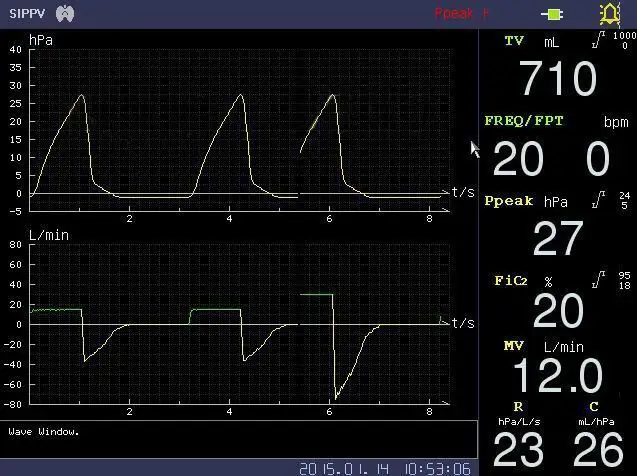

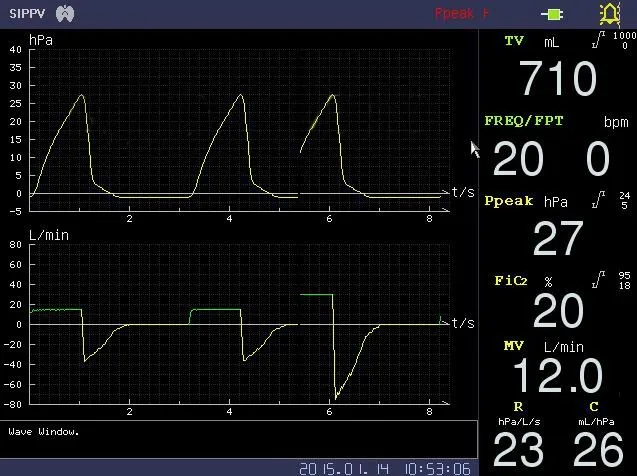

3. Display: Built-in 10.4 inch color TFT fully adjustable display, able-display Pressure-Time, Frequency-Time, Pressure-Volume,Frequency-Volume and any two waveforms simultaneously on screen
4. Trigger Types: Pressure trigger, Flow trigger
5. Sigh: Ability to insert 1-8 sigh breaths in every 100 breaths, ventilation should be no less than 1.5 the tidal volume
6. Features built-in dual electronic flow sensors and dual respiratory modules
7. Power Failure Support Functions: Automatically converts-standby mode during AC power outages
8. Monitor Parameters: tidal volume, respiration rate, airway pressure, I:E ratio, inspiratory & expiratory status, inspiratory trigger and others

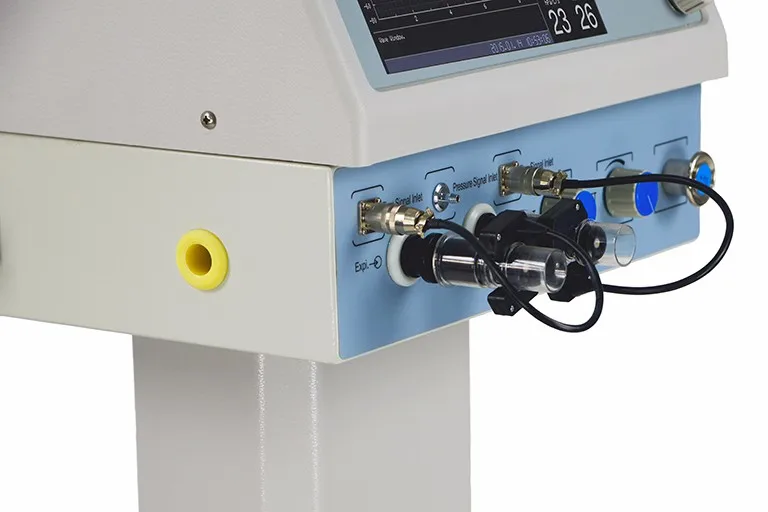

9. Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
10. Nine Level adjustable humidifier
11. Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor

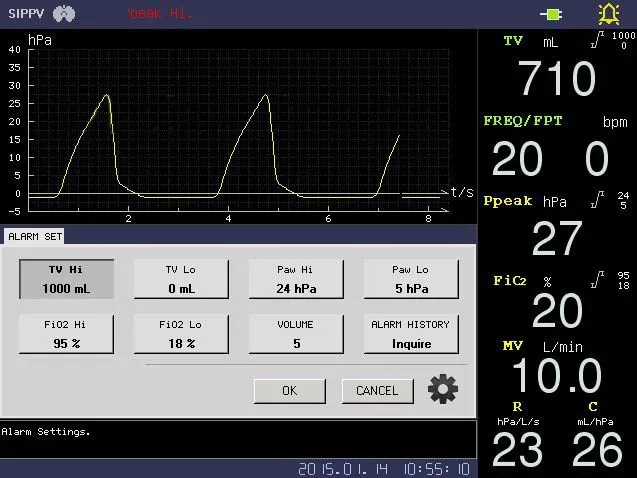

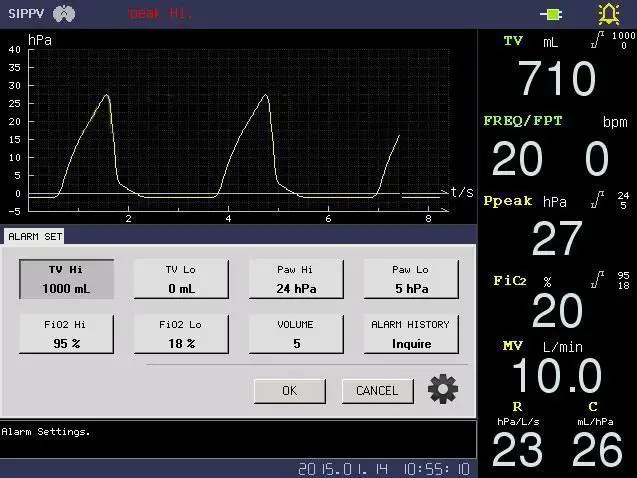

12. Alarms: Audible and/or visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, intubation disconnection, low oxygen, power failure and other alarms, also features a alarm history query function
Advanced Model Exclusive Features

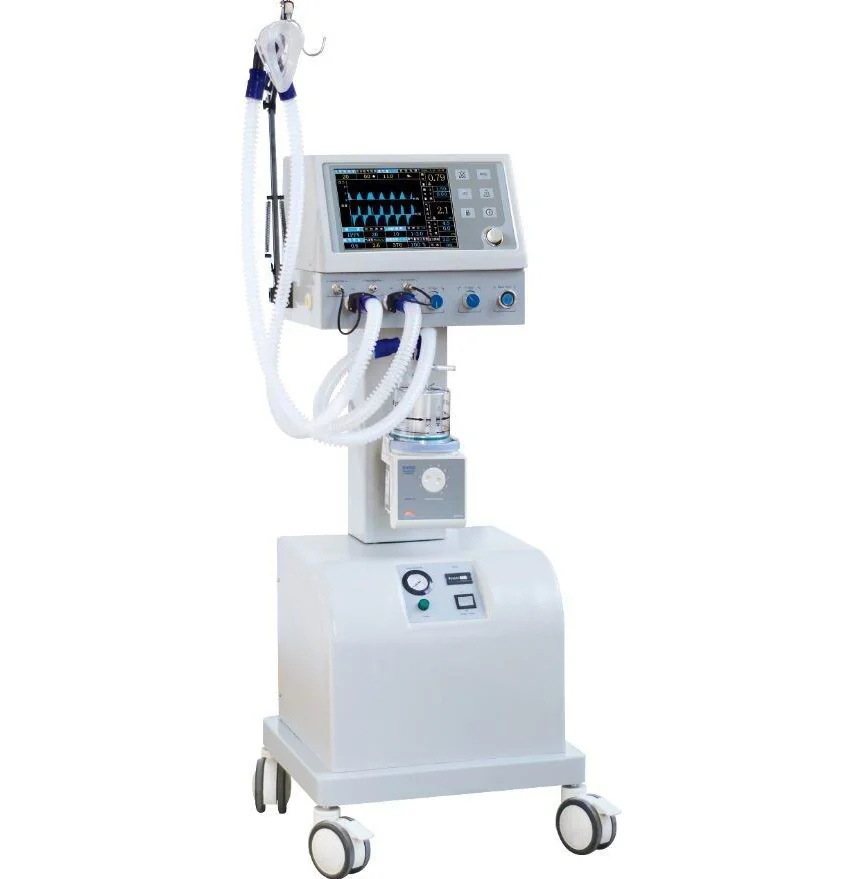

13. Equipped with professional medical grade air compressor tailored for long clinical times and low noise requirements
Air Compressor

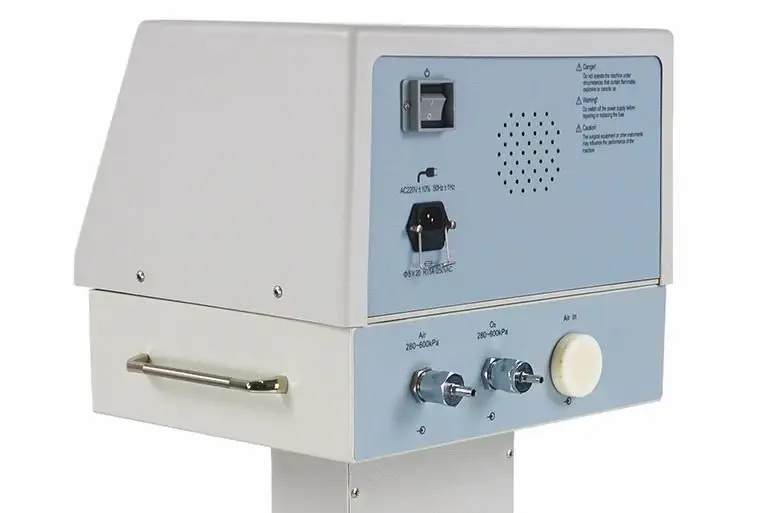

14. Air Compressor: 220V AC±10%, 50±1Hz, 700VA, also features good protective grounding against electrical activity
15. Output Gas Pressure: 0.4MPa±20%
16. Continuous output gas flow greater than or equal to 20L/min
17. Instantaneous output gas flow great than equal to 60L/min
1. Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
2. Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy
3. Display: Built-in 10.4 inch color TFT fully adjustable display, able-display Pressure-Time, Frequency-Time, Pressure-Volume,Frequency-Volume and any two waveforms simultaneously on screen
4. Trigger Types: Pressure trigger, Flow trigger
5. Sigh: Ability to insert 1-8 sigh breaths in every 100 breaths, ventilation should be no less than 1.5 the tidal volume
6. Features built-in dual electronic flow sensors and dual respiratory modules
7. Power Failure Support Functions: Automatically converts-standby mode during AC power outages
8. Monitor Parameters: tidal volume, respiration rate, airway pressure, I:E ratio, inspiratory & expiratory status, inspiratory trigger and others
9. Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
10. Nine Level adjustable humidifier
11. Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
12. Alarms: Audible and/or visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, intubation disconnection, low oxygen, power failure and other alarms, also features a alarm history query function
Advanced Model Exclusive Features
13. Equipped with professional medical grade air compressor tailored for long clinical times and low noise requirements
Air Compressor
14. Air Compressor: 220V AC±10%, 50±1Hz, 700VA, also features good protective grounding against electrical activity
15. Output Gas Pressure: 0.4MPa±20%
16. Continuous output gas flow greater than or equal to 20L/min
17. Instantaneous output gas flow great than equal to 60L/min
Specifications
PA-700B ICU Hospital clinic surgical medical ventilator
Model | PA-700B |
Display | 10.4 inch high visibility color TFT display |
Ventilation Mode | SIPPV, IPPV, IMV, SIMV, MANUAL |
Minute Volume | Greater than or equal to 18L |
Back-up Power Supply | At least 30 Min |
Tidal Volume | Adjustable range: 50-1500ml, Display range: 0-2000ml |
Respiratory Frequency | 1-99bpm |
Inspiratory/expiratory (I:E) ratio | 4:1-1:4 |
PEEP | 0-10cmH2O |
SIMV Frequency | 1-20bpm |
Inspiratory Pressure Trigger | -10-10cmH2O |
Inspiratory Plateau | Adjustable from 0-50% of inspiratory time |
Adjustable Oxygen Concentration | 21(with air compressor)-100% 45(without air compressor)-100% |
Gas Supply Requirement | 280~600 kPa medical grade oxygen and compressed air supply |
Pressure Limit | 1.0kPa~6.0kPa |
Maximum Safe Operating Pressure | ≤6.0kPa |
Tidal Volume Alarm | Upper Limit: 0~2000ml, Lower Limit: 0~1800ml |
Airway Pressure Alarm | Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa |
Oxygen Concentration Alarm | Upper Limit: 21~100%, Lower Limit: 18~80% |
Packing & Delivery
Our Service
Certifications
Product Showcase
Company Information
FAQ
I) What is your Minimum Order Quantity?
Our minimum order quantity (MOQ) is generally 1 unit. The exception however is that for certain accessories (e.g. wires) the MOQ may vary. Feel free to contact us to get a exact MOQ quote.
II) Which payment methods do you accept?
We accept most forms of monetary payment such as bank transfer, T/T, direct transfer & Alibaba Secure Payment. Please get in touch with one of our sales managers to check if your payment option is acceptable.
III) What is your shipping & delivery time?
Once we have confirmation of your order we normally ship within 5 to 10 working days.
IV) What product guarantees do you offer?
All our products are Alibaba Trade Assured which means that your order will be fully protected. Hence if we fail to ship on time or can’t meet our product quality obligations, Alibaba will refund your payment.
V) Which certifications do you have?
Almost all our products are CE, ISO and RoHS certified.
VI) Can I place my company logo on your product?
Yes, baring a few exceptions. Please check with our sales team before applying.
VII) What after sales services do you provide?
We offer technical, customer service & troubleshooting support for the life time of the product.
VIII) How long is your warranty period?
We typically offer 12 to 24 months warranties for all our products, except some accessories which may have shorter warranty periods.
