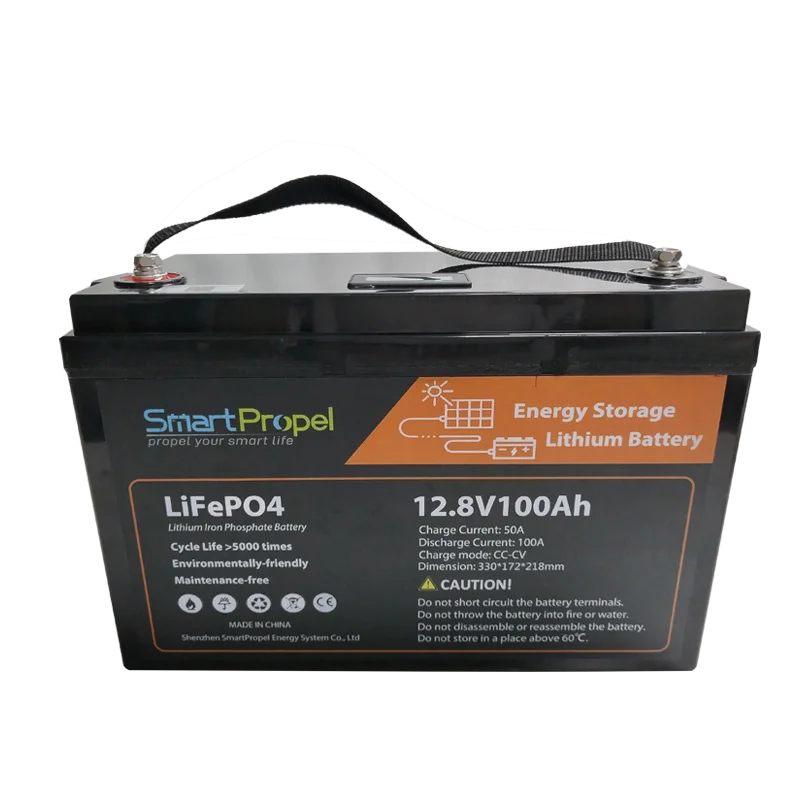

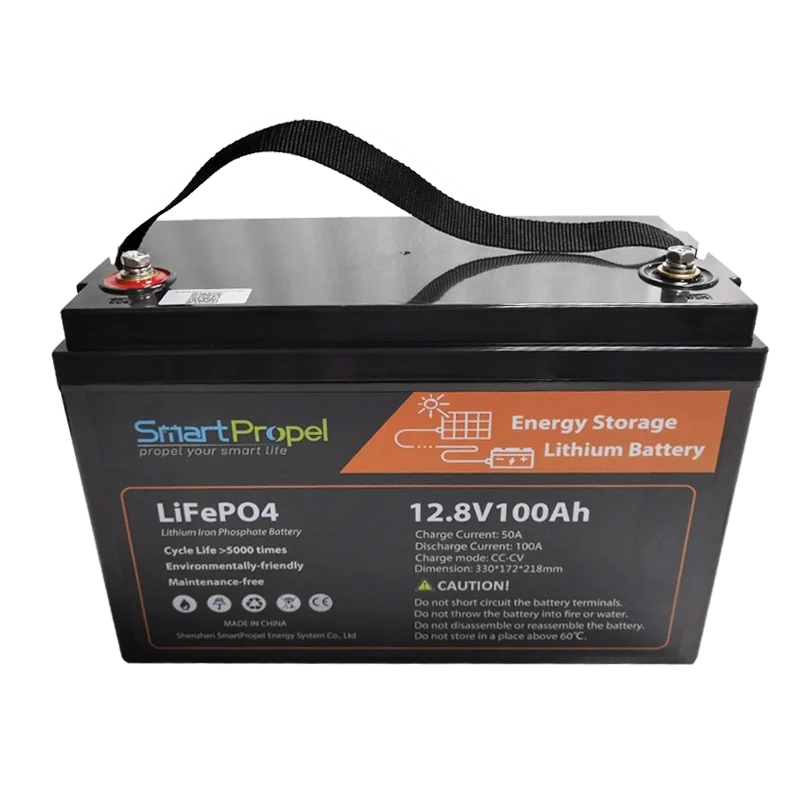

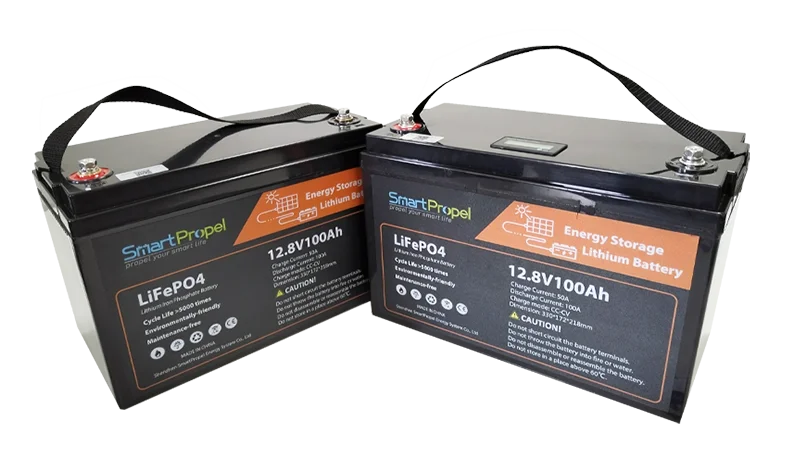

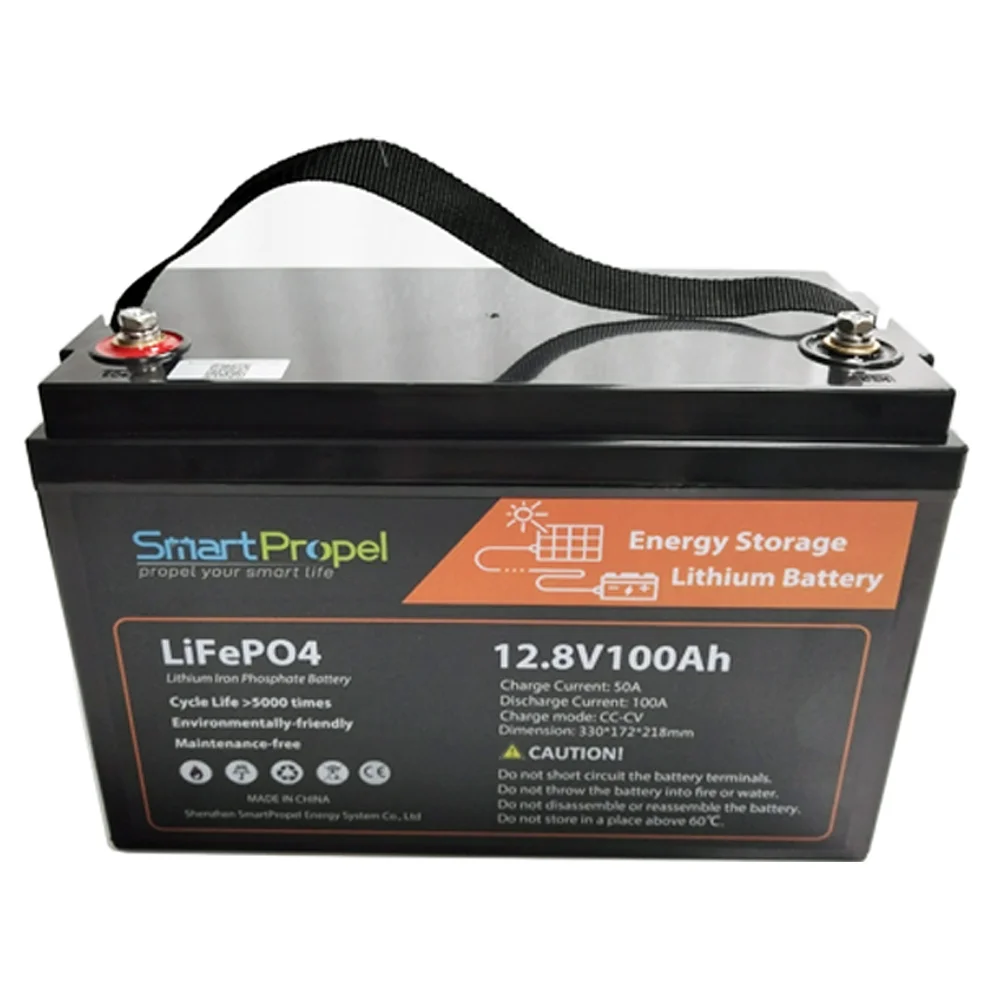

Smartpropel Cost effective Battery Case For LiFePo4 Battery Daly BMS 12V/24V 100Ah Lifepo4 Battery Protection Pack Lifepo412V
- Category: >>>
- Supplier: Shenzhen Smartpropel Energy System Co. Ltd.
Share on (1600770797432):
Product Overview
Description
Products Description
Advantages:
◆Using the technology of lithium iron phosphate cell, superior safety, 5000 cycles, 10 years design service life.
◆Built-in BMS automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.

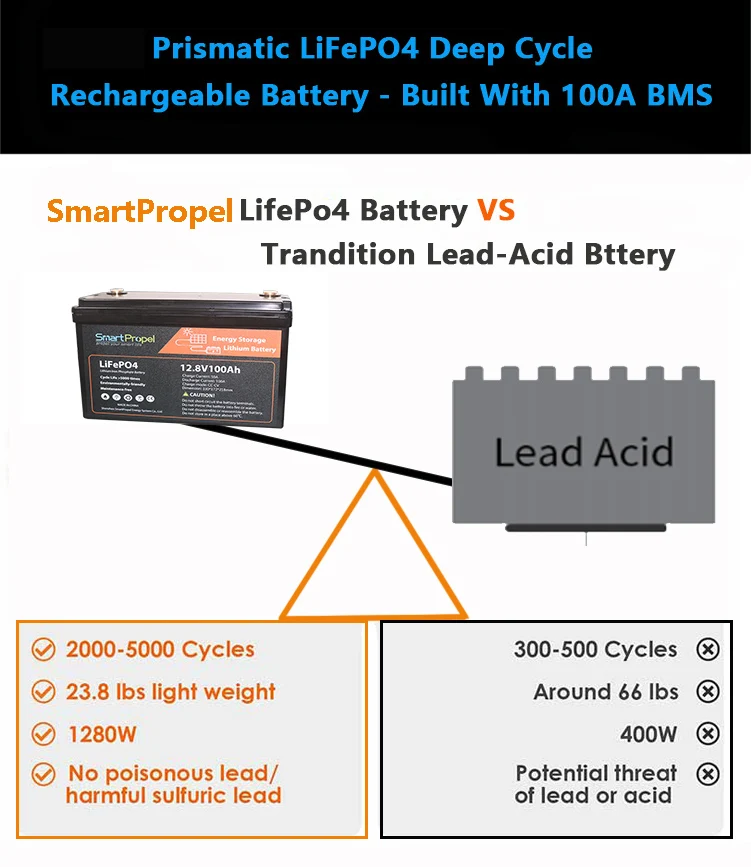

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Wider temperature range:-20℃~60℃.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Wider temperature range:-20℃~60℃.

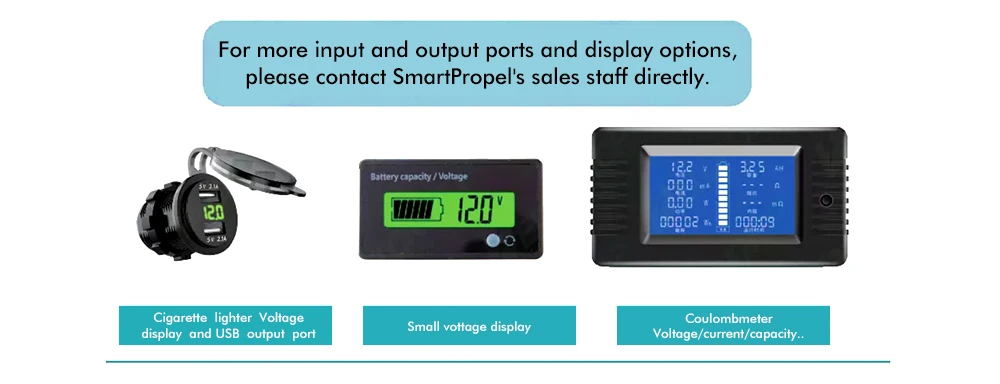

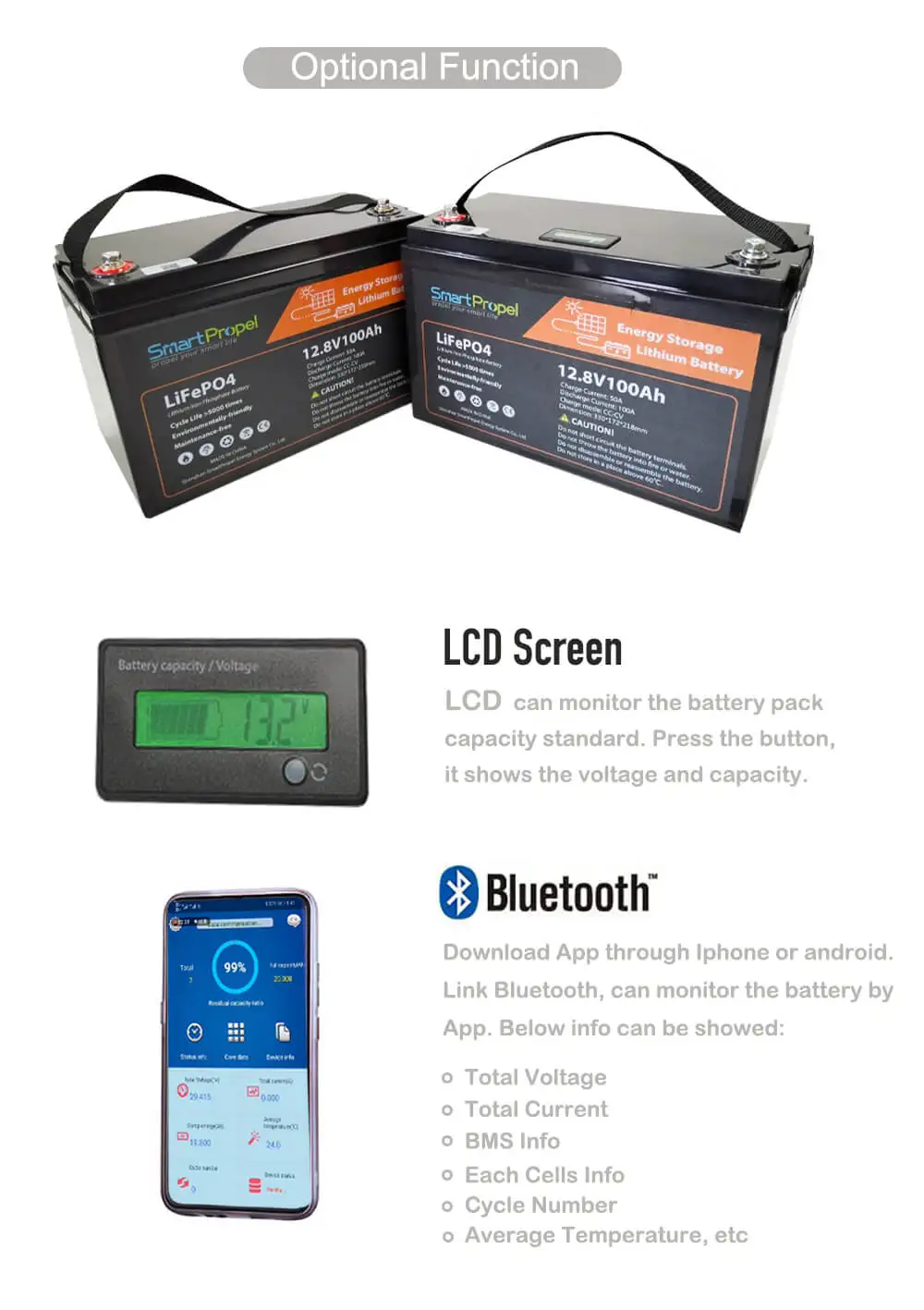

◆ Optional function: LCD screen and Bluetooth Function.

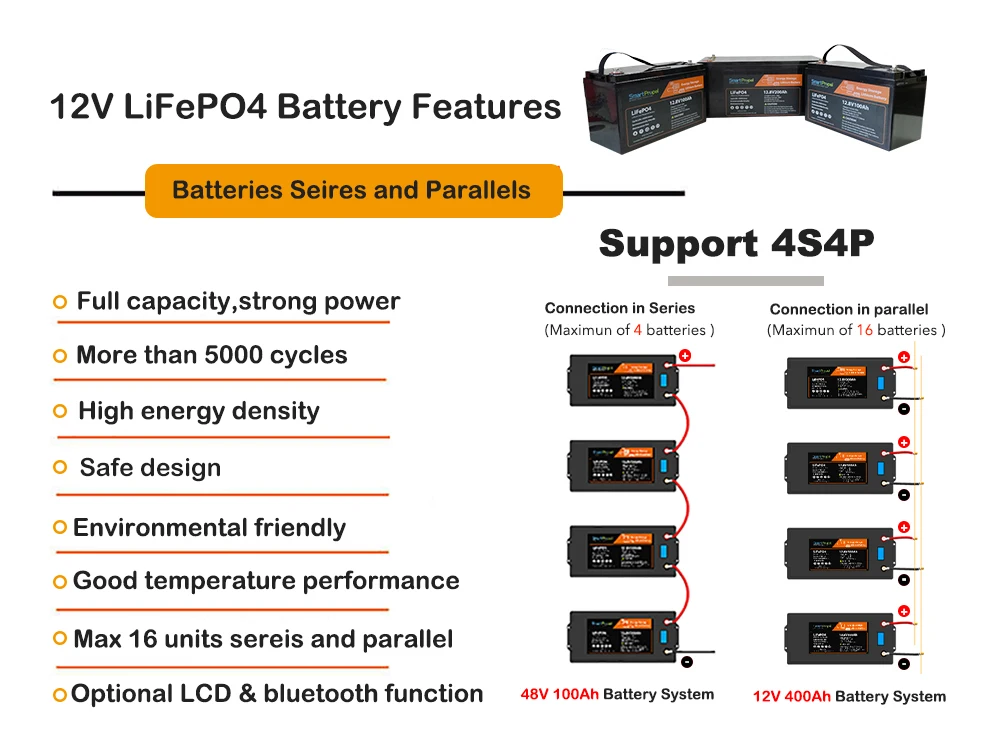

◆ Support maximum 16 batteries units series or parallels.
◆ Support maximum 16 batteries units series or parallels.
Specification:
Electrical Characteristics | Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤40mΩ | |
Cycle Life | 3000 Cycles @ 0.2C Charging/Discharging ,80% DOD; 5000 Cycles, 50% DOD | |
Self Discharge | ≤3.5% per month at 25℃ | |

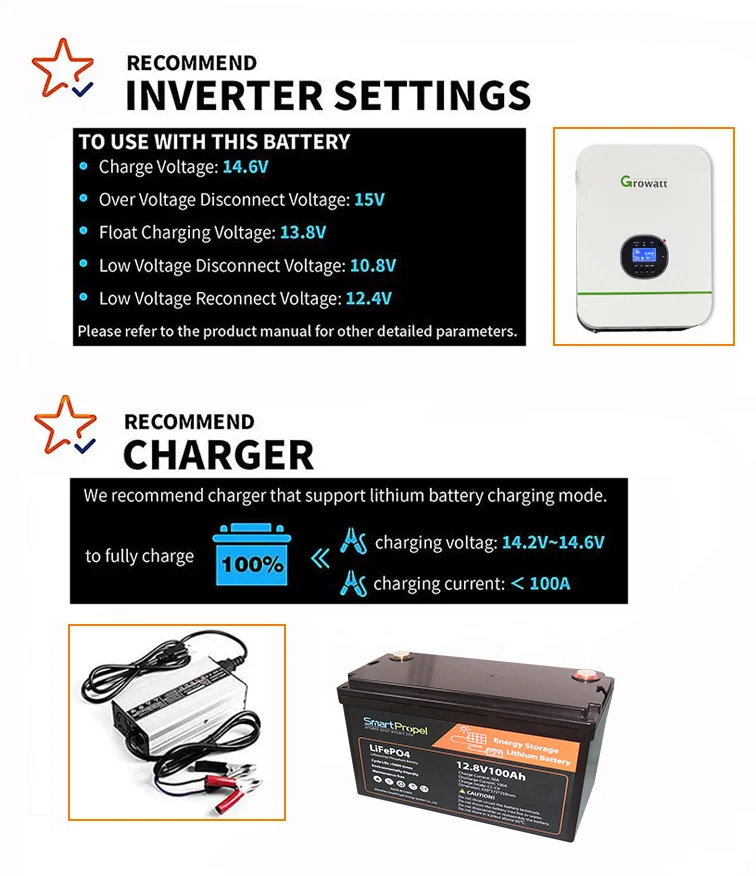

Standard Charging | Max.Charging Voltage | 14.0~14.6V |
Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
Charging Current | 20A | |
Max.Charging Current | 100A | |
Standard Discharging | Discharging Current | 100A |
Max. Continuous Current | 50Ah | |
Max.Pulse Current | 300A(<3S） | |
Discharging Cut-off Voltage | 10.0V | |
Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
Water Dust Resistance | IP65 | |
Structure | Cell | LiFePO4 |
Casing | Plastic | |
Dimension(L*W*H) | 330*172*218mm | |
Weight | Approx. 11Kg | |

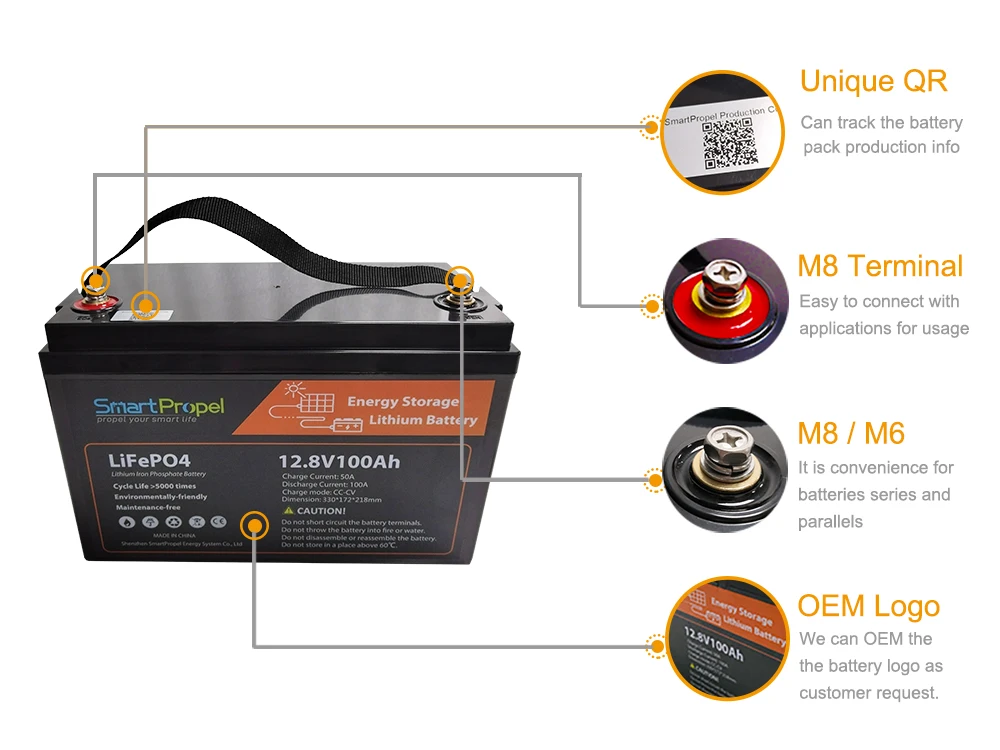

Terminal | M8 / M6 | |
Cell equalization function | ≥3.4V (can be reset) | Equalized opening voltage |
Cell equalization function | ≥30mV (can be reset) | Equalizing the start voltage difference |
≤20mV (can be reset) | Equalize the end voltage difference |

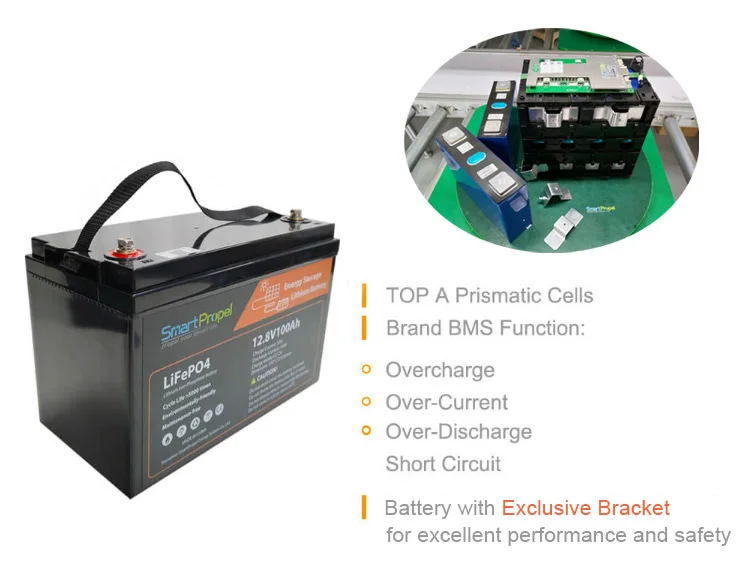

SmartPropel 12V Solar Battery Features
Advance Internal Bracket
EPE/Epoxy Board
PVC Film All Surround
SmartPropel adopt excellent EXCLUSIVE BRACKET, which is significant for battery battery performance, durable usage and longercyclelife. Further more,
1)Add EPE for Anti-Vibration, even on bumpy road driving can be well protects the battery pack.
2)Epoxy Board exist for good isolutation, extreme protect the battery pack any safety risk.
3) Quadruple protection PVC film, well package the battery pack, for waterproof and better protection for whole battery pack.
Bracket/EPE/Epoxy/PVC, 4 advanced steps for battery highest level protection which make our battery more competitive than other brands.
1)Add EPE for Anti-Vibration, even on bumpy road driving can be well protects the battery pack.
2)Epoxy Board exist for good isolutation, extreme protect the battery pack any safety risk.
3) Quadruple protection PVC film, well package the battery pack, for waterproof and better protection for whole battery pack.
Bracket/EPE/Epoxy/PVC, 4 advanced steps for battery highest level protection which make our battery more competitive than other brands.
Why Choose Our 12V Energy Storage Batteries

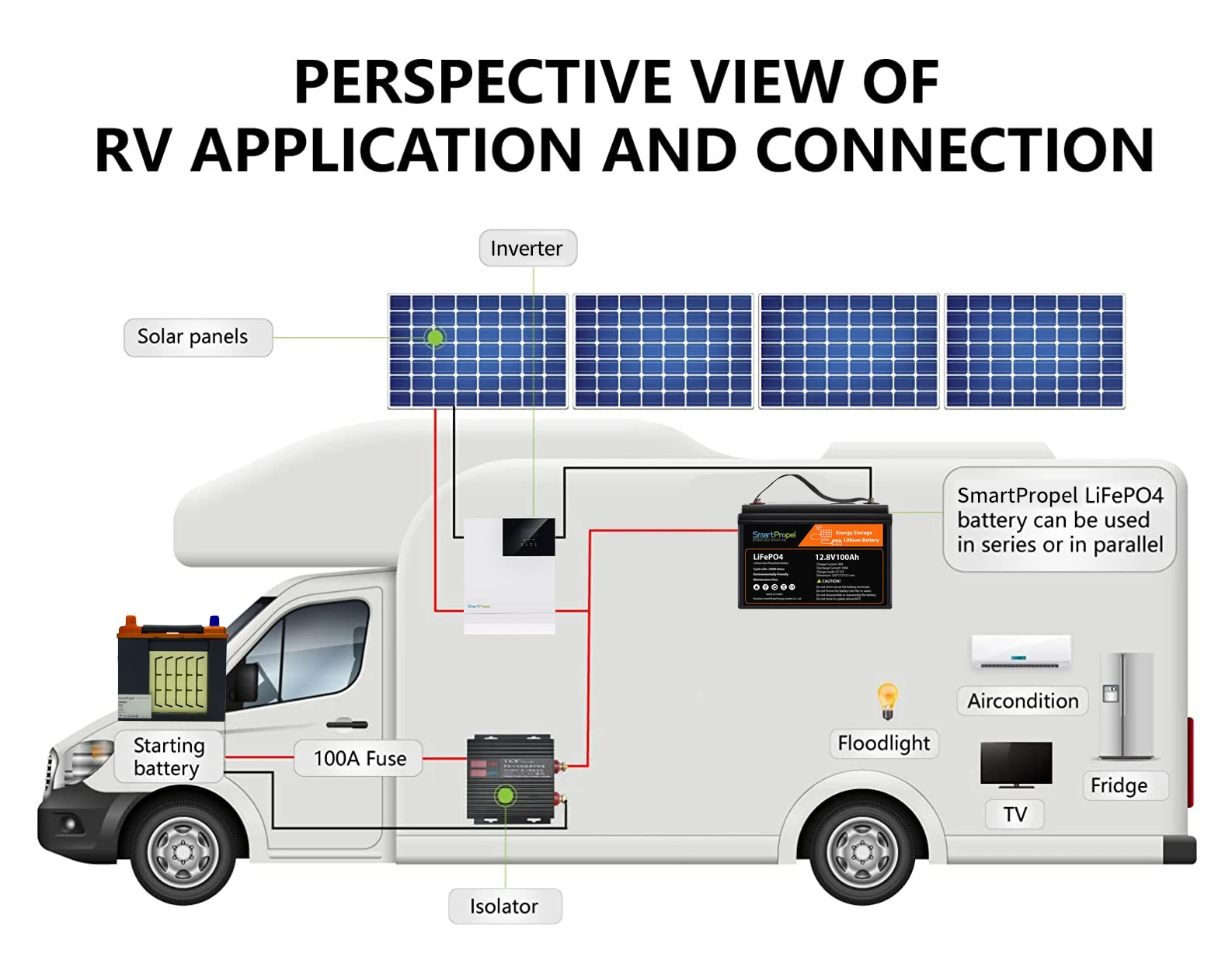

12V Solar Battery Application Field
Company Profile
SmartPropel Introduction >>>
Established in 2015, SmartPropel is a professional lithium battery manufacturer and energy solution Factory.
Supported by 3 production base, we focus on E-bike battery, electric scooter battery, EV battery, energy storage battery, outdoor power supply, etc.our main product line covers most lithium battery in diversity field, one-stop station for worldwide customers.
We start with environment-friendly production while adopting the semi-automatic flow operation mode to ensure good production efficiency. We strictly control every detail, insisting on not accepting incoming defective materials, not producing defective products, or not shipping defective products. Committed to the development of high capacity, high quality, high-performance lithium battery products.
Supported by 3 production base, we focus on E-bike battery, electric scooter battery, EV battery, energy storage battery, outdoor power supply, etc.our main product line covers most lithium battery in diversity field, one-stop station for worldwide customers.
We start with environment-friendly production while adopting the semi-automatic flow operation mode to ensure good production efficiency. We strictly control every detail, insisting on not accepting incoming defective materials, not producing defective products, or not shipping defective products. Committed to the development of high capacity, high quality, high-performance lithium battery products.
SmartPropel, Propel your smart Life.

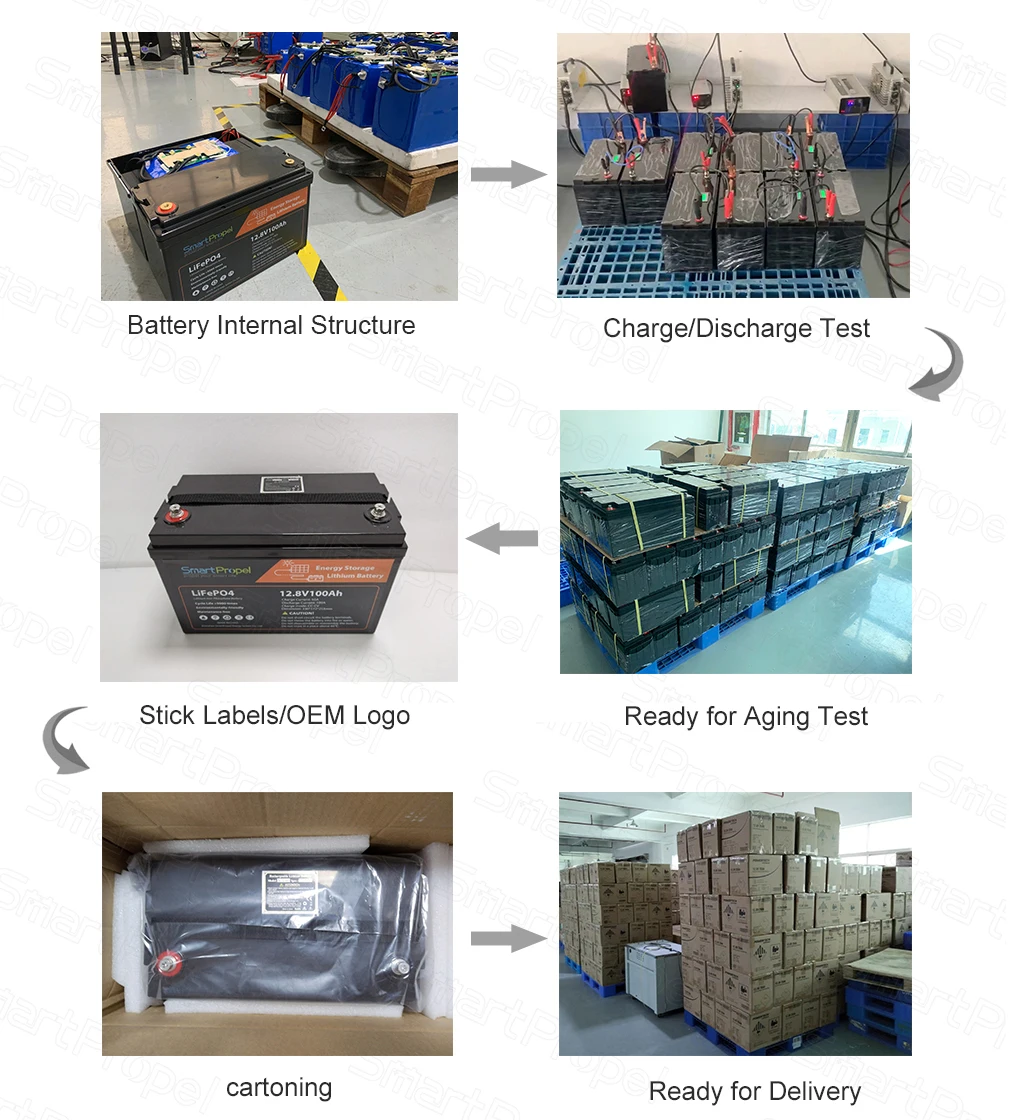

Production Line

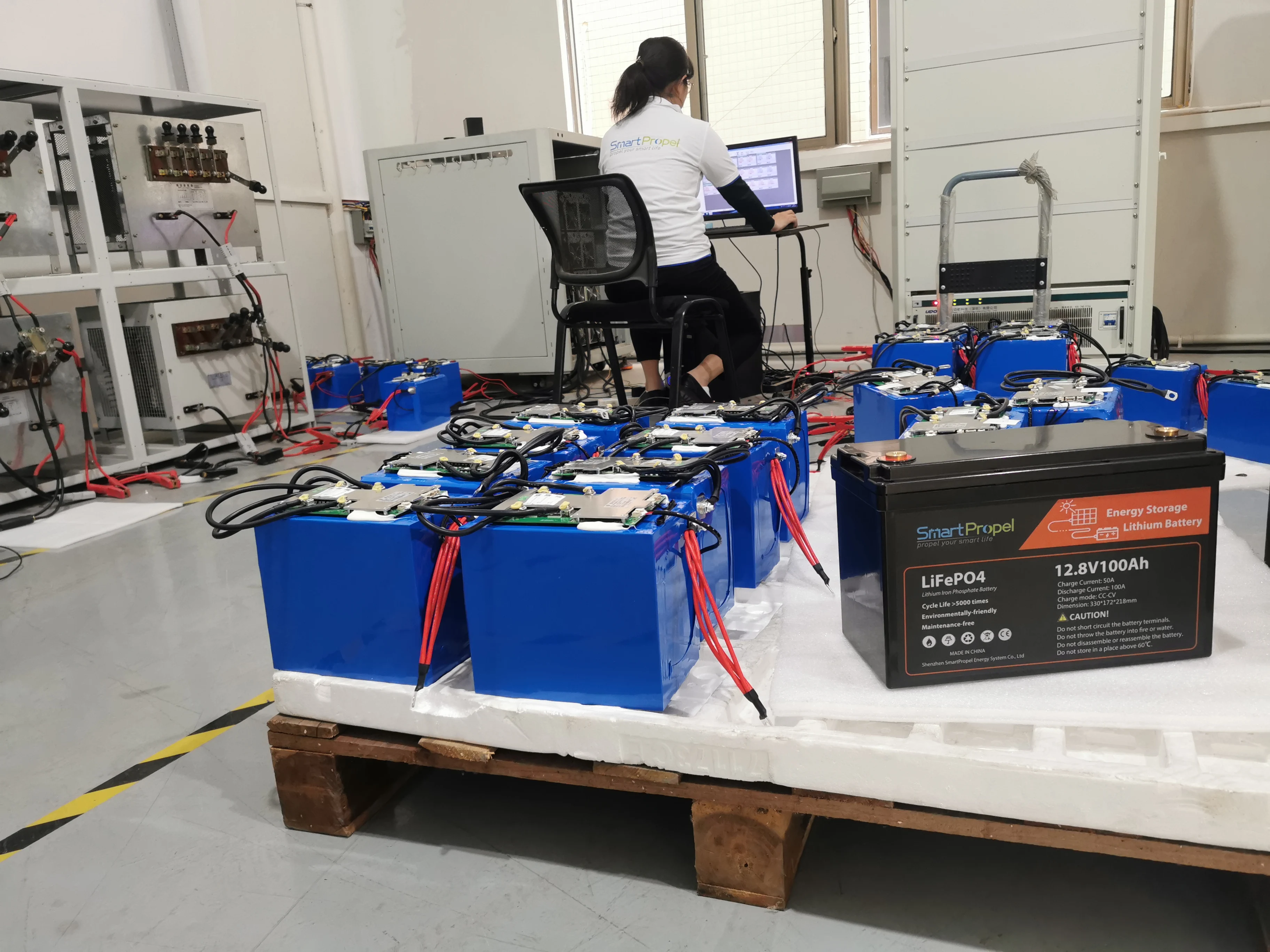

Test Equipment
Certificates
FAQ
Q1. Are you a factory?
A: Yes, we are a lithium battery factory specialized in LITHIUM BATTERY over 15 years.,we have established warehouse and battery service center in USA, Germany and UK.
Q2. What kinds of cells do you use for lithium battery?
A: We mainly use Samsung, Panasonic and LG cells for battery packs, and also some high quality Chinese cells are used, as they also have good performance.
Q3. Can I get a lithium battery sample for testing?
A: Yes, We offer sample. Standard battery or customized battery can be provided. Once the mass production order is placed, the sample charges will be deducted.
Q4. How about your delivery time?
A: Will be deliver to USA/UK/EU 3-5 Days after payment.
Generally, it will take 7 to 12 days after receiving your payment. It will be 20-25 days for bulk order.The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test of battery before delivery.
A: Yes, we are a lithium battery factory specialized in LITHIUM BATTERY over 15 years.,we have established warehouse and battery service center in USA, Germany and UK.
Q2. What kinds of cells do you use for lithium battery?
A: We mainly use Samsung, Panasonic and LG cells for battery packs, and also some high quality Chinese cells are used, as they also have good performance.
Q3. Can I get a lithium battery sample for testing?
A: Yes, We offer sample. Standard battery or customized battery can be provided. Once the mass production order is placed, the sample charges will be deducted.
Q4. How about your delivery time?
A: Will be deliver to USA/UK/EU 3-5 Days after payment.
Generally, it will take 7 to 12 days after receiving your payment. It will be 20-25 days for bulk order.The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test of battery before delivery.
