top discharge plate basket China manufacturer copper Potassium sulfide Borax filter centrifuge
- Category: >>>
- Supplier: Liaoning,Zonelink,Trading,Co.,Ltd.
Share on:
Product Overview
Description

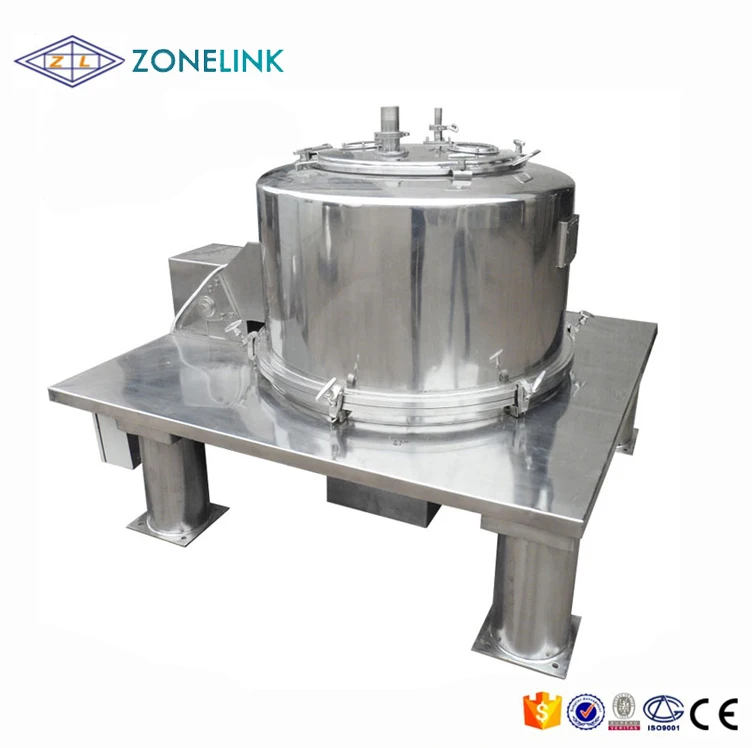

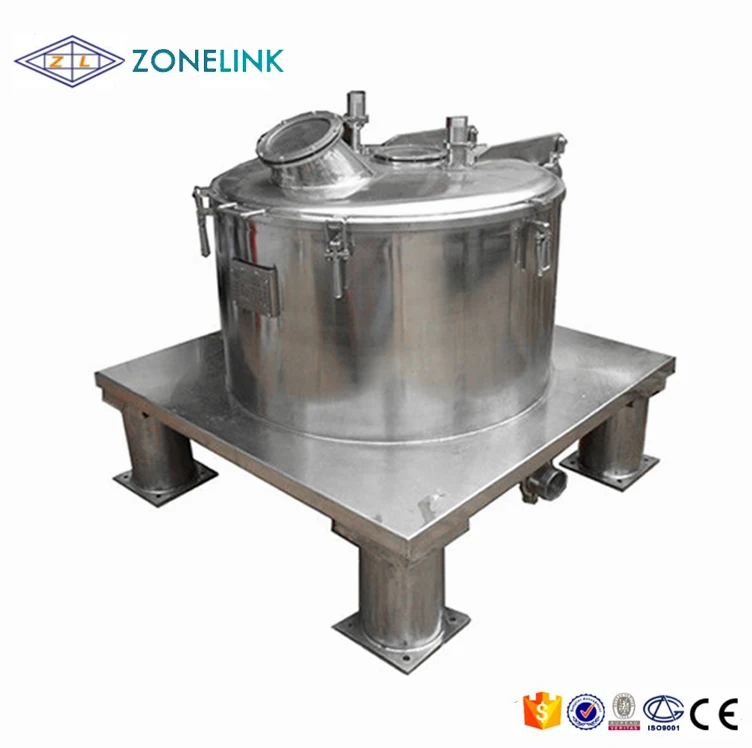

China manufacturer copper Potassium sulfide Borax filter centrifuge
PS filter centrifugeFeature:
1. The structure design is reasonable, simple geometry, effectively eliminate the hygienic dead Angle, the smooth transition of elements, polishing treatment on the surface, external components, fasteners and material contact parts are made of stainless steel shell for flip, for centrifuge shell and drum interlayer space a thorough cleaning.
2. Stand for plate type structure, lower center of gravity, the machine cover an area of an area small, frame and shell welding are used, load high strength.
3. Configure Yin Nian liquid or liquid rubber damping shock absorber, more effectively eliminates the vibration, can achieve without basic installation.

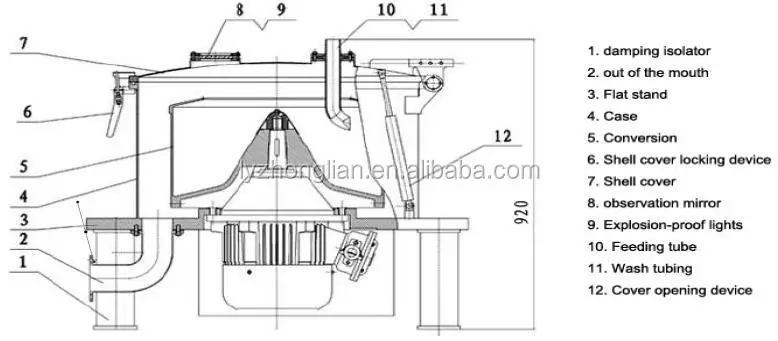

PS filter centrifuge Structure chart:
PS filter centrifuge Technical parameters:
Item /Model | PS300-NC | PS450-NC | PS600-NC | PS800-NC | PS1000-NC | PS1200-NC | ||
| Thickness(mm) | 4 | 5 | 6 | 8 | 10 | 12 | |
| Diameter(mm) | 300 | 450 | 600 | 800 | 1000 | 1200 | |
Bowl | High(mm) | 180 | 300 | 315 | 400 | 420 | 520 | |
| Filter area(m3) | 0.15 | 0.24 | 0.66 | 1 | 1.3 | 1.65 | |
| Liquid blocking Plate diameter(mm) | 200 | 320 | 420 | 560 | 750 | 870 | |
Working volume(L) | 7.5 | 20 | 45 | 100 | 140 | 280 | ||
Loading capacity(kg) | 10 | 30 | 100 | 135 | 200 | 400 | ||
Speed(r/min) | 0-2500 | 0-2000 | 0-1500 | 750/1500 | 1200 | 970 | ||
Max.Separation factor | 1340 | 1000 | 750 | 1000 | 800 | 630 | ||
Motor | Model | YBLD | ||||||
Type | Anti-explosion | |||||||
Power(kw) | 1.8 | 2.6 | 3 | 5/7.5 | 11 | 15 | ||
Speed(r/min) | 2840 | 2884 | 1500 | 750/1500 | 1460 | 1460 | ||
Size(L*W*H)(mm) | 650*650*620 | 800*800*760 | 1100*1100*1000 | 1400*1400*1100 | 1500*1600*1200 | 2500*2000*1500 | ||
Weight(kg) | 200 | 410 | 610 | 1300 | 2300 | 3500 | ||

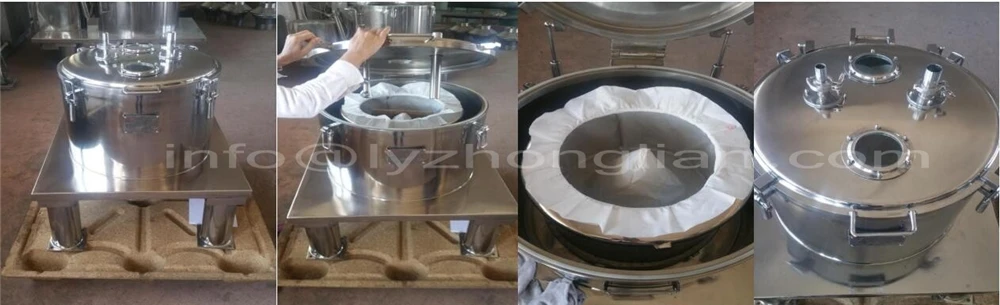

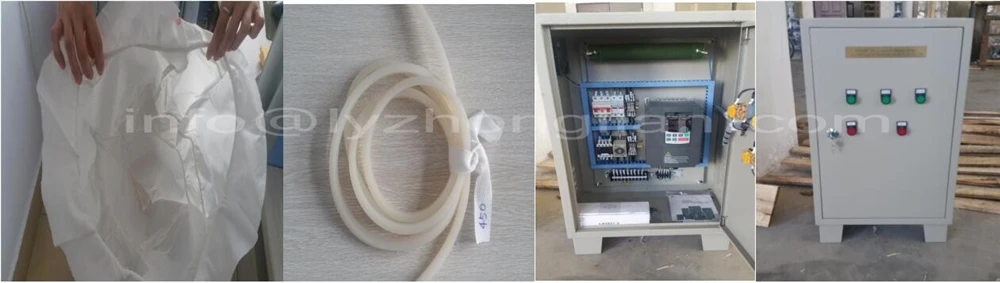

PS filter centrifuge Details picture:
filter bag sealing ring electriccontrolcabinet

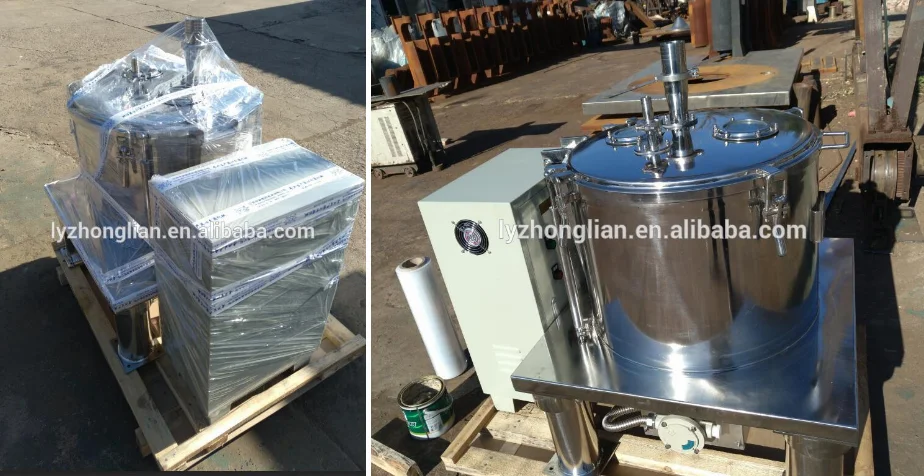

PS filter centrifuge Packing picuture:
Company Information
Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd. ,belongs to ZHONGLINAN international Group. We are the professional manufacturer of pharmaceutical equipment and food equipment, which including separating equipment, filling equipment, packing equipment, dryer and relevant complete set of production line equipment.

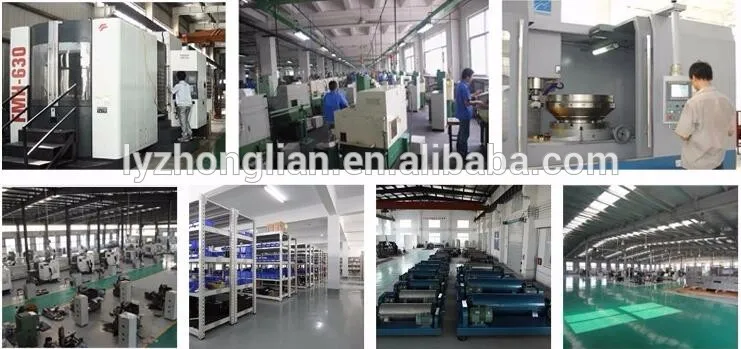

Group was founded in 2001, the headquarters is located in Liaoyang city, Liaoning province. The factory covers an area of ten thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. In the same industry take the lead through the ISO9001:2008 international quality system certification, and get the all certification.
Exhibition

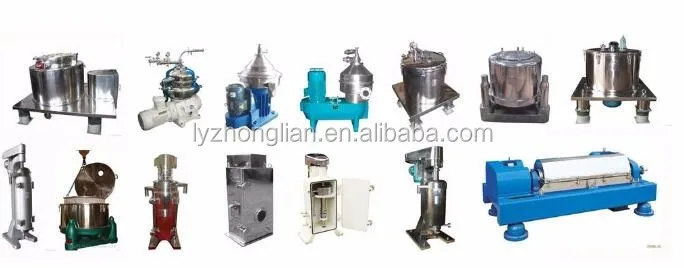

We also can provide as follow products
