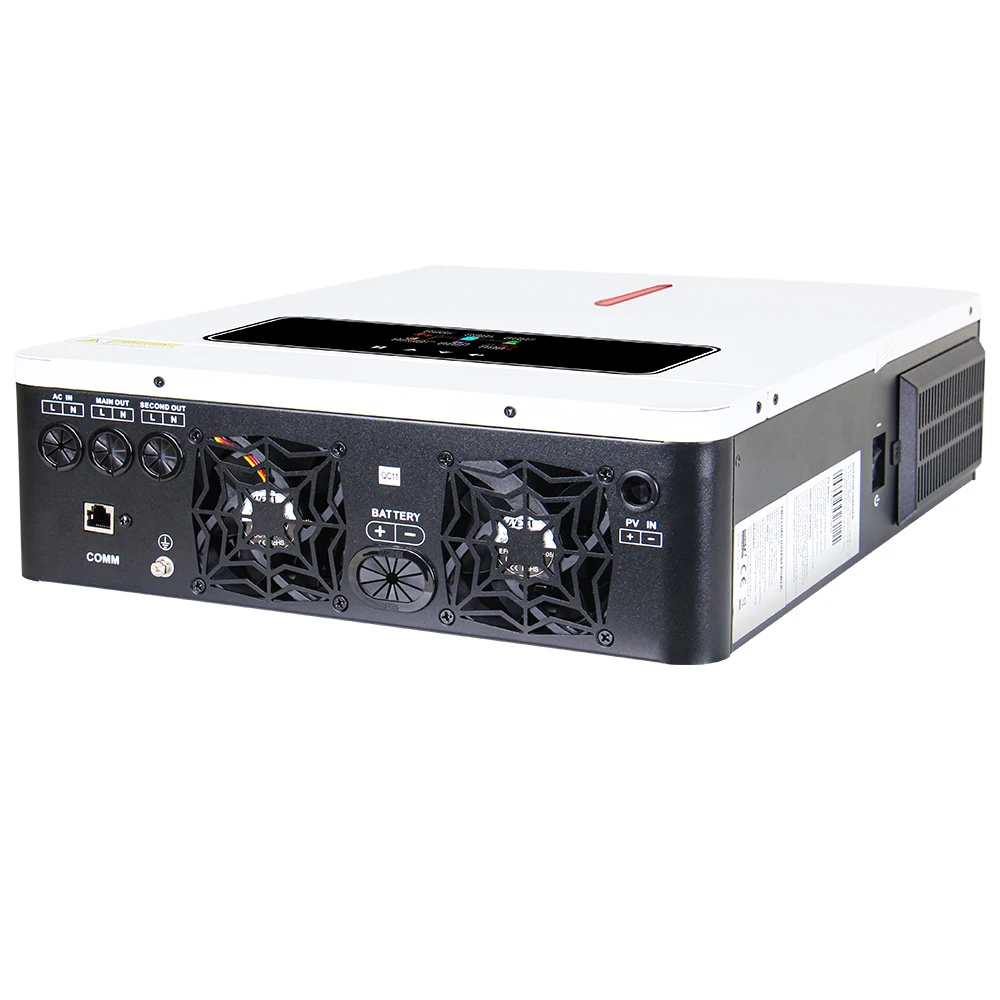

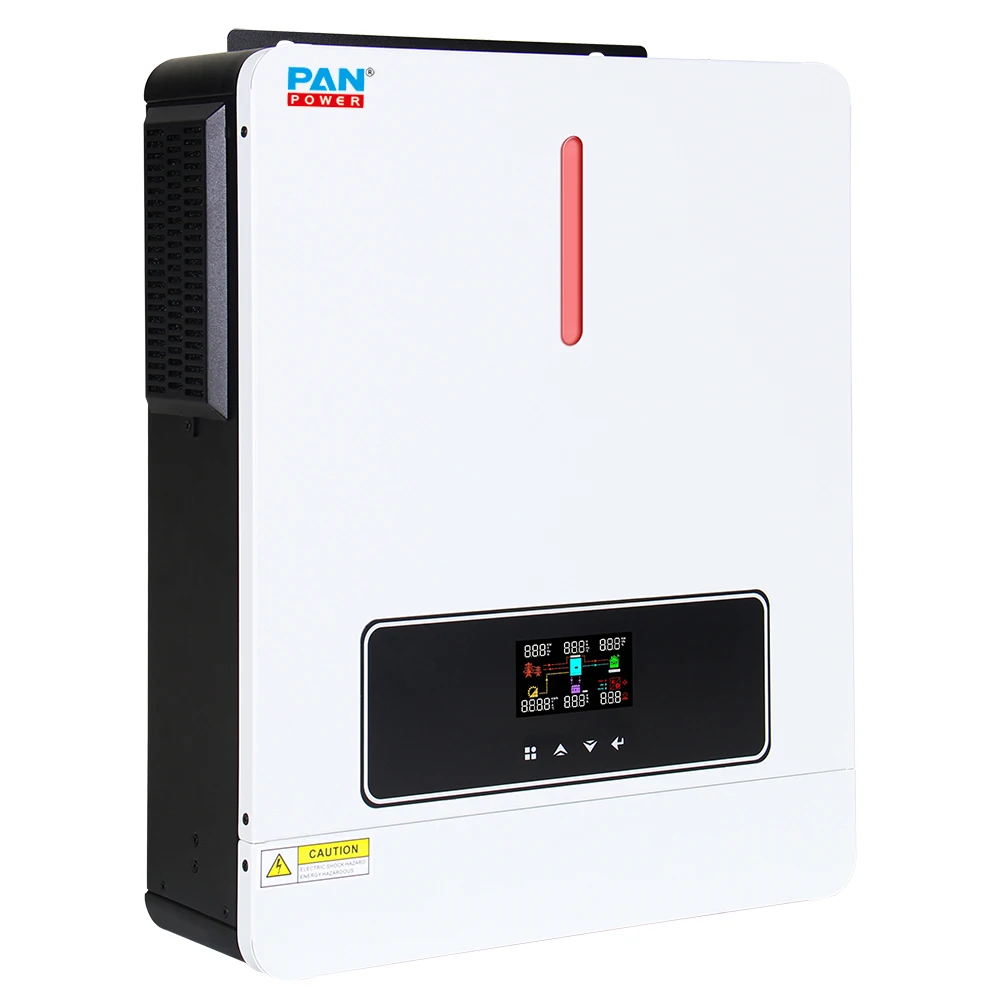

China wholesale 48v 220v 6000w with charger on off grid hybrid solar power inverter
- Category: >>>
- Supplier: Guangdong Panpower Power Supply Co. Ltd.
Share on (1600770895144):
Product Overview
Description
Main Features
*Pure sine wave solar inverter;
*Output power factory 1.0;
*One-key restoration to factory settings；
*Built-in Lithium battery automatic activation；
*Built-in 120A MPPT solar controller；
*One-key restoration to factory settings；
*Built-in Lithium battery automatic activation；
*Built-in 120A MPPT solar controller；
*Max solar power 6200W for 3.6KW, 6500W for 6.5KW；
*High PV input voltage range(90~450VDC)；
*Built-in anti-dusk kit for harsh environment；
*Inverter can running without battery;
*Configurable AC/Solar input priority via LCD setting;
*Smart battery charge design to optimize battery life;
*Dual output（can work as off grid, can also work as on/off grid)；
*High PV input voltage range(90~450VDC)；
*Built-in anti-dusk kit for harsh environment；
*Inverter can running without battery;
*Configurable AC/Solar input priority via LCD setting;
*Smart battery charge design to optimize battery life;
*Dual output（can work as off grid, can also work as on/off grid)；
*WIFI available for IOS and Andriod；(option);
*Selectable input voltage(90V~280V) range for home appliances and personal computers.
*Selectable input voltage(90V~280V) range for home appliances and personal computers.
Technical Parameters
MODEL | VICTOR NM-ECO-3.6KW PLUS | VICTOR NM-ECO-6.2KW PLUS | ||
PHASE | 1—phase | |||
Rated Output Power | 3600W | 6200W | ||
Maximum PV Input Power | 6200W | 6500W | ||
Maximum Solar Charging Current | 120A | 120A | ||
OFF-GRID OPERATION | ||||
AC INPUT | ||||
AC Start-up Voltage/Auto Restart Voltage | 120~140VAC/180VAC | |||
Acceptable Input Voltage Range | 90~280VAC or 170~280VAC | |||
Maximum AC Input Current | 30A | 40A | ||
Nominal operating frequency | 50/60Hz | |||
Surge power | 7200W | 12400W | ||
BATTERY MODE OUTPUT(AC) | ||||
Nominal Output Voltage | 220/230/240VAC | |||
Output Waveform | Pure sine wave | |||
Efficiency (DC to AC) | 94% | |||
BATTERY & CHARGER | ||||
Battery Type | Lead acid/Gel/Lithium | |||
Nominal DC Voltage | 24VDC | 48VDC | ||
Maximum Charging Current (Solar to AC) | 120A | |||
Maximum AC Charging Current | 100A | |||
GRID-TIE OPERATION | ||||
PV INPUT(DC) | ||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||
MPPT Range@Operating Voltage | 90VDC~450VDC | |||
Number of MPPT Tracker/Max Input Current | 1/27A | |||
EFFICIENCY | ||||
Maximum Conversion Efficiency (Solar to AC) | 98% | |||
TWO LOAD OUTPUT POWER(V2.0) | ||||
Full Load | 3600W | 6200W | ||
Maximum Main Load | 3600W | 6200W | ||
Maximum Second Load(battery mode) | 1200W | 2067W | ||
Main Load Cut Off Voltage | 22VDC | 44VDC | ||
Main Load Return Voltage | 27VDC | 54VDC | ||
GENERAL | ||||
Dimension, D*W*H (MM) | 420*310*110 | |||
Net Weight(KGS) | 10 | 11 | ||
Communication Port | RS232/WIFI | |||
Operating Temperature | -10~50℃ | |||

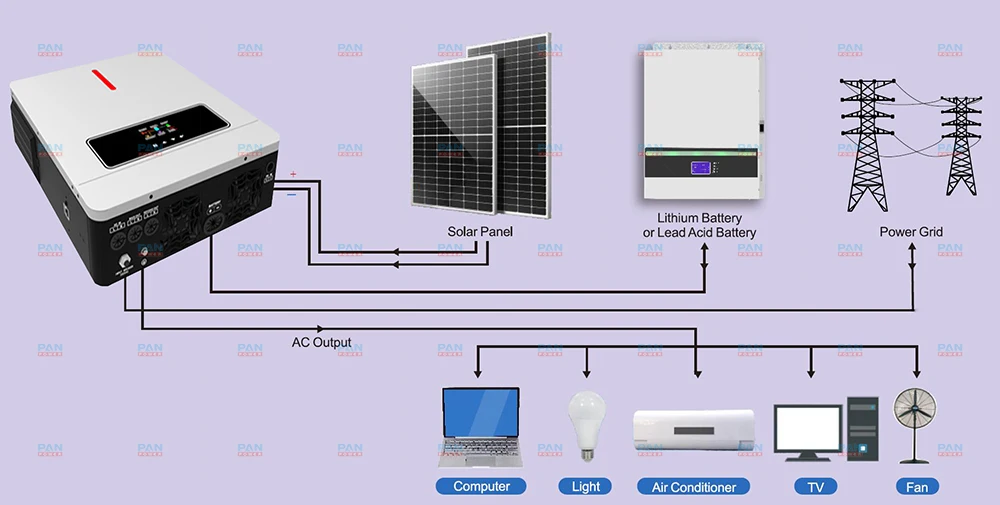

Solar System Diagram
This 6.2kw inverter is a hybrid inverter.

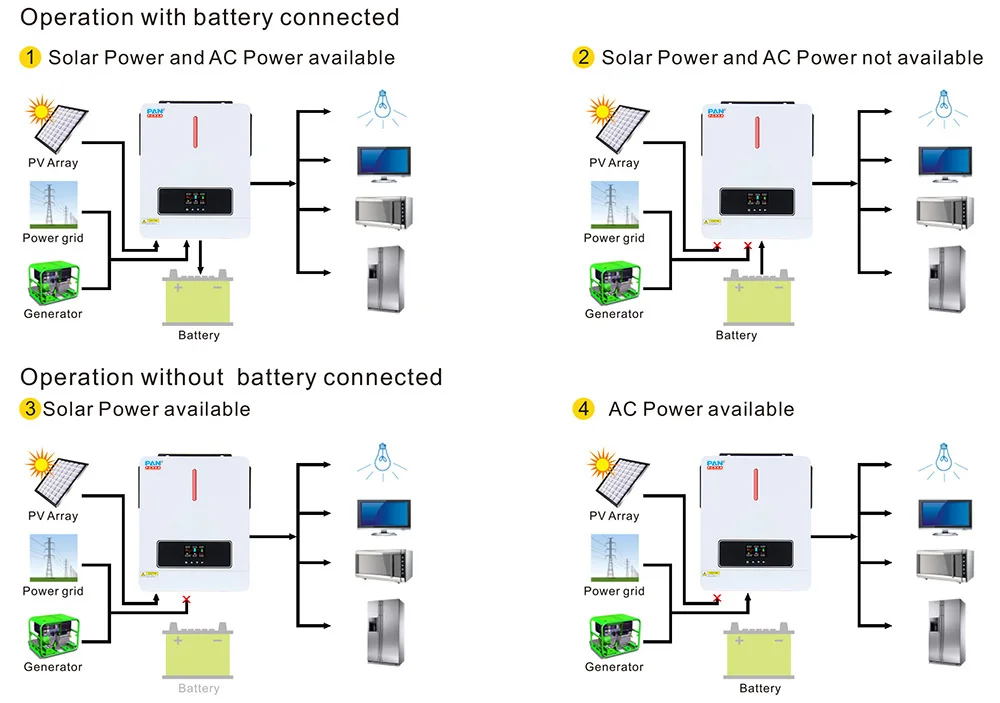

This inverter can work with battery, can also work without battery.
This 6.2kw inverter is a hybrid inverter.
This inverter can work as off grid hybrid inverter, can also work as on/off grid hybrid inverter.
Product Details
Application
Company Introduction
Foshan Panpower Science & Technology Co.,Ltd is the earliest manufacturer in China, producing power supply products. We have independent intellectual property and strong design and development capability. Our products include UPS, Inverter, EPS, voltage stabilizer, maintenance-free sealed lead acid battery. Our products are applied to many industries, such as aviation,railway, bank, security, electric power, road, national defense, insurance, electrical power and others. The customs, hospitals and governments give us a good evaluation due to our competitive price, high quality and complete service. Our advantages, which include up-to-date technology, 20 years rich production experience, first rate production equipment, strong R&D capacity, quick response to the market and new design concept. These foundations so allow us to continually develop new high quality products in compliance with the application of electrical grid of both China and foreign countries.
FAQ
Q: What’s the payment term?
Q: What is the delivery time?
A: Inverter in stock. Can delivery immediately.
Q: What is the shipping way?
A: By Air, by Sea or by Express.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A: Credit card, T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: Is this hybrid inverter?
A: yes. off gird hybrid, on/off grid hybrid.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: Is this hybrid inverter?
A: yes. off gird hybrid, on/off grid hybrid.
Q: What is the delivery time?
A: Inverter in stock. Can delivery immediately.
Q: What is the shipping way?
A: By Air, by Sea or by Express.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
