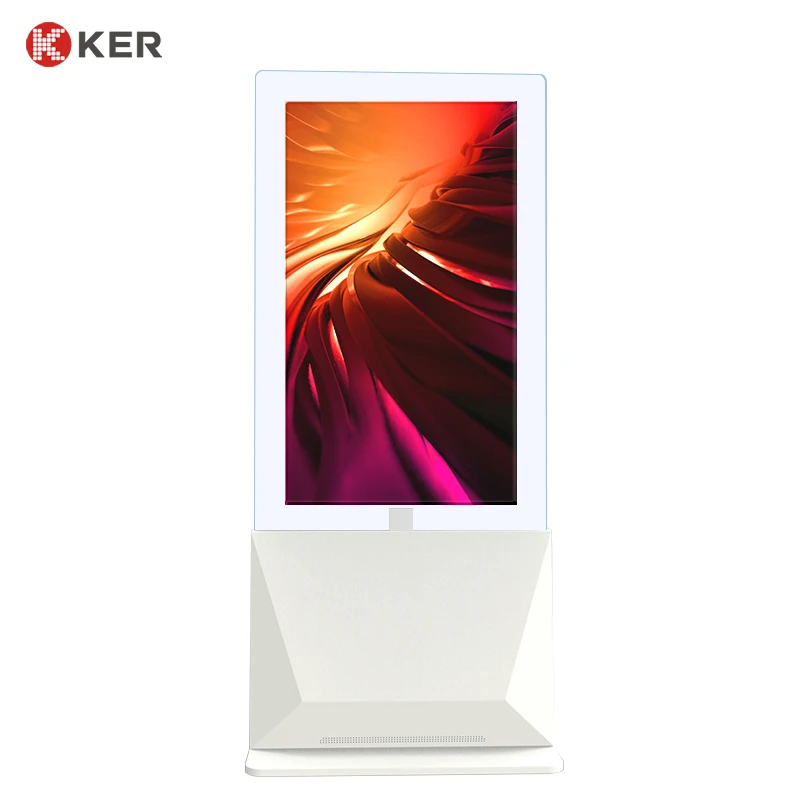

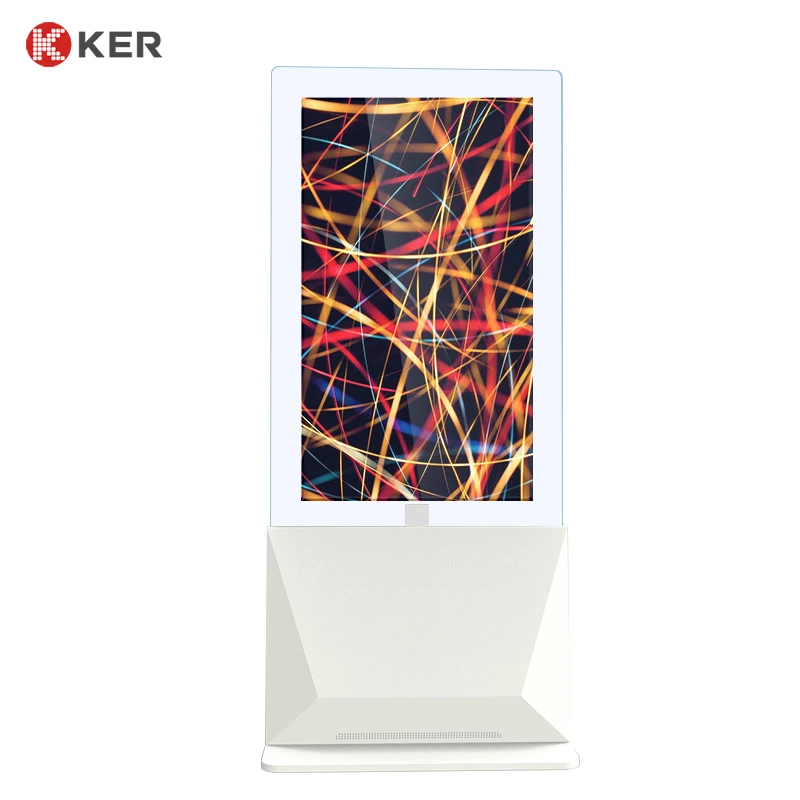

43 Inch Dual Side Stand Floor Android Digital Signage Media Player Advertising Player
43 Inch Dual Side Stand Floor Android Digital Signage Media Player Advertising Player
43 Inch Dual Side Stand Floor Android Digital Signage Media Player Advertising Player
43 Inch Dual Side Stand Floor Android Digital Signage Media Player Advertising Player
43 Inch Dual Side Stand Floor Android Digital Signage Media Player Advertising Player
43 Inch Dual Side Stand Floor Android Digital Signage Media Player Advertising Player
43 Inch Dual Side Stand Floor Android Digital Signage Media Player Advertising Player

43 Inch Dual Side Stand Floor Android Digital Signage Media Player Advertising Player

Share on (1600772051771):


Price:

Quantity:


Product Overview

Description



Product Paramenters


Product Characters
Digital signage is equipped with a multimedia information publishing system based on hardware integration integration. It can realize remote operations, centralized control, partition management, real-time update, to help enterprise to set up international media networks.

In order to meet the commercial display of more precise market demand, on the basis of general digital signage, we use each 8mm ultra-thin mini LED display as the base panel, and deployed with 2 mini LED displays, and equipped with transparent explosion-proof glass, then it comes with double side digital signage which is suitable for commercial ultra-thin display field area.

In the double side digital signage series, it provides three general dimension panels for purchasers to select: 43”\\49”\\55”, and also provides hanging model (horizontal screen\\vertical screen), floor standing model (horizontal screen\\vertical screen), suitable for commercial display ultra-thin, high-definition, translucent, wonderful scene applications, suitable for a variety of business display scenarios.

Double side hanging digital signage charaters:
(1)Shopping mall window display;
(2)Fashion double side display (with side A & side B);

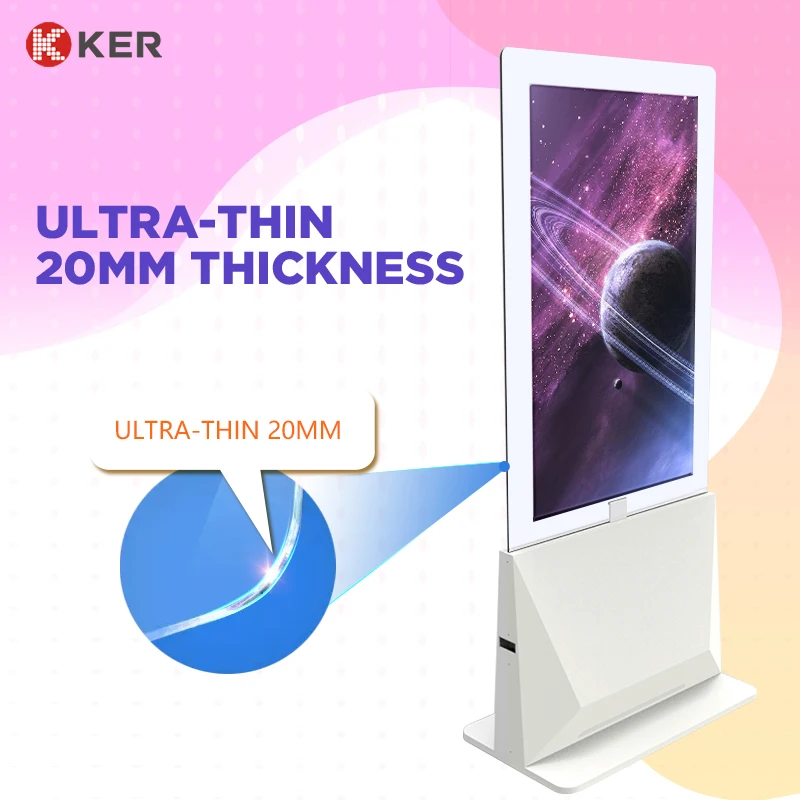

(3)Ultra thin 20mm thickness;

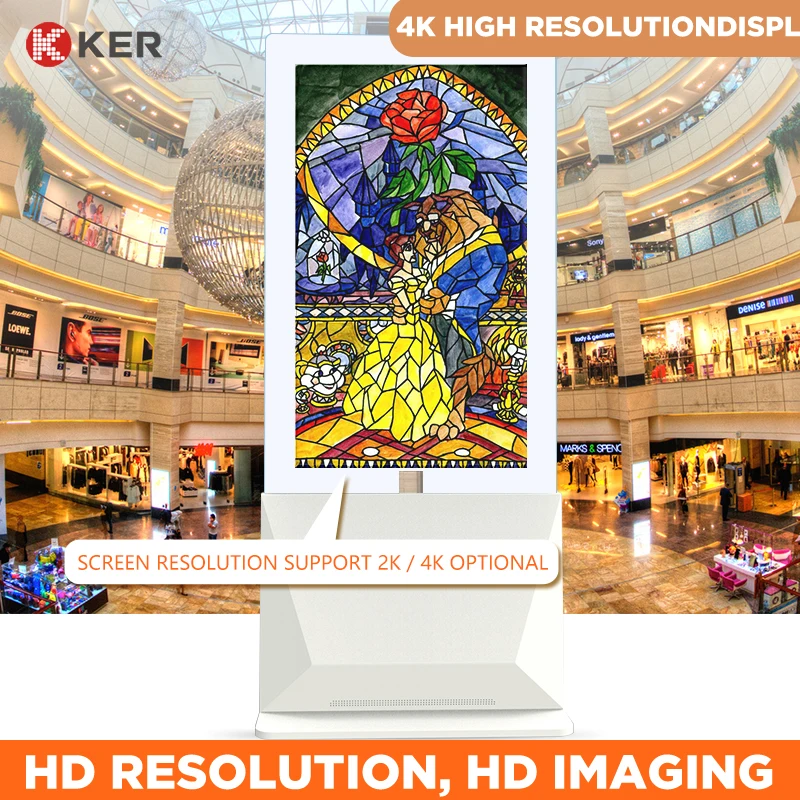

(4)4K high resolution display;
(5)Industrial level CPU & motherboard;
(6)Android or Windows dual OS optional;
(7)Support program multi time section management;
(8)B\\S structure of digital signage.


Specification


*PRODUCT NAME
(1)BASIC PARAMETERS
Product Name
Double Side Digital Signage (S1)
Product Model
DS-S1 43"
* PRODUCT SPECIFICATION
CATEGORIES
CATEGORIES -2
DESCRIPTIONS
*PRODUCT SPECIFICATION
(1)LCD PARAMETERS
Screen Size
43 "
Screen Type
LED industrial grade A standard LCD screen
Screen Brand
LG
Display Area
530MM*941MM
Resolution
1920*1080
Screen Ratio
16:09
Brightness
350cd/㎡
Contrast
1500:1
Response Time
5.5ms
Max. Color
16.7m
Refresh Rate
50\\60hz
Visual Angle
178°(H)\\178°(V)
Service Lift
60000hours
(2)HOST CONFIGURATION
Processor
Rockchip RK3288 maximum 64 -bit high -performance CPU, 2.0GHz;
Chipset
1. Double Cortex-A72 large core+four Cortex-A53 small core 64-bit CPU
2. Built-in low-power MCU Cortex-M0
GPU
Quad-core ARM Mali-T860MP4 High-performance GPU
Memory
2G (Optional)
Storage
8G (Optional)
Display function
LVDS output: 1 single/double road, you can directly drive 50/60Hz LCD screen
EDP output: EDP interface LCD screen that can directly drive multiple resolution
Network features
Wifi, BT: built -in WIFI, BT4.0 (optional) support dual -frequency WIFI
3G: built -in WCDMA, EVDO, 4G full Netcom, support voice calls
Ethernet: 2, which is 100M/1000M Ethernet, respectively
Audio function
Audio and video output: Support left -right channel output, built -in dual 4R/20W, 8R/10W power amplifier
Expansion port
\\
Back panel I\\O interface
TF card: support TF card
HDMI output: 1, support 1080P@60Hz, 4kx2k@60Hz output
HDMI in: hdmi input, 24Pin FPC custom interface
USB interface: a Type C, 1 USB3.0, 1 USB2.0 Host, 3 USB sockets
Operating system
Android 7.1
(3)CABINET PARAMETERS
Cabinet Material
Tempered explosion-proof glass, Aluminum alloy frame, Iron sheet metal body
Cabinet Color
Transparent\\Customizable
* EQUIPMENT SPECIFICATION
CATEGORIES
CATEGORIES -2
DESCRIPTIONS
*EQUIPMENT SPECIFICATION
(1)POWER PARAMETERS
Input Power
AC110-240V, 50\\60Hz
Power Consumption
≤85W
Standby Power Consumption
＜3W
(2)WORKING ENVIRONMENT
Operating Temperature
0℃-38℃
Working Humidity
10%-95%
Storage Temperature
0℃-40℃
Storage Humidity
10%-95%
(3)ACCESSORIES
Bracket
1 PC
Power Cable
1 PC
Manual
1 PC
Warranty Card
1 PC
Certificate of Conformity
1 PC
(4)PHYSICAL PARAMETERS
Screen Size
43"
Net Weight
60KGS
Gross Weight
80KGS
Machine Dimension

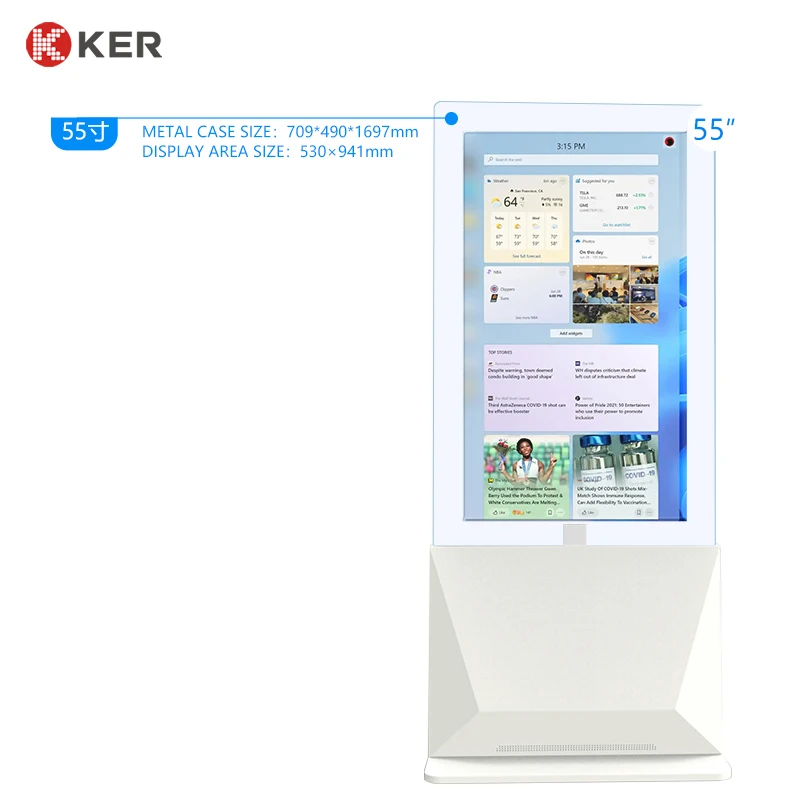

709MM*490MM*1697MM
Package(Carton) Dimension
910MM*690MM*1900MM


Products Description




Company Profile




FAQ


1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.

3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 10-15 days for small quantity, and about 30 days for large quantity.

4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.

6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
