ODETOOLS Press Holes Aluminum Puncher Electric NMHP 25E Electric Hydraulic Punching Machine

Share on (1600772054485):


Price:$551.00 - $882.00

Quantity:


Product Overview

Description



Product Description

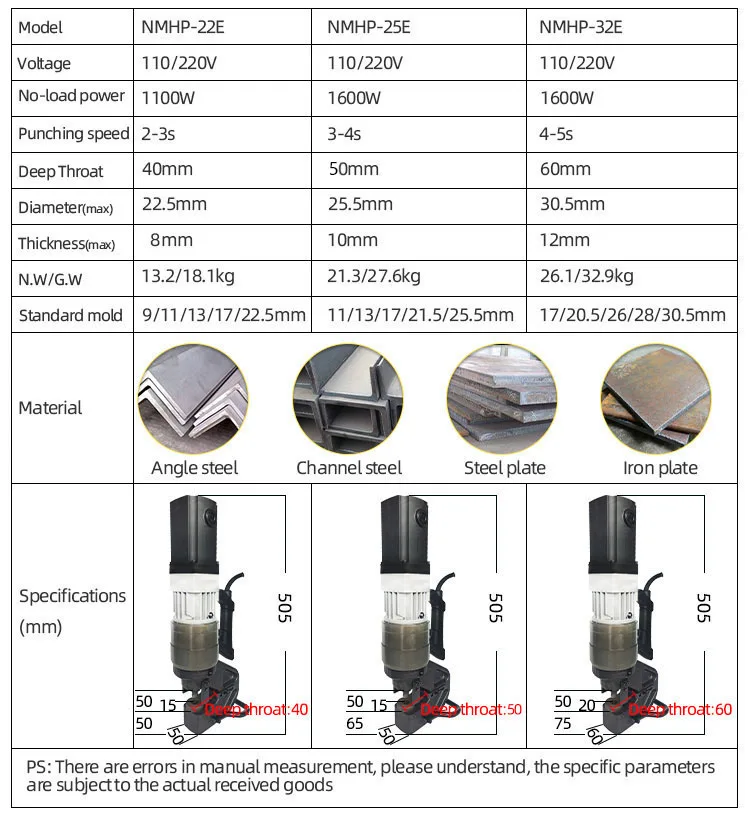

Product Paraments































































TypeNMHP-22ENMHP-25ENMHP-32E
Voltage110v/220v110v/220v110v/220v
No-load power1100W1600W1600W
Punching Speed2-3S3-4S4-5S
Deep Throat40mm50mm60mm
Max Diameter22.5MM25.5mm30.5mm
Max Thickness of sheet8MM10mm12mm
Net/Gross Weight13.2/18.1KG21.3/32.5kg26.1/38.6kg
Standard Mold9/11/13/17/22.5MM11/13/17/21.5/25.5mm17/20.5/26/28/30.5mm
Punching materialangle steel, channel steel, steel plate, iron plate











Product Details







Our Services







Recommend Products




















Company Information


ODE Technology Co., Ltd. Is a corporate enterprise founded in 2007. We have been focusing on the R&D of Hydraulic System Technology to bring more advanced hydraulic drive technology experience to all walks of life. We always adheres to the concepts of stable operation, continuous innovation, and open cooperation. With a strict quality management system, our products have passed domestic and foreign certifications such as CFFF, CE, RoHS, etc.
The company supplies all kinds of tools and intelligent equipments for fire rescue , engineering construction, and provides not only a variety of products which are more energy-saving and environmentally friendly but also creative design solutions. Besides, the company can offer matched product solutions in many fields.Such as the processing of steel bar , busbar and steel plate, high-speed rail, subway, mining, earthquake, car accident, fire and other field construction. In the end,the company always plays an important role in emergency support for gas stations, factory buildings, coal mines facilities, etc.
With the determination of hard working and the mission to respond to customers quickly,the company regards customer service as the center and quality as the basis, providing effective solutions in a timely manner, continuously creating value for customers for a long time, and providing product sales and technical services for domestic and foreign customers. The company has strong R & D strength and serves as a university R & D base to jointly develop industry-leading technologies.
The company is good at providing light and intelligent products, supporting matched solutions for the purpose of building a world-class MRO service provider.
 Our vision: To build an employee entrepreneurship platform and become a world-class MRO one-stop procurement service provider
Our mission:Provide each customer with the best service and help every employee to achieve success.
Our slogan: Create value ,win the respect and build top brabd with the best service









 .jpg





FAQ


1.Are you factory ?
Yes.Our factory in hangzhou. It is only one hour from Shanghai. We could offer you the best quality products with the lowest price.


2. How long is your machine warranty ?


Warranty of Belton product is one year(Artificial damage and incorrect use is not included),within warranty period ,we will offer free part and maintainvideo ,
or ever can teach you face-to-face .if machine have serious quality problem ,


we support to back .


3.What is your shipping way ?
 Express (DHL,Fedex,TNT),by air ,or Sea and so on.You could choose one of shipping ways to suit  your requirement .
