Product Overview
Description

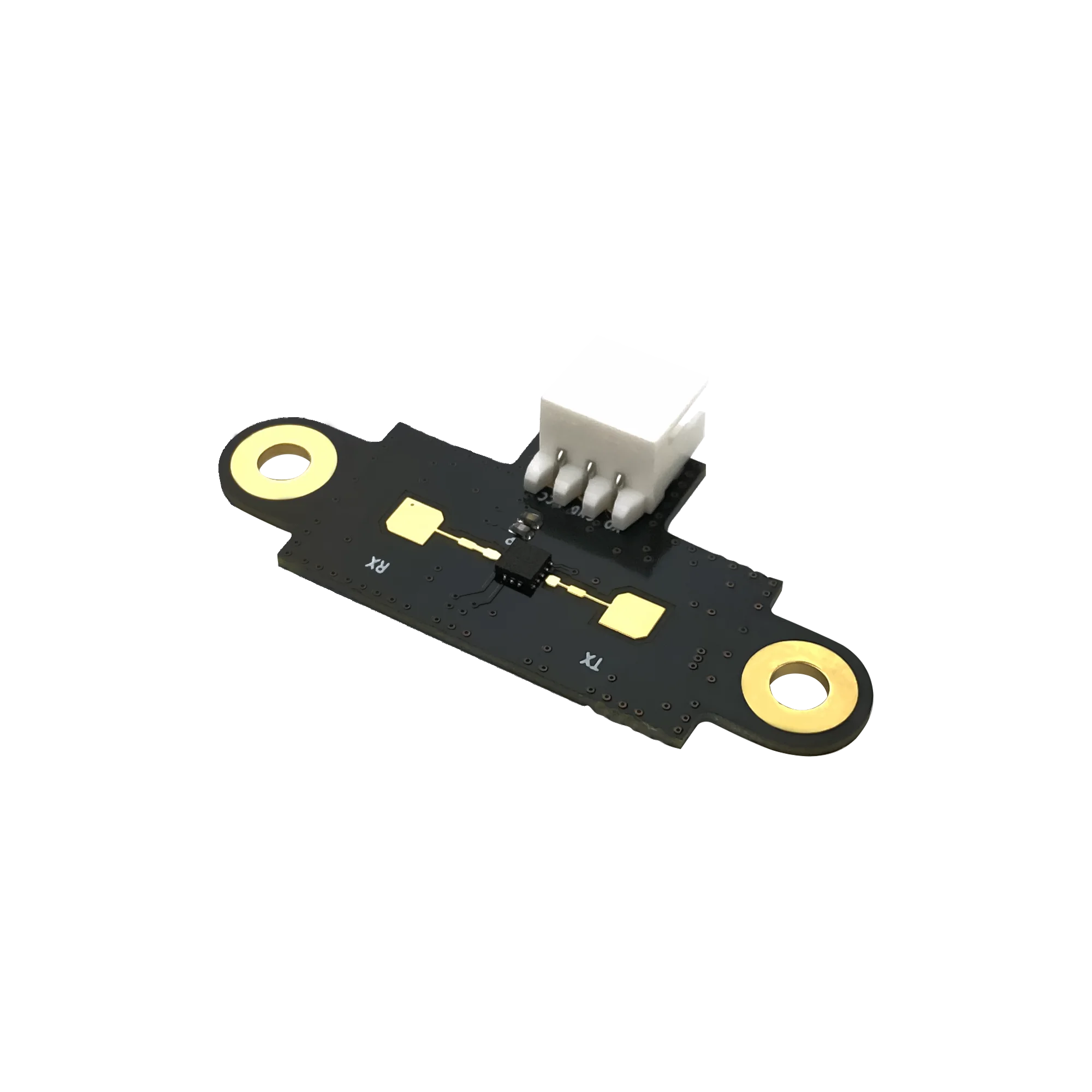

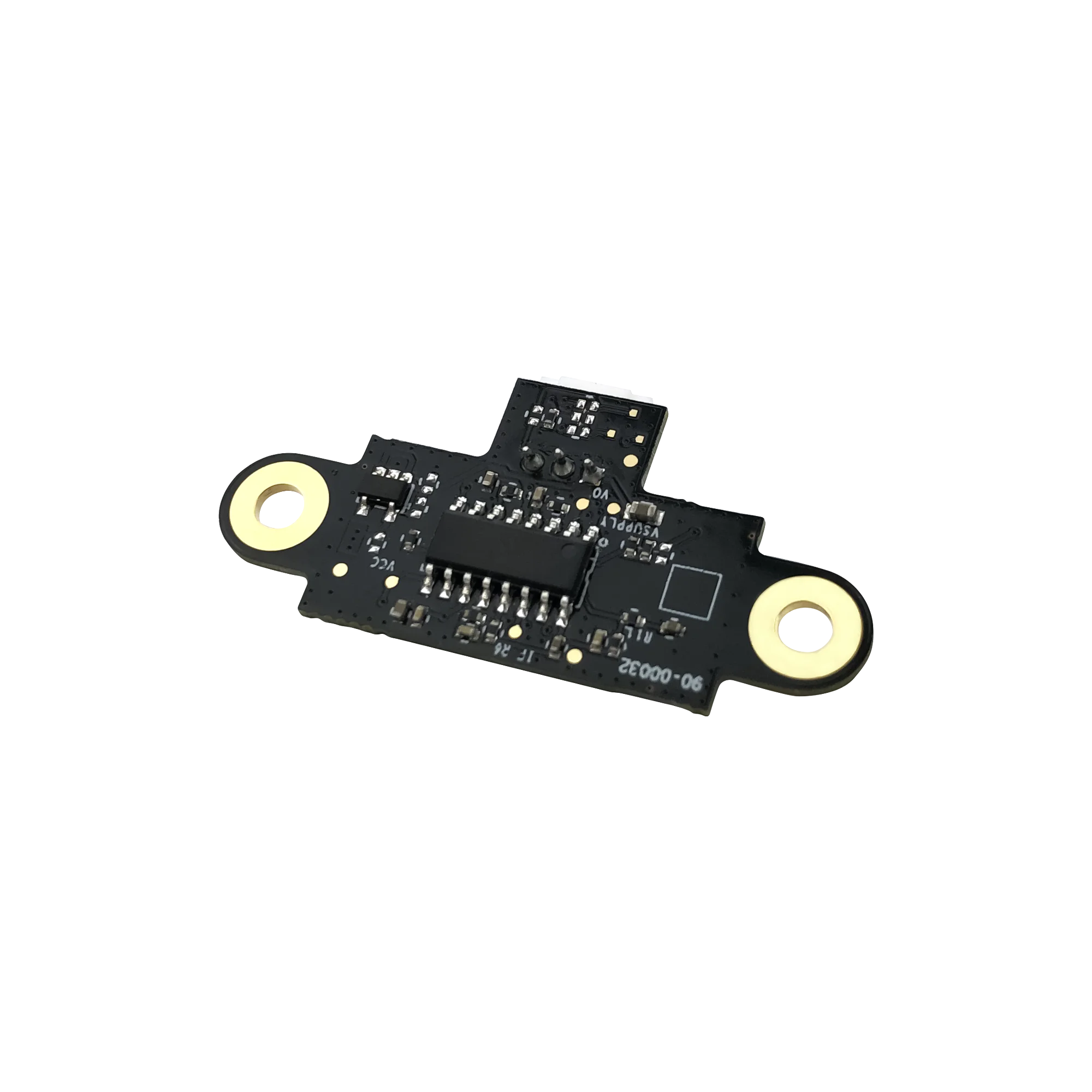

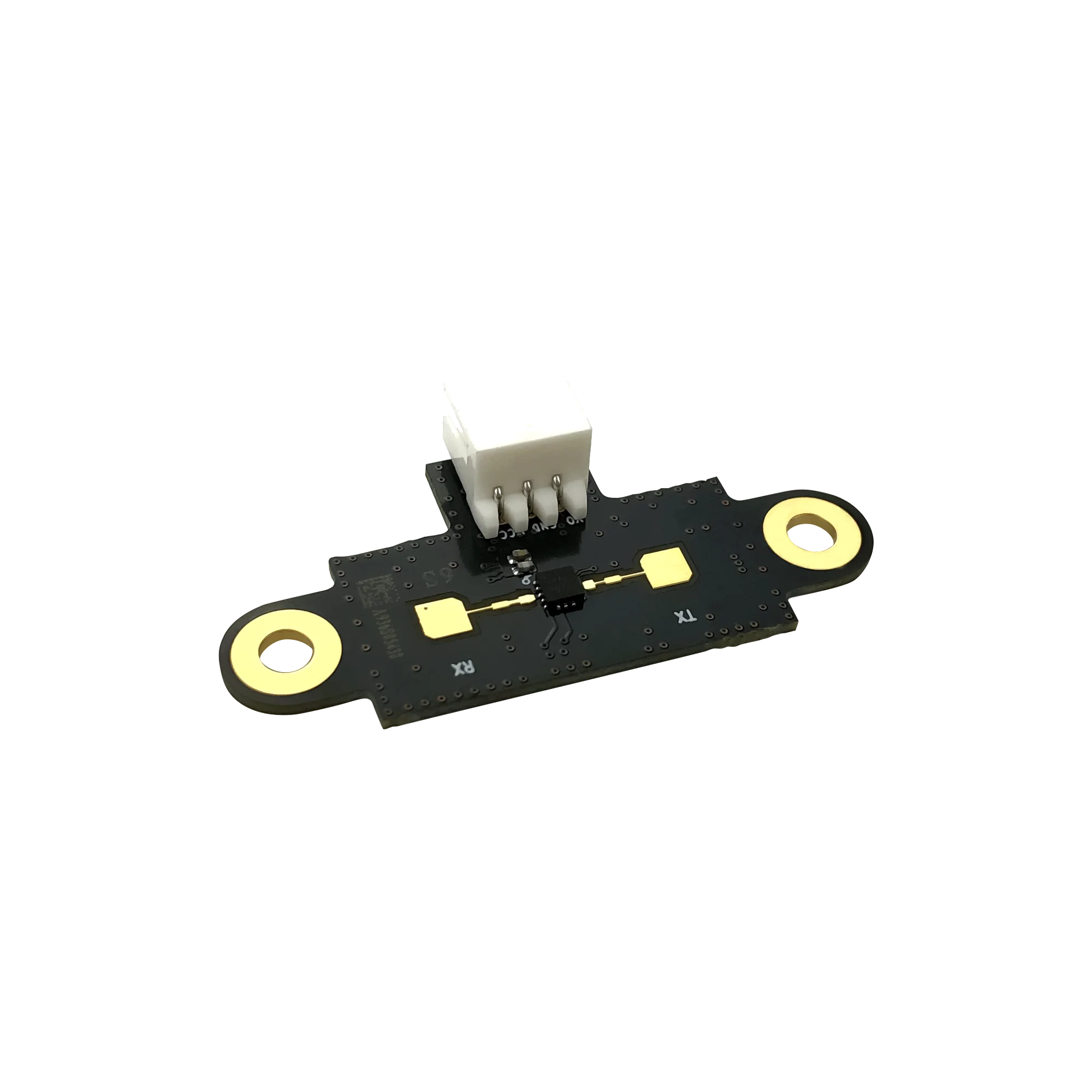

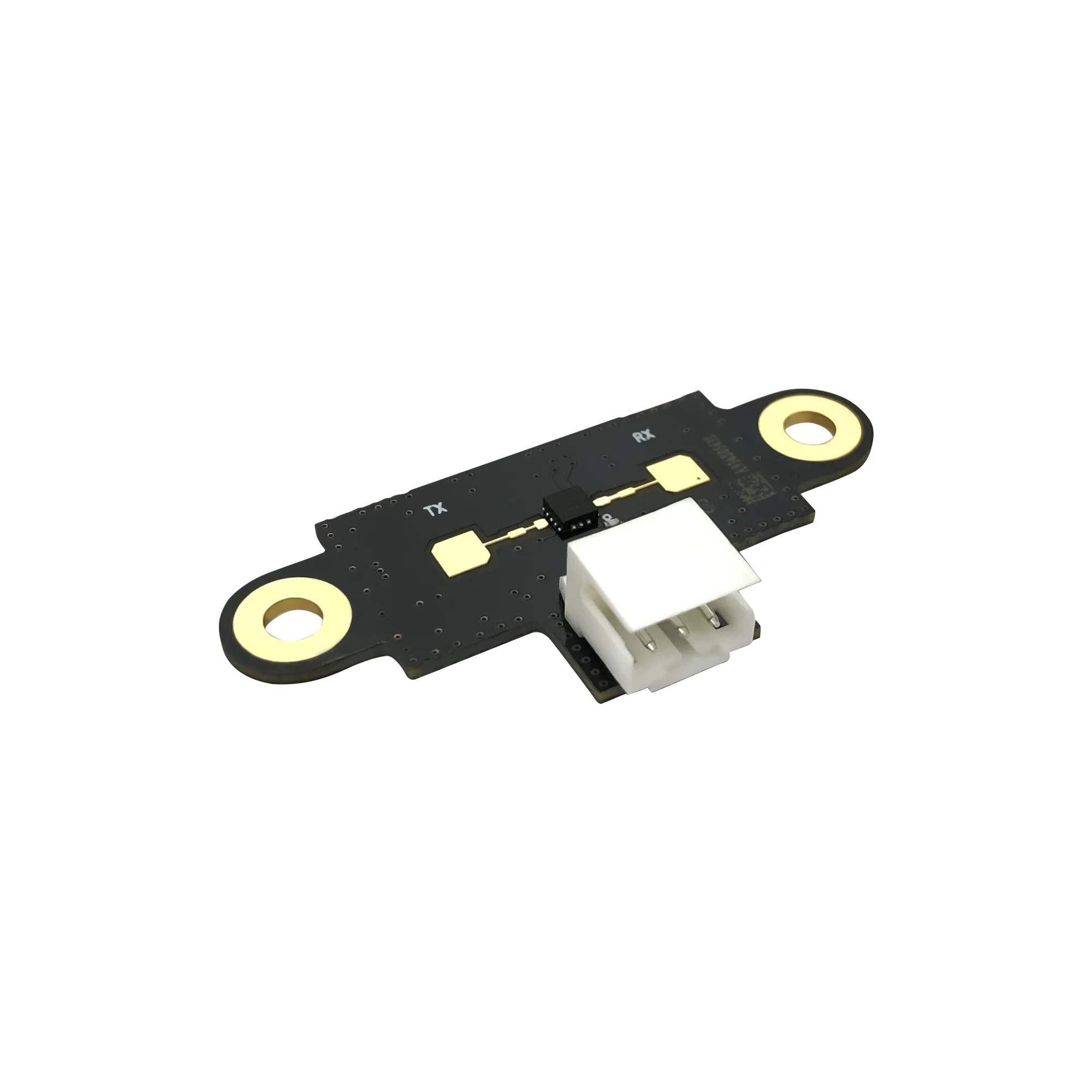

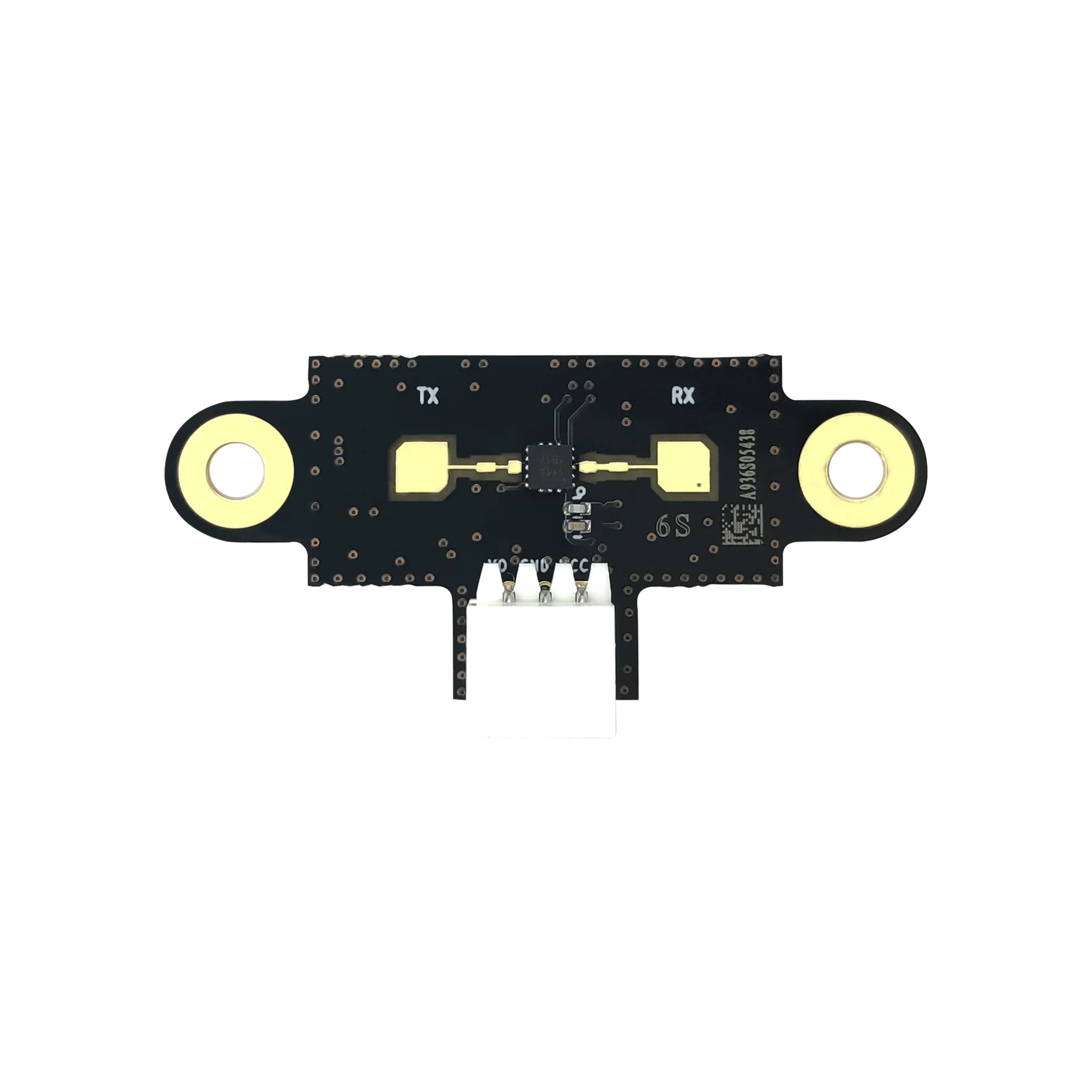

HLK-LD116S 24G 24GHz Millimeter Wave Radar Sensor PIR Motion Monitoring Sensor Module Motion Sensor
Description:
HLK-LD116S-24G IoT millimeter wave sensor module, can be used to monitor small range The moving target within, and output high and low level information, and not affected by temperature and humidity, airflow, dust, Environmental influences such as noise, light and darkness, strong anti-interference ability, can penetrate thin-layer acrylic, Glass, plastic and other non-metallic materials.The module has industry-leading performance advantages - small size, low cost, low power consumption, etc. It can provide customers with more ideal mobile object monitoring solutions and can be widely used in smart Indoor scenes such as security/smart home.
Features:
⚫ Effective isotropic radiated power/TX EIRP: 6dBm
⚫ Phase noise/Phasenoise: -96dBc/Hz@1MHzoffset
⚫ Receive noise figure/RX noise figure: 10dBDSBtypical
⚫ 5V power supply voltage/Current at 5V power supply: 55mA
⚫ Effective detection range/Effective detection range: 10m
⚫ Detection angle/Detection range (3dB): horizontal 96°/vertical 88°
⚫ Small size/Compactsize: 42.5*19.3mm(±0.1mm)
⚫ Phase noise/Phasenoise: -96dBc/Hz@1MHzoffset
⚫ Receive noise figure/RX noise figure: 10dBDSBtypical
⚫ 5V power supply voltage/Current at 5V power supply: 55mA
⚫ Effective detection range/Effective detection range: 10m
⚫ Detection angle/Detection range (3dB): horizontal 96°/vertical 88°
⚫ Small size/Compactsize: 42.5*19.3mm(±0.1mm)
Application scene:
• Internet of Things IoT/IoTapplication
•Industrial application/Industrialapplication
Electrical Properties(25℃)
PARAMETER | MIN | TYP | MAX | UNITS | CONDITIONS | |||||
Power Supply | ||||||||||
VCC | 3.6 | 5 | 5.5 | V | ||||||
Current | 55 | mA | All function on | |||||||
Transmitter | ||||||||||
Output power EIRP | 6 | dBm | ||||||||
Phase noise | -96 | dBc/Hz | @1MHz offset | |||||||
Receiver | ||||||||||
Noise figure | 10 | dB | DSB | |||||||
Antenna | ||||||||||
TX antenna gain | 2 | dB | ||||||||
TXside lobe suppression | 20 | dB | ||||||||
RX antenna gain | 2 | dB | ||||||||
RX side lobe suppression | 20 | dB | ||||||||
TX antenna pattern(3dB) | ±42 | deg | azimuth | |||||||
±48 | deg | elevation | ||||||||
RX antenna pattern(3dB | ±42 | deg | azimuth | |||||||
±48 | deg | elevation | ||||||||
V0 | 3.2 | 3.3 | 3.4 | V | ||||||
