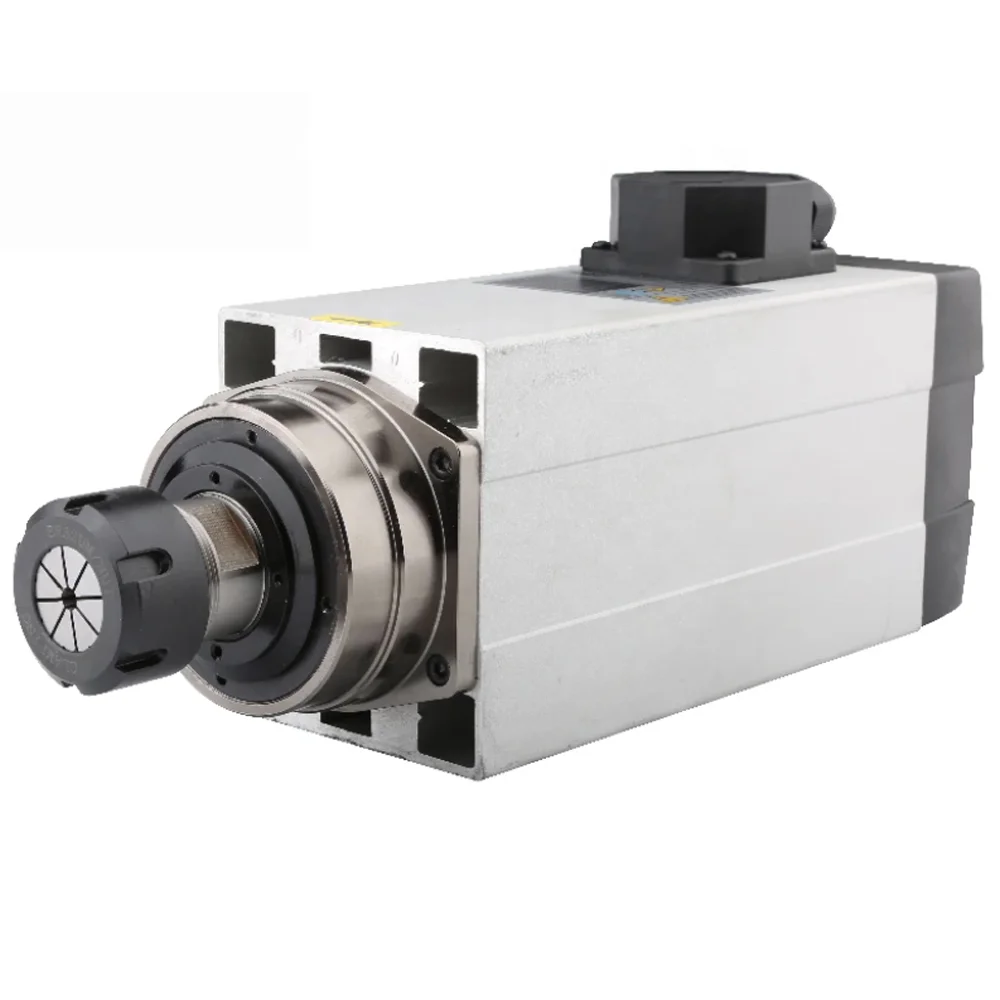

HQD 6KW 220v 380v CNC router spindle motor air cooling spindle 18000rpm 300hz 12.6A 2.39Nm cnc router using engraving wood
- Category: >>>
- Supplier: Changzhou Begist Electric Co. Ltd.
Share on (1600772115442):
Product Overview
Description
Product Description
6KW ER32 CNC Air Cooling Spindle Motor With 4bearings For woodworking
Product Name: | 6kw Air Cooling Spindle Motor | Model No.: | GDF60-18Z/6.0 |
Power: | 6KW | Voltage: | 220v/380v |
Current: | 12.6A | Frequency: | 300hz |
Rotate Speed: | 18000rpm | Weight: | 13kg |
Collet/Nut: | ER32 | Bearings: | 4bearings |
Model: GDF60-18Z/6.0
Speed regulation mode: change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.
Cooling method: air cooling

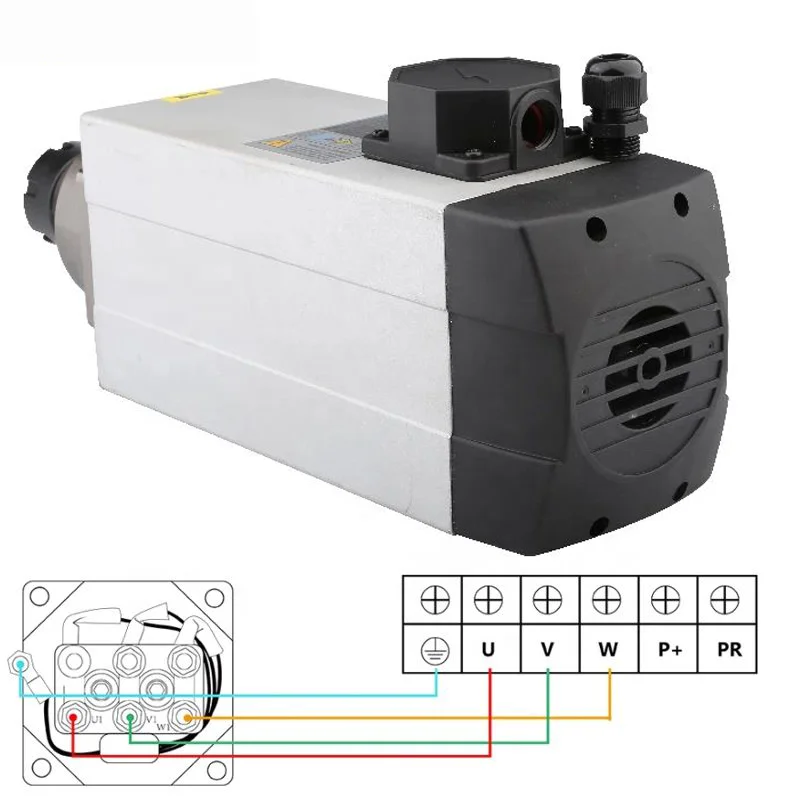

Power interface: optional 5-pin waterproof air connector. The air connectors are marked with "1", "2", "3", "4", "5", and "GND".
"1", "2", and "3" are respectively connected to the inverter (U, V, W), and "GND" is connected to the inverter ground.
(Attention! Our spindle "4" is connected to GND to ensure personal safety!!)
Power: 6.0kw (1HP=0.735w)
Voltage: 220v/380v
Current: 12.6A
Frequency: 0-300Hz
Speed: 0-18000rpm
Jump close: less than 0.01mm
Bearing type: 2*7008C P4, 2*7002C P4 (4 ball bearings)
Chuck: ER32
Main use: Carving wood, bamboo, ordinary PCB, PVC, PMMA, plastic, two-color board (ABS) and other non-metals, and also can carve soft metal surfaces such as gold, silver, copper, aluminum, and lead.
Speed regulation mode: change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.
Cooling method: air cooling
Power interface: optional 5-pin waterproof air connector. The air connectors are marked with "1", "2", "3", "4", "5", and "GND".
"1", "2", and "3" are respectively connected to the inverter (U, V, W), and "GND" is connected to the inverter ground.
(Attention! Our spindle "4" is connected to GND to ensure personal safety!!)
Power: 6.0kw (1HP=0.735w)
Voltage: 220v/380v
Current: 12.6A
Frequency: 0-300Hz
Speed: 0-18000rpm
Jump close: less than 0.01mm
Bearing type: 2*7008C P4, 2*7002C P4 (4 ball bearings)
Chuck: ER32
Main use: Carving wood, bamboo, ordinary PCB, PVC, PMMA, plastic, two-color board (ABS) and other non-metals, and also can carve soft metal surfaces such as gold, silver, copper, aluminum, and lead.
Inverter/VFD
ER32 Collet kits
ER32 Nut
Related Products
Company Profile
Certifications
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 3 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.why should you buy from us not from other suppliers?
A:BEGIST is professional CNC router parts wholesaler , experience more than 13 years We not only produce CNC parts also selling other famous brand CNC parts.
Just tell your needing, we will help you buy with factory price and quality.
6.Q:The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?
A:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c
7.Q:Continuous working time?
A:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.
8.Q:Abnormal sound?
A:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
9.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 3 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.why should you buy from us not from other suppliers?
A:BEGIST is professional CNC router parts wholesaler , experience more than 13 years We not only produce CNC parts also selling other famous brand CNC parts.
Just tell your needing, we will help you buy with factory price and quality.
6.Q:The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?
A:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c
7.Q:Continuous working time?
A:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.
8.Q:Abnormal sound?
A:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
9.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
