SINREY SIP806T 7 inch touch screen Broadcast host Network Multi Microphone sip paging system
- Category: Broadcast\u00A0Intercom\u00A0Systems >>>
- Supplier: Guangzhou Xinyue Network Equipment Co. Ltd.
Share on (1600772175504):
Product Overview
Description
Product Description

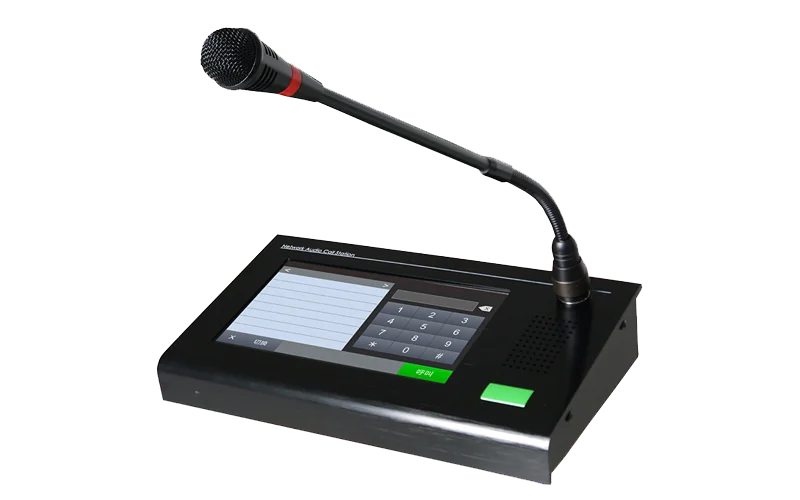

SIP805T Network Microphone
Sip805t paging microphone can broadcast to the terminal through the microphone or local line input, and can also make two-way SIP calls with the terminal supporting intercom in the system. The SIP paging microphone is equipped with a 7-inch touch screen, which can be used to set the system, enter the IP of the terminal into the address book, and select the operation terminal through the address book. As the host of SIP broadcast intercom system, sip805 can be used for intercom help and emergency alarm places, such as self-service bank, interrogation room, classroom, hospital, including parking lot and other control centers.
Characteristic
Professional paging microphone combined appearance, with LCD true color LCD screen, 22 buttons.
Using high-speed industrial chip, starting time ≤ 1 second.
SIP broadcast calls can be divided into different zones, with red prompt light, and the call will be automatically on.
Built in 3W speaker for two-way communication and monitoring.
Support to display the Chinese name of incoming and outgoing calls, easy to identify.
With audio line output port, external active speaker amplification.
It has an audio line input port, which can be connected with an external audio source to broadcast to the target terminal.
Specification
Input voltage | DC12V |
Power consumption | static < 300MW |
Working temperature | 0 ～ 65 ℃ |
Network interface | 10 / 100base TX adaptive network, RJ45 interface, sending and receiving data indication |
Network protocol | support IP, ARP, ICMP, DHCP, UDP, DNS, IGMP, etc |
Audio playback | support up to 48K sampling, 192kbps stream, MPEG, ADPCM decoding |
Audio acquisition and Broadcasting | support ADPCM decoding, 8k-32k sampling optional |
Microphone frequency domain | 70 ~ 12.5khz |
Audio output | 3W speaker output |
Display | 2.8-inch TFT-LCD |
Size | 245×140×48mm |
Application
Outdoor loudspeaker
Desktop walkie talkie
intercom terminal
PLAY
The network audio equipment can receive the audio stream from the network, and convert it into an analog audio signal for output after being decoded. The figure below is a standard playback application scenario.
INTERCOM
SIP2103T / SIP2403T / SIP2703T can be used in a two-way SIP intercom system
The broadcast intercom host can use our company's broadcast system control software, broadcast equipment, network microphones, etc., or use the SIP server prepared by the user.
The company is a national high-tech enterprise with high-tech products.
We have set up R & D center, chip factory and comprehensive manufacturing base in Guangzhou. The factory covers an area of 8500 square meters. The company is committed to building international top brands.
We have a professional and strong R & D team to provide further customization in terms of firmware, software and solution requirements.
