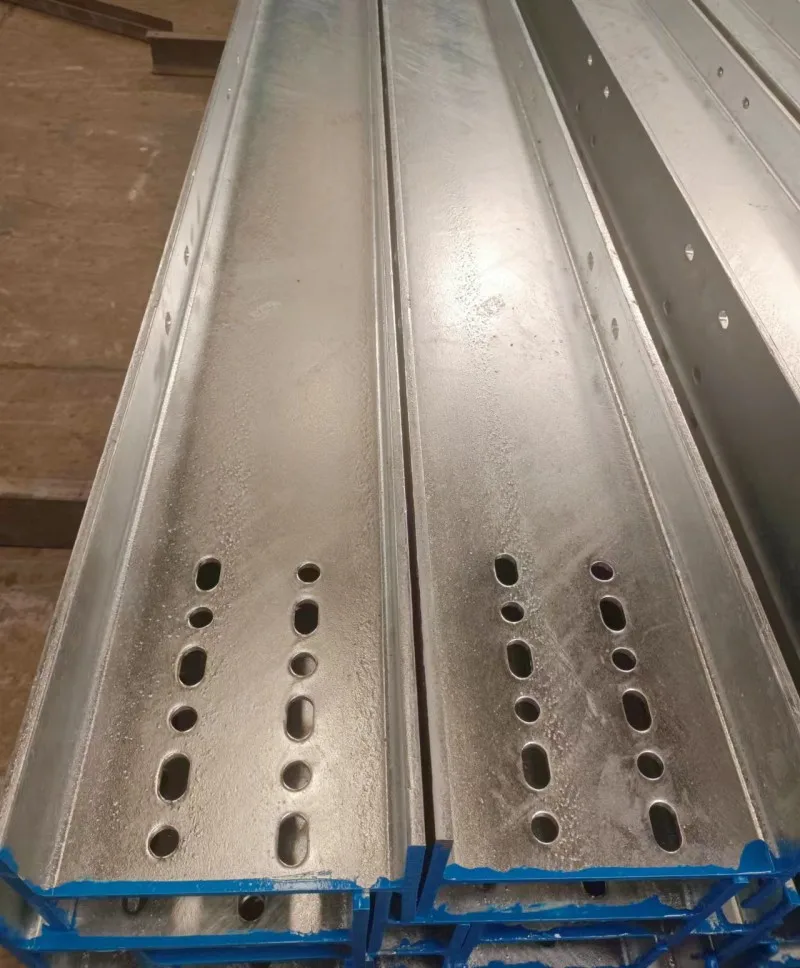

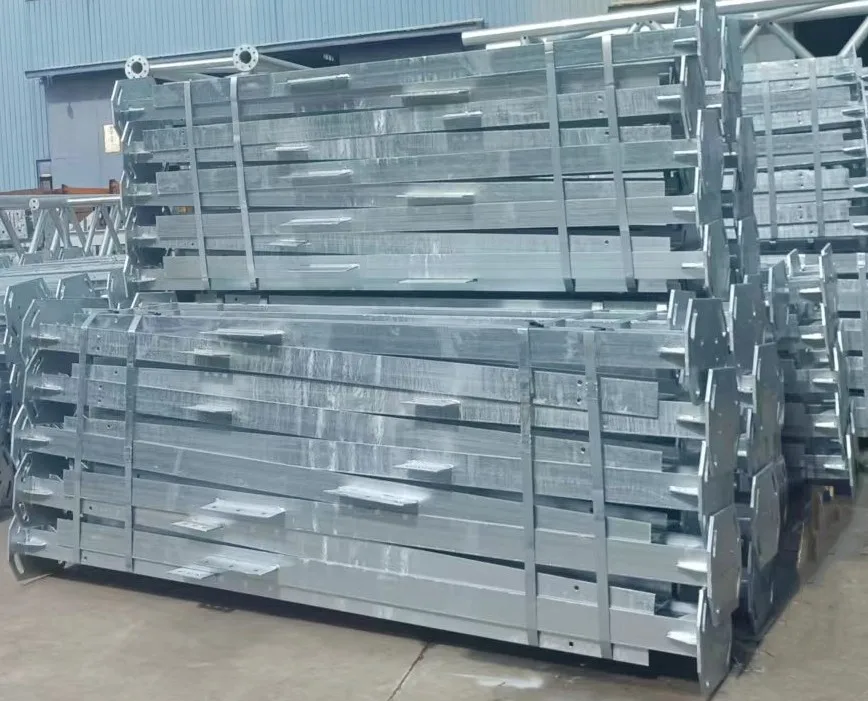

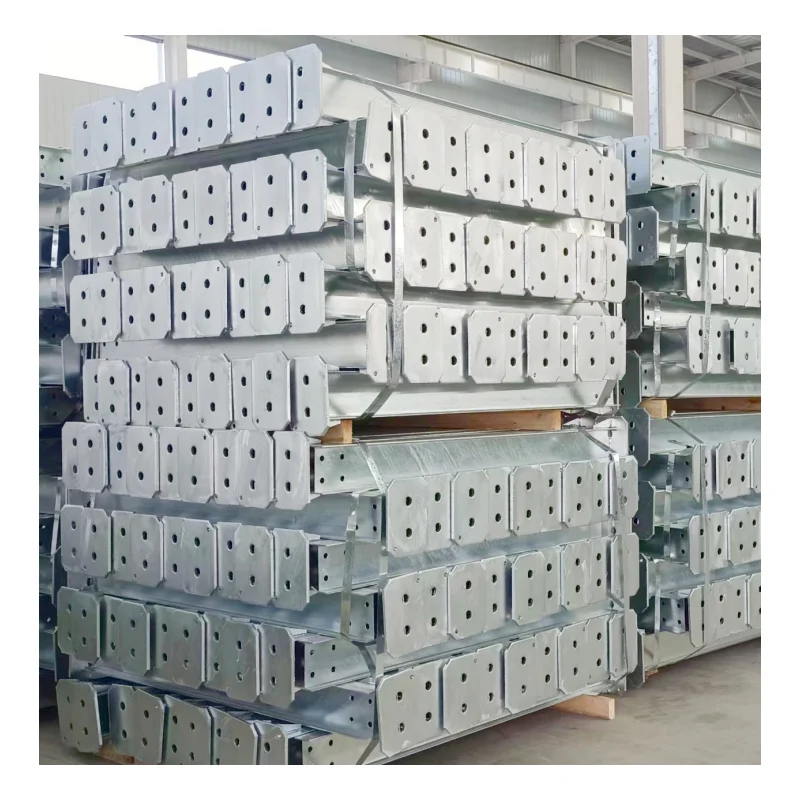

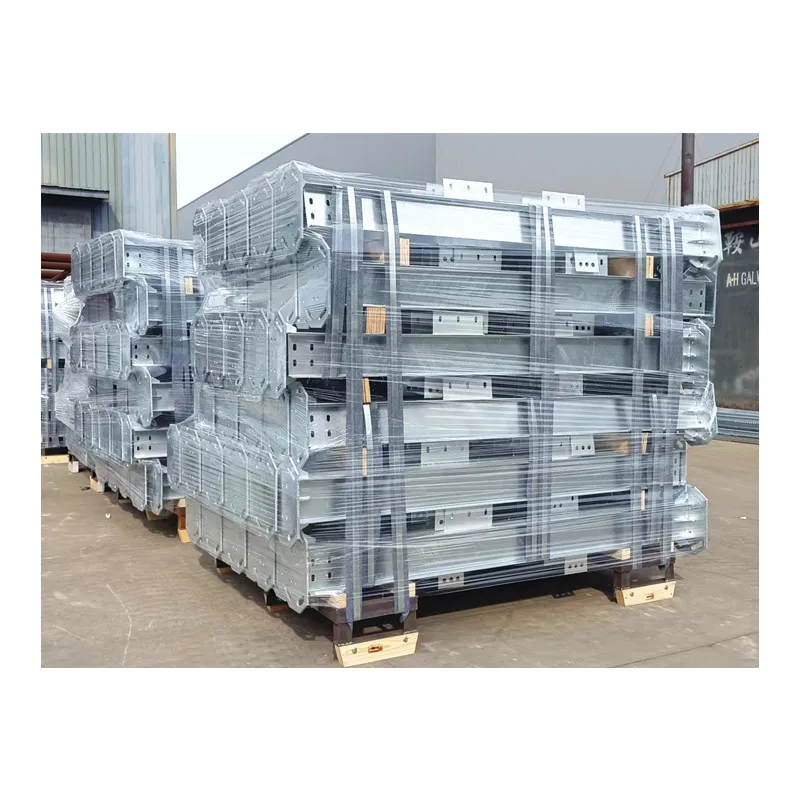

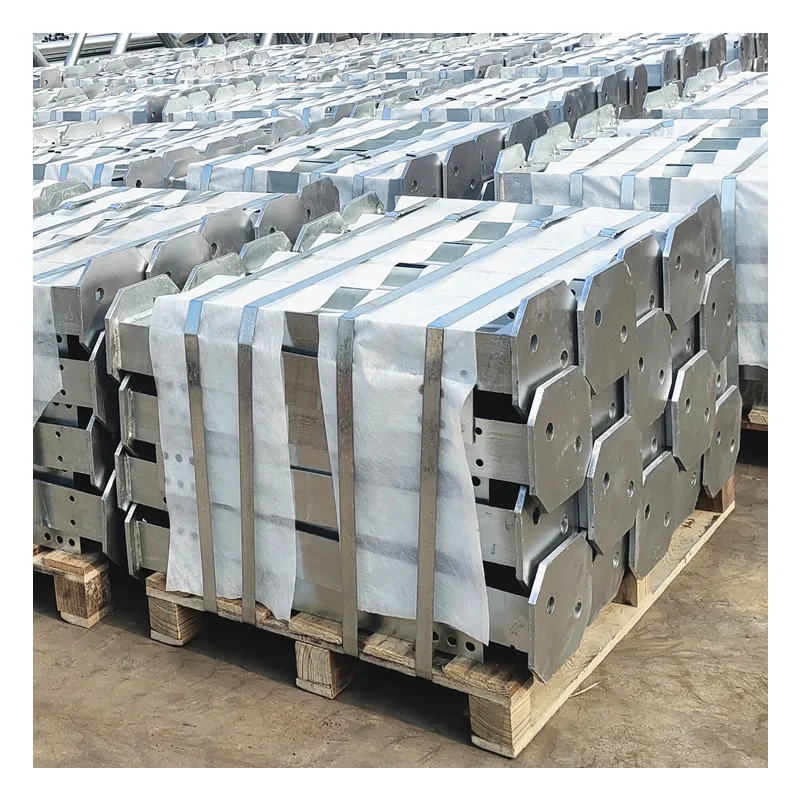

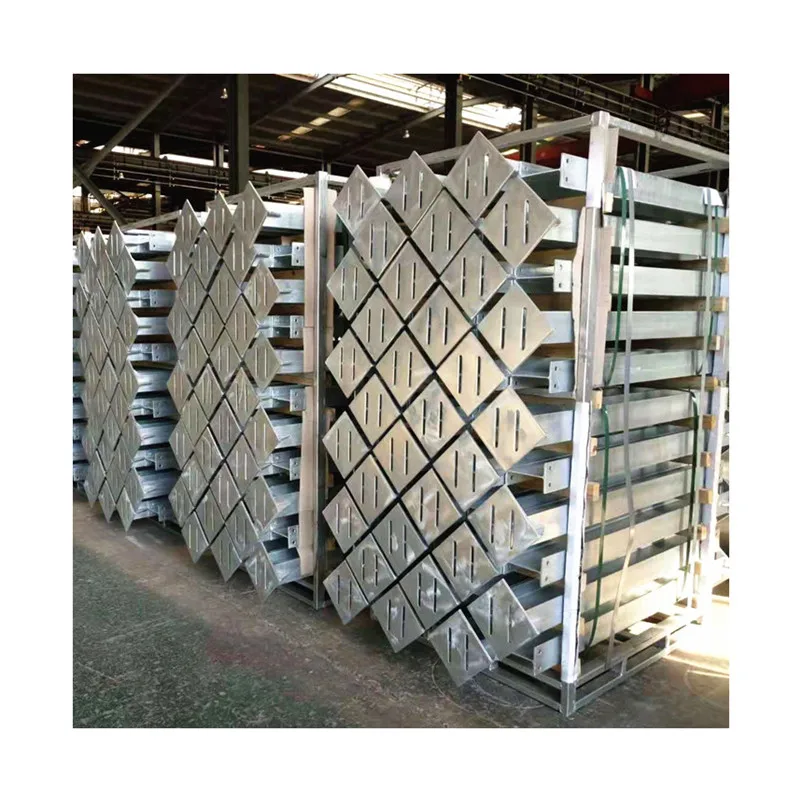

Customized Welded Galvanized Steel H Pile Solar Pile and Ground Mounting Structure Steel PV Tracking Solar Pile
- Category: Steel H-Beams >>>
- Supplier: High Grade (tianjin) Trading Co. Ltd.
Share on (1600772178160):
Product Overview
Description
Our Service
Product Introduction

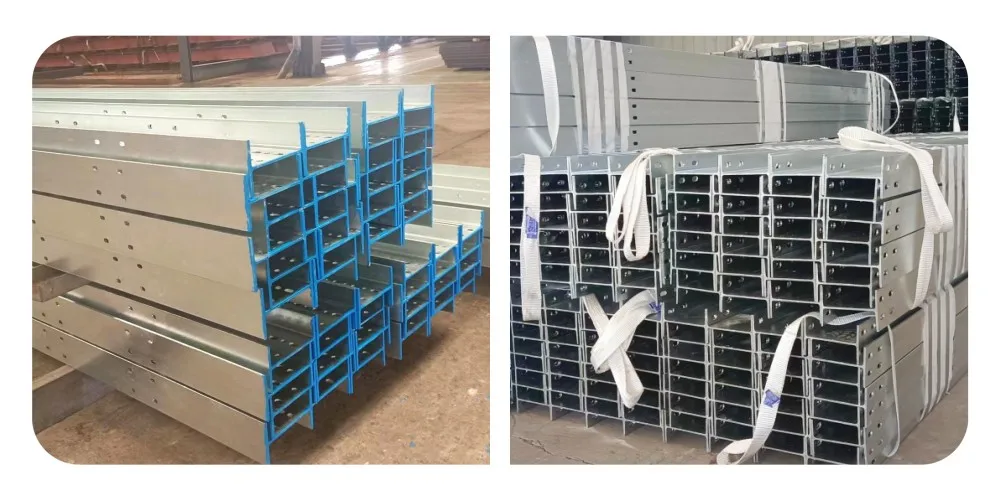

Product Name | Steel H Section Pile |
Shape | Hot Rolled or Welded |
Material | Q235/Q345/SS400/ST37/S235JR/S275JR/S355JR |
Standard | ASTM,BS,DIN,JIS |
Specification | W6*7/8.5/9/12/15/20/25, W8*8/9/10/13/15/18/21 |
Length | customized |
Processing | cut to length,punching,slotting,stamping,galvanizing |
Payment Term | TT,LC |
Delivery Time | regular 15 days,decided by your order quantity |
Package | customized |
Basic Parameters of H Beams | ||||||||||
Specification (inx1b/ft) | Height (mm) | Width (mm) | Web thicnkness (mm) | Flange thicnkness (mm) | Theoetical weight (kg/m) | |||||
W6X7 | 147 | 100 | 3.3 | 4.2 | 10.5 | |||||
W6X8.5 | 148 | 100 | 4.3 | 4.9 | 13 | |||||
W6X9 | 150 | 100 | 4.3 | 5.5 | 13.5 | |||||
W6X12 | 153 | 102 | 5.8 | 7.1 | 18.0 | |||||
W6X15 | 152 | 152 | 5.8 | 6.6 | 22.5 | |||||
W6X20 | 157 | 153 | 6.6 | 9.3 | 29.8 | |||||
W6X25 | 162 | 154 | 8.1 | 11.6 | 37.1 | |||||
W8X8 | 198 | 99 | 3.3 | 4.2 | 12.0 | |||||
W8X9 | 199 | 100 | 3.8 | 4.7 | 13.5 | |||||
W8X10 | 200 | 100 | 4.3 | 5.2 | 15.0 | |||||
W8X13 | 203 | 102 | 5.8 | 6.5 | 19.3 | |||||
W8X15 | 206 | 102 | 6.2 | 8 | 22.5 | |||||
W8X18 | 207 | 133 | 5.8 | 8.4 | 26.6 | |||||
W8X21 | 210 | 134 | 6.4 | 10.2 | 31.3 | |||||
Executive standard:ASTM A6 A6M Steel Grade：ASTM A572/A992/GR50/GR60/GR65 | ||||||||||

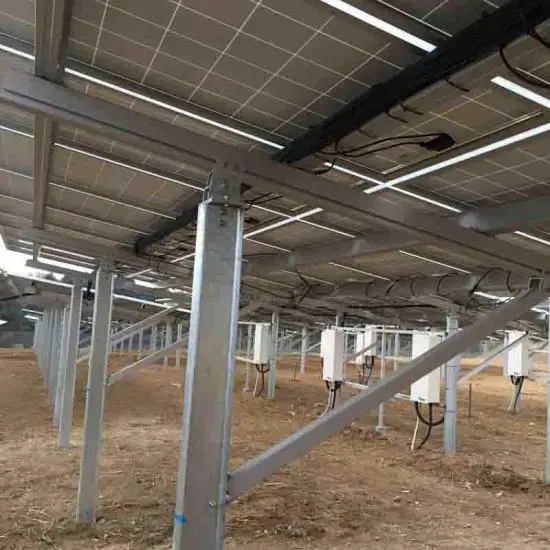

Application of H pile in photovoltaic system:
1. Compared with other kinds of steel section, H-beam steel has lower cost, which is the most important and also the point that everyone cares about.
2. The photovoltaic system produced by H-beam steel is lighter in total weight and has good mechanical properties, which is an advantage that many materials cannot achieve.
3. Due to the reason of H-beam's own structure, it is more convenient for welding and rivet connection, and it can also reduce the cost of consumables for connection.
1. Compared with other kinds of steel section, H-beam steel has lower cost, which is the most important and also the point that everyone cares about.
2. The photovoltaic system produced by H-beam steel is lighter in total weight and has good mechanical properties, which is an advantage that many materials cannot achieve.
3. Due to the reason of H-beam's own structure, it is more convenient for welding and rivet connection, and it can also reduce the cost of consumables for connection.
Related Product
Company Information
High Grade has developed and efficiently integrated the production all kinds of steel products,surface treatment and other processes to provide customers with one-step services.Our company undertakes various steel customized processing orders,and implements strict testing and inspection procedures from the incoming,unloading,cutting,welding,surface treatment,packaging and transportation of raw materials to ensure that each product meet the standards.
High Grade has passed ISO9000 quality management system certification,ISO14000 environmental management system,standard certification and ISO18000 occupational health management system certification,and has obtained eight technical patents such as zinc pot isolation smoking device,acid mist purification device,and annular galvanizing production line.At the same time,it has become a project implementing enterprise of of the United Nations Common Fund for Commodities (CFC),which has laid a solid foundation for the development of High Grade.
Our steel products are exported to Australia,Bulgaria,Canada,France,the Netherlands,the United States,Japan,South Korea,Singapore,Malaysia,South Africa and other countries and regions,and have won high recognition and favor from foreign markets.
High Grade has passed ISO9000 quality management system certification,ISO14000 environmental management system,standard certification and ISO18000 occupational health management system certification,and has obtained eight technical patents such as zinc pot isolation smoking device,acid mist purification device,and annular galvanizing production line.At the same time,it has become a project implementing enterprise of of the United Nations Common Fund for Commodities (CFC),which has laid a solid foundation for the development of High Grade.
Our steel products are exported to Australia,Bulgaria,Canada,France,the Netherlands,the United States,Japan,South Korea,Singapore,Malaysia,South Africa and other countries and regions,and have won high recognition and favor from foreign markets.

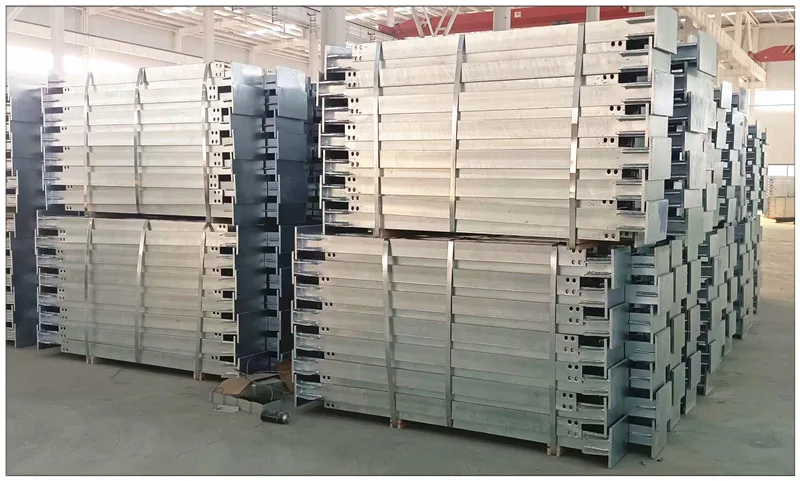

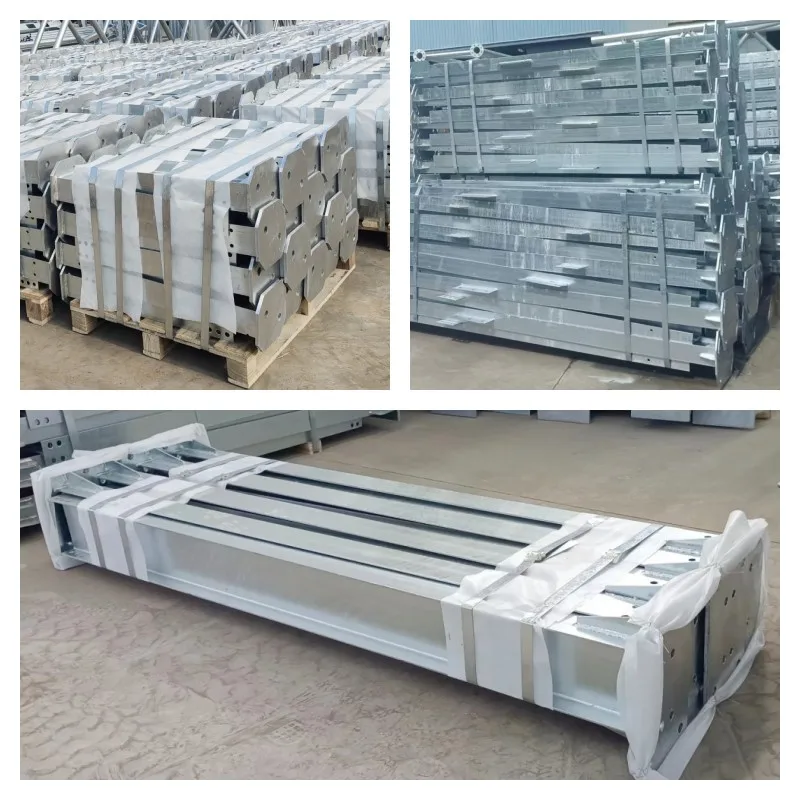

Packing&Shipping
FAQ
1.Are you trader or manufacturer?
We are professional manufacturer of steel processing and galvanizing,owing our own galvanizing mill with first class.
2.Is personalized steel processing services available for customer?
Yes,get in touch with us and we will be happy to discuss your requirements in depth and our highly trained team members will ensure that the completed service meets all your requirements.
3.What is your regular delivery time?
It will be 5-7 days,it will depend on your exact order quantity.
4.Is free sample available for customer?
Yes,we will send customer free samples,and the freight charge will be paid by customers.
5.How do you control your quality of products?
We will do sampling and full inspection from raw materials to finished products.
We are professional manufacturer of steel processing and galvanizing,owing our own galvanizing mill with first class.
2.Is personalized steel processing services available for customer?
Yes,get in touch with us and we will be happy to discuss your requirements in depth and our highly trained team members will ensure that the completed service meets all your requirements.
3.What is your regular delivery time?
It will be 5-7 days,it will depend on your exact order quantity.
4.Is free sample available for customer?
Yes,we will send customer free samples,and the freight charge will be paid by customers.
5.How do you control your quality of products?
We will do sampling and full inspection from raw materials to finished products.
