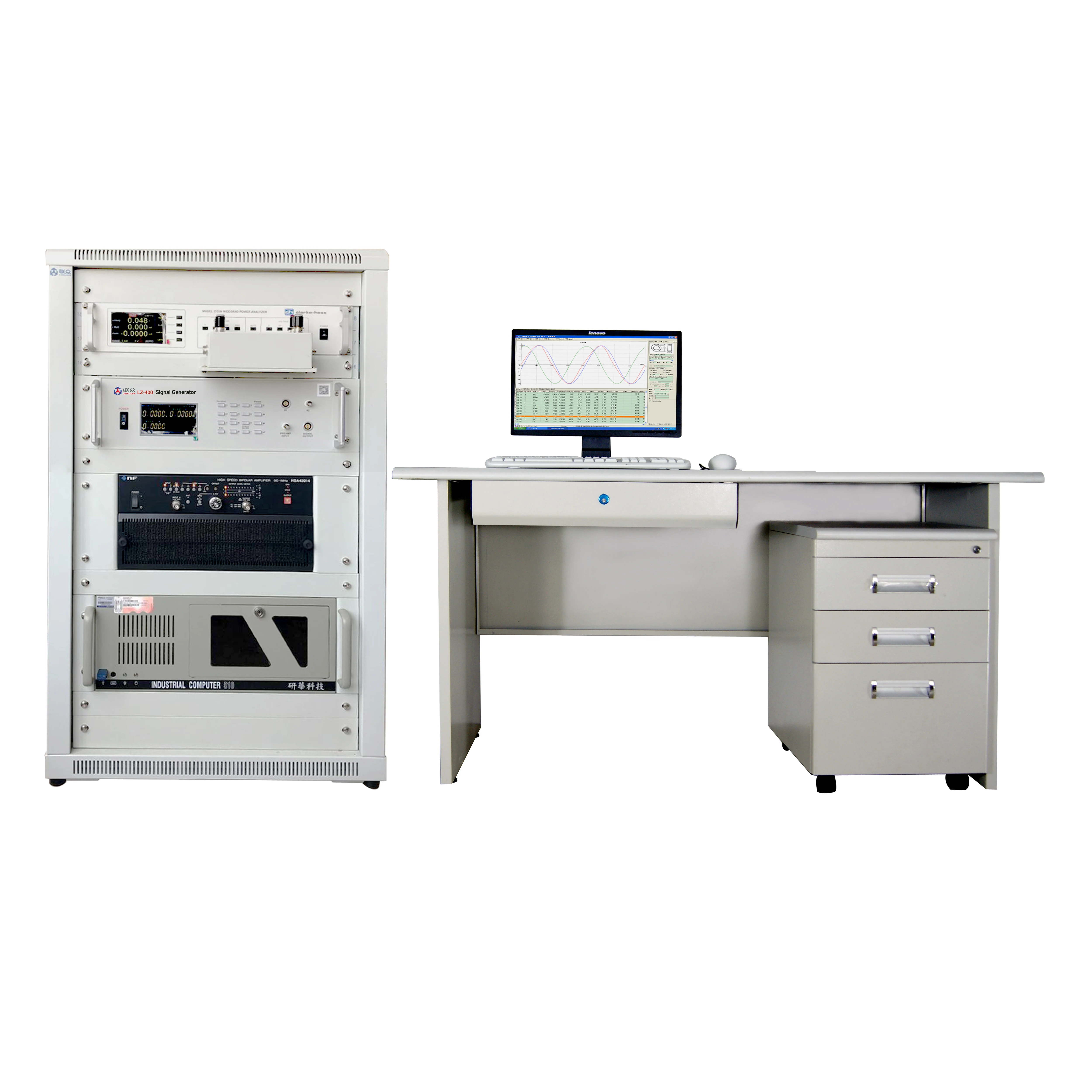

MATS 3120SA HYSTERESISGRAPH magnet ferrite magnetic field loop tracer nanocrystalline core
- Category: >>>
- Supplier: Hunan Linkjoin Technology Co. Ltd.
Share on (1600772245993):
Product Overview
Description
Product Description
MATS-3120SA/1M Hysteresisgraph can automatically measure the AC magnetic parameters of Fe-Si-Al, Fe-Al, soft ferrite, permalloy, amorphous/nanocrystalline and silicon steel under the frequency of 10Hz~1MHz (continuous frequency), the measured parameters are: Ps, Bm, Hm, Ss, μa and Hc, and can calculate μ′, μ″, μL, μR, Q and AL under certain conditions.
The test system adopts digital signal processing and synthesis technology, it is composed of the high-speed broadband bipolar power amplifier, high precision broadband power analyzer and the industrial computer. The operation interface adopts MATS V7.0 --SMTest measurement software, which can realize the measurement of complex magnetic properties and the management of data.

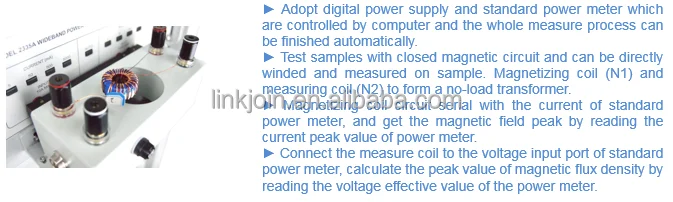

Features

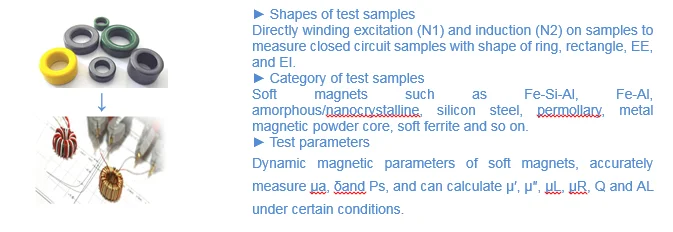

Test Items

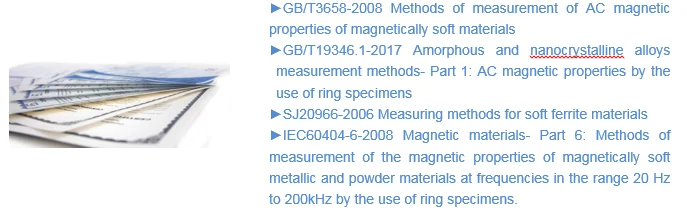

Applied Standards

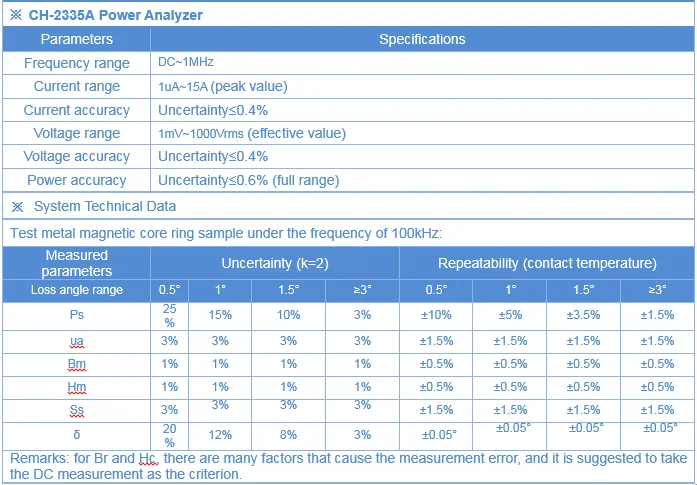

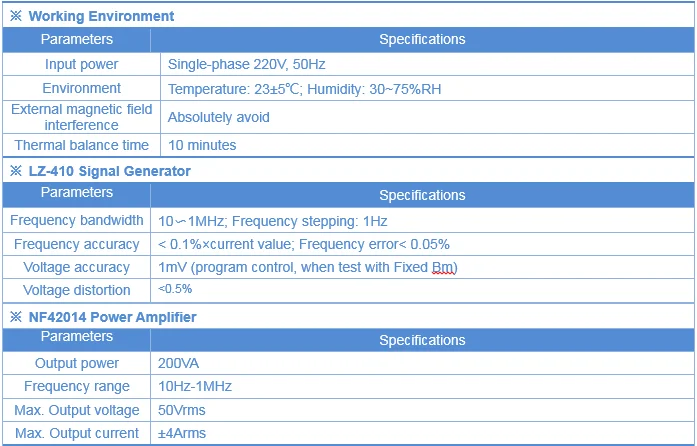

Technical Data

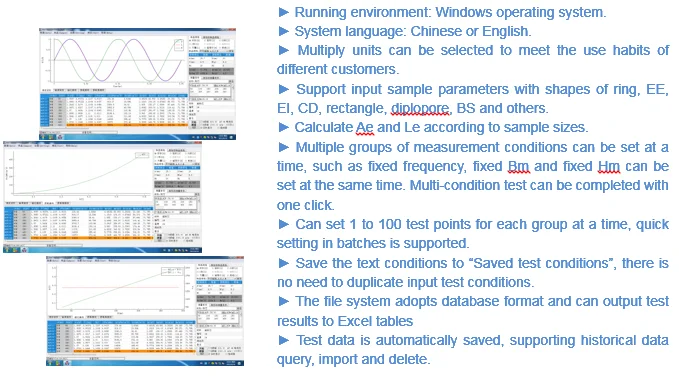

Test Software
Test curves
Standard Package
S/N | Name | Model | Qua. | Unit | Remarks |
1 | Signal Generator | LZ-400 | 1 | SET |
|
2 | Power Amplifier | NF42014 | 1 | SET |
|
3 | Power Analyzer | CH-2335A | 1 | SET |
|
4 | Software | SMTest V7.0 | 1 | SET |
|
5 | Industry Computer | ADVANTECH IPC-510 | 1 | SET |
|
6 | Monitor | LENOVO 18.5' | 1 | SET |
|
7 | Reference sample | Ring | 1 | PCS | With the third party certificate |
8 | Standard cabinet | 600mm*600mm*900mm | 1 | SET |
|
