Product Overview
Description
Products Description

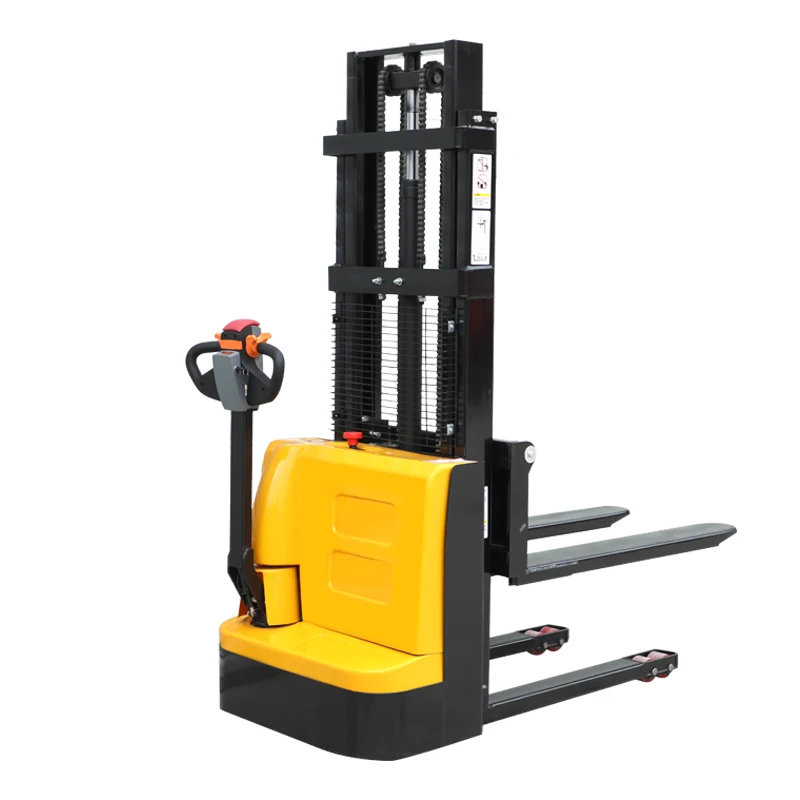

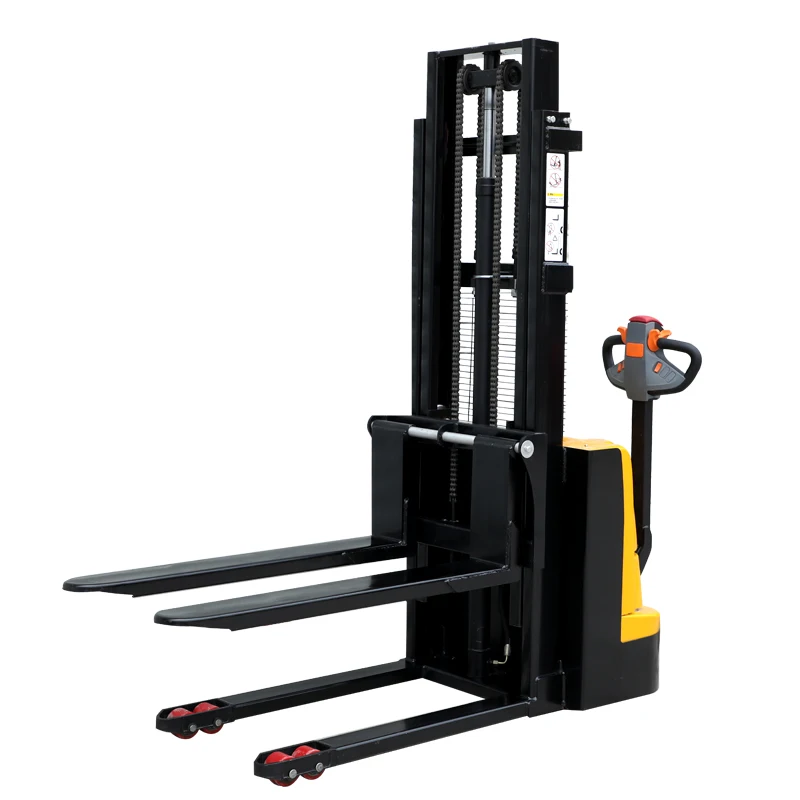

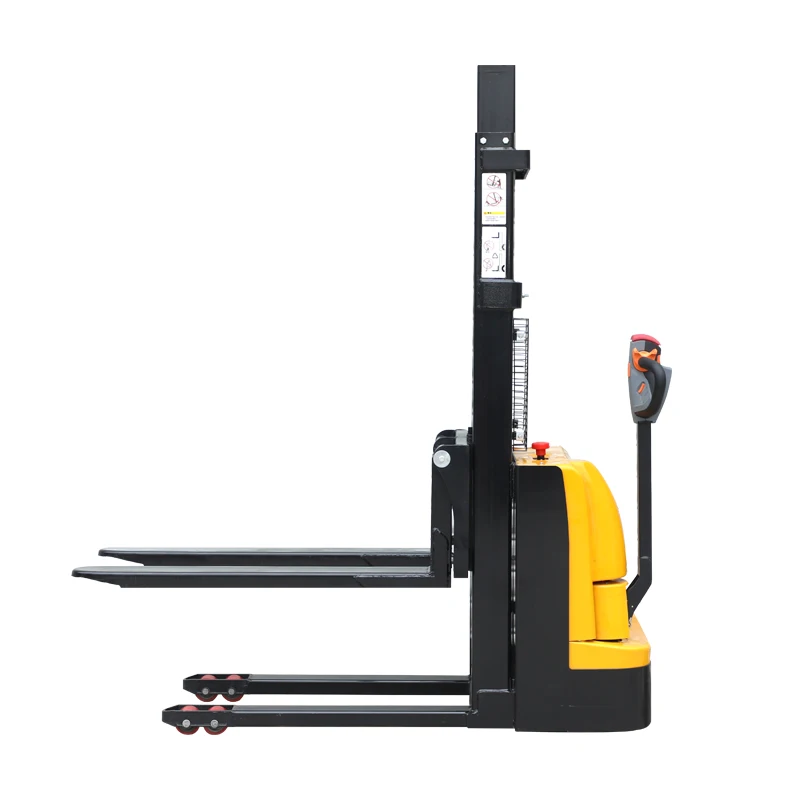

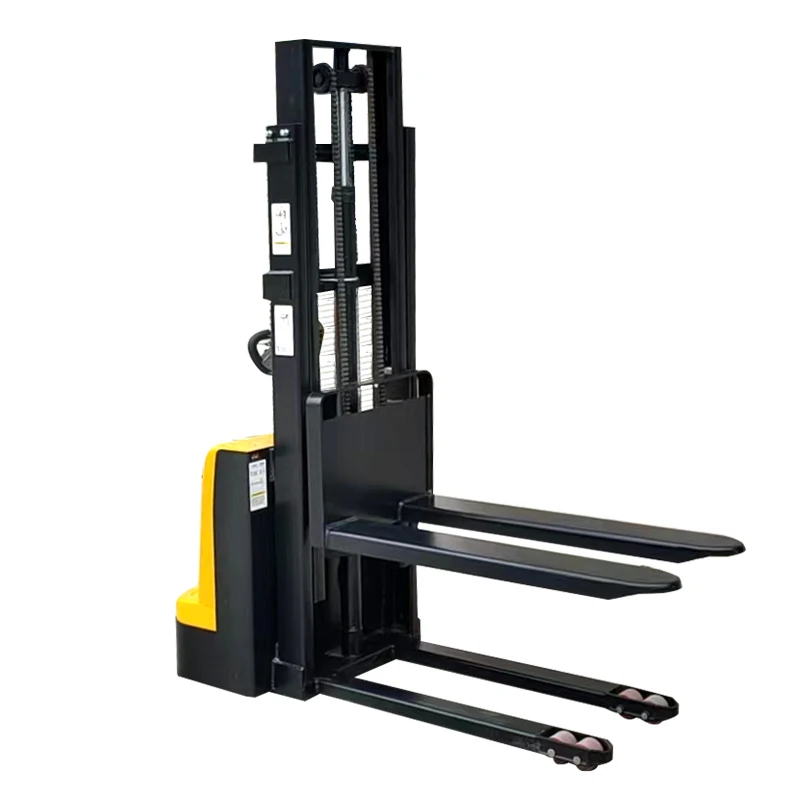

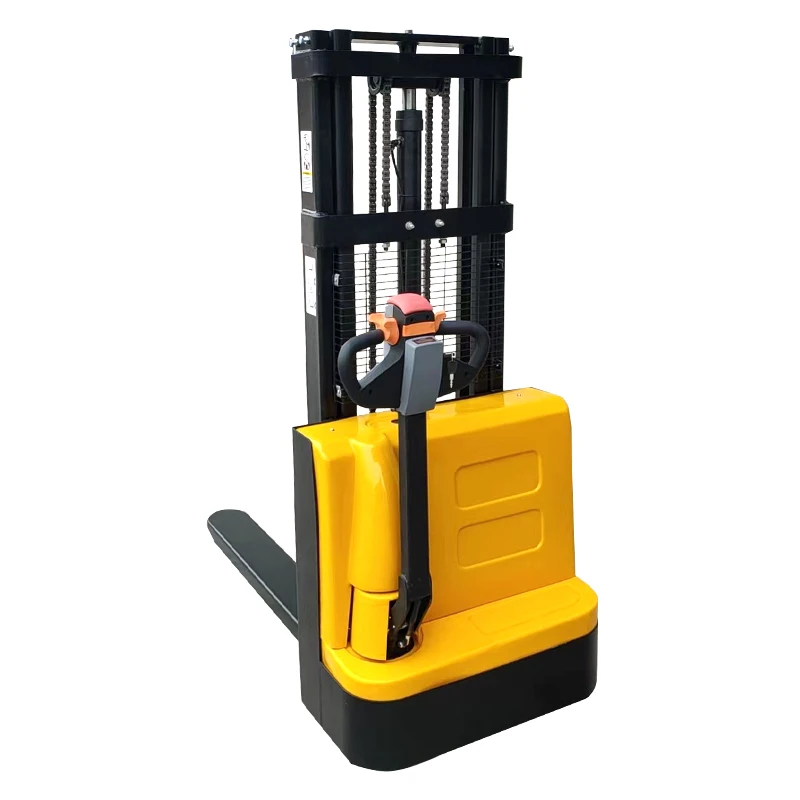

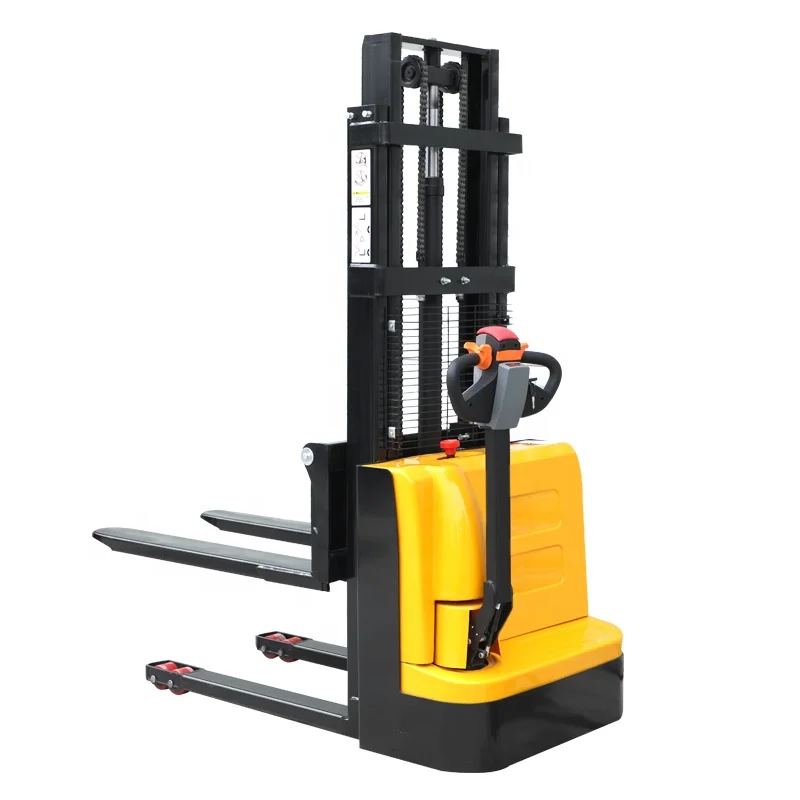

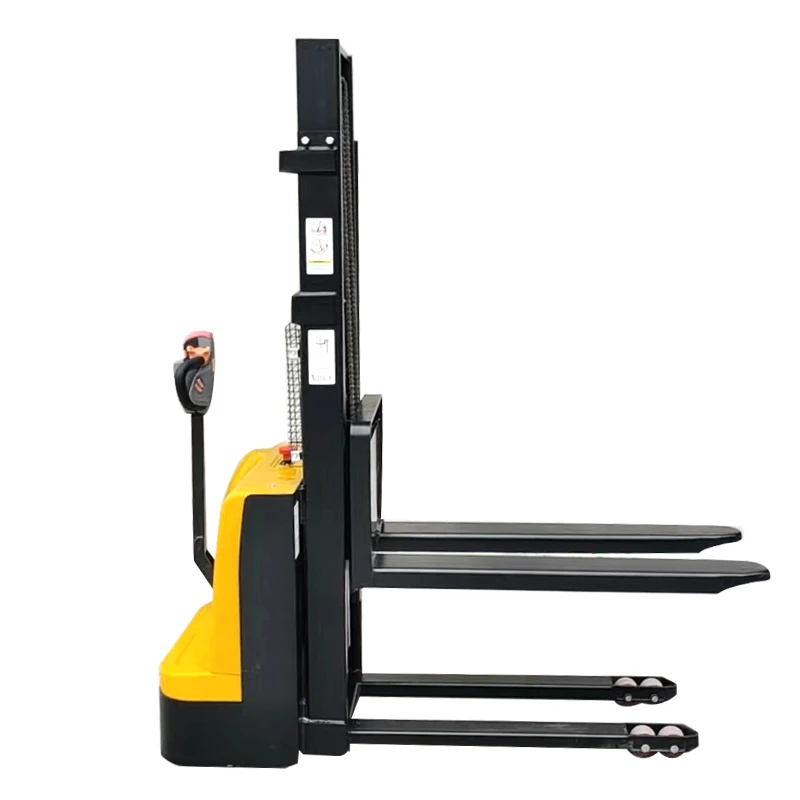

full electric pallet stacker
EWS Series full electric stacker with Patent Multifunction Intelligent Handle, a ideal and budge affordable model to replace Semi-Electric Stacker and manual stacker in the market, to bring a high efficiency and effortless pallet stacking.
PRODUCT SPECIFICATIONS
Model | EWS | |||||||||
Loading capacity | kg | 1000/1500/2000 | ||||||||
Max lifting height | mm | 1600 | 2000 | 2500 | 3000 | 3500 | ||||
Min lifting height | mm | 85 | 85 | 85 | 85 | 85 | ||||
Fork outer width | mm | 550/685/customized | ||||||||
Fork inner width | mm | 230/365/customized | ||||||||
Fork length | mm | 1150/customized | ||||||||
Overall length | mm | 1850 | ||||||||
Overall width | mm | 850 | ||||||||
Overall height | mm | 2080 | 1600 | 1850 | 2080 | 2350 | ||||
Mast | single | double | double | double | double | |||||
Lifting motor | kw | 2.2 | ||||||||
Driving motor | kw | 0.75 | ||||||||
Battery | v/ah | 24v/105ah | ||||||||
PRODUCT CONFIGURATION
Patent Multifunction Intelligent Handle
Unique in the market, quick error detect, easier service, save service time, save labor cost.
I. Vehicle operation status display Up/down/forward/backward
Working hour/battery capacity display
II. Quick Error detecting
Error code display
III. All maintenance information visualized
Quick error point locate.
I. Vehicle operation status display Up/down/forward/backward
Working hour/battery capacity display
II. Quick Error detecting
Error code display
III. All maintenance information visualized
Quick error point locate.
Up-right Drive Function Std.
Truck can be operate when handle in Up-right position.
Easy active access, suitable for narrow aisle working condition.
Active Method:
I. Belly Button Pressed+ Forward Knob Hold;
II. Turn on Key Switch;
III. Pull up Emergency Stop button for active Up-drive mode.
Easy active access, suitable for narrow aisle working condition.
Active Method:
I. Belly Button Pressed+ Forward Knob Hold;
II. Turn on Key Switch;
III. Pull up Emergency Stop button for active Up-drive mode.
Turtle Speed mode STD
Turtle and Rabbit Speed shift by button press.
Long Tiller Arm handle design
Easy steering and comfortable operation.
Light senor interlock switch, reliable quality.
Curtis controller that make your stacker better
Imported brand lifting motor and driving motor
Traveling Speed Automatic decline to 2km/h, when fork lift over 500mm.
More Safety and prevent any misoperation.
More Safety and prevent any misoperation.
Remote Control
Unique in the market, idea from trailer goods picking, with a simple remote device,
the operator can control the stacker lift and lowering to any suitable working height, save effort and be efficient.
the operator can control the stacker lift and lowering to any suitable working height, save effort and be efficient.
SALES AND SERVICE NETWORK
1: HKJ always treat after-sale service important as the product quality.
2: HKJ grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
3: HKJ can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
Certifications

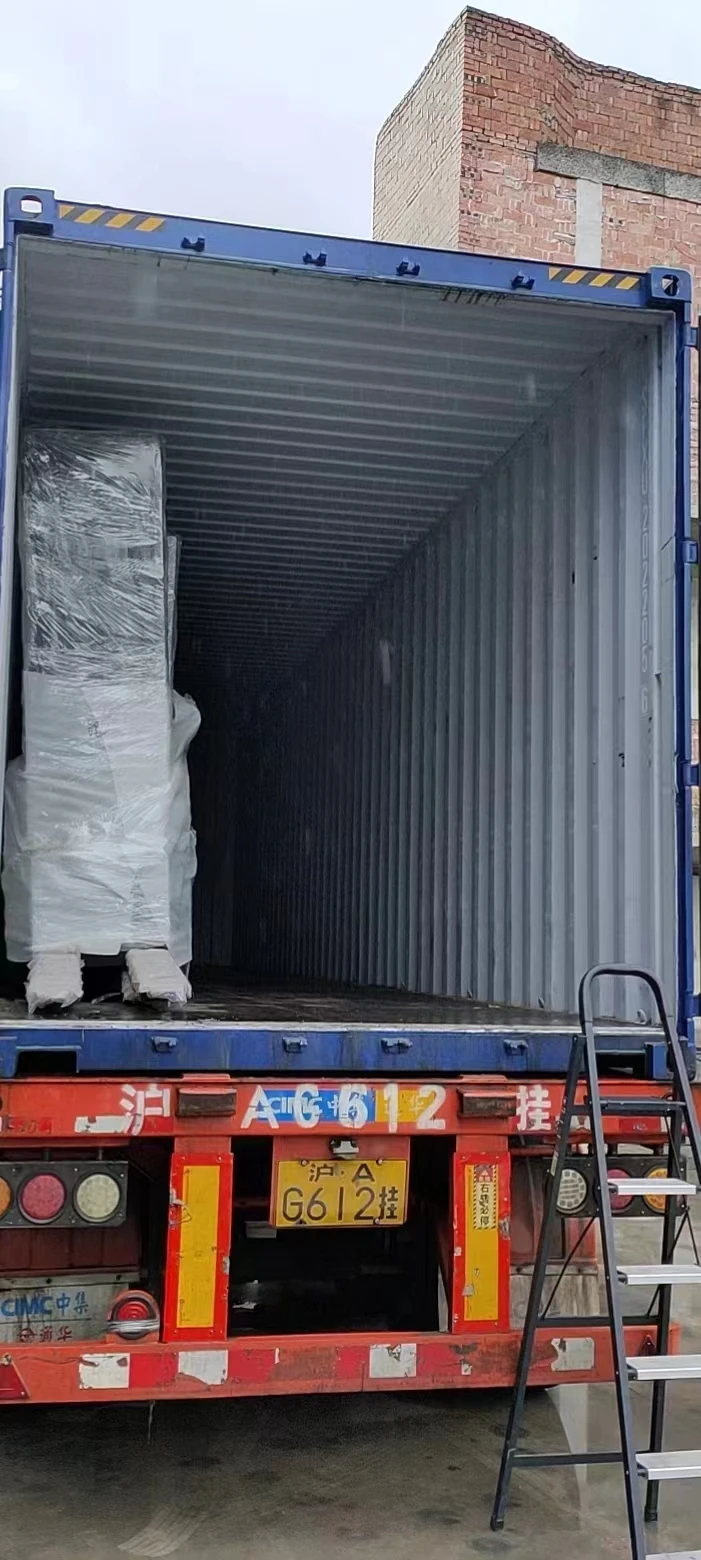

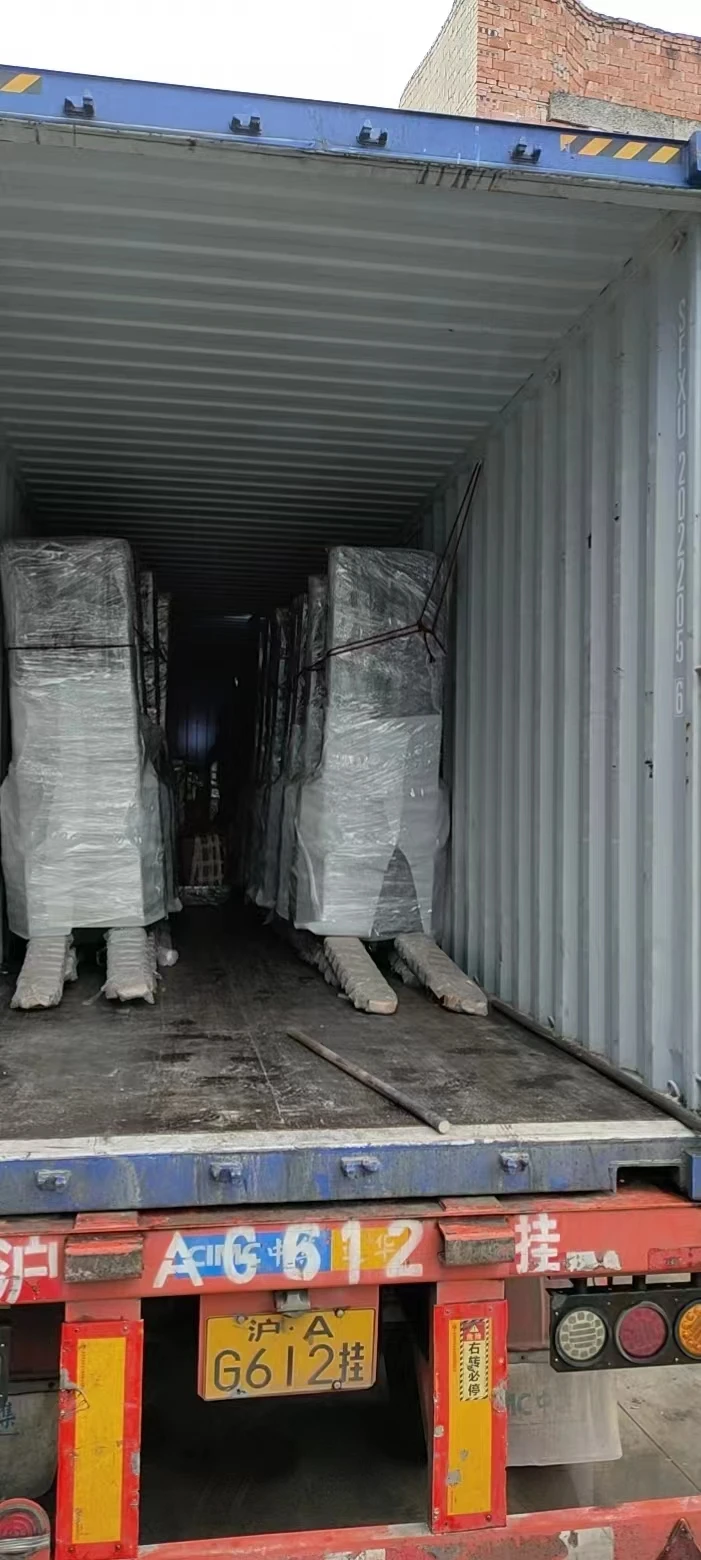

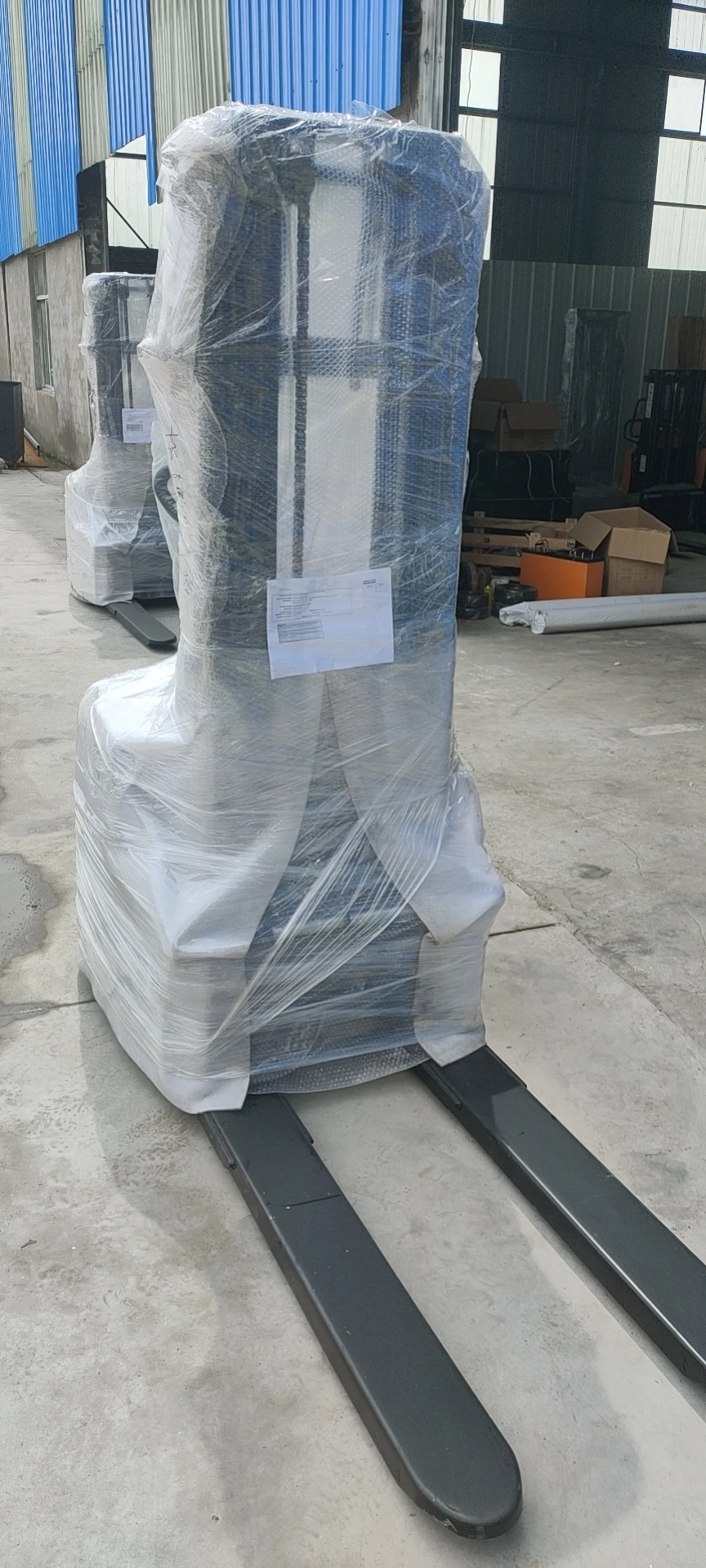

Factory and Packing
