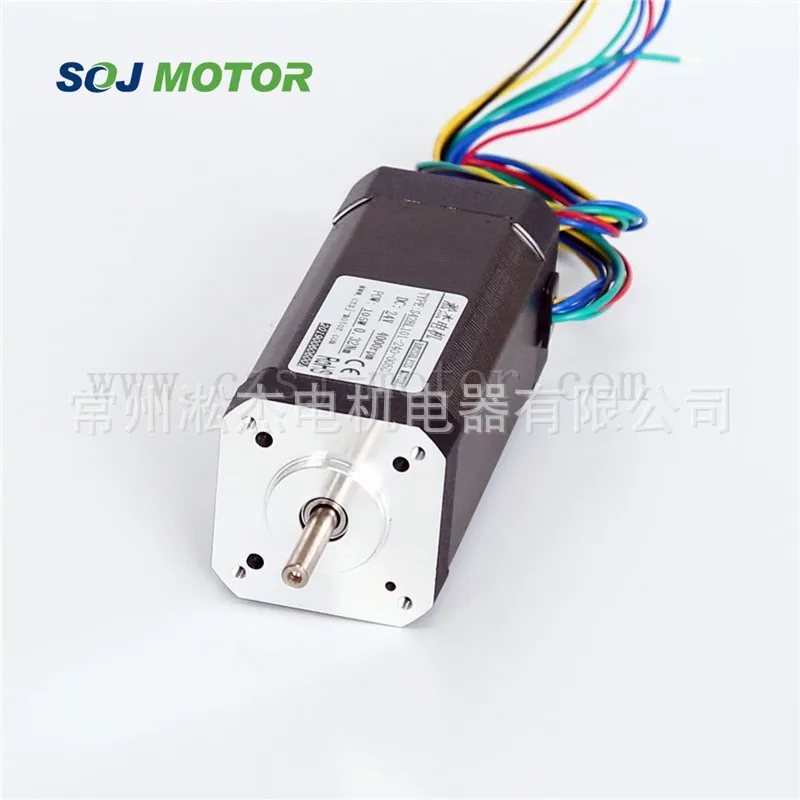

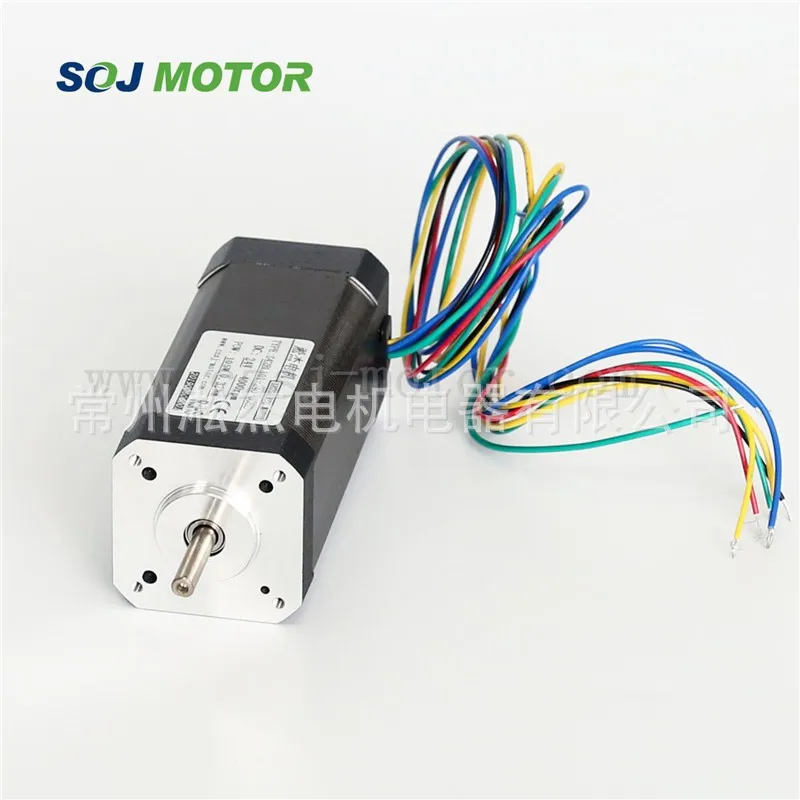

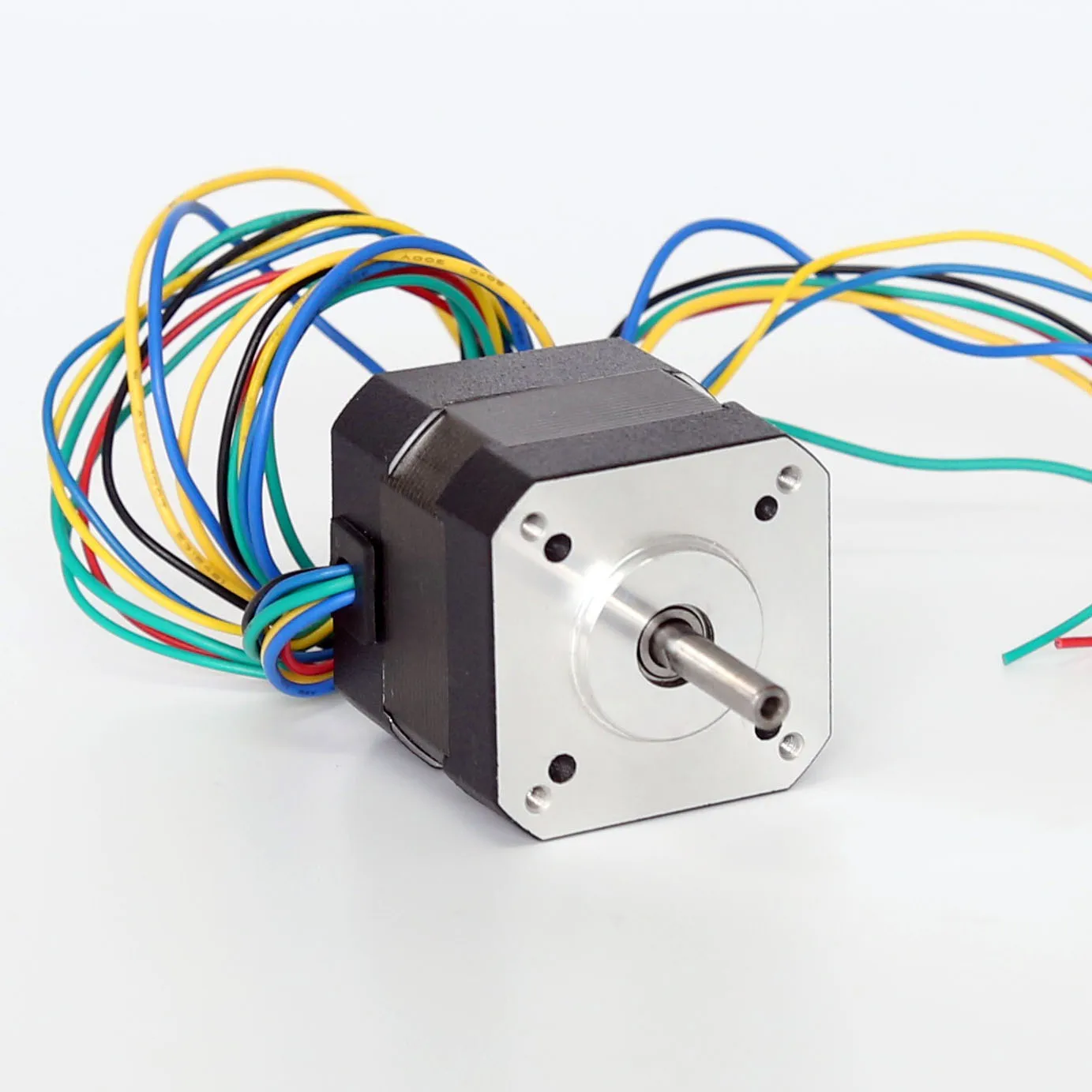

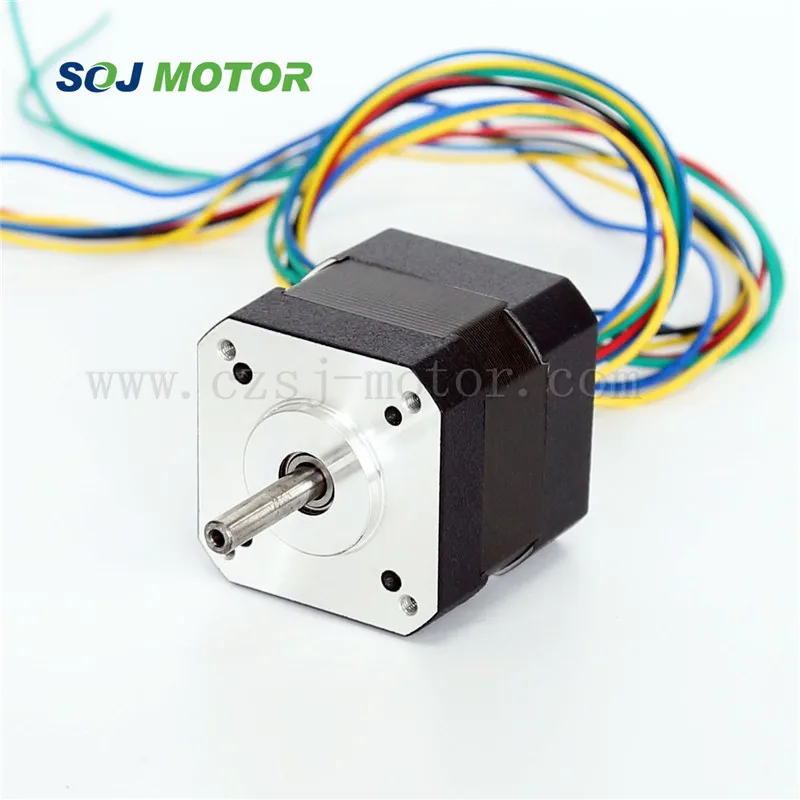

Waterproof Motor Brushless Ip68 42mm*42mm Nema17 42bldc High Torque Brushless Dc Motor 40w 24v 3000rpm 2.4a For Auto Parts
- Category: >>>
- Supplier: Changzhou Songjie Motor Electrical Ltd.
Share on (1600772407917):
Product Overview
Description
Product Description
| 42bl41 | 42bl61 | 42bl81 |
 |  |  |
| 42bl101 | S42BLR60-240 | S42BLR85-240 |
 |  |  |
| Brushless dc motor | |
| Detailed instructions | |
| Winding Type | Star |
| Hall Effect angle | 120° |
| Insulation Class | B |
| Ambient Temperature Range | -20C~+50C |
| Insulation Resistance | 100MQMin 500VC DC |
| Dielectric Strength | 700V AC 1 minute |
Electrical Specifications-S42BL
| Model | S42BL41-240 | S42BL61-240 | S42BL81-240 | S42BL101-240 |
| Number of Poles | 8 | 8 | 8 | 8 |
| Number of Phases | 3 | 3 | 3 | 3 |
| Nominal voltage VDC | 24 | 24 | 24 | 24 |
| Rated speed RPM | 4000 | 4000 | 4000 | 4000 |
| Rated Torque N-m | 0.0625 | 0.125 | 0.185 | 0.25 |
| Rated Current Amps | 1.8 | 3.5 | 5.2 | 6.6 |
| Output Power Watts | 26 | 52 | 78 | 105 |
| PeakTorque N-m | 0.18 | 0.38 | 0.55 | 0.75 |
| Peak Current Amps | 5.4 | 10.5 | 15.6 | 20 |
| Torque constant N-m/A | 0.035 | 0.036 | 0.036 | 0.0376 |
| Back EMF V/k RPM | 2.45 | 2.71 | 2.74 | 2.62 |
| Rotor inertia g«cm2 | 24 | 48 | 72 | 96 |
| Body Length (L) mm | 41 | 61 | 81 | 100 |
| Mass kg | 0.33 | 0.45 | 0.65 | 0.8 |

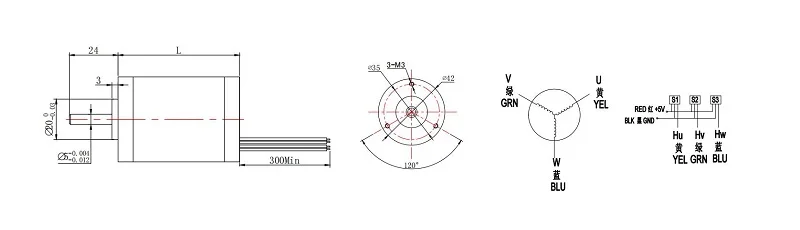

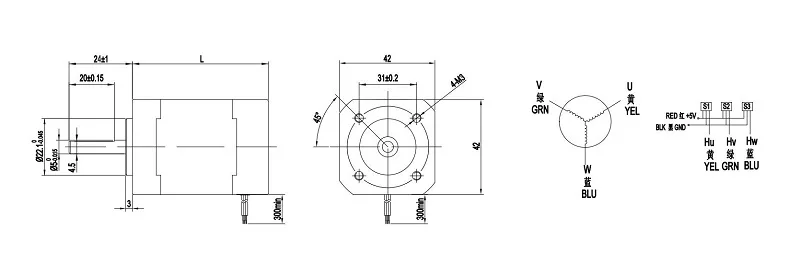

Mechanical Dimensions & Wiring Diagram-S42BL

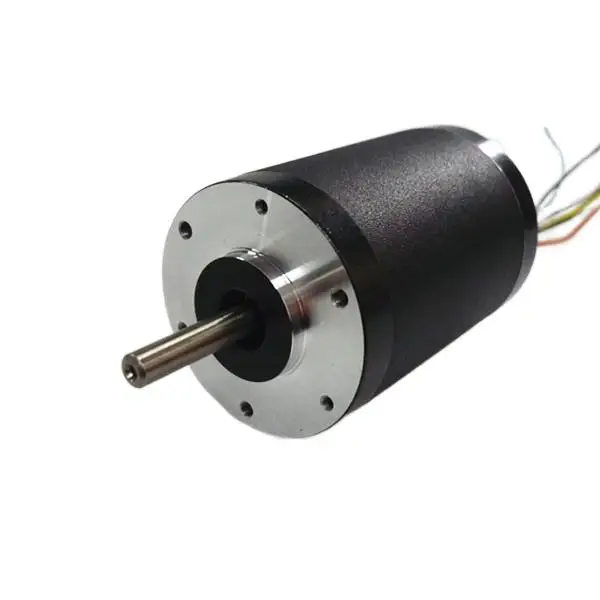

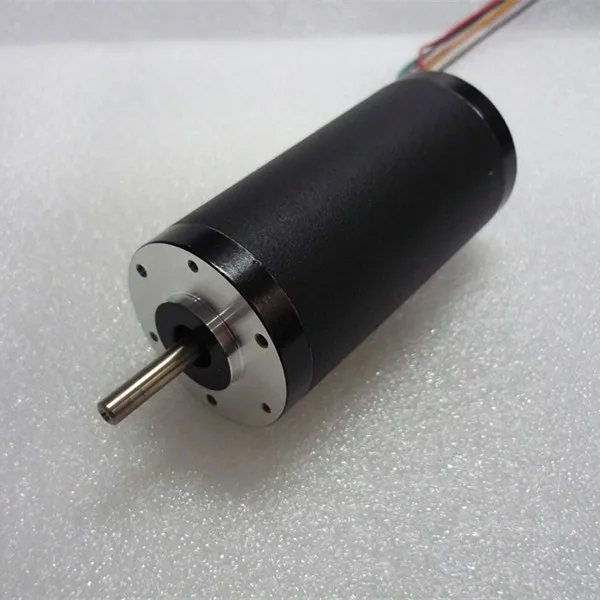

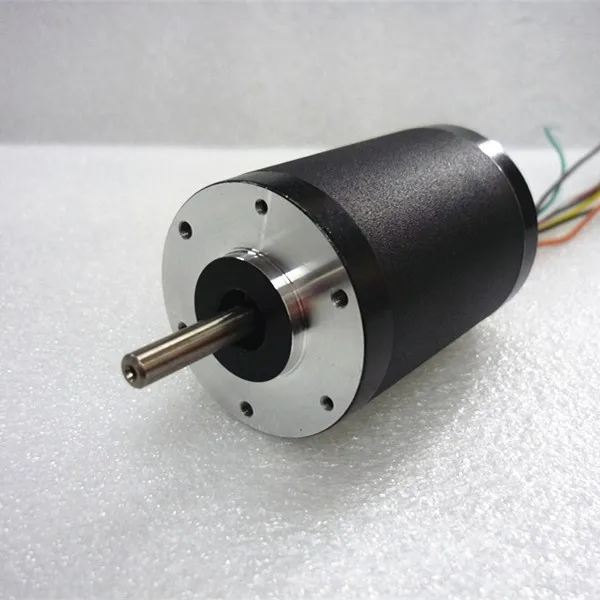

Electrical Specifications-S42BLR
| Model | S42BLR60-240 | S42BLR85-240 | S42BLR93-265 |
| Number of Poles | 8 | ||
| Number of Phases | 3 | ||
| Nominal voltage VDC | 24 | ||
| Rated speed RPM | 4200 | 4000 | 6500 |
| Rated Torque N-m | 56 | 150 | 115 |
| Rated Current Amps | 1.2 | 1.8 | 4.2 |
| Output Power Watts | 25 | 60 | 75 |
| PeakTorque N-m | 170 | 450 | 350 |
| Peak Current Amps | 4.2 | 11.2 | 11.5 |
| Torque constant N-m/A | 41 | 41 | 30.6 |
| Back EMF V/k RPM | 3.04 | 3 | 2.27 |
| Rotor inertia g«cm2 | 33 | 84 | 94 |
| Body Length (L) mm | 60 | 85 | 93 |
| Mass kg | 0.4 | 0.7 | 0.8 |
Mechanical Dimensions & Wiring Diagram-S42BLR

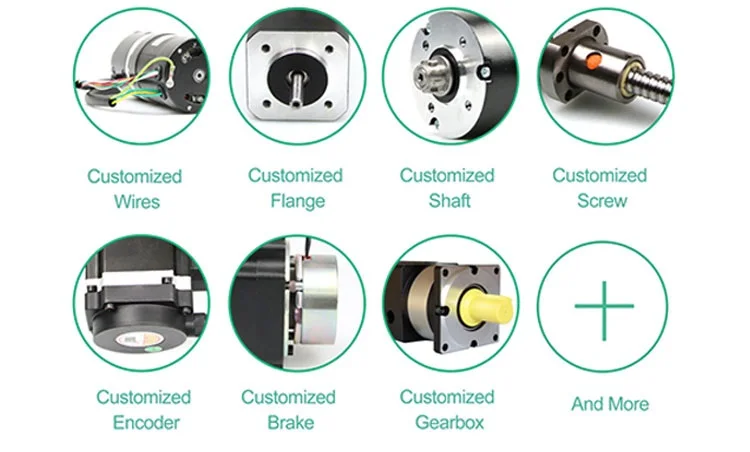

Customized Design

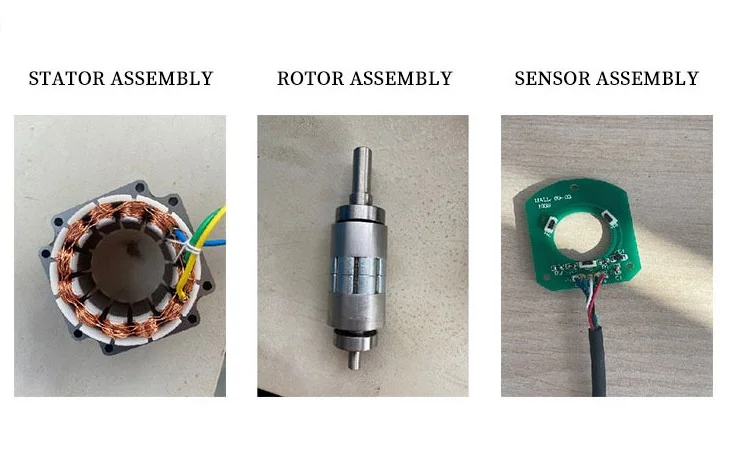

Composition Of Brushless Motor
