Product Overview
Description
Product Description

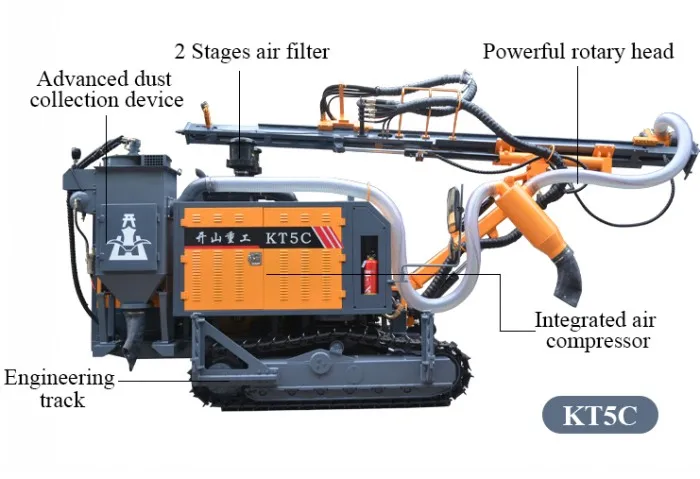

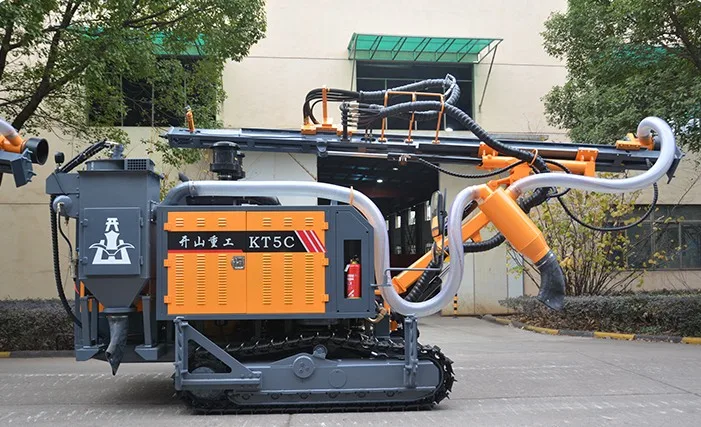

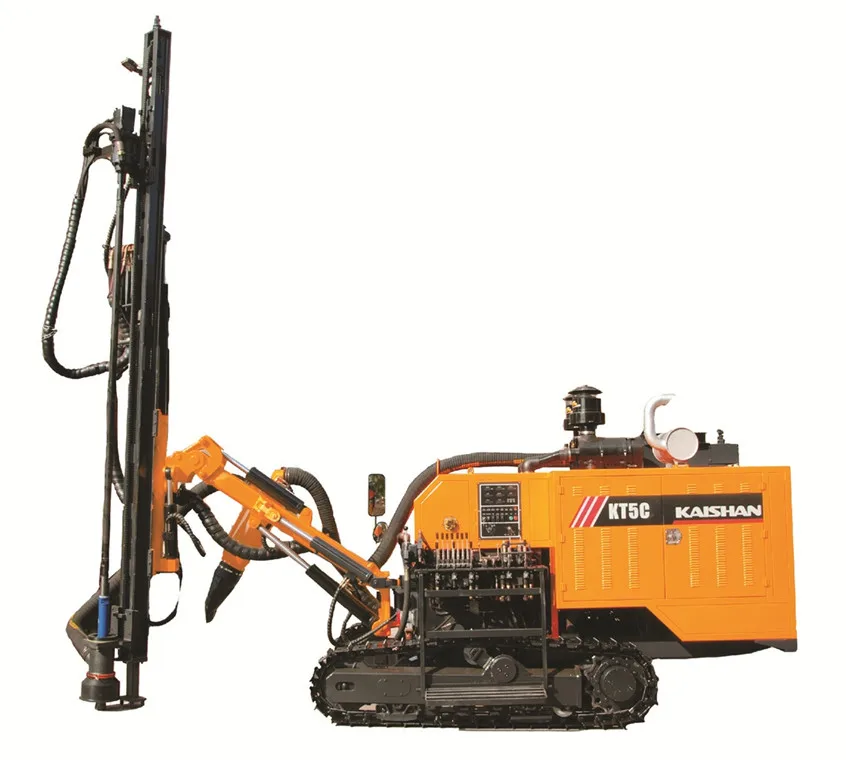

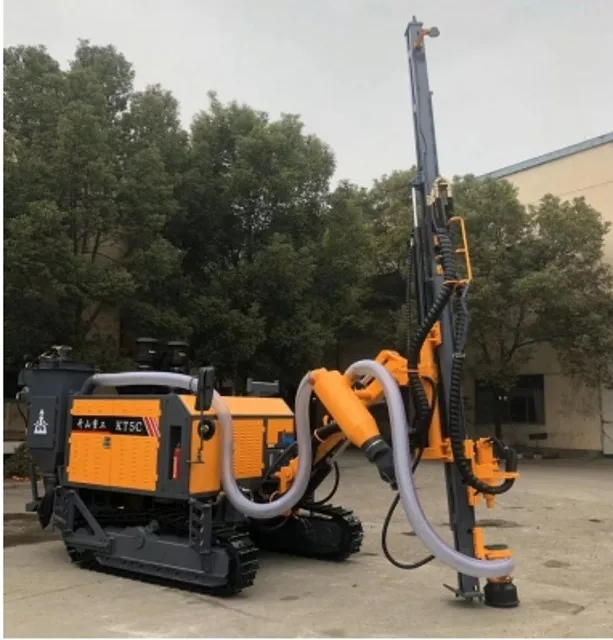

The KT5C integrated down the hole drill rig for open use is an advanced driling device integrating the down the hole diling system and screw air compressor system, It is capable of driling vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-slitting holes. Equipped with the Yuchai China stage II Engine and eficient dust collection system, the drill rig meets national standards for emissions and environment. It is typical of energy conservation, efficiency, safety, environment-friendliness, flexibility, simple operation and stable performance, etc.
Specification
Model No | KT5/KT5C |
Rock hardness | f=6-20 |
Hole diameter | 80-105mm |
Economic Drill depth | 25m |
Walking speed | 2.5-4.0km/h |
Grade ability | 30° |
Ground clearance | 430mm |
Diesel motor | YC6A180Z-T21 |
Machine Power | 140KW |
Screw compressor air delivery | 10m³/min |
Exhaust pressure | 15bar |
Overall Dimension(L*W*H) | 6500×2400×2600(mm) |
Weight | 8000kgs |
Rotating speed | 0-120r/min |
Rotation torque | 1400N·m |
Biggest push pull | 25000N |
Carriage Lifting Angle | Up 54° down 26° |
Carriage pitch angle | 147° |
Carriage swing angle | Right 47° left 47° |
Carriage lateral level swinging Angle | Right 15° left 97° |
Drill arm swing angle | Right 53° left 15° |
The leveling Angle frame | Up 10° down 9° |
Propulsion Type | Hydro-Cylinder-Chain |
Propulsion length(mm) | 3000mm |
Compensation length(mm) | 900mm |
Drill hammer | 35A |
Drill pipe | φ64×3000mm |
Dust collect way | Dry type (hydraulic drive whirlwind layer streaming) |
Recommend Below Spare Parts for KT5:
Drill bit Dia. | 100mm-105mm | 90 mm-100 mm |
Drill pipe Dia*L | Φ64/Φ76x3000mm | Φ64x3000mm |
Drill hammer | HD35/HD45/930 | KQ90 |
