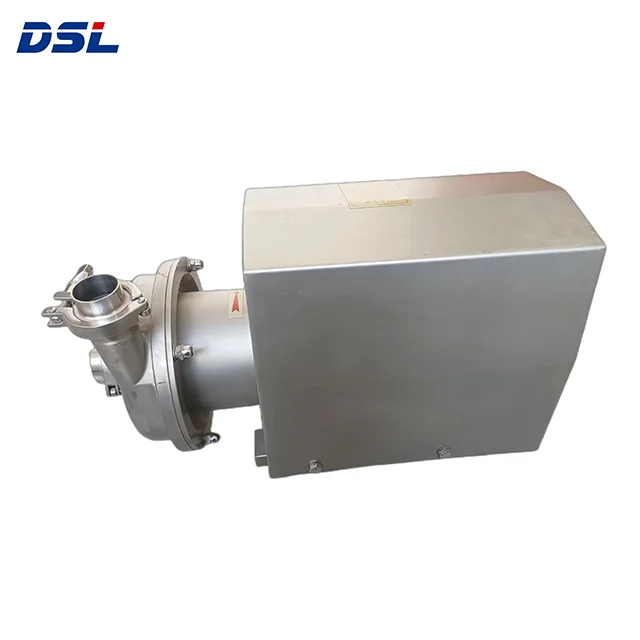

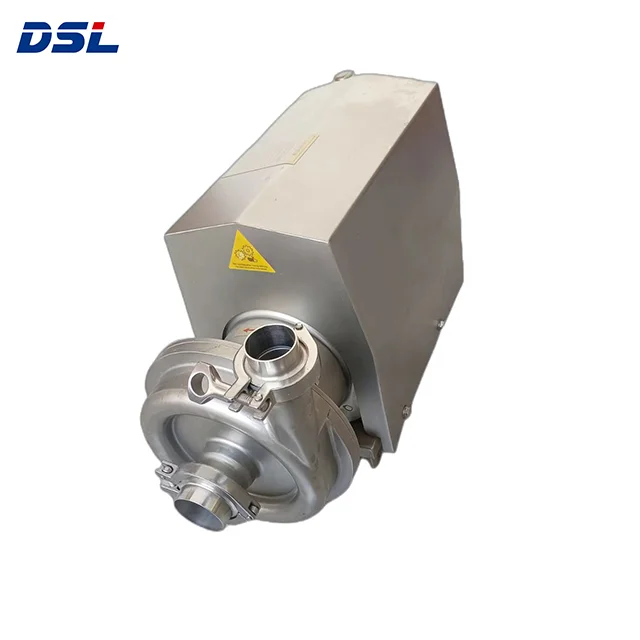

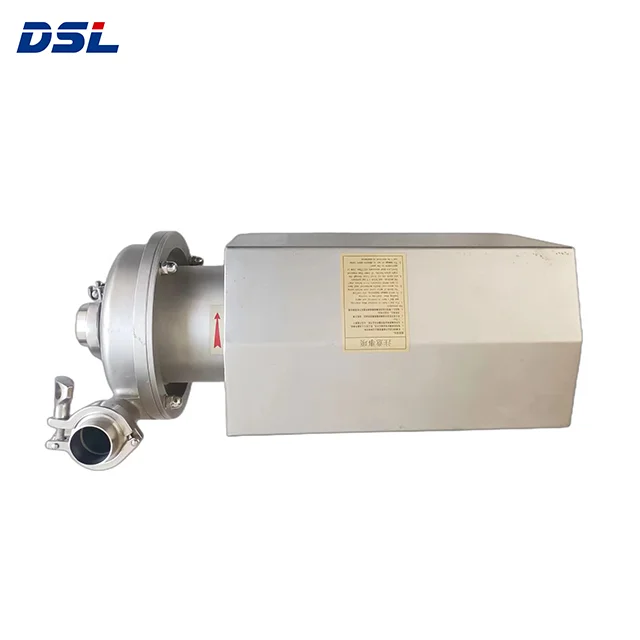

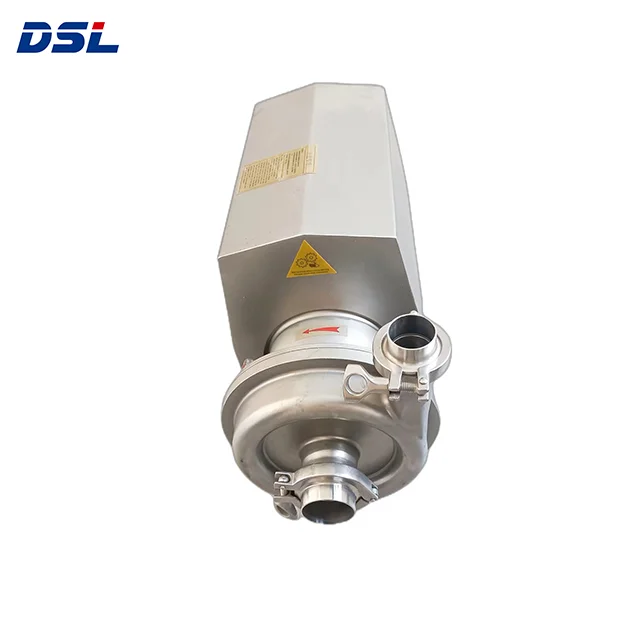

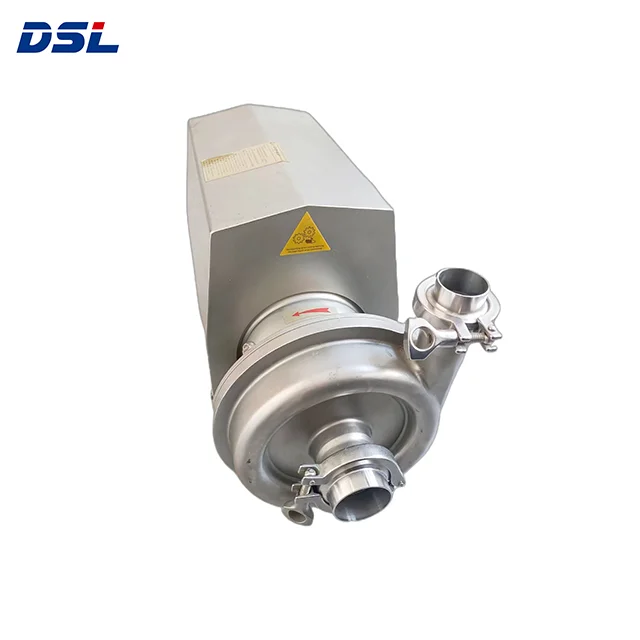

51mm 5.5kw 7.5kw CIP Return System Pump Milk Pump Food Grade Centrifugal Pump
- Category: >>>
- Supplier: Wenzhou Daysly Technology Co. Ltd.
Share on (1600772412079):
Product Overview
Description
Product Description
Sanitary Centrifugal Pump is one stage, one suction, centrifugal type sanitary pump, suitable for not sticky liquid, is an indispensable convey equipment of food, chemical and pharmacy industrial etc. The maximum suction temperature is around 80℃. Models of high head pump can be widely applicable for tube sterilization, yogurt temperature holding, CIP cleaning system with larger resistance.
Application to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry.
1.Chemical Industry: Fat, Dis-solvent, Resin, Paint, Pigment, Oil Agent etc.
2.Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
3.Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo,Shoe Polish etc.
1.Chemical Industry: Fat, Dis-solvent, Resin, Paint, Pigment, Oil Agent etc.
2.Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
3.Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo,Shoe Polish etc.
4. Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.
Motor
models in capacities of 1T/h to 10T/h in this series could also be with single-phase and 220V (0.37kw-2.2kw) motors, and the rest only work with three-phase 380V motors. Please confirm the voltage and phase type with us before ordering.
1.The pump is mainly adopt ABB brand three phase AC motor depend on fixture, according to international electrician council IEC60034, IEC60072 standard design and manufacturer, fulfill European CE mark requirement.
2.The explosion-proof motor also available
3.It with excellent electric performance, and with low noise, low vibration, the protection grade is IP55, insulation grade is F.
4.Operate voltage: ≤3Kw, 220-240V/380-420V, △/Y>3Kw, 380-420V, △/Y
5.Frequency: 50Hz/60Hz
6.Working method: continuous(SI）
7.Standard Rotate speed: 2900r/min
3.It with excellent electric performance, and with low noise, low vibration, the protection grade is IP55, insulation grade is F.
4.Operate voltage: ≤3Kw, 220-240V/380-420V, △/Y>3Kw, 380-420V, △/Y
5.Frequency: 50Hz/60Hz
6.Working method: continuous(SI）
7.Standard Rotate speed: 2900r/min
Specification
item | value |
Flux and Power | 3T--80T, 0.55KW--15KW |
Material | SUS304, SUS316L, the pump body, pump cover and impeller contact with medium made of SUS316L, SUS304 |
Standards | DIN, SMS |
Impeller | Open type impeller, there is no dead end |
Operate condition | Health centrifugal pump is a few horizontal transport of high and low level, is not the self-priming type. |
Surface treatment | The part contact with medium is polished, and other part is matt and sand blasted |
Max inlet pressure | 0.5MPa |
Temperature range | -10℃--140℃(EPDM) |
Flushed shaft mechanical sealing | water pressure: Max 0.1MPa water lift: 0.25-0.5L/min |
Application scope | Food, Dairy, Beer, Beverage, Pharmacy, Chemical Industy |
Feature | high efficiency, low noise, energy savings, easy maintenance |

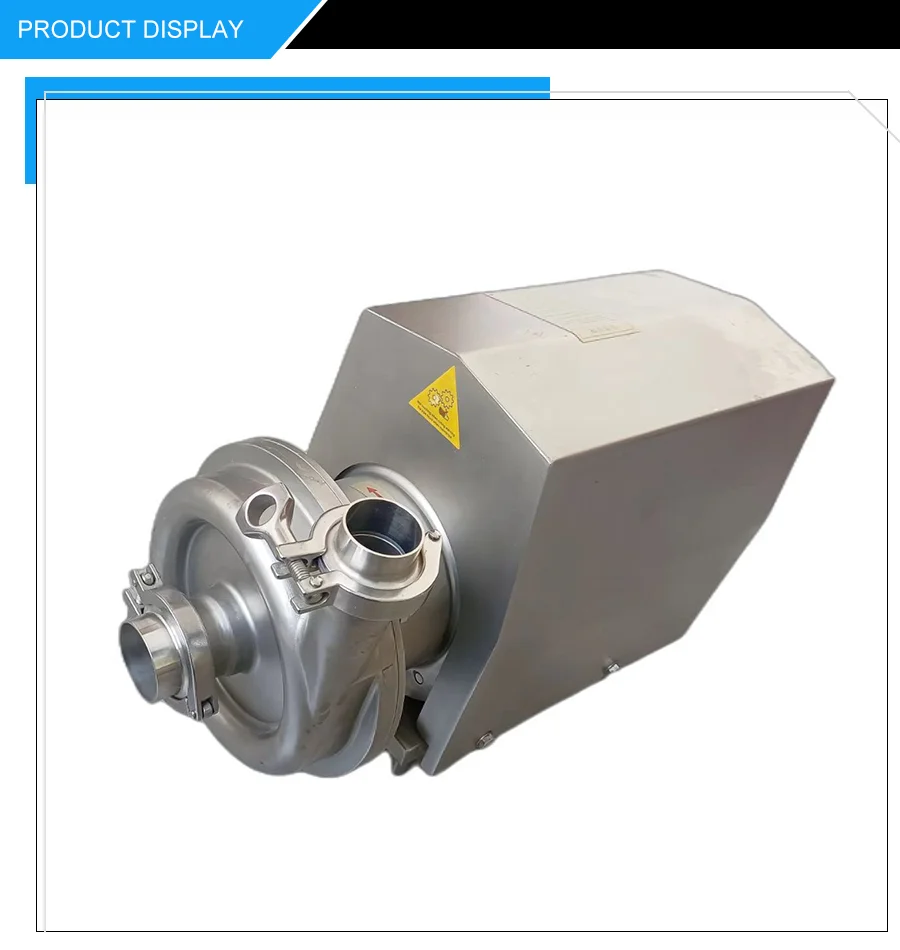

Details Images
Technical Parameter | ||||||||
Model | Flow | Lift | Power | Inlet/Outlet | ||||
DSL-3-14 | 3T | 14m | 0.55KW | 38/32 | ||||
DSL-3-16 | 3T | 16m | 0.75KW | 38/32 | ||||
DSL-3-24 | 3T | 24m | 1.5KW | 38/38 | ||||
DSL-3-30 | 3T | 30m | 2.2KW | 38/38 | ||||
DSL-4-18 | 4T | 18m | 1.1KW | 38/38 | ||||
DSL-5-24 | 5T | 24m | 1.5KW | 38/38 | ||||
DSL-3-30 | 5T | 30m | 3KW | 38/38 | ||||
DSL-10-24 | 10T | 24m | 2.2KW | 51/38 | ||||
DSL-10-36 | 10T | 36m | 3KW | 51/51 | ||||
DSL-10-50 | 10T | 50m | 5.5KW | 51/51 | ||||
DSL-10-60 | 10T | 60m | 7.5KW | 51/51 | ||||
DSL-15-24 | 15T | 24m | 3KW | 51/51 | ||||
DSL-20-24 | 20T | 24m | 4KW | 51/51 | ||||
DSL-20-36 | 20T | 36m | 5.5KW | 51/51 | ||||
DSL-20-55 | 20T | 55m | 11KW | 51/51 | ||||
DSL-25-35 | 20T | 35m | 5.5KW | 51/51 | ||||
DSL-30-24 | 30T | 24m | 5.5KW | 51/51 | ||||
DSL-30-36 | 30T | 36m | 7.5KW | 63/51 | ||||
DSL-40-24 | 40T | 24m | 7.5KW | 63/51 | ||||
DSL-50-24 | 50T | 24m | 7.5KW | 63/51 | ||||
DSL-50-40 | 50T | 40m | 11KW | 89/63 | ||||
DSL-60-24 | 60T | 24m | 11KW | 89/63 | ||||
DSL-60-40 | 60T | 40m | 15KW | 89/89 | ||||
DSL-80-30 | 80T | 30m | 15KW | 89/89 | ||||

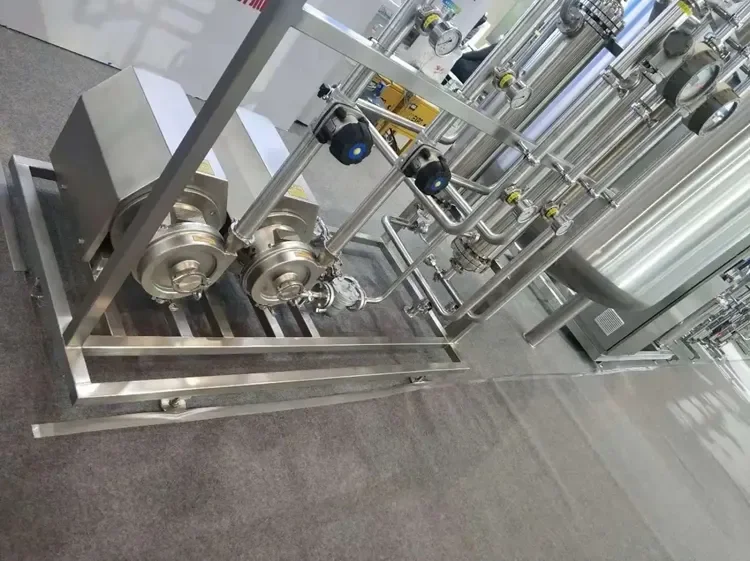

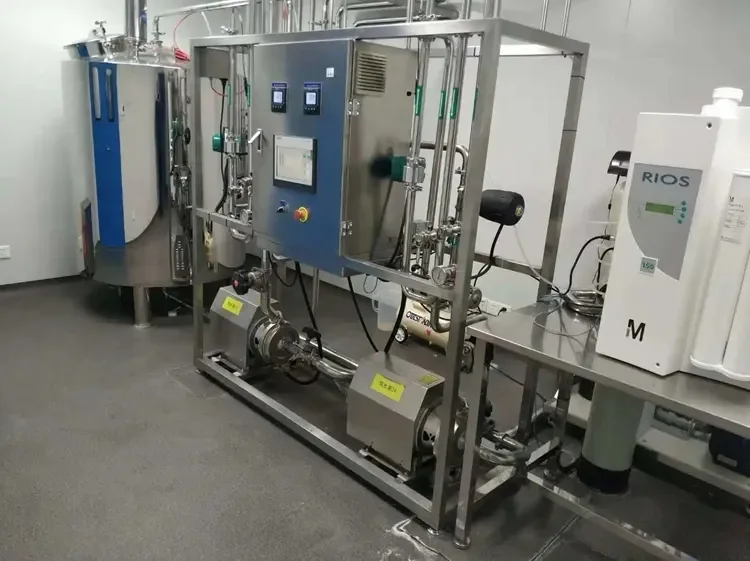

Application
