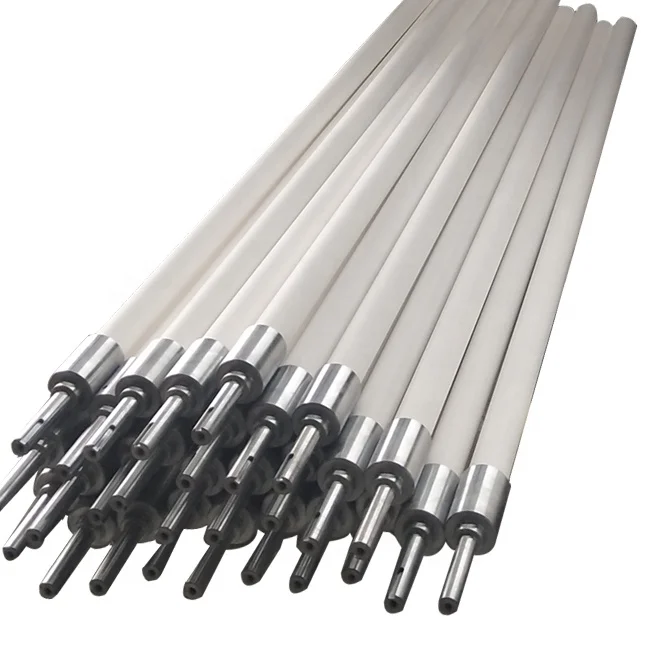

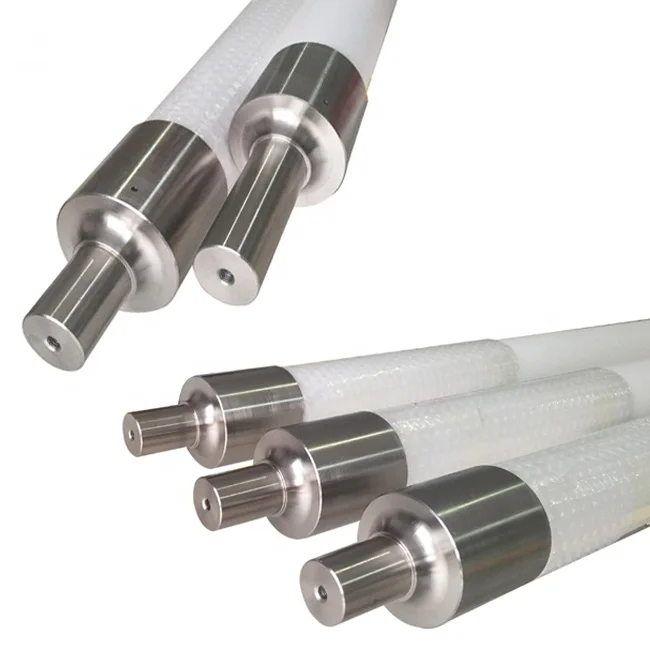

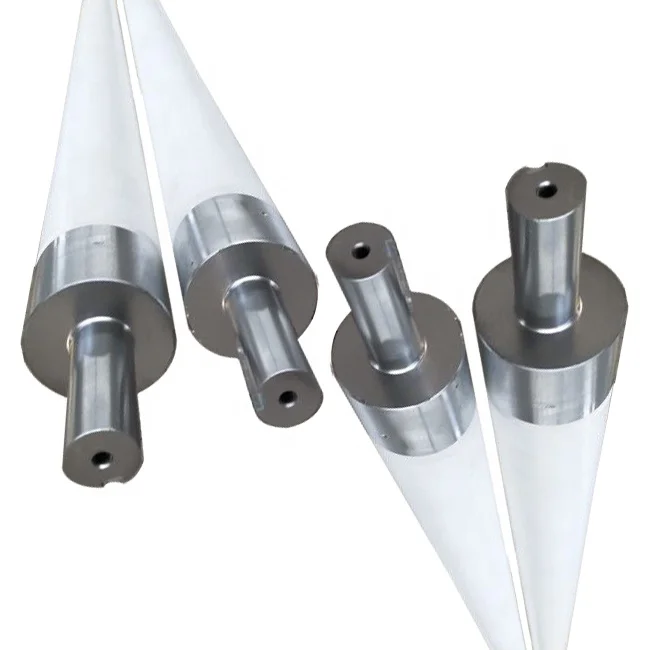

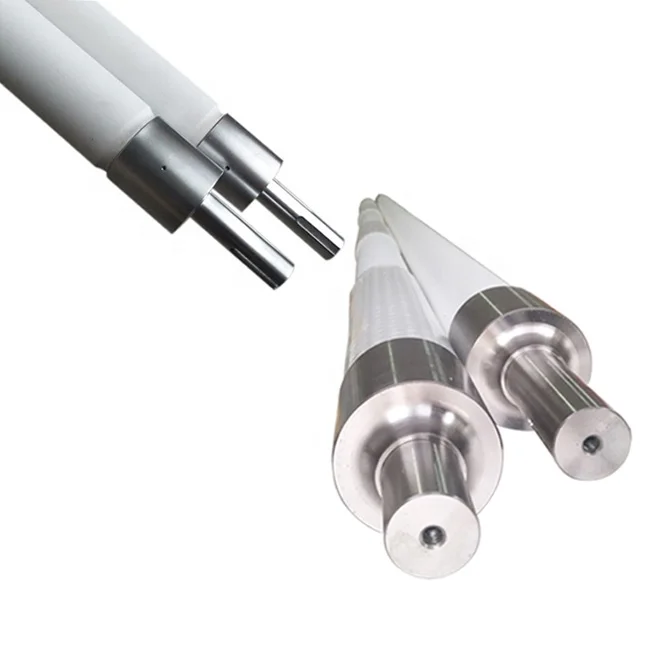

Quartz fused silica ceramic hollow roller for silicon steel continuous annealing furnace
- Category: >>>
- Supplier: Zibo Supereal Industrial Ceramic Co. Ltd.
Share on (1600772735802):
Product Overview
Description
Quartz fused silica ceramic hollow roller for silicon steel continuous annealing furnace
Product Description
Made from high purity of material composition SiO2, our Quartz fused silica ceramic hollow roller for silicon steel continuous annealing furnace with very low thermal expansion and excellent thermal shock resistance, is the right choice for a variety of glass manufacturing, glass transformation, steel processing and non-ferrous metal processing, especially for the kilns which produce safety glass for architectural or automotive usage. As an alternative, we can also offer the fused silica rollers with metal cap in a variety of designs.
Characteristics of Quartz fused silica ceramic hollow roller for silicon steel continuous annealing furnace:
♦. Good surface smoothness, no scratch to glass , no pollution to glass
♦. High density without bubbles
♦. High precision in size
♦. Raw material with high purity, excellent chemical and physical properties
♦. Very high compressive strength, flexural strength & impact strength at high temperature
♦. Very low thermal expansion coefficient
♦. Excellent thermal shock stability
♦. No deformation under high temperature
♦. Small radial beat (runout)
♦. Long service life with reliable axle neck joint technology (Anti-loose technology)
♦. High economic efficiency, can reduce the overall cost of belt conveyor, reduce maintenance
♦. Good surface smoothness, no scratch to glass , no pollution to glass
♦. High density without bubbles
♦. High precision in size
♦. Raw material with high purity, excellent chemical and physical properties
♦. Very high compressive strength, flexural strength & impact strength at high temperature
♦. Very low thermal expansion coefficient
♦. Excellent thermal shock stability
♦. No deformation under high temperature
♦. Small radial beat (runout)
♦. Long service life with reliable axle neck joint technology (Anti-loose technology)
♦. High economic efficiency, can reduce the overall cost of belt conveyor, reduce maintenance
Specification
Product Name | Quartz fused silica ceramic hollow roller for silicon steel continuous annealing furnace | ||
Item | Unit | Data | |
SiO2 Content | % | >99.6 | |
Bulk Density | g/cm³ | 1.92-2.00 | |
Open Porosity | % | 7~11 | |
Compressive Strength | MPa | ≥55 | |
Flextural Strength | MPa | ≥25 | |
Thermal Expansion Coefficient | ×10-6/K-1 | ≤0.6 | |
Conductivity (20℃) | W/m·K | 0.64 | |
Conductivity (800℃) | W/m·K | 0.55 | |
Max. Working Temperature | ℃ | 1100 | |

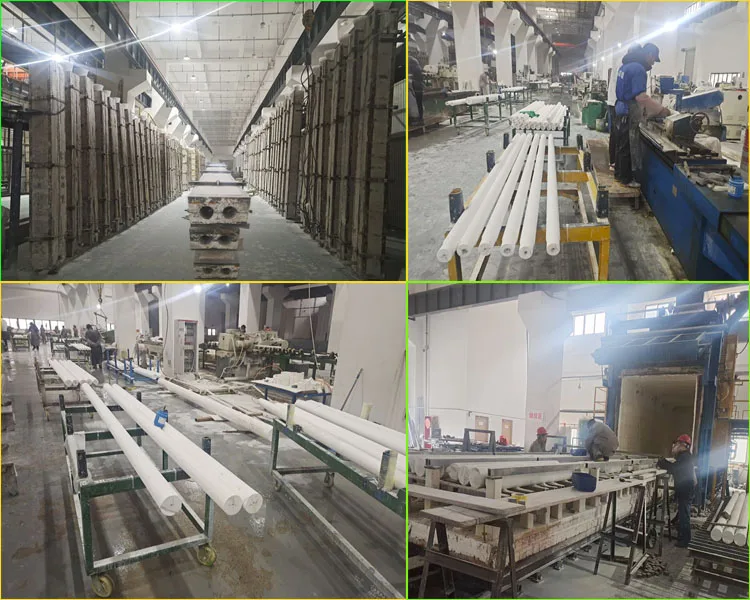

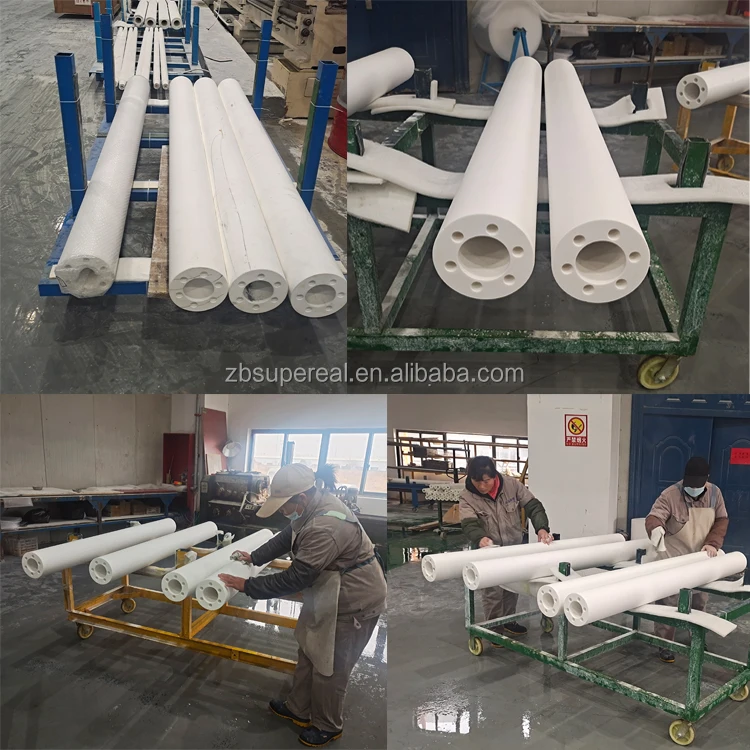

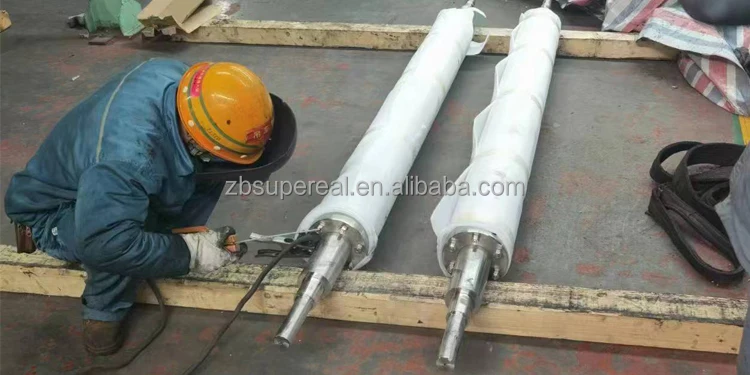

Workshop

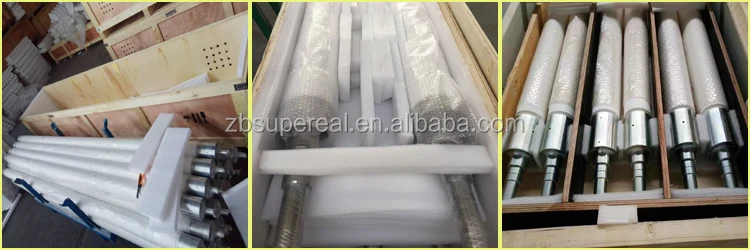

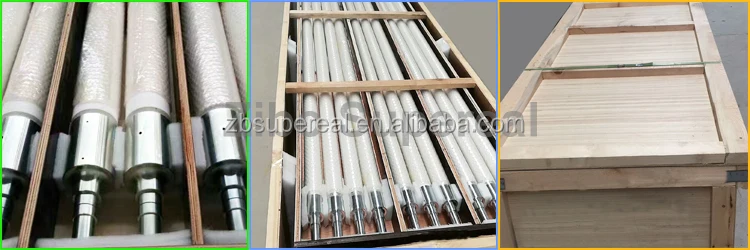

Packing & Delivery
For Quartz fused silica ceramic hollow roller for silicon steel continuous annealing furnace, we will supply Strong, Safe, Safe, Durable, Compact and Environmental Packing for long-time transportation by sea, plan or truck and so on.
APPLICATION
Due to the perfect mechanical properties and special surface quality, our Quartz ceramic hollow roller for silicon steel continuous annealing furnace is mainly used in the horizontal tempering furnace to transport heat treating glass.

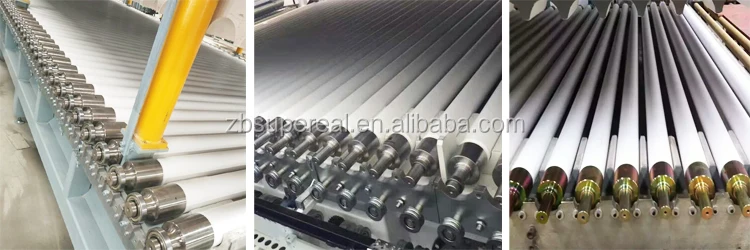

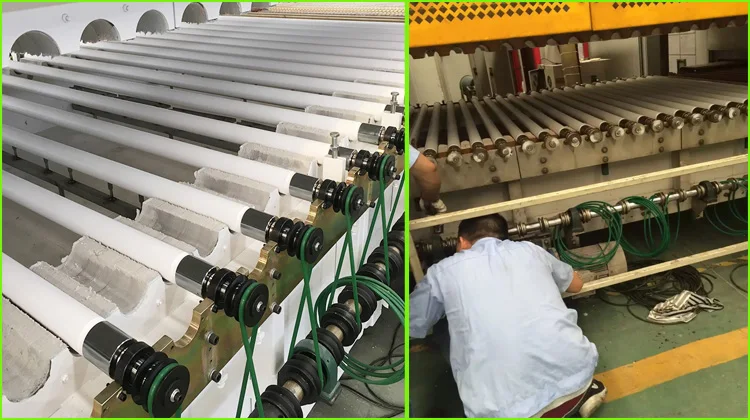

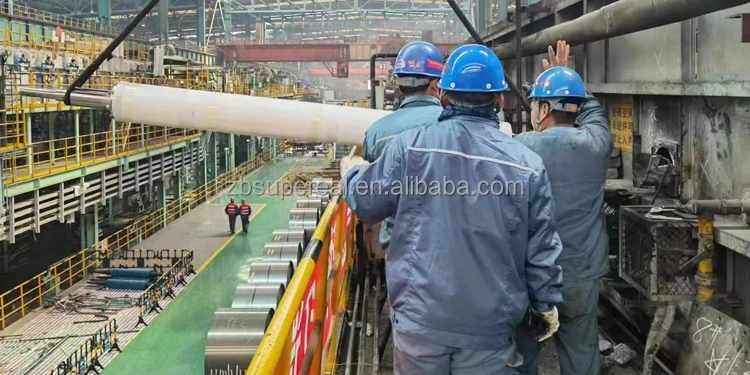

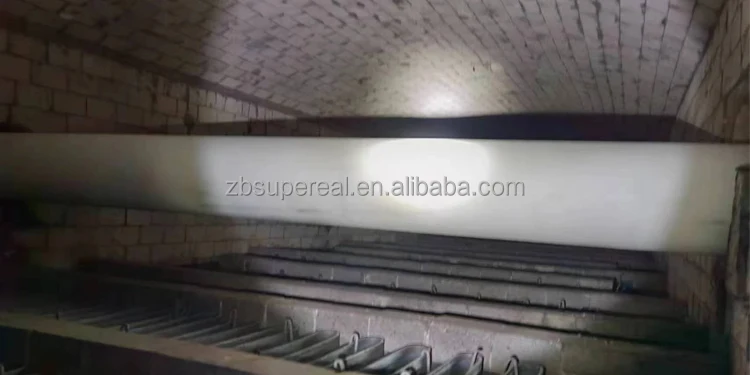

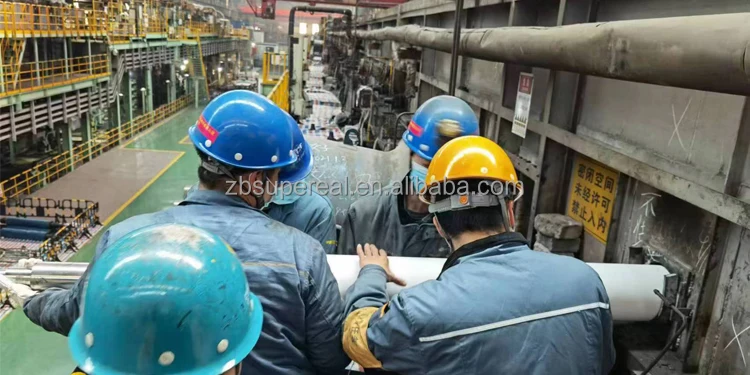

Some application situation of Quartz fused silica ceramic hollow roller for silicon steel continuous annealing furnace:
Some application situation of Quartz fused silica ceramic hollow roller for silicon steel continuous annealing furnace:
Company Profile

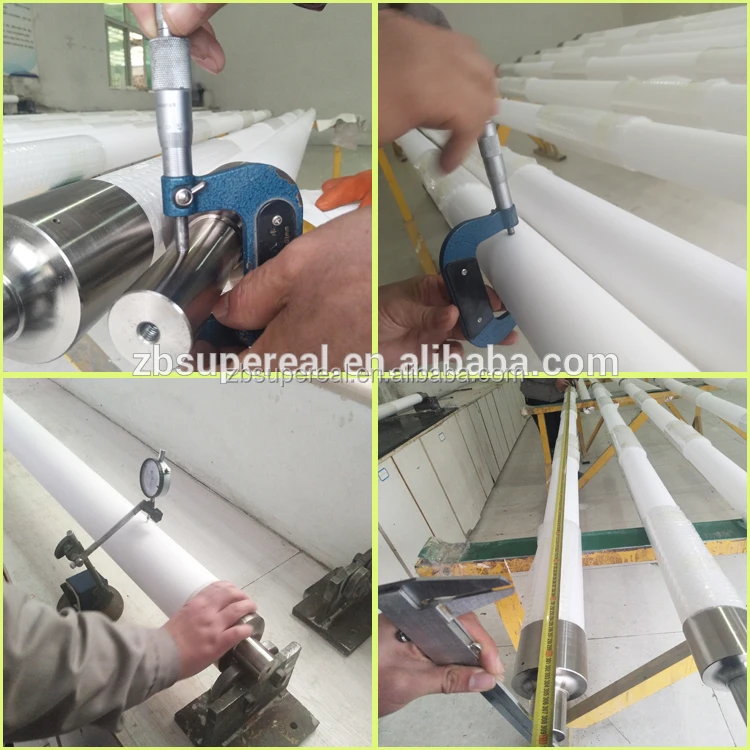

Zibo Supereal Industrial Co., Ltd, located in Zhangdian Economic Development Zone in Zibo city is focusing on high alumina ceramic products.Our company has a rigorous quality control system to guarantee stable performance and proven quality, our professional inspection team will carry out full course tracking from raw material selection, batching, production process management to semi and finished products test. Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our products have been approved and accepted by clients and users from Vietnam, South Korea, India, Russia, Italy, Poland, USA and etc.
Besides the superior quality, Zibo Supereal Industrial Co., Ltd also earned a good reputation for fast deliveries, competitive pricing and outstanding customer service.
Besides the superior quality, Zibo Supereal Industrial Co., Ltd also earned a good reputation for fast deliveries, competitive pricing and outstanding customer service.
