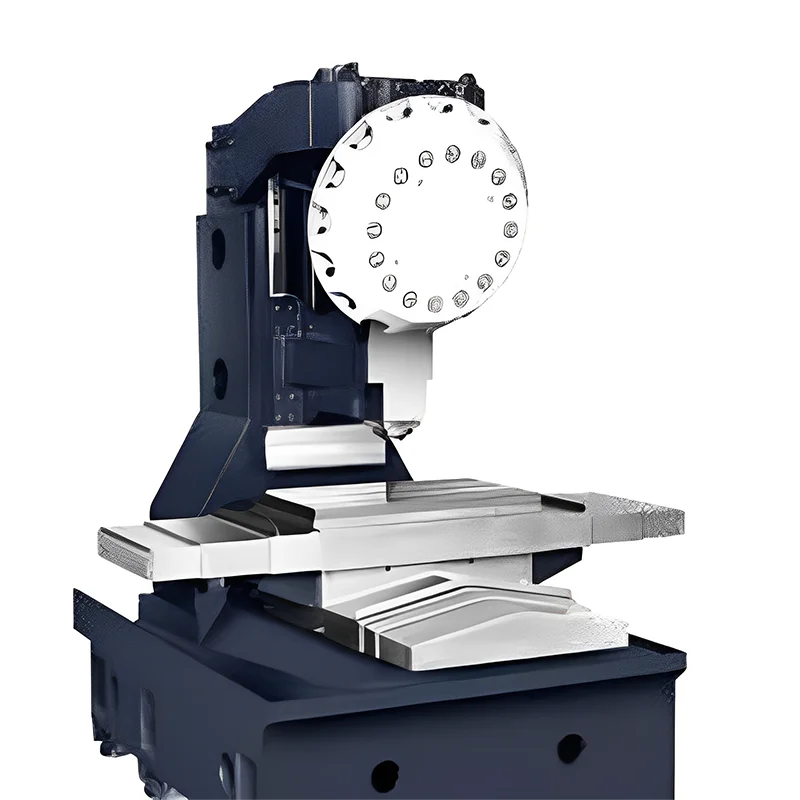

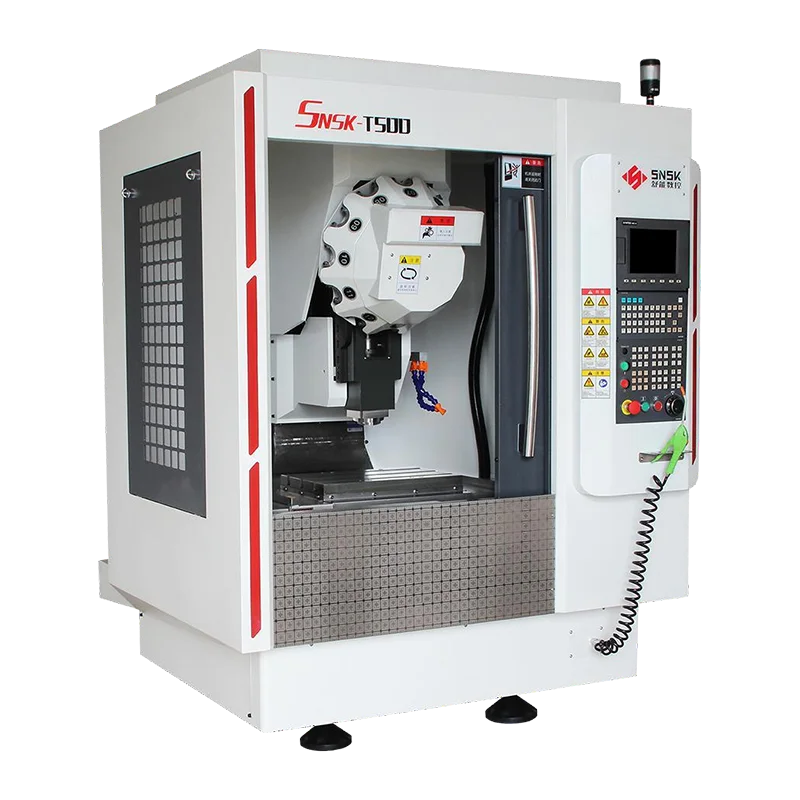

SNSK SN T500 China 5 Axis Vertical CNC Machining Center VMC850 with Controller price
- Category: >>>
- Supplier: Xiongyi Intelligent Machinery (changzhou) Co. Ltd.
Share on (1600772862450):
Product Overview
Description
Product Description
1. All machine tool castings are made of high-grade Mihanna iron Fc-30.
2. The superhard cast iron ensures the long-term accuracy of the machine tool.
3. The honeycomb design structure greatly improves the vibration resistance and rigidity of the machine tool.
Ensure the tempering process and strengthen the stability of castings.
4. All machine tools are subject to strict accuracy testing before leaving the factory:
A Laser measurement system is adopted, which can detect the positioning accuracy of the machine, pitch and backlash compensation.
B The statistics and dynamics of circle test can lock the errors of the machine in all aspects.
5. The main shaft is grease lubricated and equipped with P4 grade (6 pieces in total) high-speed precision bearings.
Machine tool name, model, technical specifications and main accessories information
1. Machine name: Small high-speed drilling and tapping center
2. Machine model: SN-T500
3. Main technical specifications of machine tools
Category | project | unit | parameter |
workbench | Table size (length × width) | mm | 500*320 |
T-slot (number of slots/slot width/slot pitch) | mm | 3/14/100 | |
Maximum load of workbench | kg | 200 | |
journey | Maximum travel ( X/Y/Z) | mm | 500/350/320 |
Spindle nose to table distance | mm | 120~440 | |
Distance from spindle center to column guide rail | mm | 390 | |
feed | rapid traverse speed ( X/Y/Z) | m | 48/48/48 |
Feed rate ( X/Y/Z) | m | 24/24/24 | |
Spindle | Spindle Taper Hole Specifications | - | BT30 |
Spindle speed | rpm | 12000 | |

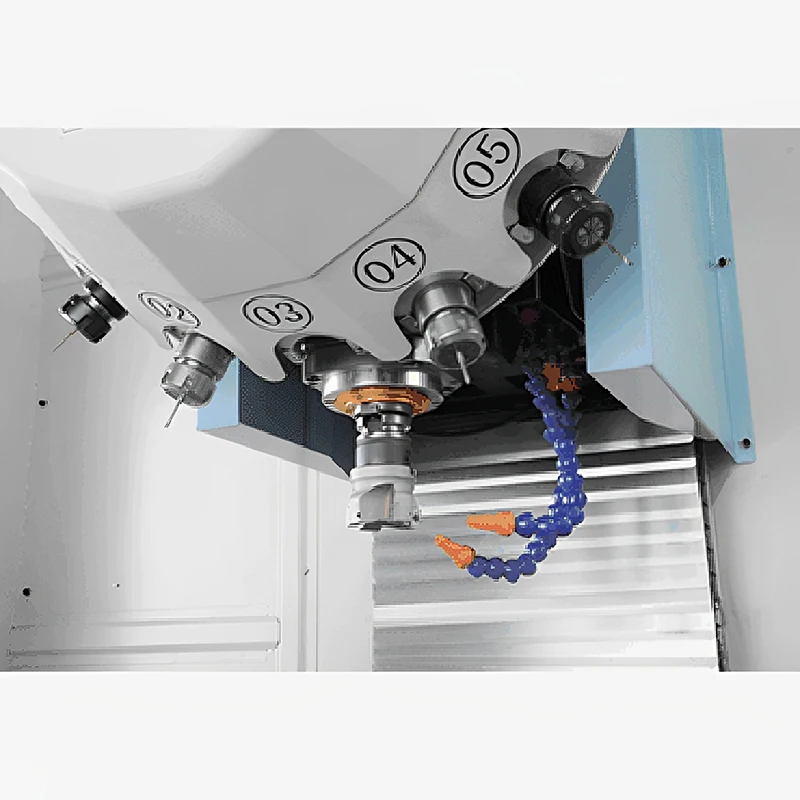

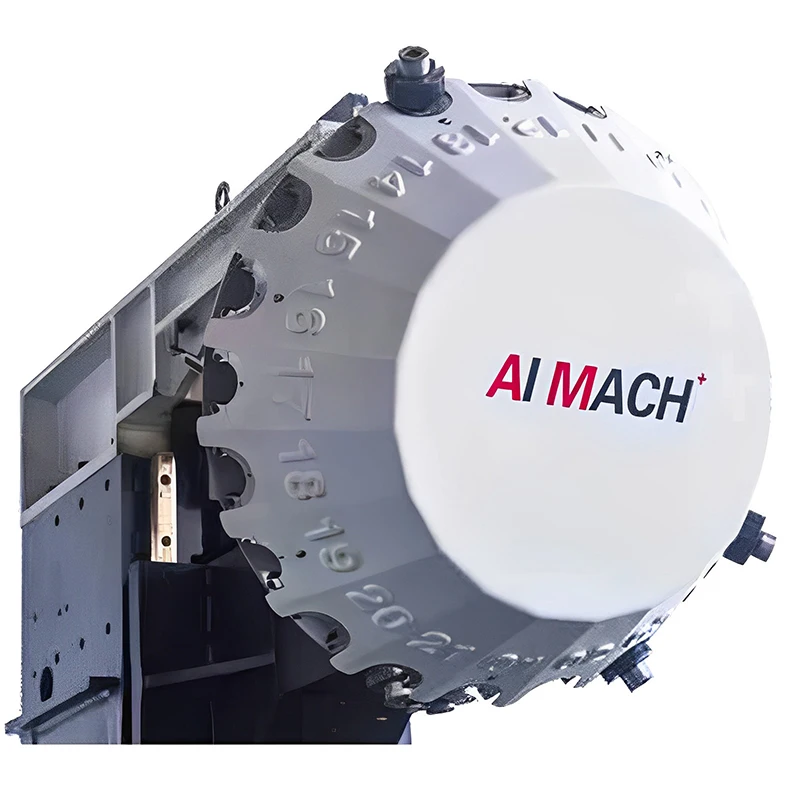

automatic Tool change mechanism | Tool magazine form | - | Jaw type |
Handle Model | - | BT30 | |
Shank Pull Stud Specifications | - | MAS-P30T-1(45°) | |
Maximum number of knives | PCs | 12 | |
Maximum Tool Diameter | mm | 100 | |
Maximum tool diameter (without adjacent tool) | mm | 120 | |
tool length | mm | 150 | |
tool weight | kg | 3 | |
Tool change time ( T to T) | sec | 2.5 | |
Tool change time ( C to C) | sec | 2.8 | |
precision | positioning accuracy | mm | 0.008 |
Repeatability | mm | 0.005 | |
motor | Spindle servo motor | kw | 3.7-5.5 |
X/Y/Z servo motor | kw | 1.1/1.1/2.4 |
