Product Overview
Description
Portable Drone Detector aeroscope mobile can find controller pilot position UAV detection device

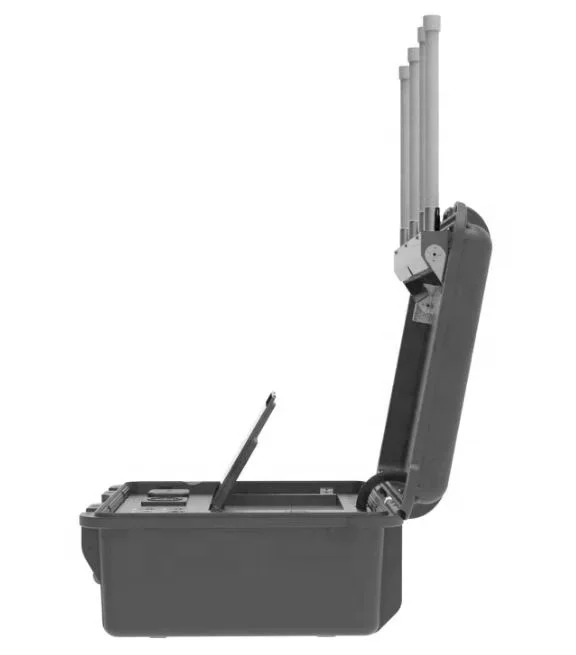

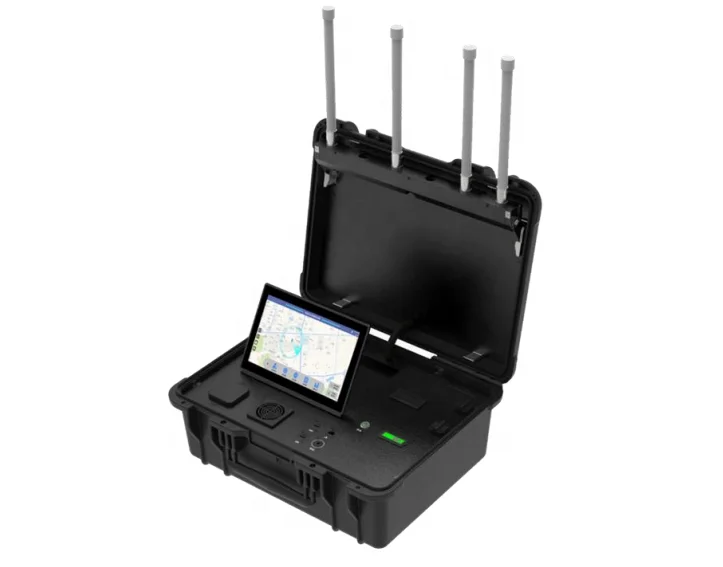

TTSKC01 portable drone detector is a briefcase style drone detection device for drone monitoring.
It is used for monitoring drone information such as SN code, model, location (longitude/latitude, azimuth, distance), speed, height, altitude, home spot,controller location(longitude/latitude, azimuth, distance) etc.
TTSKC01 works offline or online (optional). It is easy to carry, deploy, and use via touch screen,it is suitable for drone monitoring in scenarios such as major events, daily security patrol, VIP secret service, critical
infrastructure etc. It works offline or online, with option to connect multiple devices to cover large area.

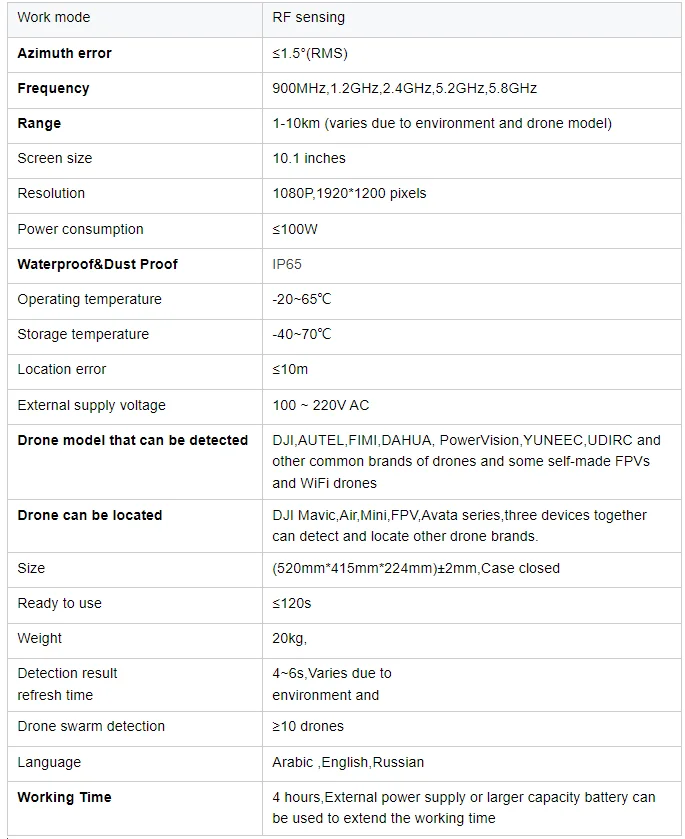

Specification:

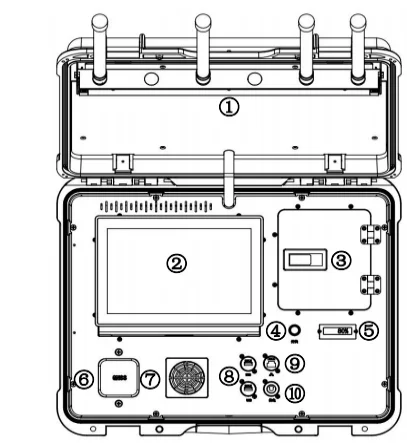

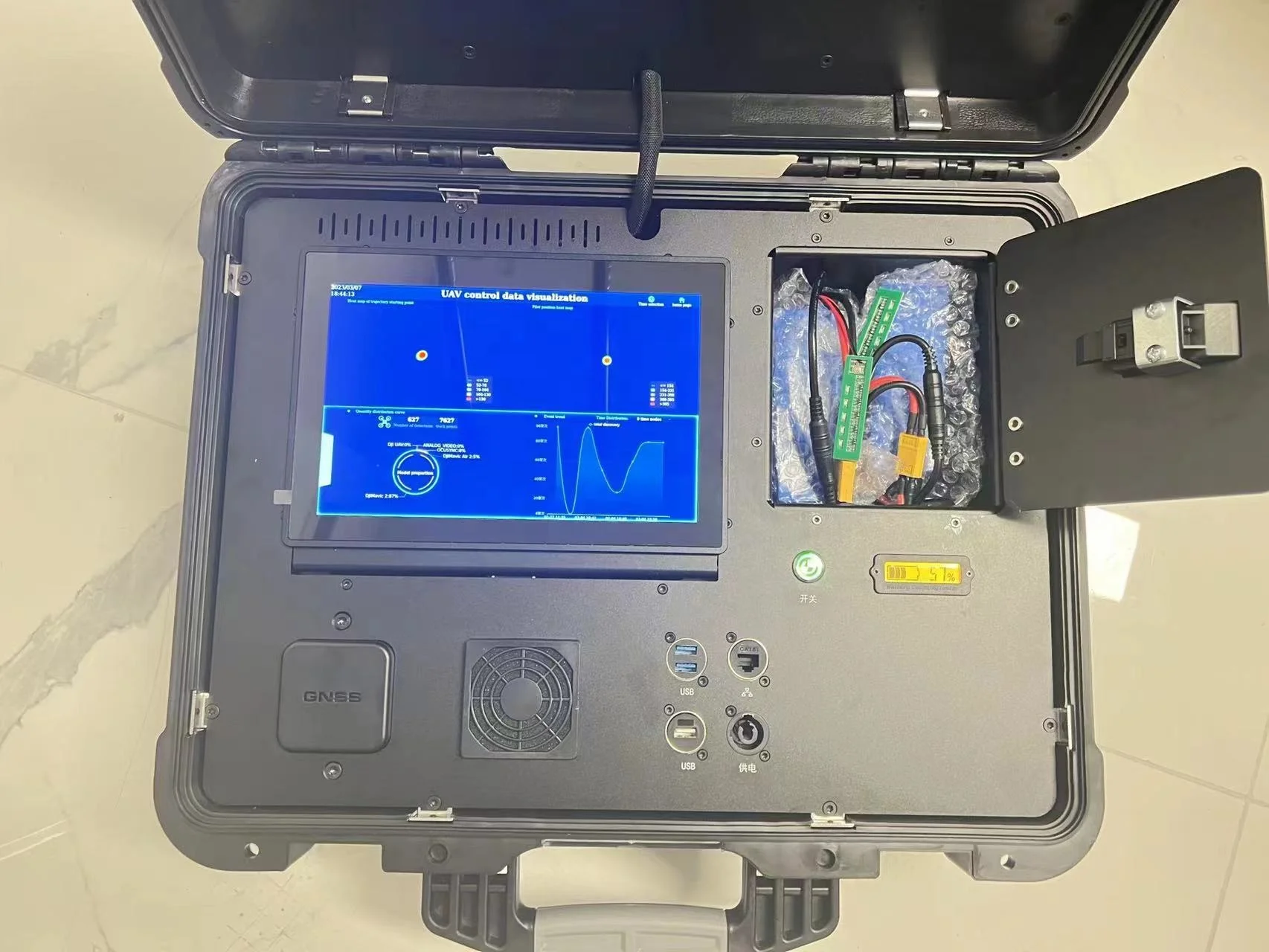

Equipment composition:
1. Antenna
2. Display screen
3. Battery compartment
4. Power switch
5. Battery level display
6. GNSS antenna
7. Fan
8. USB interface × two
9. Ethernet interface
10. External power interface
Functions:
* Droned detection and identification:TTSKC01 can detect and identifie various brands drones such as DJI ,AUTEL, as well as WiFi drones, FPVs, some DIY drones;
* Trajectory tracking and display:The real-time flight trajectory of the tracked drones can be displayed on the GIS map;
* Pilot/Remote controller position display: The position of the pilot (remote controller) can be fined and displayed, and the location
information will be updated in real time;
* Drone detailed information monitoring: The detailed information of drones and pilots can be displayed in real time, including: drone ID, frequency, latitude and longitude, model, altitude, height, pilot latitude and longitude, distance between the device and the pilot (or the distance between the drone and the reference point) and other information;
* Sole identity: For each drone, TTSKC01 can identify its unique S/N number;
* Black and white list:Distinguish between “friend” and “foe”, TTSKC01 will not alarm when a “friend” drone is detected, a “friend” or “foe” can be tagged (only support DJI series drones);
* Intrusion alarm: When the device detects a drone intrusion, an audible and/orvisual alarm is performed;
* Map operation:Support online map and offline map;
* Map types:Support a variety of digital maps, including AutoNavi, Bing, Baidu, Google, etc.;
* Historic data playback:Record and playback of historic drone trajectories, model, pilot location and home point and other information;
* Data record query:User can query the historic data of the drones detected according to the time period;

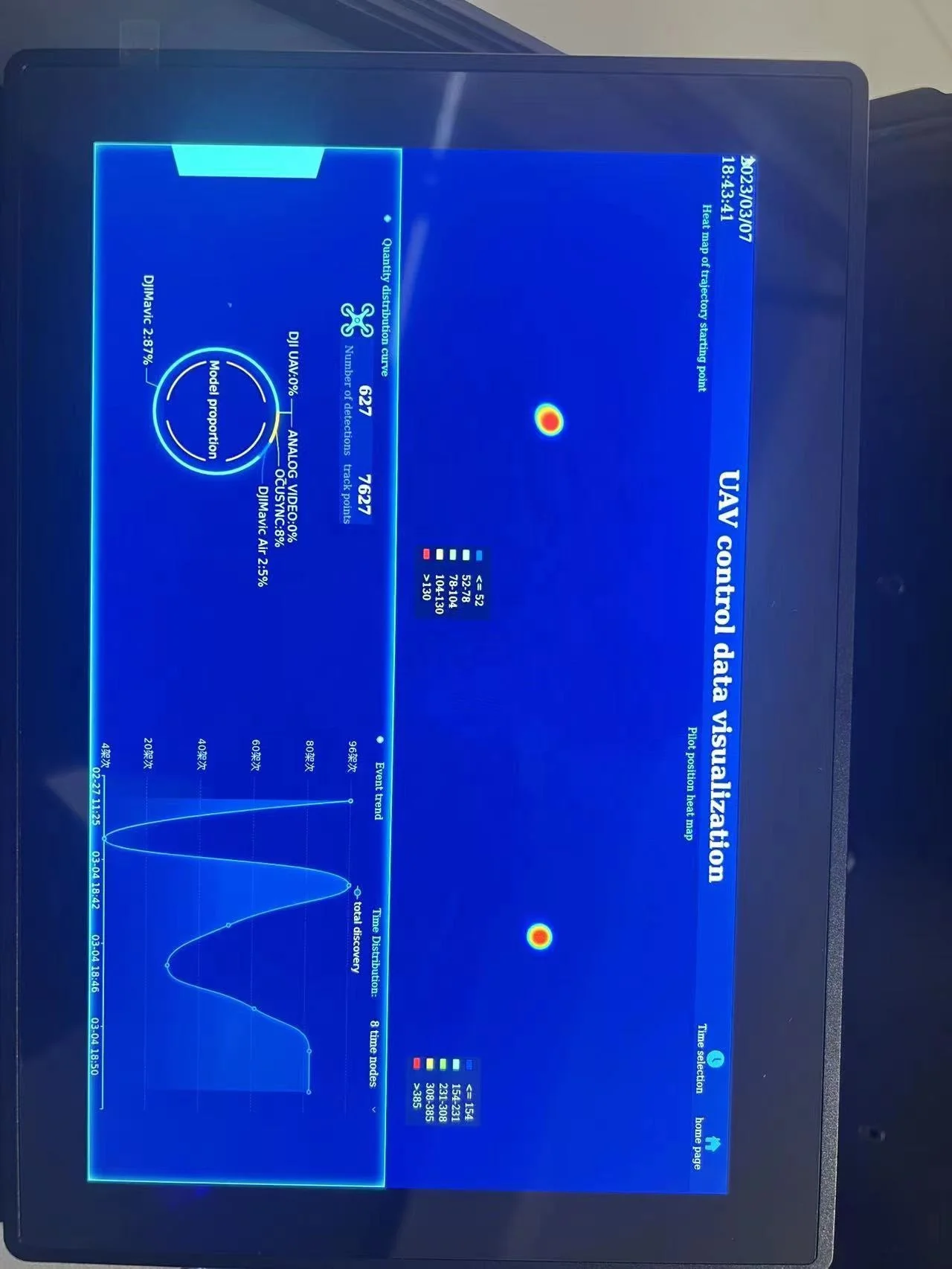

* Data statistics: Historical drone detection data statistics and graphical analysis;
* Drone swarm tracking: Multiple drones can be tracked at the same time and different drone trajectories are displayed with different colors;
* Multi-device networking:Multiple devices can access the back-end management p
* Trajectory tracking and display:The real-time flight trajectory of the tracked drones can be displayed on the GIS map;
* Pilot/Remote controller position display: The position of the pilot (remote controller) can be fined and displayed, and the location
information will be updated in real time;
* Drone detailed information monitoring: The detailed information of drones and pilots can be displayed in real time, including: drone ID, frequency, latitude and longitude, model, altitude, height, pilot latitude and longitude, distance between the device and the pilot (or the distance between the drone and the reference point) and other information;
* Sole identity: For each drone, TTSKC01 can identify its unique S/N number;
* Black and white list:Distinguish between “friend” and “foe”, TTSKC01 will not alarm when a “friend” drone is detected, a “friend” or “foe” can be tagged (only support DJI series drones);
* Intrusion alarm: When the device detects a drone intrusion, an audible and/orvisual alarm is performed;
* Map operation:Support online map and offline map;
* Map types:Support a variety of digital maps, including AutoNavi, Bing, Baidu, Google, etc.;
* Historic data playback:Record and playback of historic drone trajectories, model, pilot location and home point and other information;
* Data record query:User can query the historic data of the drones detected according to the time period;
* Data statistics: Historical drone detection data statistics and graphical analysis;
* Drone swarm tracking: Multiple drones can be tracked at the same time and different drone trajectories are displayed with different colors;
* Multi-device networking:Multiple devices can access the back-end management p
latform at the same time for unified device management and data management, and can merge the detection results of multiple devices (including drones, pilots, and trajectories).
* Note: Function 1,2,3,4,5,6 only apply to DJI Mavic, Air, Mini, FPV, Avata series.
* Note: Function 1,2,3,4,5,6 only apply to DJI Mavic, Air, Mini, FPV, Avata series.

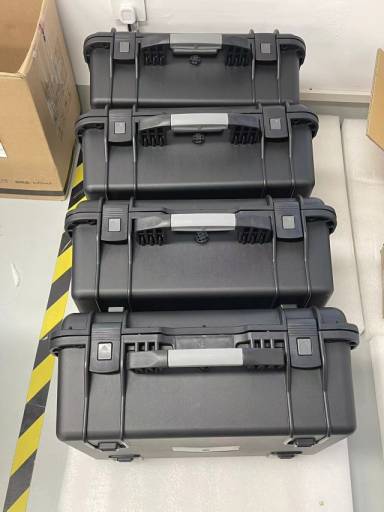

Pacakge:
Application:
1. Government: VIP convoy, Prison, Court, Military, Police
2. Infrastructure: Petrol Station, Oil Depot, Gas Station, Airport, Drug rehabilitation centers, Security agency
3. Public&Events: Stadium&Events, Important Outdoors Meetings
4. Transportation: Port&marine, Super yachts
5. Detention Centers, School,Theatre,Church, Hospital
2. Infrastructure: Petrol Station, Oil Depot, Gas Station, Airport, Drug rehabilitation centers, Security agency
3. Public&Events: Stadium&Events, Important Outdoors Meetings
4. Transportation: Port&marine, Super yachts
5. Detention Centers, School,Theatre,Church, Hospital

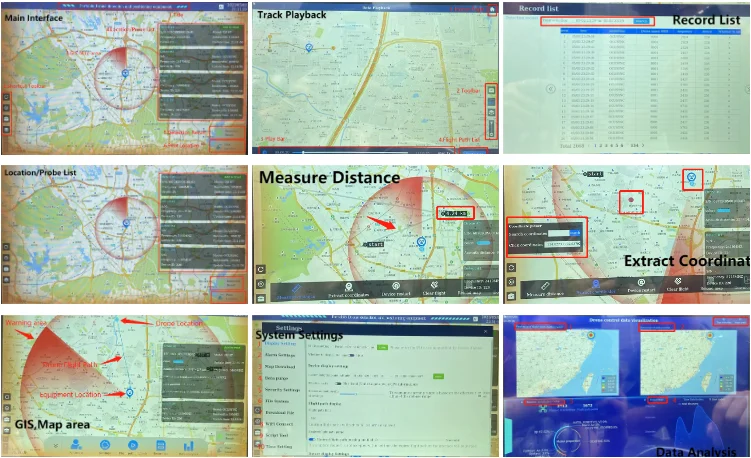

System Introduction:
