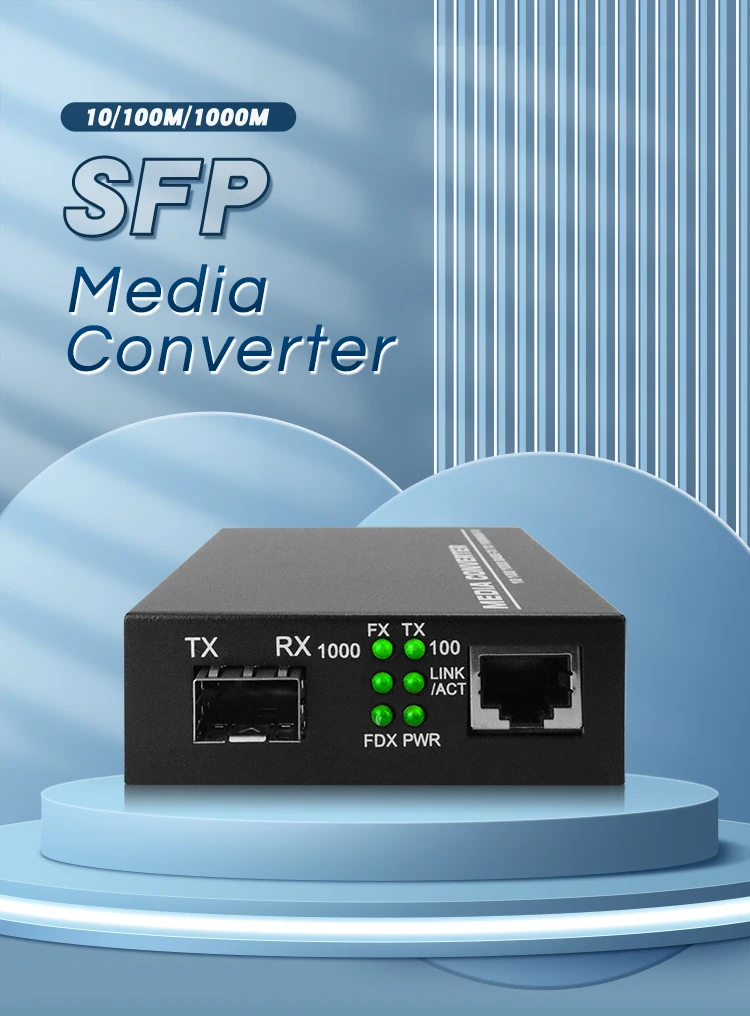

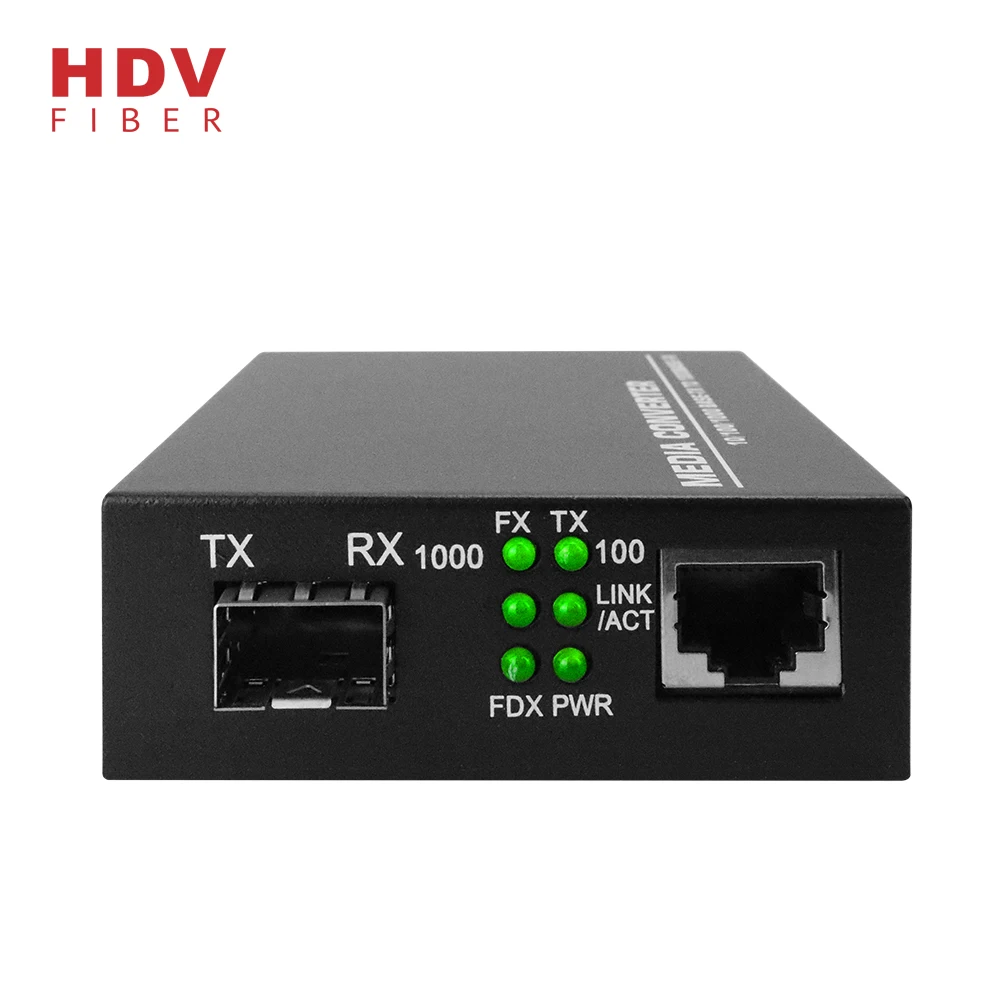

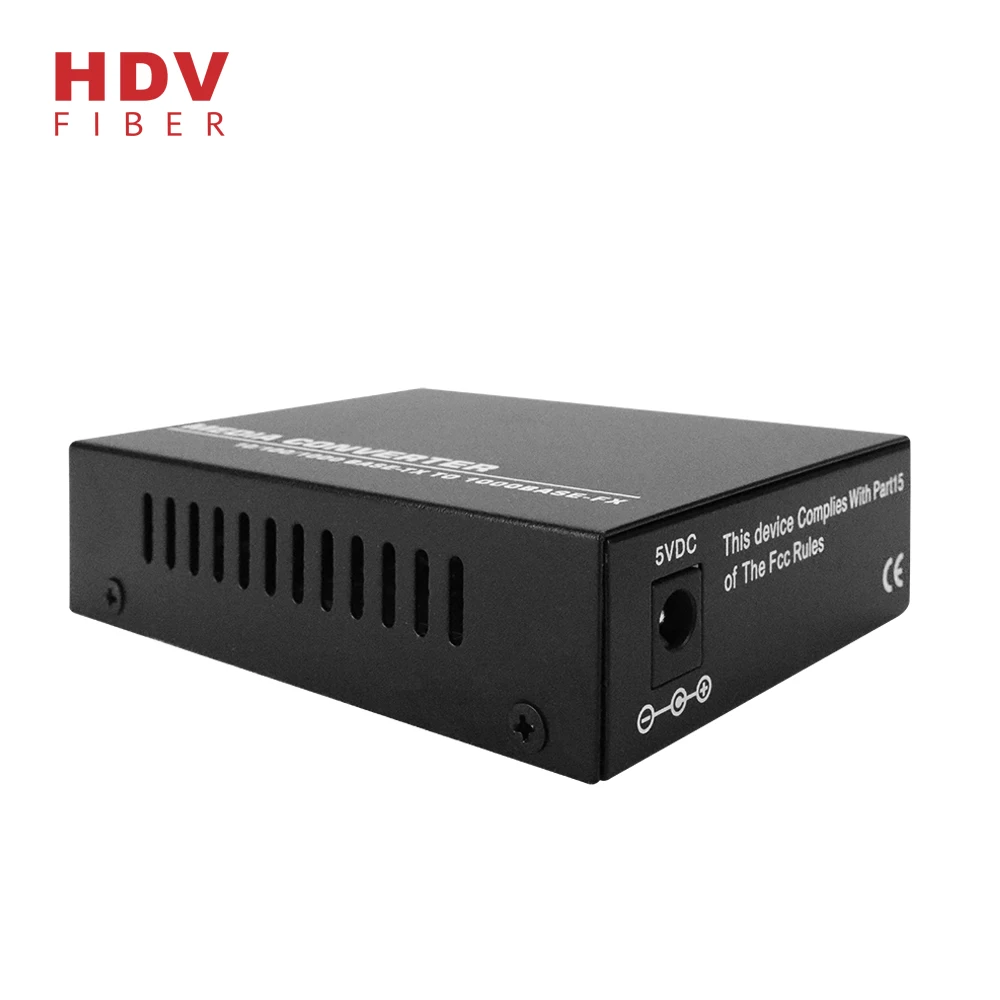

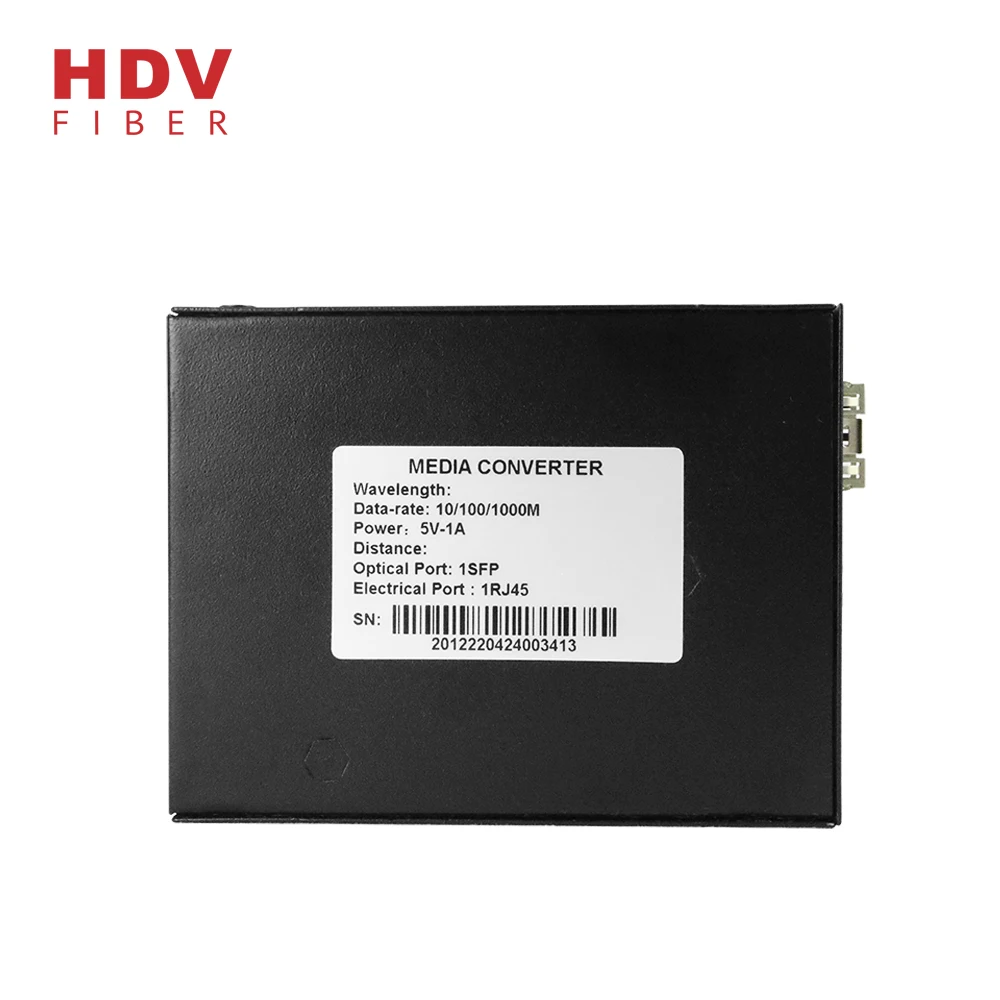

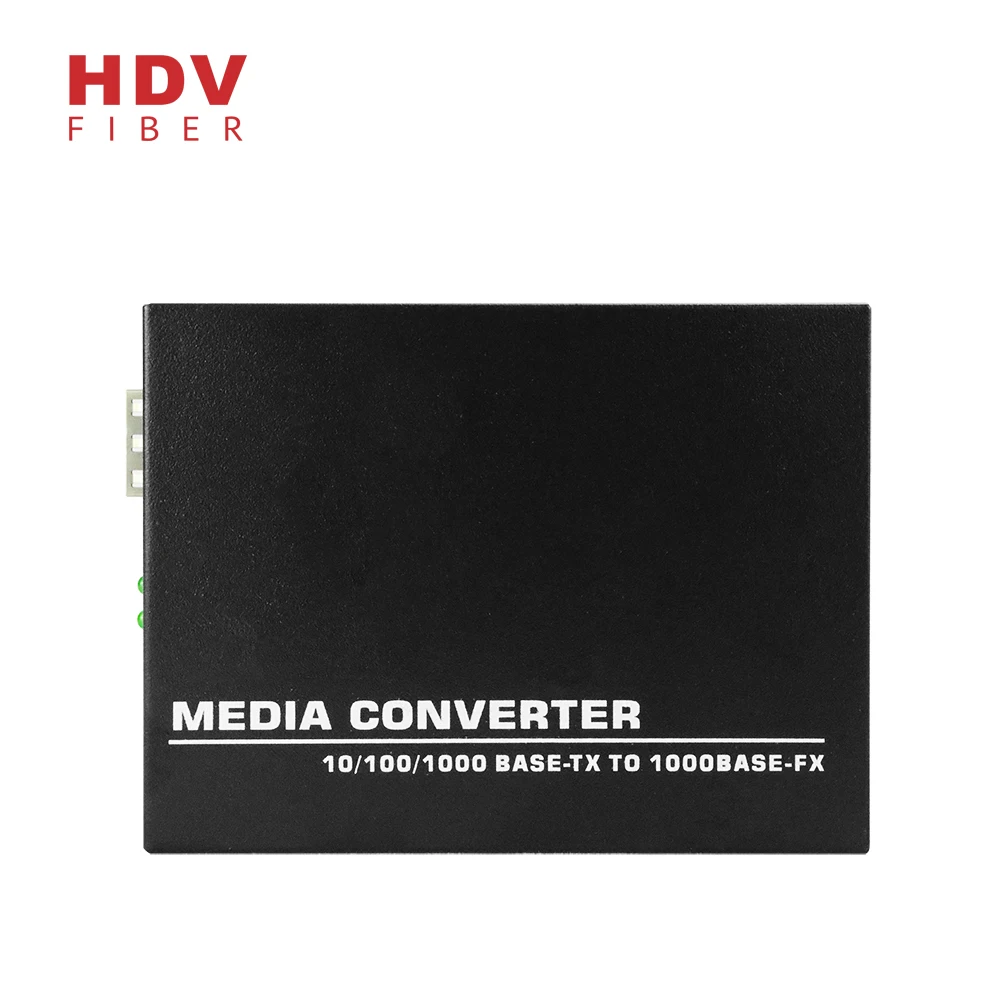

Shenzhen Manufacturer 10/100/1000M LC/SC fiber optic 1 SFP Port 1 rj45 20km Ethernet Media Converter
- Category: >>>
- Supplier: Shenzhen Hdv Photoelectron Technology Ltd.
Share on (1600772933124):
Product Overview
Description
Shenzhen Manufacturer 10/100/1000M LC/SC fiber optic 1 SFP Port 1 rj45 20km Ethernet Media Converter

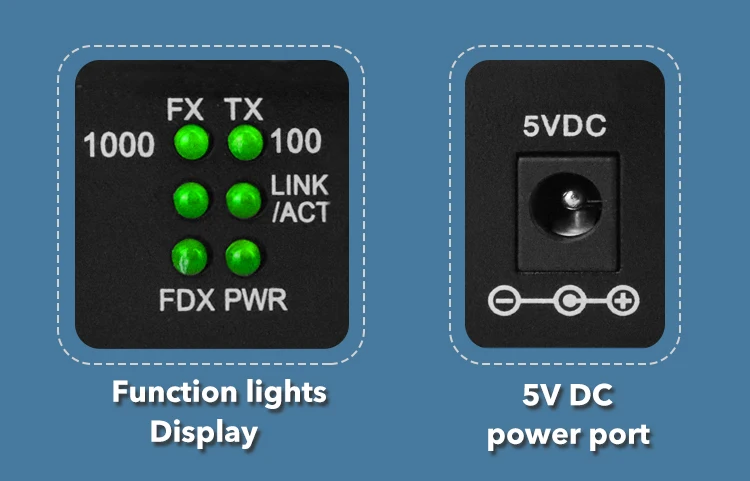

Power adapter
1.Product Introduction
10/100/1000M adaptive fast Ethernet optical Sfp Media Converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100/1000Base-TX to 1000Base-FX network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 100 km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard , it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.

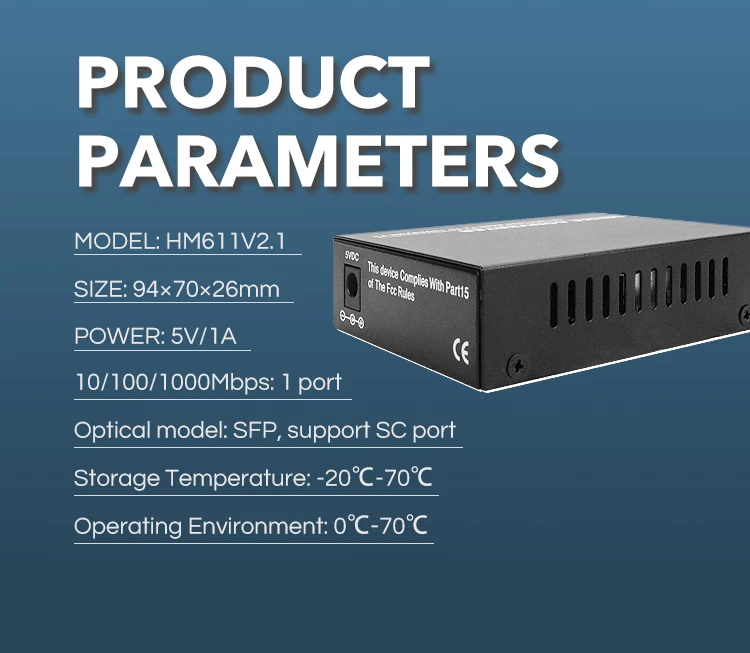

2.Technical Parameters
Technical Parameters for 10/100/1000M Adaptive Fast Ethernet Optical SFP Media Converter | ||
| Number of Network Ports | 1 channel | |
| Number of Optical Ports | 1 channel |  |
| Protocol supported | IEEE802.3/IEEE802.3U etc. | |
| BER | < 1/1000000000 | |
| Optical Port Transmission Rate | 1000Mbit/s | |

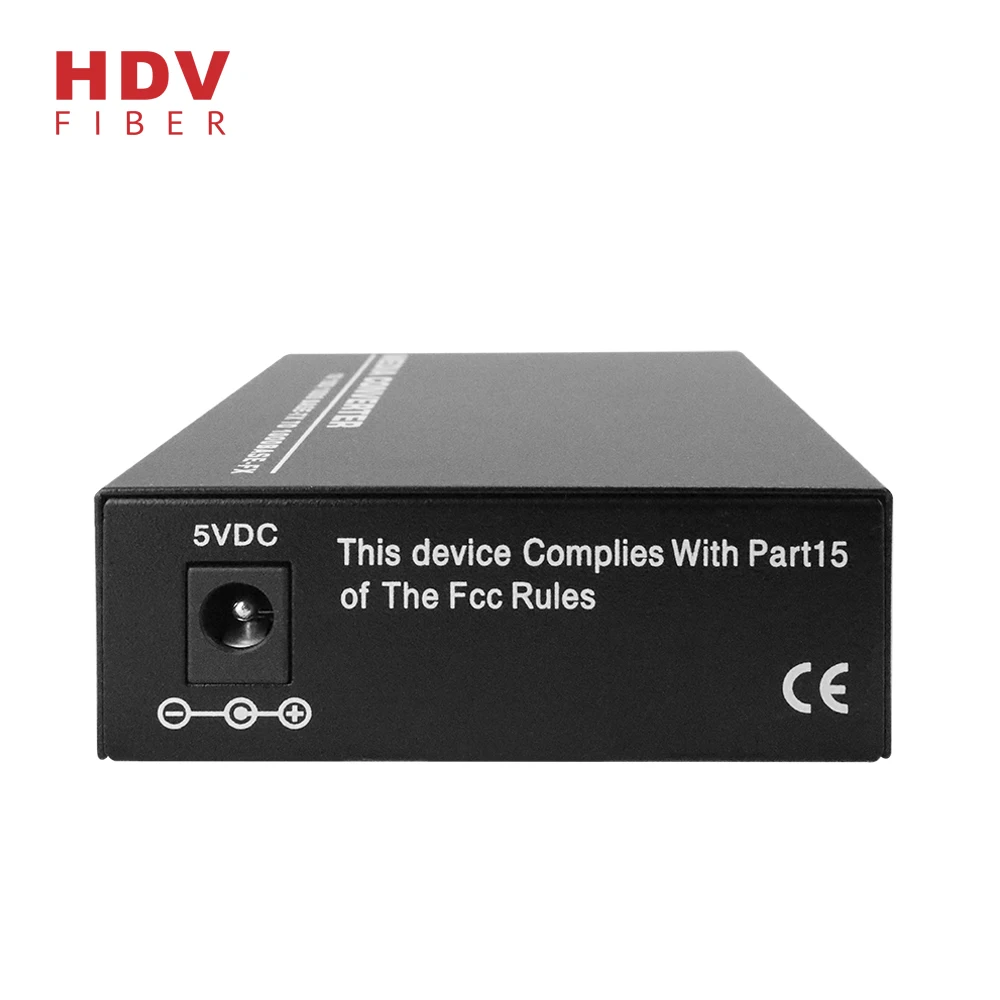

| Operating Voltage | AC 100-220V or DC +5V | |
| Overall Power | <3W | |

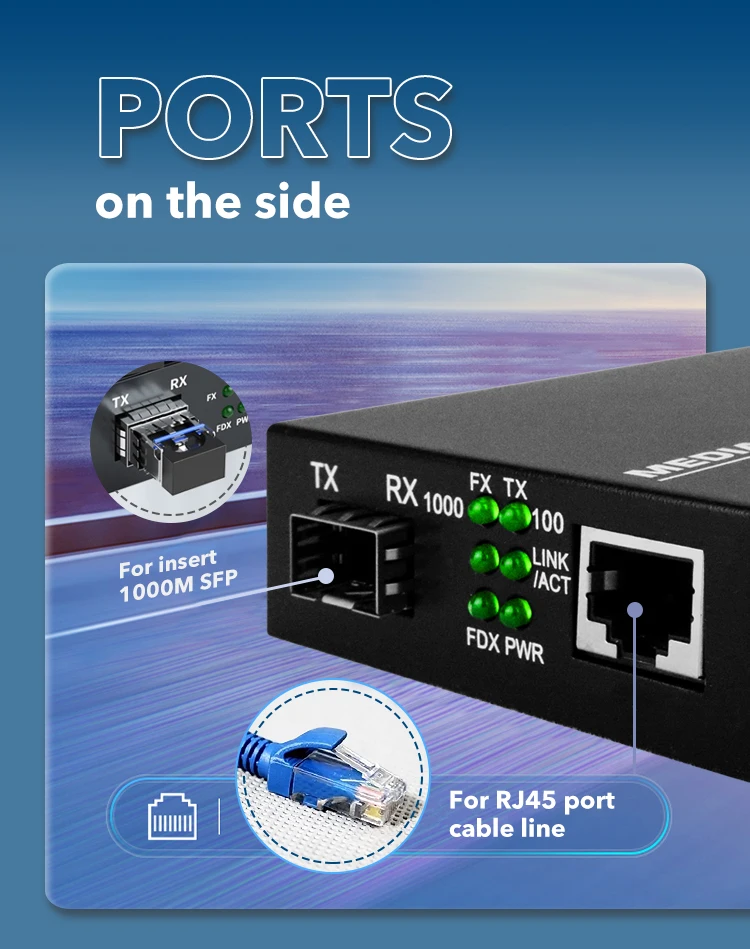

| Network Ports | RJ45 port | |

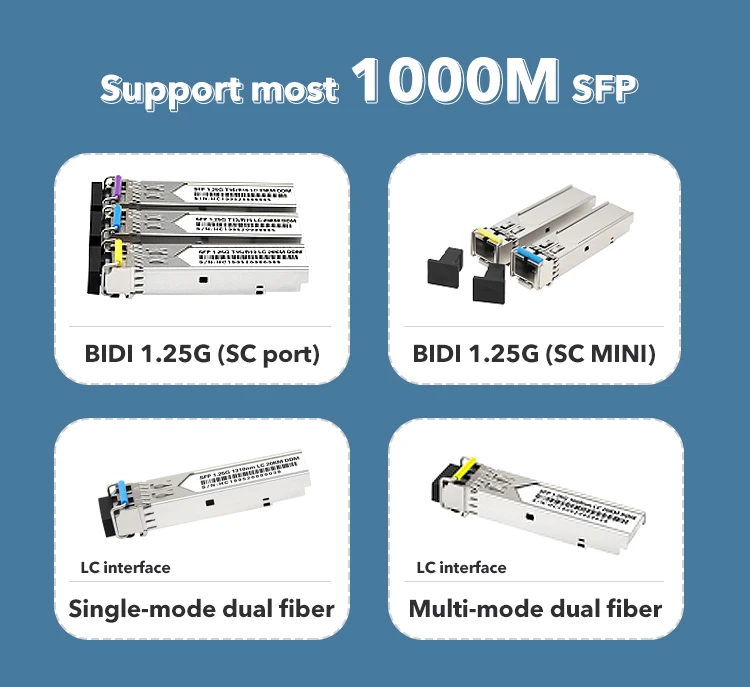

| Optical Specifications | Optical Port: LC/SC (Optional) Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um Wavelength: Single-Mode: 1310/1550nm; Multi-Mode: 850nm/1310nm | |
| Working temperature | 0~50°C | |
| Storage temperature | -40°C~70°C | |
| Product size (L*W*H) | 94mm*70mm*22mm | |
| Packing size (L*W*H) | 165mm*130mm*45mm | |
| N.W/G.W(kg) | 0.12kg/piece 0.255kg/piece | |
