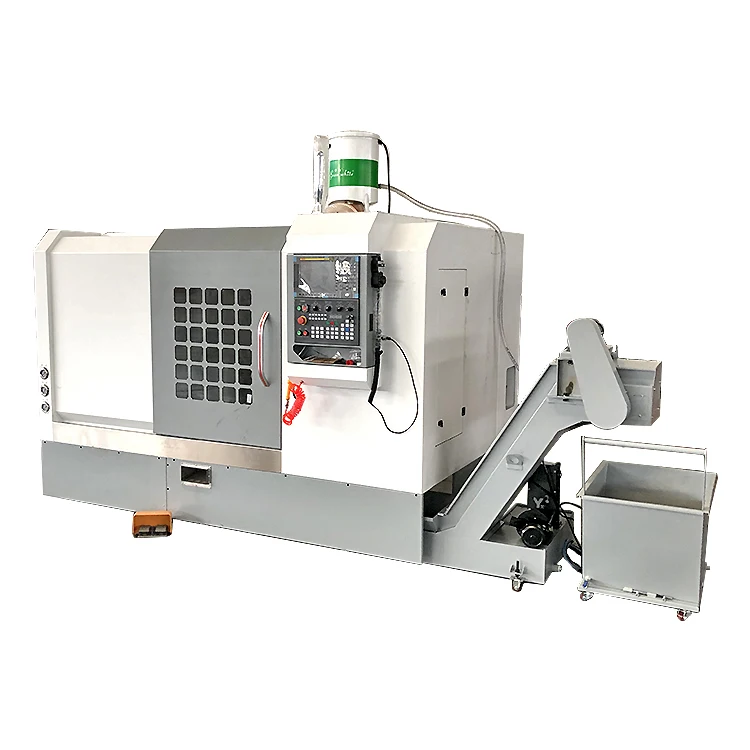

CNC Turning Center Slant Bed CNC Machine 12 station Power Turret Cnc Lathe Machine China Manufacturer
- Category: >>>
- Supplier: Zaozhuang Sente Cnc Equipment Co. Ltd.
Share on (1600772994499):
Product Overview
Description
Item | Unit | STC55D(500mm) | ||
1 | Max.Swing Over Bed | mm | 550 | |
2 | Max.Swing Over Carriage | mm | 360 | |
3 | Max.Turning Length | mm | 500 | |

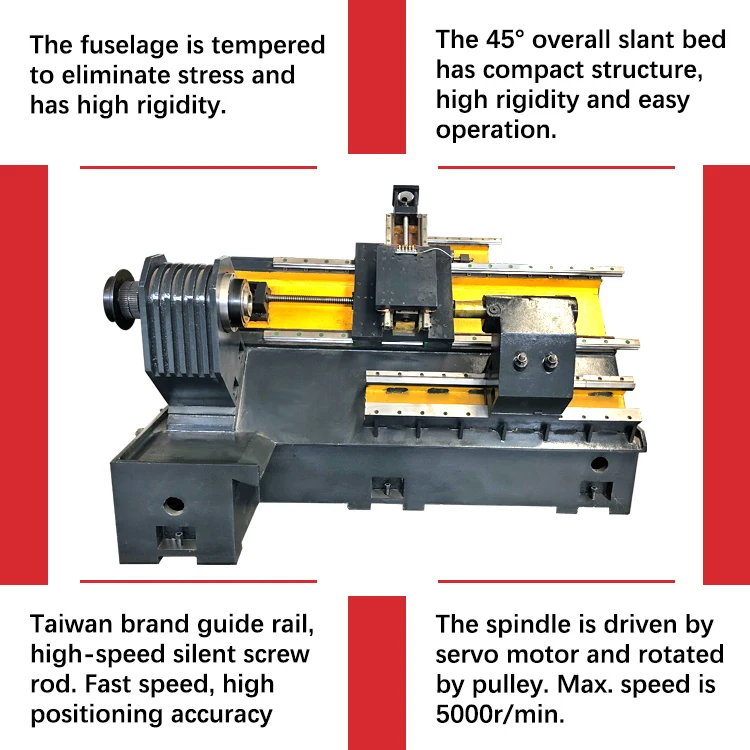

4 | Lathe Bed Structure | 45° Integral inclined lathe | ||
5 | Spindle Nose | A2-6 | ||
6 | Spindle Speed Range | Rpm/min | 50-3000 | |
7 | Spindle Bore | mm | 66 | |
8 | Bar capacity | mm | 58(Hydraulic chuck ) | |
9 | Main Motor (C Axis) Spindle Motor | KW | 7.5KW Servo | |
10 | Chuck diameter | inch | 10 | |
11 | X axis travel | mm | 280 | |
12 | Z axis travel | mm | 550 | |
13 | X axis rapid feed | m/min | 12 | |
14 | Z axis rapid feed | m/min | 12 | |
15 | Cutting feed | mm | 0.1-6000min/mm | |

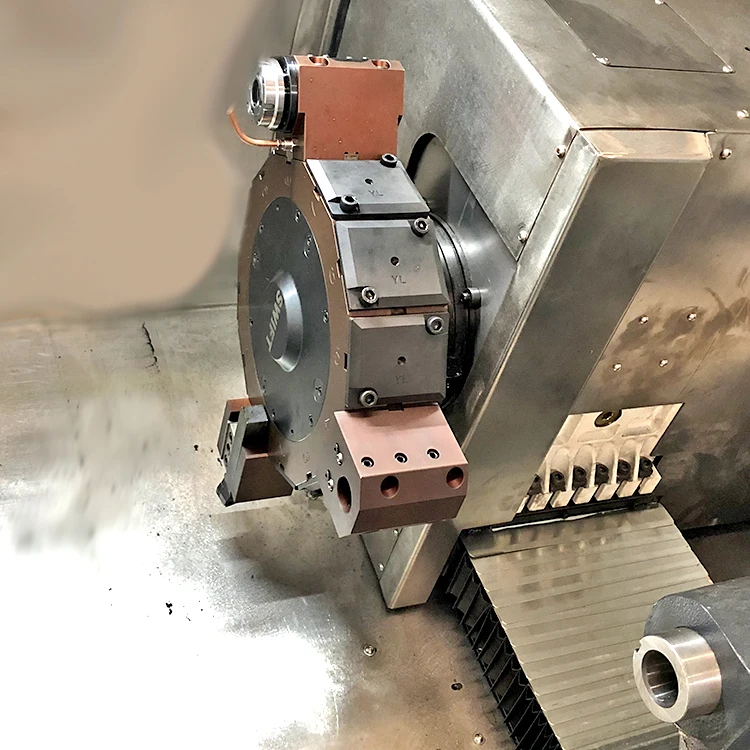

16 | Turret | 12-Station Power Turret | ||
17 | Diameter of Tailstock sleeve | mm | 75mm | |
18 | Tail stock travel | mm | 120mm | |
19 | Tail stock feed type | Hydraulic tailstock | ||
20 | Position accuracy | mm | 0.01 | |
21 | Repositioning accuracy | mm | 0.005 | |
22 | Weight | KG | 3800 | |
23 | Machine Size | MM | 2700 x 1900 x 1750 | |

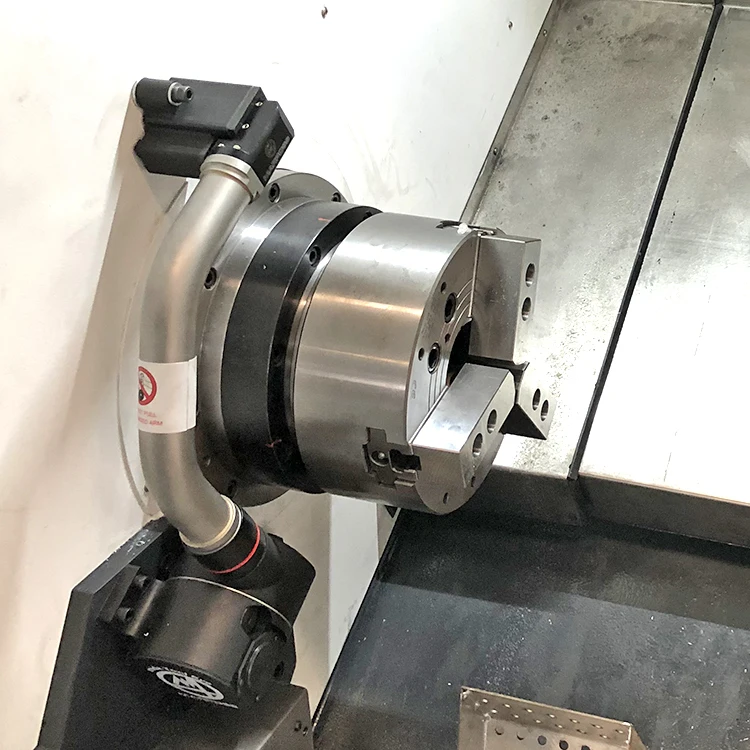

Optional: hydraulic chuck or pneumatic chuck.
Standard with 4 station electric tool post ,6/8 station electric turret are optional.

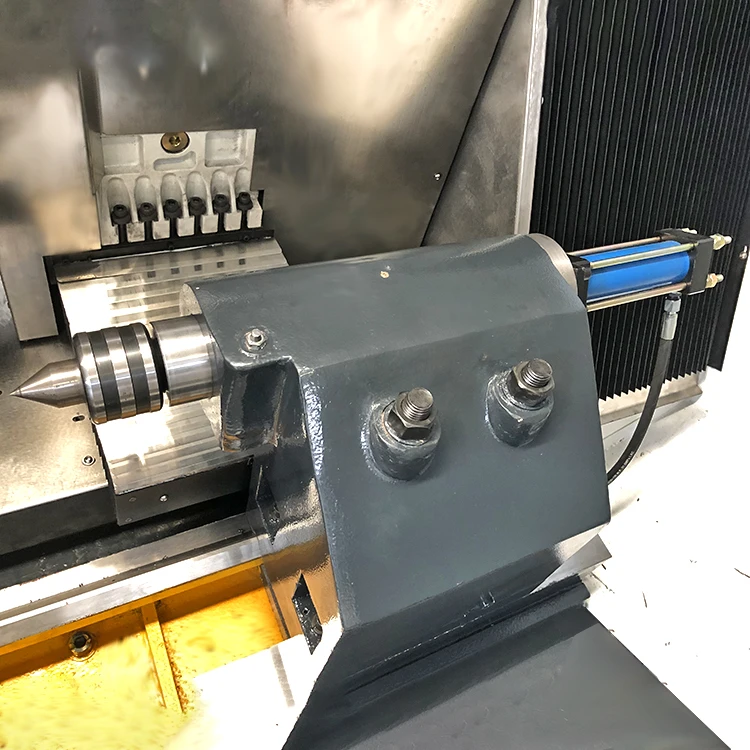

HYDRAULIC TAIlLSTOCK

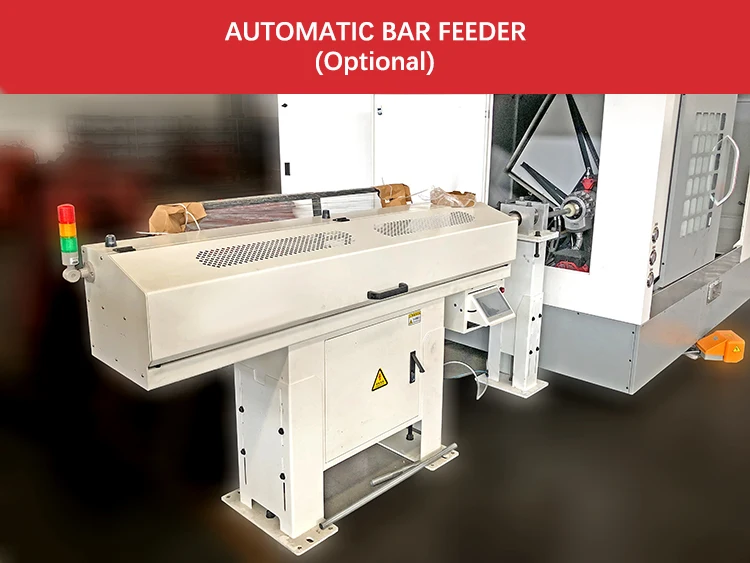

The CNC automatic bar feeder is a device that automatically feeds raw materials into the lathe. It provides a continuous and smooth supply of raw material through the spindle bore of the lathe, reducing operator involvement and increasing productivity. With automatic catcher, realize the construction of automatic production line
1. Can you provide design customization service?
Yes, we support ODM/OEM, and can design and customize exclusive models accordingto your needs.
2. How to choose the most suitable machine?
Please tell me your specification, we can choose the best model for you, you can also send us the product drawing,
2. How to choose the most suitable machine?
Please tell me your specification, we can choose the best model for you, you can also send us the product drawing,
we will choose the most suitable machine for you.
3. What is your payment 30% terms?
Down payment after the contract, 70% payment before shipment, can be discussed according to your situation.
4: Where is our factory located?
Our factory is located in Tengzhou City, Zaozhuang, China, zip code 277500. Warmly welcome you to visit us.
5. What is your delivery time?
Delivery depends on different machines with different configurations. Please contact us to confirm availability.
3. What is your payment 30% terms?
Down payment after the contract, 70% payment before shipment, can be discussed according to your situation.
4: Where is our factory located?
Our factory is located in Tengzhou City, Zaozhuang, China, zip code 277500. Warmly welcome you to visit us.
5. What is your delivery time?
Delivery depends on different machines with different configurations. Please contact us to confirm availability.
