3 in 1 230a Double Pulse MIG /MAG Multi process Inverter Welder for Aluminium Welding
- Category: >>>
- Supplier: Shaodong Lida Tools Co. Ltd.
Share on (1600772996763):
Product Overview
Description
Product Description
3 in 1 230a Double Pulse MIG /MAG Multi-process Inverter Welder for Aluminium Welding
Features:
1), 110V/220V dual voltage can be optional.
Adopt High performance 32-bit MCU digital technology and IGBT & advanced PWM inverter technology.
2), DC synergic MIG, Single & Double Pulse MIG ,Lift-TIG, Pulse TIG, MMA,Spool Gun and multi-process. adjustable inductance, 2T/4T, Spot welding time, burn-back, Pre & Post gas time, Pulse Frequency, Duty Ratio, Pulse Width, Base & Peak Arc length, VRD, ARC force, hot start and other parameter.
36 Channels customized Program Store to convenient for operating.
1), 110V/220V dual voltage can be optional.
Adopt High performance 32-bit MCU digital technology and IGBT & advanced PWM inverter technology.
2), DC synergic MIG, Single & Double Pulse MIG ,Lift-TIG, Pulse TIG, MMA,Spool Gun and multi-process. adjustable inductance, 2T/4T, Spot welding time, burn-back, Pre & Post gas time, Pulse Frequency, Duty Ratio, Pulse Width, Base & Peak Arc length, VRD, ARC force, hot start and other parameter.
36 Channels customized Program Store to convenient for operating.
5Kgs spool holder with Inching wire function, easy to install welding wire.
3), Outstanding welding performance, especially for thin plate welding.
Suitable for Carbon Steel, Flux, E308 E316 stainless steel, AlSi5, AlMg5 aluminum welding wire.
Suitable for E6010, E6011 Cellulose electrode.
Suitable for Carbon Steel, Flux, E308 E316 stainless steel, AlSi5, AlMg5 aluminum welding wire.
Suitable for E6010, E6011 Cellulose electrode.
4), Easy-to-user interface, Synergic Home Function automatically manages ideal voltage and wire feed speed while only adjusting welding current; dynamic control Digital display with very simple operations.
5), Preset synergic database, with special aluminum sheet expert database.
6), MIG welding voltage and wire speed also can be manual setting for skilled user.
7), Unique housing design with high-strength nylon plastic, innovative human engineering handle.
8), Premium 35-50MM2 cable connector, and easy to change polarity conversion, can suit Solid wire (Gas welding) or Flux wire (Gasless welding).
9), With Wide Voltage Function, work well and stable between voltage 150V-270V or together with Generator.
10), Compact, little splash, Intelligent Protection, over-voltage, low-voltage, over-current, over-heat etc.
11), Spool gun, Dual drive wire feeder can be optional.
5), Preset synergic database, with special aluminum sheet expert database.
6), MIG welding voltage and wire speed also can be manual setting for skilled user.
7), Unique housing design with high-strength nylon plastic, innovative human engineering handle.
8), Premium 35-50MM2 cable connector, and easy to change polarity conversion, can suit Solid wire (Gas welding) or Flux wire (Gasless welding).
9), With Wide Voltage Function, work well and stable between voltage 150V-270V or together with Generator.
10), Compact, little splash, Intelligent Protection, over-voltage, low-voltage, over-current, over-heat etc.
11), Spool gun, Dual drive wire feeder can be optional.

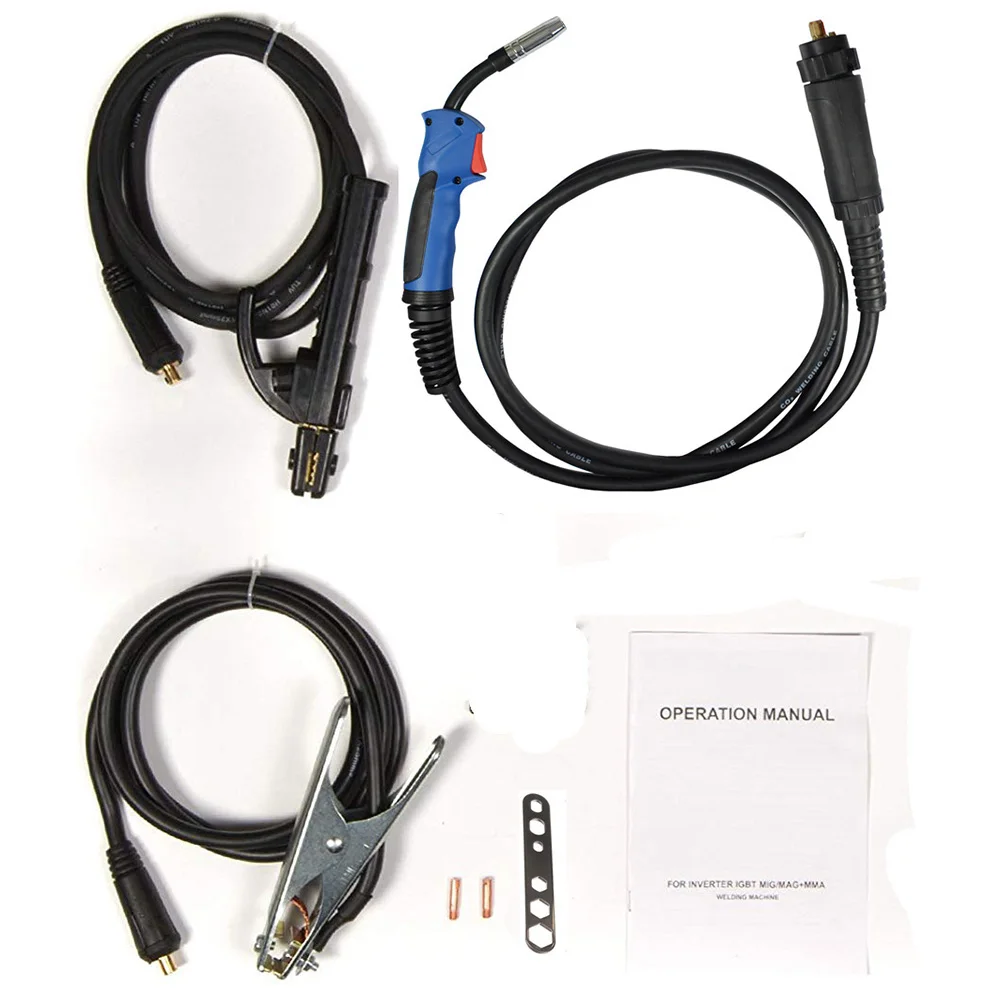

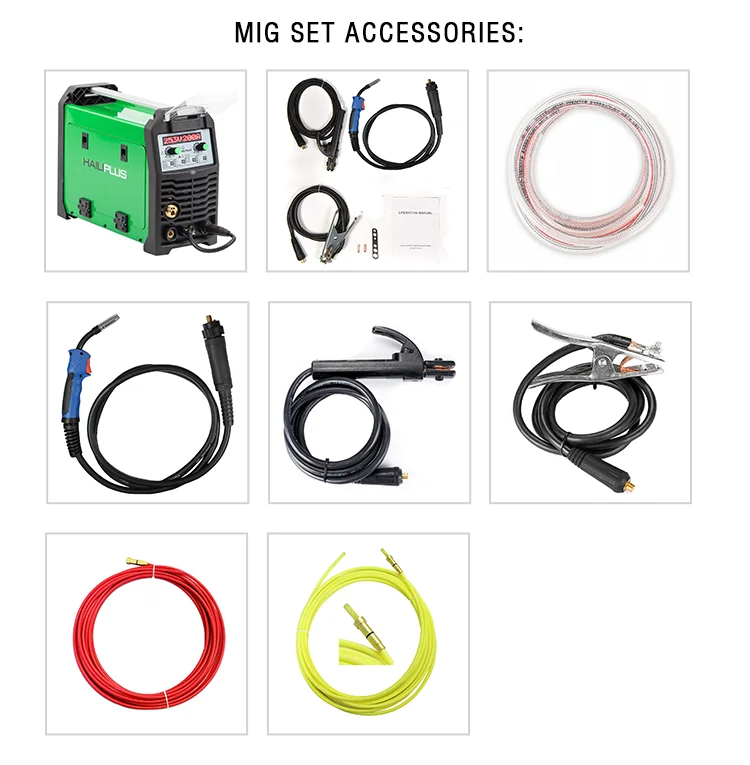

MIG SET ACCESSORIES:
Product Parameters
Model | MCU MIG-200 PULSE | MCU MIG-250 PULSE | |||||
Rated input Voltage (V) | 1*220V-240V | 1*220V-240V | |||||
Rated input power (KVA) | 6.1 | 7.2 | |||||
Current range (MMA/TIG) (A) | 10~180 | 10~200 | |||||
Current range (MIG) (A) | 30~200 | 30~230 | |||||
Voltage range (MIG) (V) | 11~26 | 11~28 | |||||
No-Load voltage (V) | 60 | 60 | |||||
Wire Feed speed (m/min) | 1.5~16 | 1.5~16 | |||||
Wire diameter (mm) | 0.8/1.0/1.2 | 0.8/1.0/1.2 | |||||
Rated Duty Cycle (%) | 60 | 60 | |||||
Frequency (Hz) | 50/60 | 50/60 | |||||
Efficiency (%) | 85 | 85 | |||||
Pre/Post Flow Time (S) | 0-10S / 0.1-50S | 0-10S / 0.1-50S | |||||
Pulse Frequency (Hz) | 0.5-5.0Hz | 0.5-5.0Hz | |||||
Pulse Width (Ip-p) | 5%～50% | 5%～50% | |||||
Base / Peak Arc Length | -50%～50% | -50%～50% | |||||
Power Factor | 0.75 | 0.75 | |||||
Protective class | IP21S | IP21S | |||||
Dimension (mm) | 490*220*390 | 490*220*390 | |||||
Weight (Kg) | 15 | 16 | |||||
Accessories | 15AK ALUMINUM +360°Angle Rotated TORCH WITH 3M CABLE, TEFLON LINER,” U” Groove Roller, ELECTRODE HOLDER WITH 2M CABLE, EARTH CLAMP WITH 2M CABLE, 3M GAS HOSE, 2PCS HOSE CLAMP. | ||||||
Moq | 50Pcs | ||||||
Exhibition
Lida Tools attends Canton Fair, Beijing Welding & Essen fair, Germany Welding & Essen fair every time.
To know local markets and service our partners better, we visit Poland, Thailand, Brazil, Peru, Russia etc every year.
Certifications
YouTube channel: Lida Tools
Packing & Delivery
- Package standard: Export Carton with Foamed Plastic or Plywood with Honeycomb carton.
- We offer OEM package as per your request.
FAQ
Q1: Why choose us?
1.We are China Leading manufacturer and export to more than 50 counrties all over the world.
2. We have high-experience R&D team, we can adjust the parameter and panels design as per your request3. A full professional team to handle OEM/ODM project.
3.100% QC inspection before shipping.
4.14 months warranty, life-long technical support and design service.
5. Europe is our main market, accounts for more than 45%. We can send a full series of CE certuficates.
1.We are China Leading manufacturer and export to more than 50 counrties all over the world.
2. We have high-experience R&D team, we can adjust the parameter and panels design as per your request3. A full professional team to handle OEM/ODM project.
3.100% QC inspection before shipping.
4.14 months warranty, life-long technical support and design service.
5. Europe is our main market, accounts for more than 45%. We can send a full series of CE certuficates.
Q2: How is your quality control?
Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.
Each machine loading test at least 20 minute.
Q3: what voltage could you provide?
110/220v, 220/380V, 230V etc. We can adjust it as per your country voltage.
Q4: How long is the production lead time?
After receiving your 30% deposit , generally it is 5-10days if the goods are in stock, or 25-30 days if not .
Q5: What's your payment way?
T/T, Trade Assurance.
Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.
Each machine loading test at least 20 minute.
Q3: what voltage could you provide?
110/220v, 220/380V, 230V etc. We can adjust it as per your country voltage.
Q4: How long is the production lead time?
After receiving your 30% deposit , generally it is 5-10days if the goods are in stock, or 25-30 days if not .
Q5: What's your payment way?
T/T, Trade Assurance.
Q6: Can I get customized sample?
Yes, we can adjust the circuit board and structure as per your request and send you samples.
Yes, we can adjust the circuit board and structure as per your request and send you samples.
