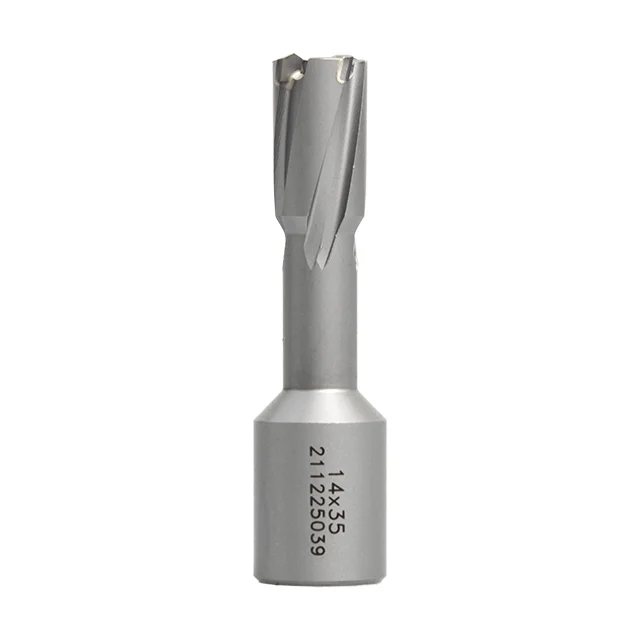

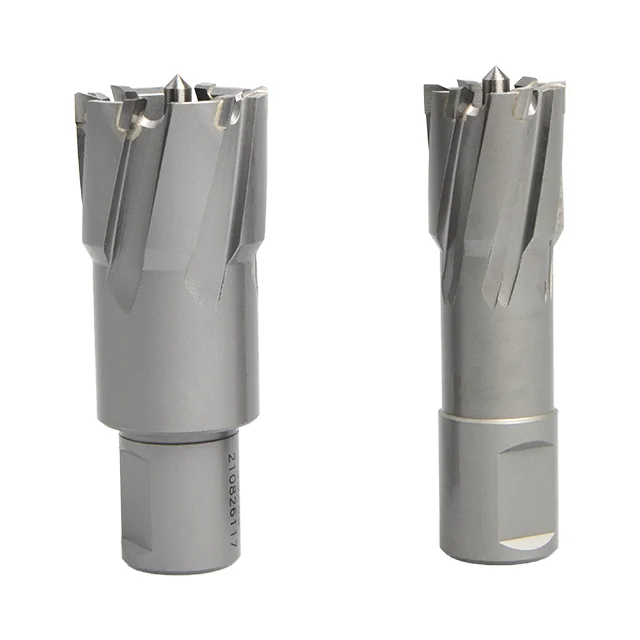

The factory direct selling high quality tungsten carbide carbide tipped annular cutters Hollow Core Drill Bit Hole Saw Cutter
- Category: >>>
- Supplier: Zhongzuan (Chongqing ) Precision Tools Manufacturing Co. Ltd.
Share on (1600773115682):
Product Overview
Description
Product Description
Product Name | Tungsten Carbide Tipped TCT Annular Core Cutters With Weldon Shank |
Material | Carbide |
Size | 12-100mm |
Cutting Depth | 35mm, 50mm, 75mm, 100mm |
Machining Process | CNC Machine Ground |
Finish | Bright Finish |
Shank | Weldon Shank |
Packing | Plastic Tube |
Use | For smooth and easy cutting almost all types of steel, including materials that are extremely difficult to cut such as stainless steel, titanium, hardened steel and rail steel. |
Features | 1. Premium carbide is brazed for superior strength, durability and wear resistance. 2.EFFICIENT & PRECISE- Cut holes in steel quickly, precisely and safely. It can cut holes in steel up to 10X faster than standard twist drill bits. 3. Triple-Cut geometry provide efficient cutting, fast feed rate, less vibration, smooth hole surface and long tool life. Weldon shank with 2 flats - fits most major brands of magnetic drills, can also be used with machine tools such as mills and large drill presses with tool holders. |

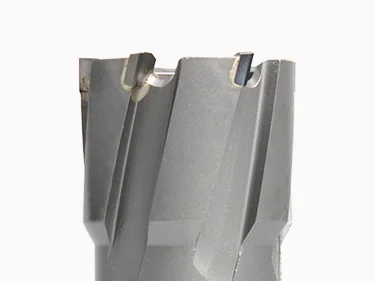

High-quality carbide blade, layered and divided geometric design, circular cutting, reducing power consumption, high efficiency and energy saving.

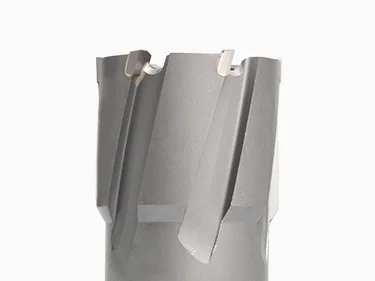

Chip Flute
Large capacity chute,unique spiral groove design,chipping is smooth,easy and quick.

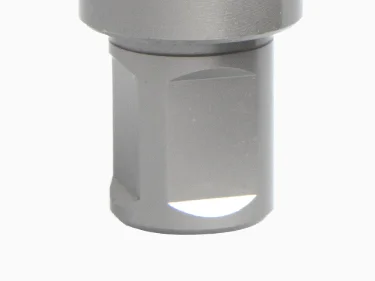

Weldon shank, with more stable clamping for stable cutting and finish of holes, shank diameter 3/4 inch(19.05mm),suitable for 120 degree, three points bolt, fastening for fast
loading and unloading chuck bit clamp
interface.
loading and unloading chuck bit clamp
interface.

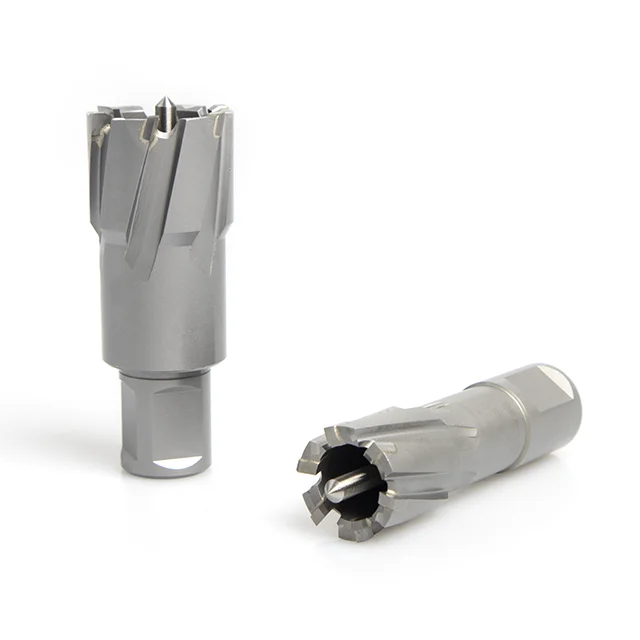

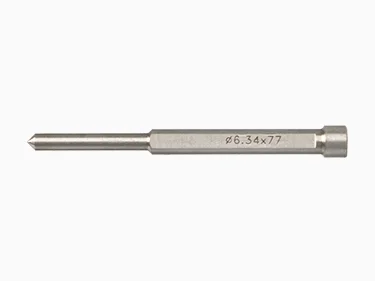

Pilot Pin
The pilot pin is used for the top needle function of position,cooling value and discharge core.

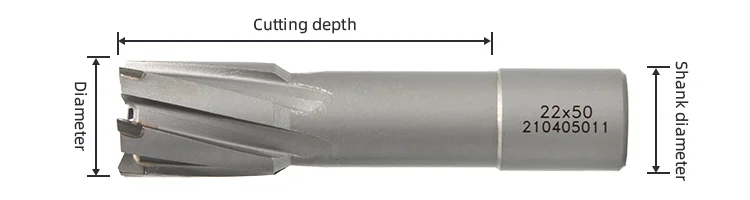

Specification
SIze | Diameter | Cutting Depth | Shank Diameter | Bore length | SIze | Diameter | Cutting Depth | Shank Diameter | Bore length |
12 | 12mm | 35/50mm | 19mm | 6 | 29 | 29mm | 35/50mm | 19mm | 21 |
13 | 13mm | 35/50mm | 19mm | 6 | 30 | 30mm | 35/50mm | 19mm | 22 |
14 | 14mm | 35/50mm | 19mm | 7 | 32 | 32mm | 35/50mm | 19mm | 24 |
15 | 15mm | 35/50mm | 19mm | 8 | 33 | 33mm | 35/50mm | 19mm | 25 |
16 | 16mm | 35/50mm | 19mm | 9 | 34 | 34mm | 35/50mm | 19mm | 26 |
17 | 17mm | 35/50mm | 19mm | 10 | 35 | 35mm | 35/50mm | 19mm | 27 |
18 | 18mm | 35/50mm | 19mm | 10 | 36 | 36mm | 35/50mm | 19mm | 28 |
19 | 19mm | 35/50mm | 19mm | 11 | 38 | 38mm | 35/50mm | 19mm | 30 |
20 | 20mm | 35/50mm | 19mm | 12 | 40 | 40mm | 35/50mm | 19mm | 32 |
21 | 21mm | 35/50mm | 19mm | 13 | 42 | 42mm | 35/50mm | 19mm | 34 |
22 | 22mm | 35/50mm | 19mm | 14 | 45 | 45mm | 35/50mm | 19mm | 37 |
23 | 23mm | 35/50mm | 19mm | 15 | 46 | 46mm | 35/50mm | 19mm | 38 |
24 | 24mm | 35/50mm | 19mm | 16 | 48 | 48mm | 35/50mm | 19mm | 40 |
25 | 25mm | 35/50mm | 19mm | 17 | 50 | 50mm | 35/50mm | 19mm | 42 |
26 | 26mm | 35/50mm | 19mm | 18 | 52 | 52mm | 35/50mm | 19mm | 44 |
27 | 27mm | 35/50mm | 19mm | 19 | 55 | 55mm | 35/50mm | 19mm | 47 |
28 | 28mm | 35/50mm | 19mm | 20 | 60 | 60mm | 35/50mm | 19mm | 52 |
Application
Packing & Delivery

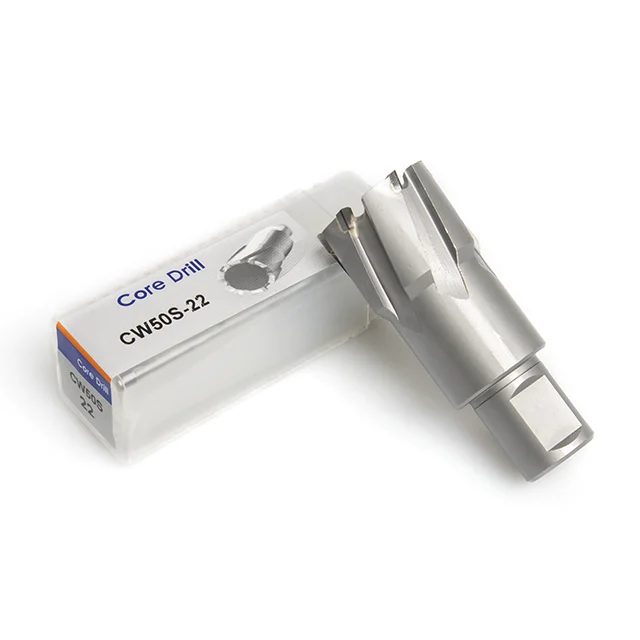

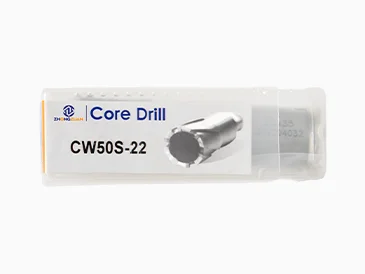

TCT Annular Cutter inner packing: default single plastic tube packing, outer packing: carton. We also have plastic boxes, iron boxes, wooden boxes and other packaging, and can also customize the packaging according to your requirements.
We have cooperated with DHLUPS,TNT Fedex,China Post and other sea shipping agent,thus we can quote the most economical shipping charge for you.
Company Profile
ZhongZuan is a professional power tool accessories manufacturer & supplier in China. Since 1995,with 27 years of industry experience. We manufacture and sell Diamond Core Bits, Hss Drill Bits, Wood Drill Bits, Hammer Drill Bits & Chisels, Router Bits, Diamond Saw Blades, Hss Saw Blades, TCT Saw Blades, Polishing Pads, Abrasive Tools and many more to choose from. We have accumulated rich experience in product
design, manufacturing and application, and can design supporting products for the complex processing environment of products, help customers solve various application problems of products, and provide professional solutions.
design, manufacturing and application, and can design supporting products for the complex processing environment of products, help customers solve various application problems of products, and provide professional solutions.
FAQ
Q: Can I print my own logo?
A: Yes, you can! Please send your brand in PNG, JPG, PDF, PSD, AI and other file formats to our sales staff and tell us your detailed requirements, we have professional designers who will produce a preview of the effect according to your requirements for your confirmation and reference.
Q: How about the quality of your products?
A: Our products are processed and manufactured with high quality raw materials, and we equipped with professional quality inspection team personnel and quality inspection equipment. From the purchase of raw materials → put into production → product molding → packaging, each link will have strict quality control!
Q: How long is the delivery time?
A: We have stock of common specification products, which can be shipped normally within three days after your payment. The latest delivery will be within 15 days. If you need to customize products or do not have stock, we need to schedule the production, the time limit is expected to give you according to our order scheduling situation.
Q: Can you customize the products according to my requirements?
A: Absolutely! We are happy to provide you with customized products. Feel free to contact our professional team to tell us the details of your requirements.
Q: Can I get samples?
A: Absolutely! We know that when a customer purchases in bulk, they will get a sample to test the quality of the product to see if they will buy in bulk from that supplier. So we are happy to provide samples for you. We support free samples for most of our products, except for some higher value products which require you to pay for the samples. The shipping cost will be borne by you.
