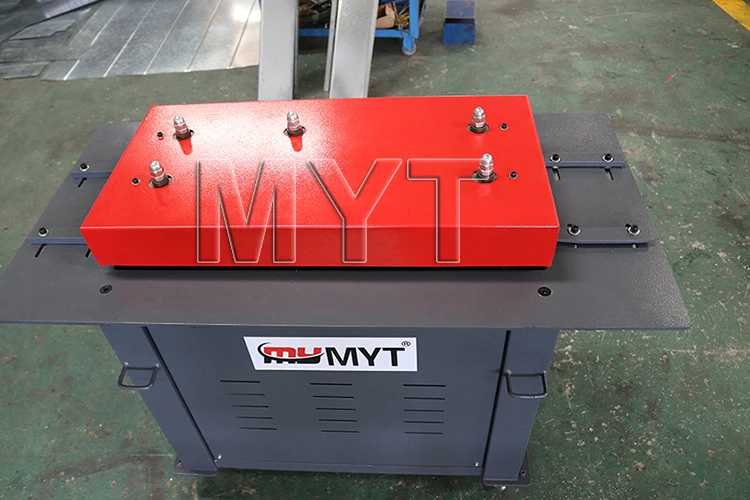

Multifunctional lockformer pipe machine rectangular pipe making machine for hvac vanitation pipe
- Category: >>>
- Supplier: Myt(shanghai) Machinery Equipment Co. ltd.
Share on (1600773140283):
Product Overview
Description
Product Description
Features :
Lock forming machine is one of the essential equipment duct production industry, it can be processed to a variety of differentshapes bone-fillet , universal models can be machined plates thickness from 0.5-1.2 mm galvanized plate , the companies launched special models can produce seven kinds of bone-shaped machine , on the basis of the original six features of a single flat , to facilitate the use of customers , improve efficiency , to meet the specialized needs of the customers.

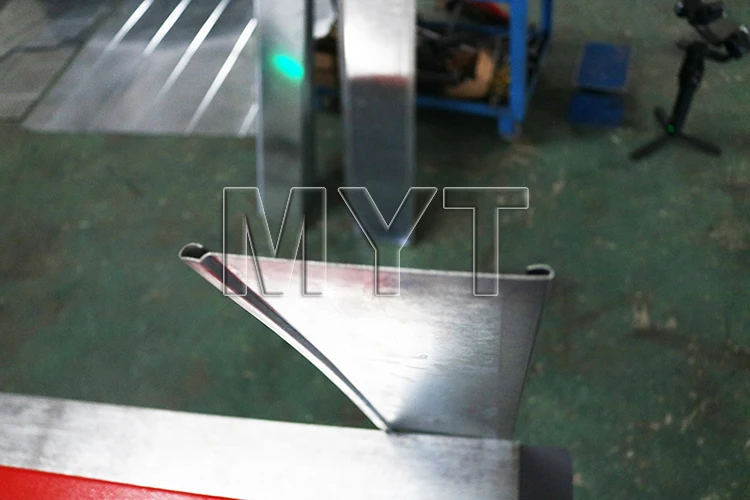

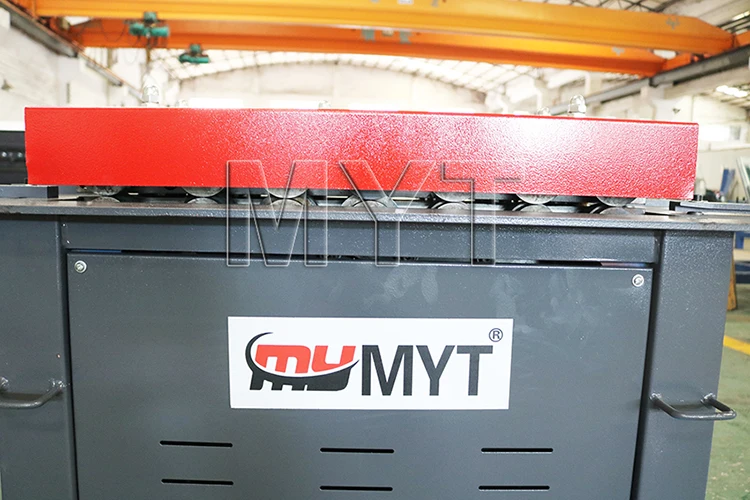

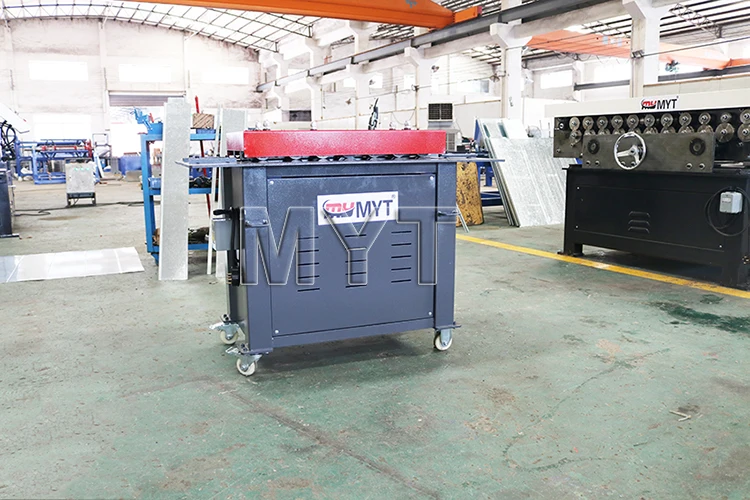

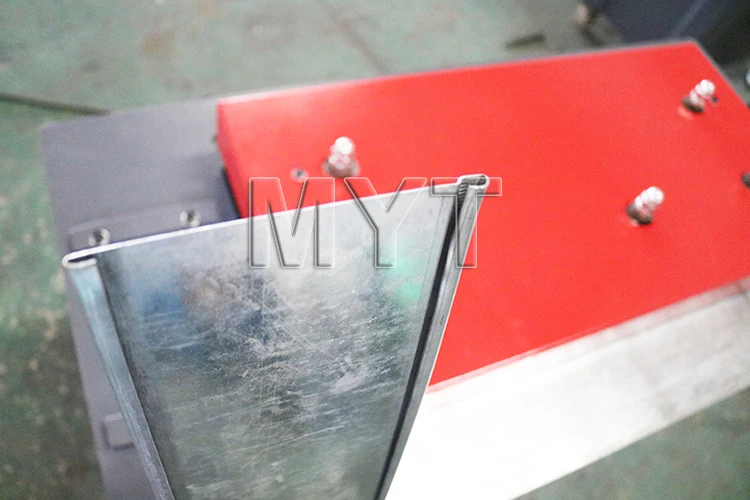

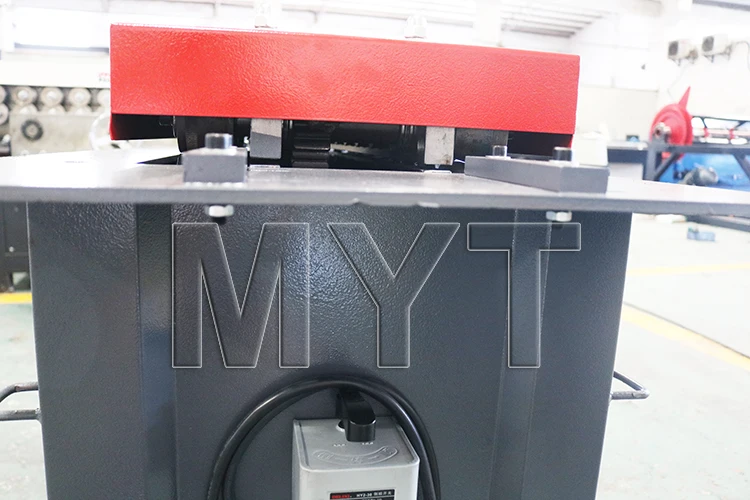

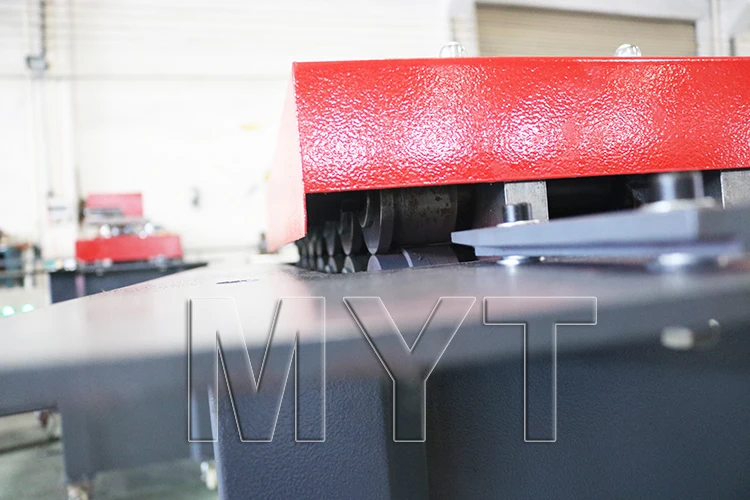

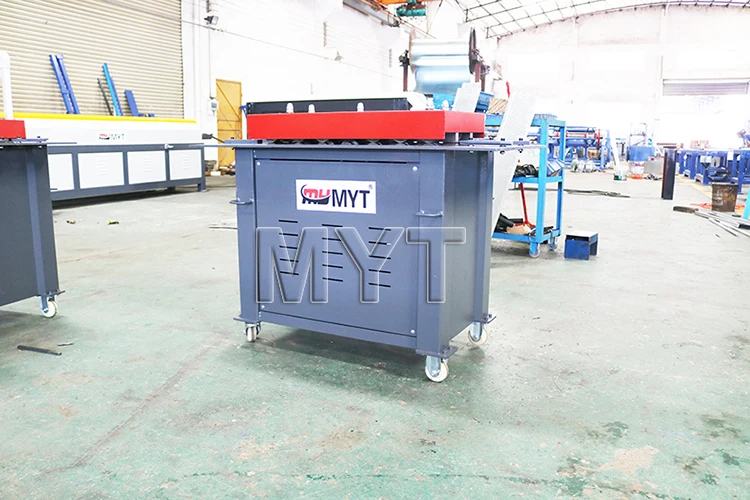

Detail images
Specification
o | Model | Motor Power(kw) | Processing thickness (mm) | Weight(kg) | Size |
1 | LC-10 | 1.5 | 0.3-1.0 | 175 | 920*580*890 |
2 | LC-10R | 1.5 | 0.3-1.0 | 185 | 920*580*1020 |
3 | LC-10C | 1.5 | 0.3-1.0 | 185 | 920*580*1020 |
4 | LC-10B | 1.5 | 0.3-1.0 | 175 | 920*580*880 |
5 | LC-12 | 1.5 | 0.5-1.2 | 215 | 1050*580*880 |
6 | LC-12R | 1.5 | 0.5-1.2 | 220 | 1050*580*1050 |
7 | LC-12BR | 1.5 | 0.5-1.2 | 225 | 1050*580*1060 |
8 | LC-12C | 1.5 | 0.5-1.2 | 210 | 1050*580*880 |
9 | LC-12D | 1.5 | 0.5-1.2 | 215 | 1050*580*880 |
10 | LC-12DR | 1.5 | 0.5-1.2 | 230 | 1050*580*1050 |
11 | LC-12M | 2.2 | 0.5-1.2 | 360 | 1520*650*1010 |
12 | LC-12MR | 2.2 | 0.5-1.2 | 370 | 1152*650*1050 |
13 | LC-15 | 2.2 | 0.7-1.5 | 280 | 1140*660*920 |
14 | LC-15BR | 2.2 | 0.7-1.5 | 305 | 1150*660*1080 |
15 | LC-15D | 2.2 | 0.7-1.5 | 290 | 1420*660*920 |
16 | LC-15DR | 2.2 | 0.7-1.5 | 310 | 1650*660*1080 |
17 | LC-20 | 3 | 0.7-2.0 | 435 | 1650*650*1050 |
