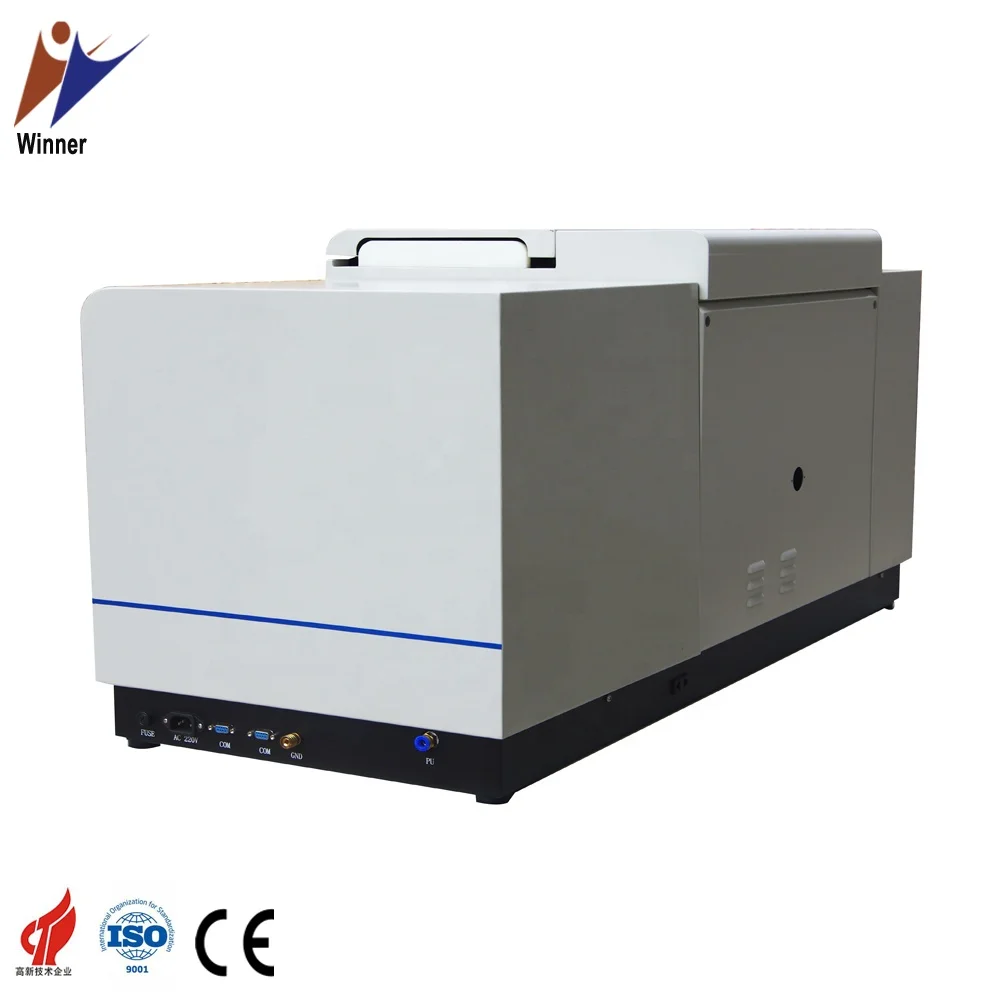

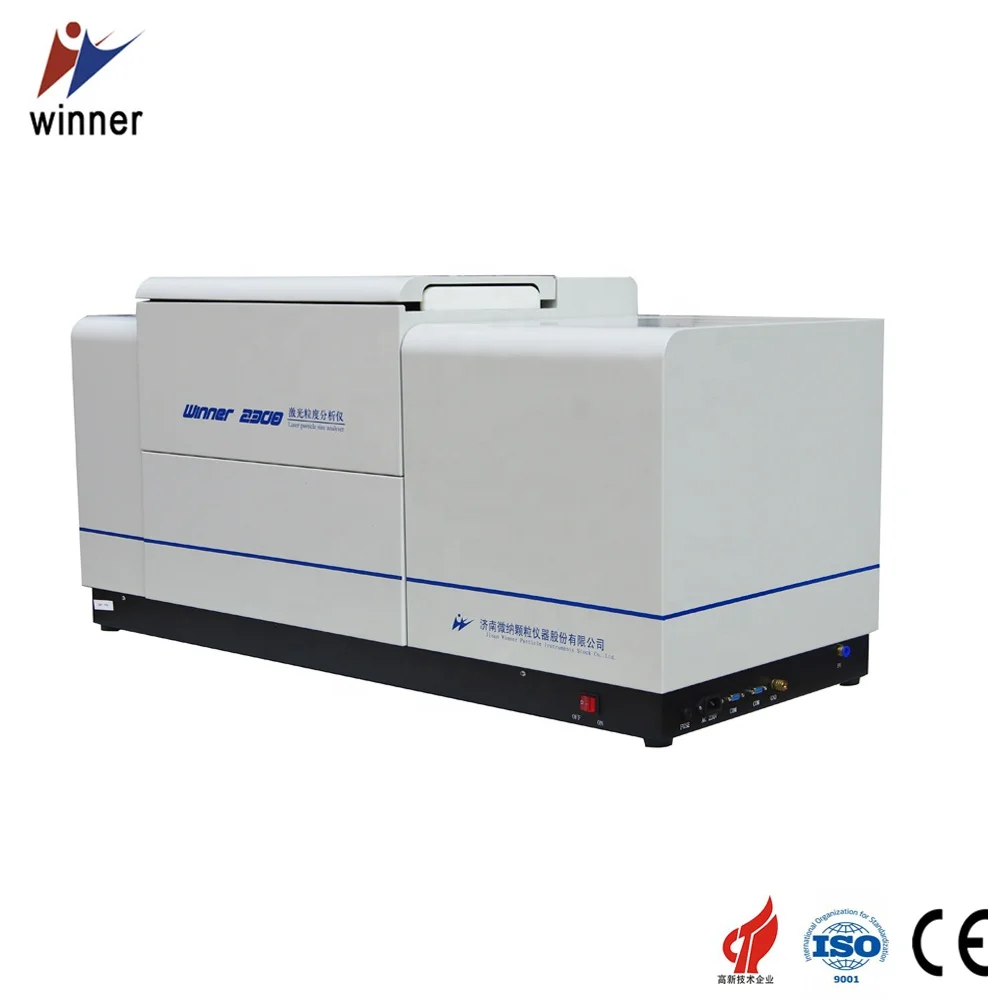

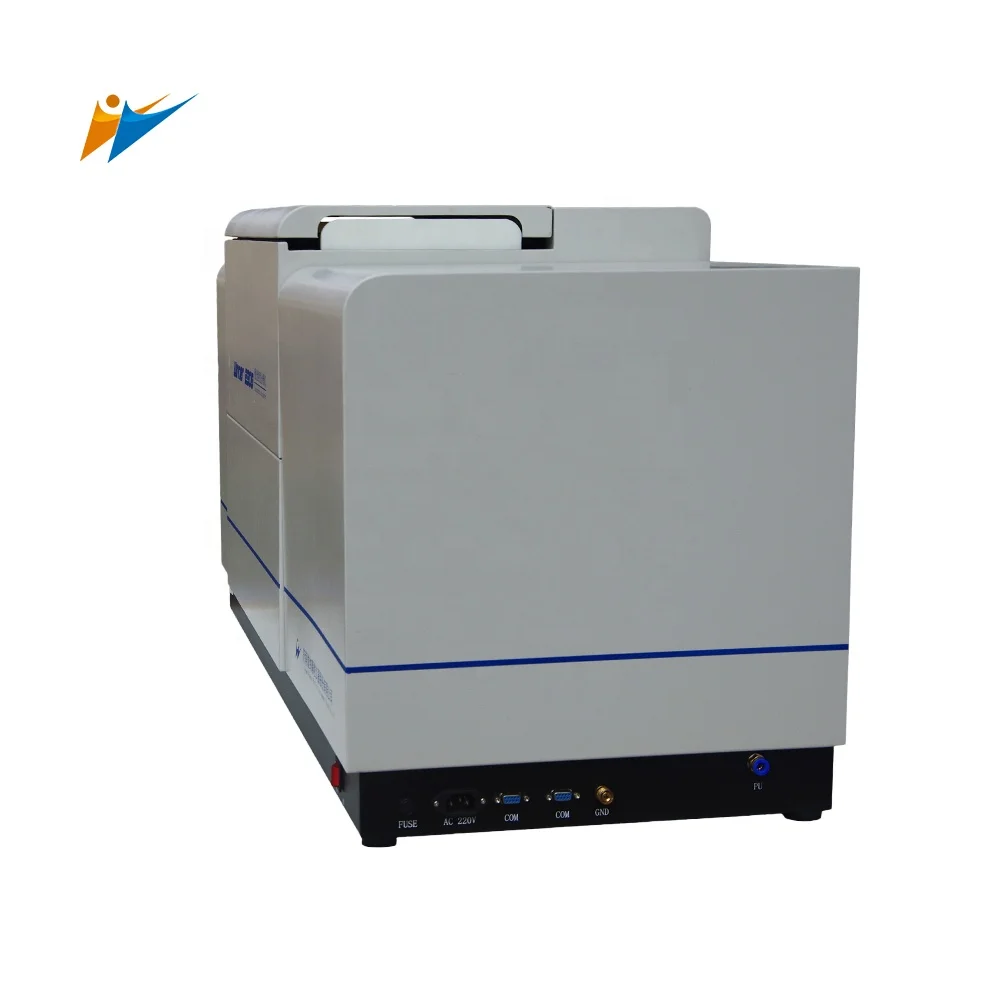

Winner 2308A /Winner2308B
Product Description
Winner2308A/B intelligent full automatic wet&dry laser particle size analyzer adopt laser diffraction theory(Mie and Fraunhofer diffraction), measure size is from 0.1μm/0.01μm to 1200μm/2000μm, Which offer reliable and repeatable particle size analysis for a diverse range of applications.It use dual-beam& multiple spectral detection systems and side light scatter test technology to significantly improve precision and performance of test, It’s the prior choice for industrial production quality control departments and research institutions.
Main Features
1)Wet and dry sample dispersion system Integrated Design
Winner2308 intelligent laser particle size analyzer which is 1st set laser particle size analyzer integrated wet and dry dispersion test in one in China, it successfully resolved the problem of dry and wet technology integration, realize one key to switch, apply to test all the particle size distribution from 0.01μm-2000μm particles.
2) Intelligent full automatic operation system and manual operation mode, freely choose.
With intelligent automatic mode of operation, to achieve a key test, as long as according to the prompt addition of sample, click the "test", all process will be complete automatically, not only reduce the testing workload, but also eliminate the interference of human factors, to further improve the accuracy and authenticity of testing results.
Wet method: A key to complete water-supply, ultrasonic dispersion, circulation, testing, cleaning, data record, data analysis,save and print are automatically completed, only take 2 mins.
Dry method: A key to complete the dust collecting, compressed air supply, feeding, testing(The patented technology of turbulence dispersion and the sample window of the negative pressure device make the sample be fully dispersed), data processing and other operation, take 1 min.
3) Stable and unique optical path system patented technology
Converging light Fourier transform path patent technology, enables scattering light be not restricted to the lens aperture limit,using Double Spectral plane optical path design, the Photodetector channels are 127 pcs, the maximum detection angle is 145 degrees and the minimum detection angle is 0.0155 degrees, Using dual-laser orthogonal light patent technology, The measurement range is effectively extended to 2000 microns. Canon Fourier lens imported from Japan is used to ensure the stability and accuracy
of particle measurement.
4) Automatic Optical path alignment System,
The precision of four hybrid stepping motor in the automatic system of optical components, micro precision of 0.1um, the instrument of light path is always at its best to eliminate manually on the light path and the troubles and difficulties but also enhance the accuracy and stability of test results.

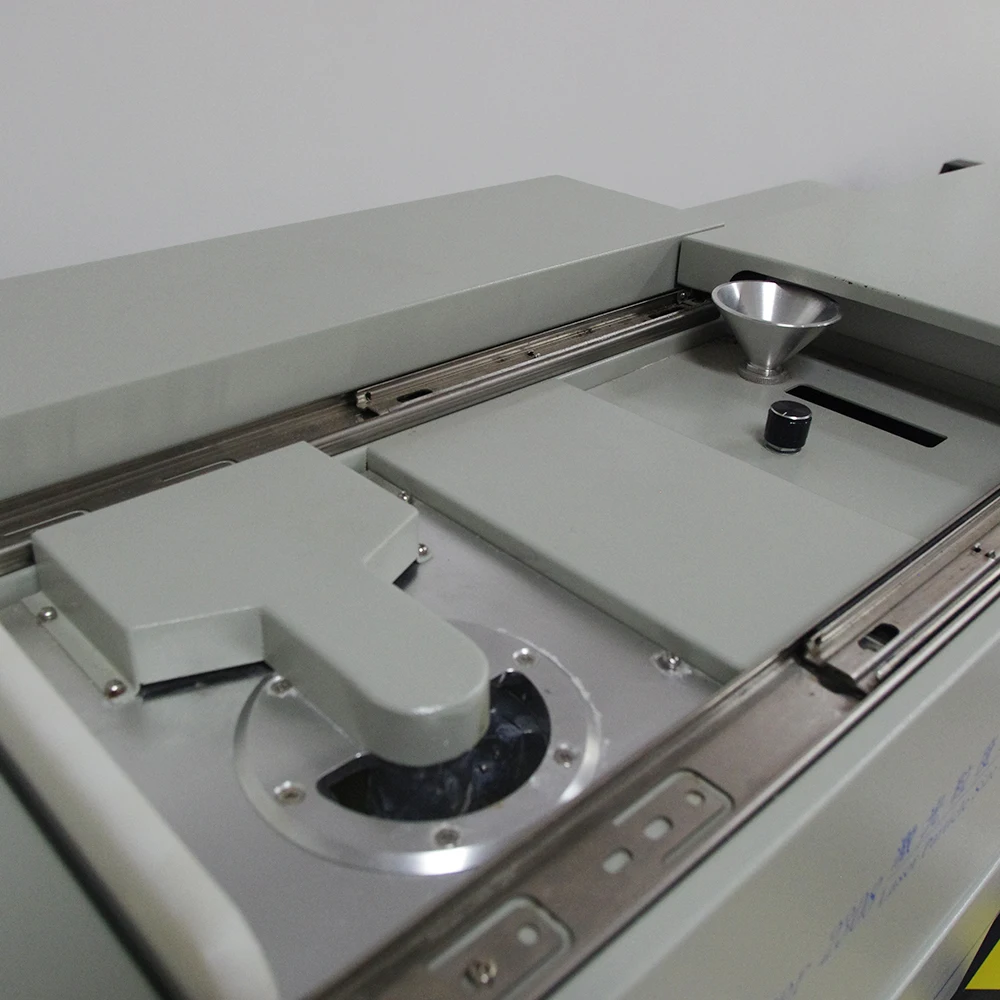

5) Full built-in Sample Wet and dry dispersion system,One key switch.
Auto wet dispersion system,SOP realize one key operation.
set mechanical stirring, ultrasonic dispersion, and circulation path in one, It ensures particles uniform dispersion and
distribution,avoids many bad phenomenon, such as uneven distribution of particles, large particles deposit because of the long
outer dispersing system tube, And it guarantees the representativeness of test result
For dry dispersion system, Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient
dispersion,ensure good test,apply to test powders range from 0.1 micron to 1200 micron.
6)Instrument Software
Original Unconstrained free fitting patent technology collect scattering data during the measurement process, make particle
analysis not be restricted by any functions, truly reflect particles size distribution, The instrument provide high precision data with 10Khz data acquisition time.
Winner2308 intelligent laser particle size analyzer which is 1st set laser particle size analyzer integrated wet and dry dispersion test in one in China, it successfully resolved the problem of dry and wet technology integration, realize one key to switch, apply to test all the particle size distribution from 0.01μm-2000μm particles.
2) Intelligent full automatic operation system and manual operation mode, freely choose.
With intelligent automatic mode of operation, to achieve a key test, as long as according to the prompt addition of sample, click the "test", all process will be complete automatically, not only reduce the testing workload, but also eliminate the interference of human factors, to further improve the accuracy and authenticity of testing results.
Wet method: A key to complete water-supply, ultrasonic dispersion, circulation, testing, cleaning, data record, data analysis,save and print are automatically completed, only take 2 mins.
Dry method: A key to complete the dust collecting, compressed air supply, feeding, testing(The patented technology of turbulence dispersion and the sample window of the negative pressure device make the sample be fully dispersed), data processing and other operation, take 1 min.
3) Stable and unique optical path system patented technology
Converging light Fourier transform path patent technology, enables scattering light be not restricted to the lens aperture limit,using Double Spectral plane optical path design, the Photodetector channels are 127 pcs, the maximum detection angle is 145 degrees and the minimum detection angle is 0.0155 degrees, Using dual-laser orthogonal light patent technology, The measurement range is effectively extended to 2000 microns. Canon Fourier lens imported from Japan is used to ensure the stability and accuracy
of particle measurement.
4) Automatic Optical path alignment System,
The precision of four hybrid stepping motor in the automatic system of optical components, micro precision of 0.1um, the instrument of light path is always at its best to eliminate manually on the light path and the troubles and difficulties but also enhance the accuracy and stability of test results.
5) Full built-in Sample Wet and dry dispersion system,One key switch.
Auto wet dispersion system,SOP realize one key operation.
set mechanical stirring, ultrasonic dispersion, and circulation path in one, It ensures particles uniform dispersion and
distribution,avoids many bad phenomenon, such as uneven distribution of particles, large particles deposit because of the long
outer dispersing system tube, And it guarantees the representativeness of test result
For dry dispersion system, Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient
dispersion,ensure good test,apply to test powders range from 0.1 micron to 1200 micron.
6)Instrument Software
Original Unconstrained free fitting patent technology collect scattering data during the measurement process, make particle
analysis not be restricted by any functions, truly reflect particles size distribution, The instrument provide high precision data with 10Khz data acquisition time.
Specification
Model Name | Winner2308A｜Winner2308B | ||
Standard | ISO13320-1:2009,GB/T19007-2016,Q/0100JWN001-2013 Compliance with 21 CFR Part 11 | ||
Principle | Laser diffraction principle | ||
Analysis | Mie and Fraunhofer scattering | ||
Detector Arrangement | Log-spaced array, test angle from 0.015 degree to 145 degree | ||
Measuring Range | Wet:0.01μm-2000 μm Dry: 0.1μm-2000μm ｜Wet:0.01μm-1200 μm Dry: 0.1μm-1200μm | ||
Silicon Photodetectors | Wet:127 pcs Dry:100 pcs | ||
Accuracy error | Wet≤0.5% Dry≤1% (CRM D50) | ||
Repeatability error | Wet≤0.5% Dry≤1% (CRM D50) | ||
Light source | High performance semiconductor red laser (λ=639nm ) P＞3.0MW Auxiliary green solid semiconductor laser (λ= 405 nm) P＞2.0MW (available) | ||
Optical path | Converging light Fourier transform optical path | ||
Effective focal length | 500mm | ||
Laser Safety | Class 1 | ||
Wet dispersion | Ultrasonic | Frequency:40KHz Power:60W, Time: ≥1S | |
Stir | Revolutions Speed: 0-3000RPM (Adjustable) | ||
Circulate | Rated Flow:30L/min Rated Power:70W | ||
Water level sensor (UK | Prevent water overflow and effectively protect the instrument | ||
Sample tank | Volume:1000mL | ||
Micro- Sample cuvette | Volume: 10mL ( Available) | ||
Dry dispersion | Dry-turbulence dispersion patent technology, normal shock wave shear technique | ||
Feeding Speed | Adjustable (Variable speed knob) | ||
Operation Mode | Full automatic / manual control, freely choose | ||
Dispersion medium | Compressed Air, pressure: 0 to 6 bar | ||
Optical bench alignment system | Full automatic, precision is up to 0.2um | ||
Full Test Speed per time | Wet: ＜2 Min Dry : <1min Inverval time per test result :500ms | ||
Outer dimension | L104cm×W44cm×H54cm | ||
Net Weight | 58Kg | ||

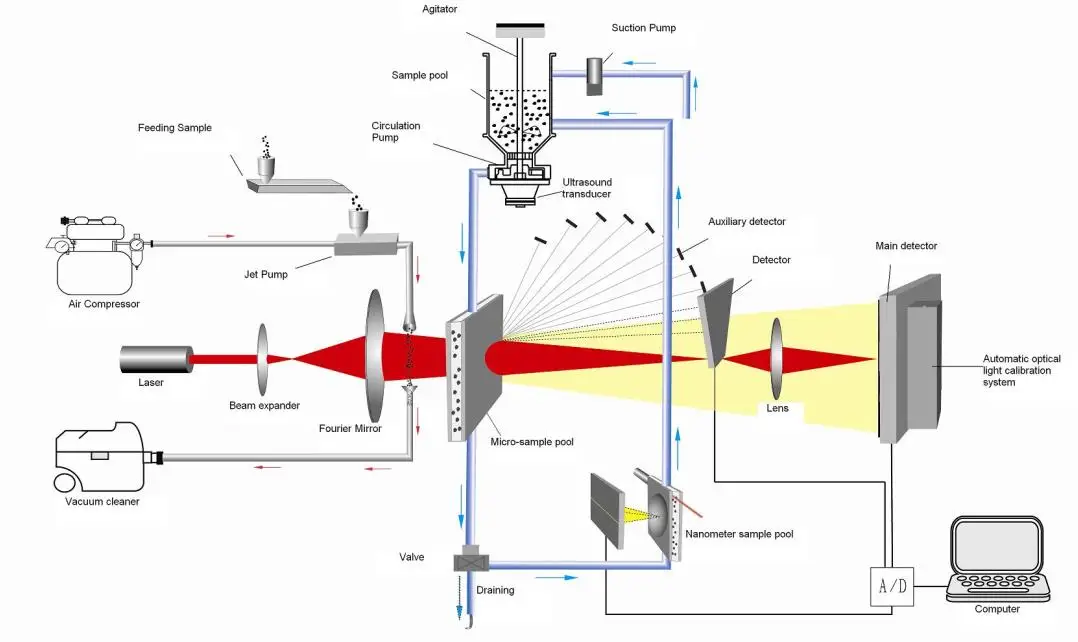

Principle
Test operation interface:
Application
Winner2308 widely used in cement, ceramics, medicines, lotions, paints, dyes, pigments, fillers, chemicals, catalysts, drilling mud, abrasives, lubricants, coal, sediment, dust, cells, bacteria, food additives, pesticides, explosives, graphite, photographic materials, fuel, ink, metal and non-metal powder, calcium carbonate, kaolin, coal slurry and other powdered materials.
