UNI T UT33B Current AC DC Voltage Resistance Diode Battery Test LCD Backlight Digital Multimeters
- Category: >>>
- Supplier: Shenzhen Kuongshun Electronic Business Department
Share on (1600774496669):
Product Overview
Description
Product Description

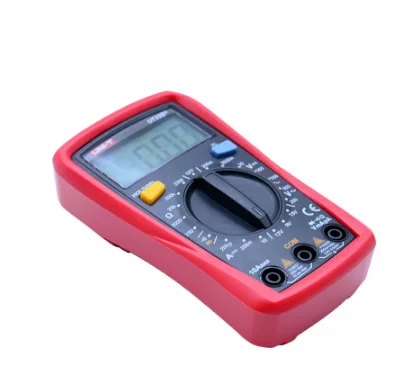

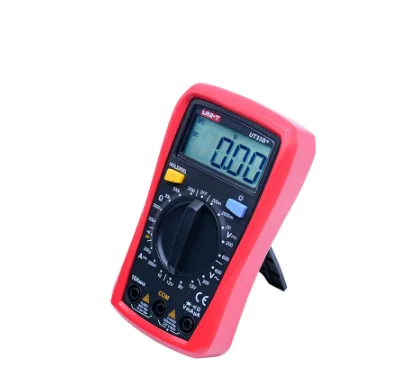

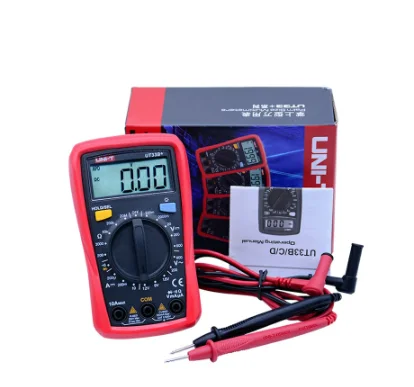

UNI-T UT33B+ Current AC DC Voltage Resistance Diode Battery Test LCD Backlight Digital Multimeters
The new generation UT33+ series redefines the performance standards for entry-level digital multimeters.
Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience.
This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+);battery test (UT33B+);temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+).
1. Clear LCD display

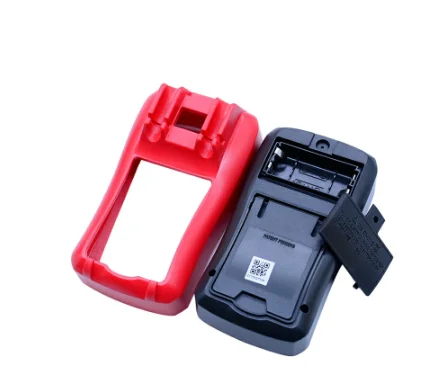

2. Comfortable protective cover, with test lead hanging groove
3. 2 meters drop test, precision protection
4. Loud buzzer sound; Ergonomic design

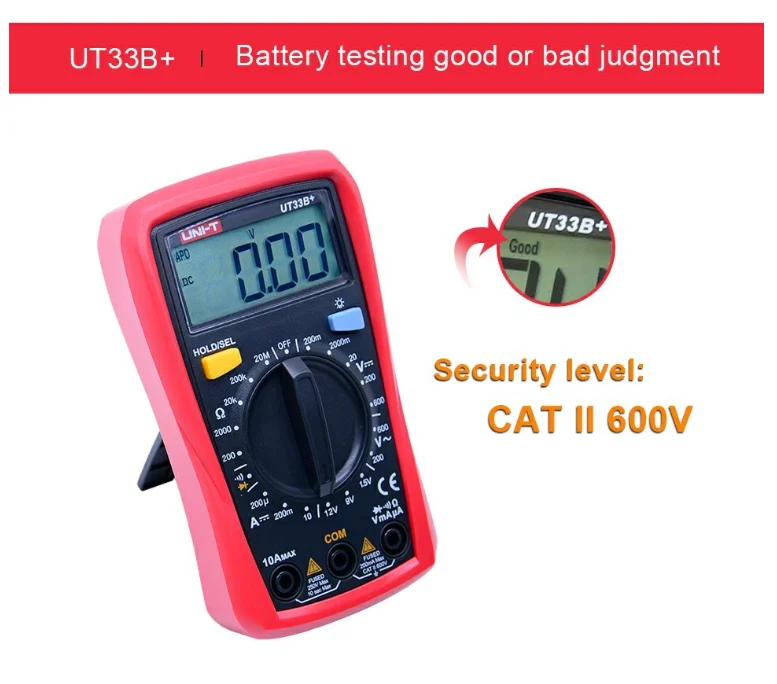

5. Unique battery test feature: Displays‘good’,‘low’, and‘bad’ statuses when testing 1.5V/9V/12V batteries
Specifications | Range | UT33B+ | ||
DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%+2) | ||
AC voltage (V) | 200V/600V | ±(1.2%+3) | ||
DC current (A) | 200μA/200mA/10A | ±(1%+2) | ||
Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/20MΩ | ±(0.8%+2) | ||
Features | ||||
Display count | 2000 | |||
Auto power off/Auto backlight off | √ | |||
Diode test/Continuity buzzer | √ | |||
2m drop test/ Test probe holder | √ | |||
Range selection | Manual | |||
Battery test | 1.5V/9V/12V | |||
General Characteristics | ||||
Power | 1.5V battery (R03) x 2 | |||
Display | 66mm x 51mm | |||
Product net weight | 206g (batteries included) | |||
Product color | Red and grey | |||
Product size | 134mm x 77mm x 47mm | |||
