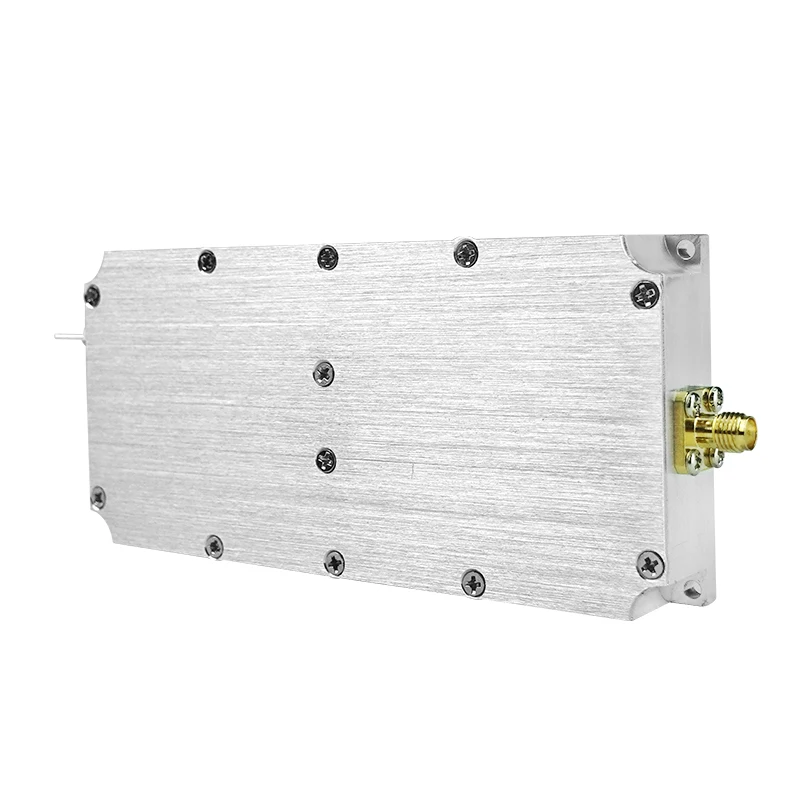

20W 5.8G Anti Drone Module UAV Anti System RF Module
- Category: >>>
- Supplier: Shenzhen Texin Communication Co. Ltd.
Share on (1600774560697):
Product Overview
Description
Product Description
20W 5.8G Anti Drone Module UAV Anti System RF Module
Model：RX-5820
It is a wireless anti drone module dedicated to 5700-5900MHz signals. This module has the advantages of high average output power ( 20 W output in stable operation), good in-band flatness, and small offset between upper and lower side bands.
Regular type with signal source，if you want without signal source type also can offer（input signal 0-10dBm）.
Regular type with signal source，if you want without signal source type also can offer（input signal 0-10dBm）.
Product details
Origin:Guangdong, China Brand :Rongxin
Name: Anti drone module MHZ: 5.8 G,Customize
Power: 20 w KHZ: 5700 - 5900
Quality Warranty:12 months Key word:Anti drone system
Name: Anti drone module MHZ: 5.8 G,Customize
Power: 20 w KHZ: 5700 - 5900
Quality Warranty:12 months Key word:Anti drone system
Main performance index
Index | Numerical value | Unit | Note | |||||||
Min | Typical | Max | ||||||||
Signal frequency | 5700 | 5900 | MHz | |||||||
Output power | 42.5 | 43 | 43.5 | dBm | ||||||
Band flatness | 1 | dB | ||||||||
Work current | 2.5 | A | ||||||||
Work voltage | 24 | 28 | V | |||||||
Work efficiency | 45 | % | ||||||||
Thermally offset of upper band | 8 | MHz | Module surface temperature: 85°C | |||||||
Thermally offset of bottom band | 8 | MHz | Module surface temperature: 85°C | |||||||
Weight | 0.22kg | |||||||||

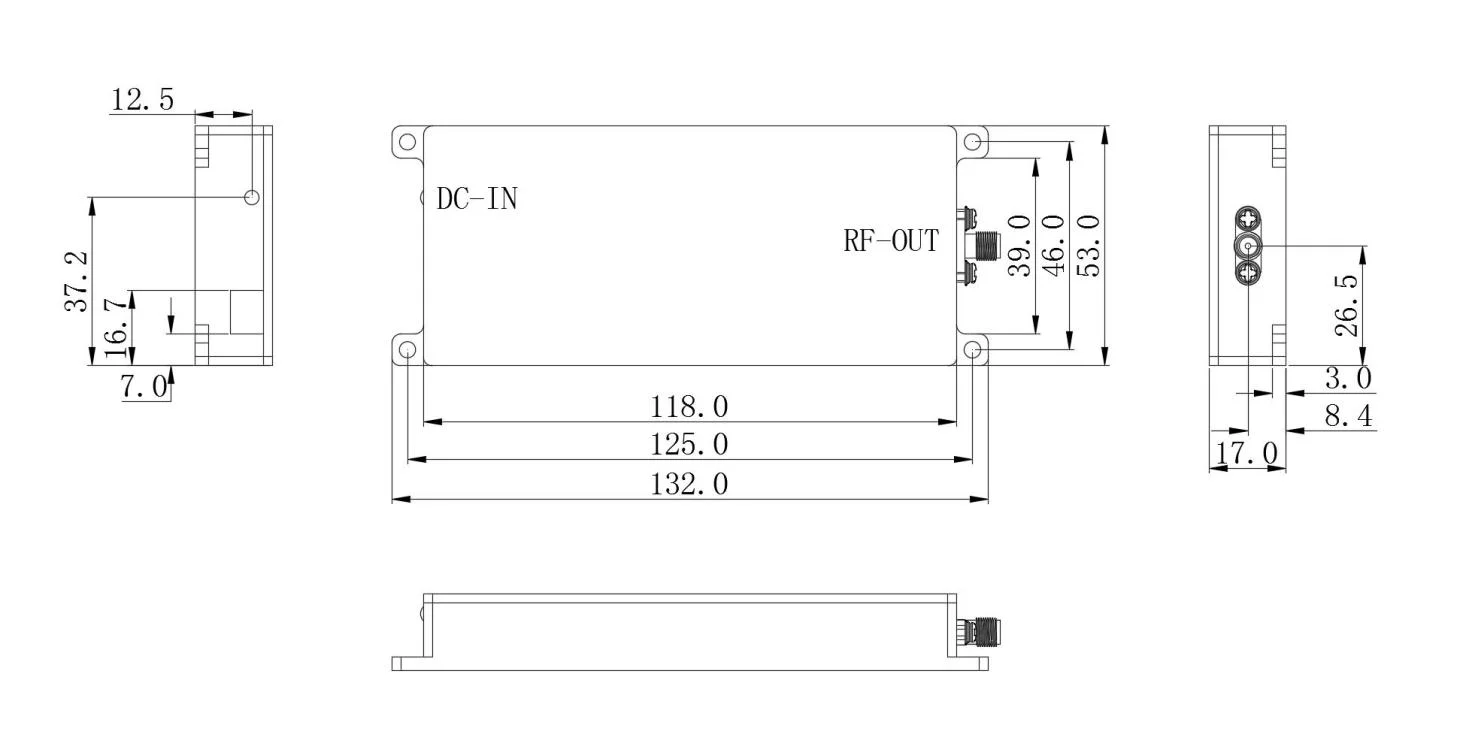

Dimension | 132*53*17 mm | |||||||||
Note: 1. The positive terminal is connected to the core capacitor, and the negative terminal is connected to the edge of the shell. 2. Connect the power when the antenna is connected; otherwise, the module may be damaged. Before powering on the module, check whether the power voltage is within the allowable range. | ||||||||||
