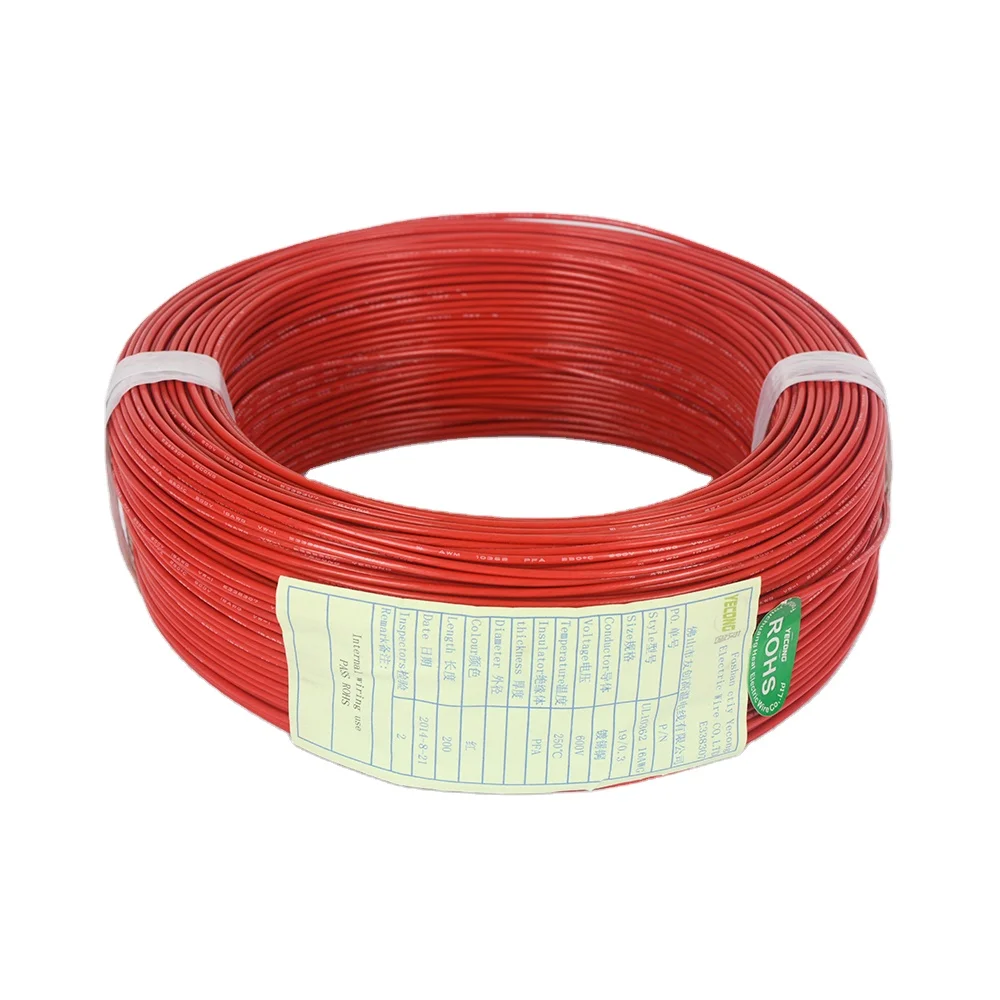

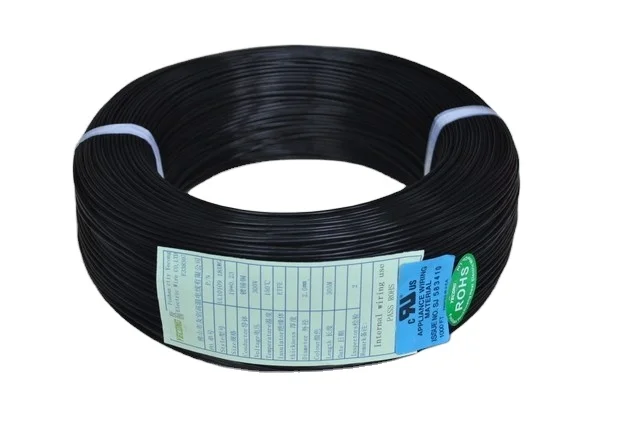

Tinned copper hook up wire 200 degree FEP insulated flexible copper wires with ul approval
- Category: >>>
- Supplier: Foshan Yecong High Temperature Wire Co. Ltd.
Share on (1600774567893):
Product Overview
Description
UL-5
| AWG | Stranding | Insulation Thickness (In) | Nom. O.D. (In) | Temp | Voltage Rating |
|---|---|---|---|---|---|
| 28 | Solid | 0.013 | 0.042 | 150°C or 200°C | 300 |
| 28 | 7/36 | 0.013 | 0.045 | 150°C or 200°C | 300 |
| 28 | 19/40 | 0.013 | 0.045 | 150°C or 200°C | 300 |
| 26 | Solid | 0.013 | 0.045 | 150°C or 200°C | 300 |
| 26 | 7/34 | 0.013 | 0.048 | 150°C or 200°C | 300 |
| 26 | 19/38 | 0.013 | 0.048 | 150°C or 200°C | 300 |
| 24 | Solid | 0.013 | 0.049 | 150°C or 200°C | 300 |
| 24 | 7/32 | 0.013 | 0.053 | 150°C or 200°C | 300 |
| 24 | 19/36 | 0.013 | 0.053 | 150°C or 200°C | 300 |
| 22 | Solid | 0.013 | 0.054 | 150°C or 200°C | 300 |
| 22 | 7/30 | 0.013 | 0.060 | 150°C or 200°C | 300 |
| 22 | 19/34 | 0.013 | 0.060 | 150°C or 200°C | 300 |
| 20 | Solid | 0.013 | 0.061 | 150°C or 200°C | 300 |
| 20 | 7/28 | 0.013 | 0.068 | 150°C or 200°C | 300 |
| 20 | 19/32 | 0.013 | 0.068 | 150°C or 200°C | 300 |
| 18 | 7/26 | 0.013 | 0.079 | 150°C or 200°C | 300 |
| 18 | 19/30 | 0.013 | 0.079 | 150°C or 200°C | 300 |
| 16 | 19/29 | 0.013 | 0.086 | 150°C or 200°C | 300 |
| 14 | 19/27 | 0.013 | 0.102 | 150°C or 200°C | 300 |
| 12 | 19/25 | 0.013 | 0.120 | 150°C or 200°C | 300 |
Company Information
We manufacture UL certificated wire and customized fluorine plastic wire for 16 years . In our facility , there are 10 automatic extruding production lines . As a result , we can produce about 100,000 meters electric wire per day .
For UL certificated wire and customized fluorine plastic wire , we have different raw material to meet different customers demand , like we use PTFE , FEP , PFA , ETFE and kapton as insualtion material . And we use silver plated copper , nickel plated copper , tin plated copper and pure nickle as conductor . So our product can be applied in hot runner wire , thermometer hook up wire , automobile wiring harness , mining and some other high working temperature electronic .
We make full use of our advanced mechanical resource to deliver high standard products to the market . Moreover , the orders we get are manufactured in a qualitative way within the scheduled time to make on time delivery of the consignments .
Packaging & Shipping
Packaging :
Carton size : A : 29cm*29cm*15cm B : 33cm*33cm*26cm C : 46cm*26cm*20cm
Lead time : 3 to 7 days
Shipping : sea or air
Delivery / Freight / Payment :
Delivery method : Fedex or LCL depend on the weight
Freight : If you have better and cheaper shipping method , please tell me , I can do as you demand .
Payment :
1. T/T advance for 3months
2. T/T by 30% before production and 70% before delivery
3. Above 10,000usd/month, 30 days after delivery
4. Above 50,000usd/moth, LC
