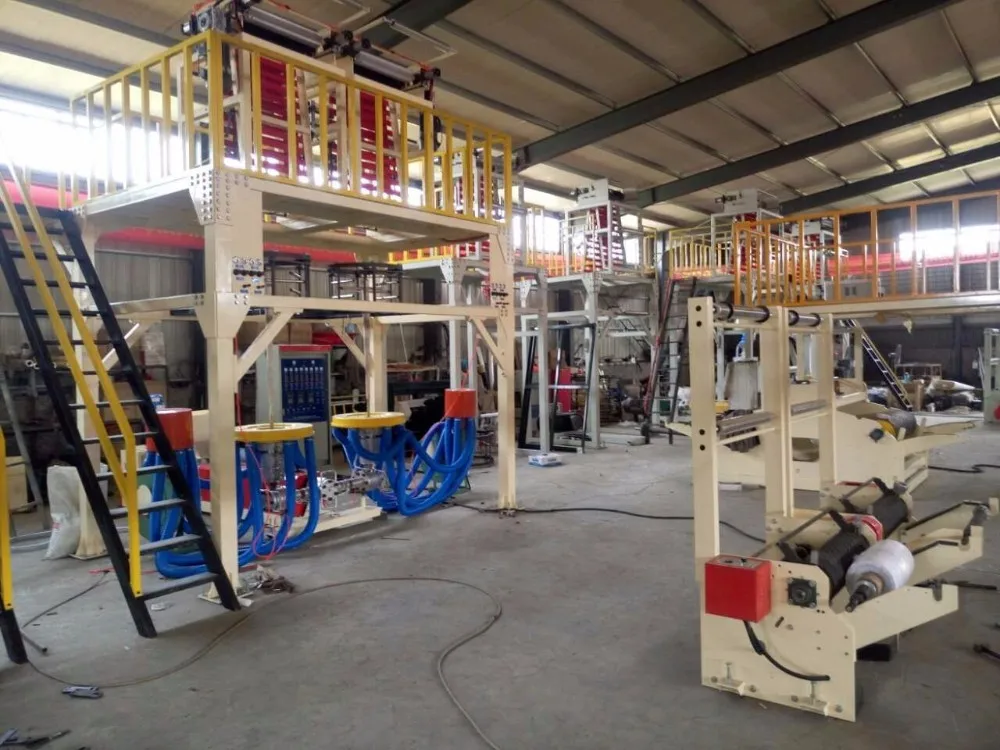

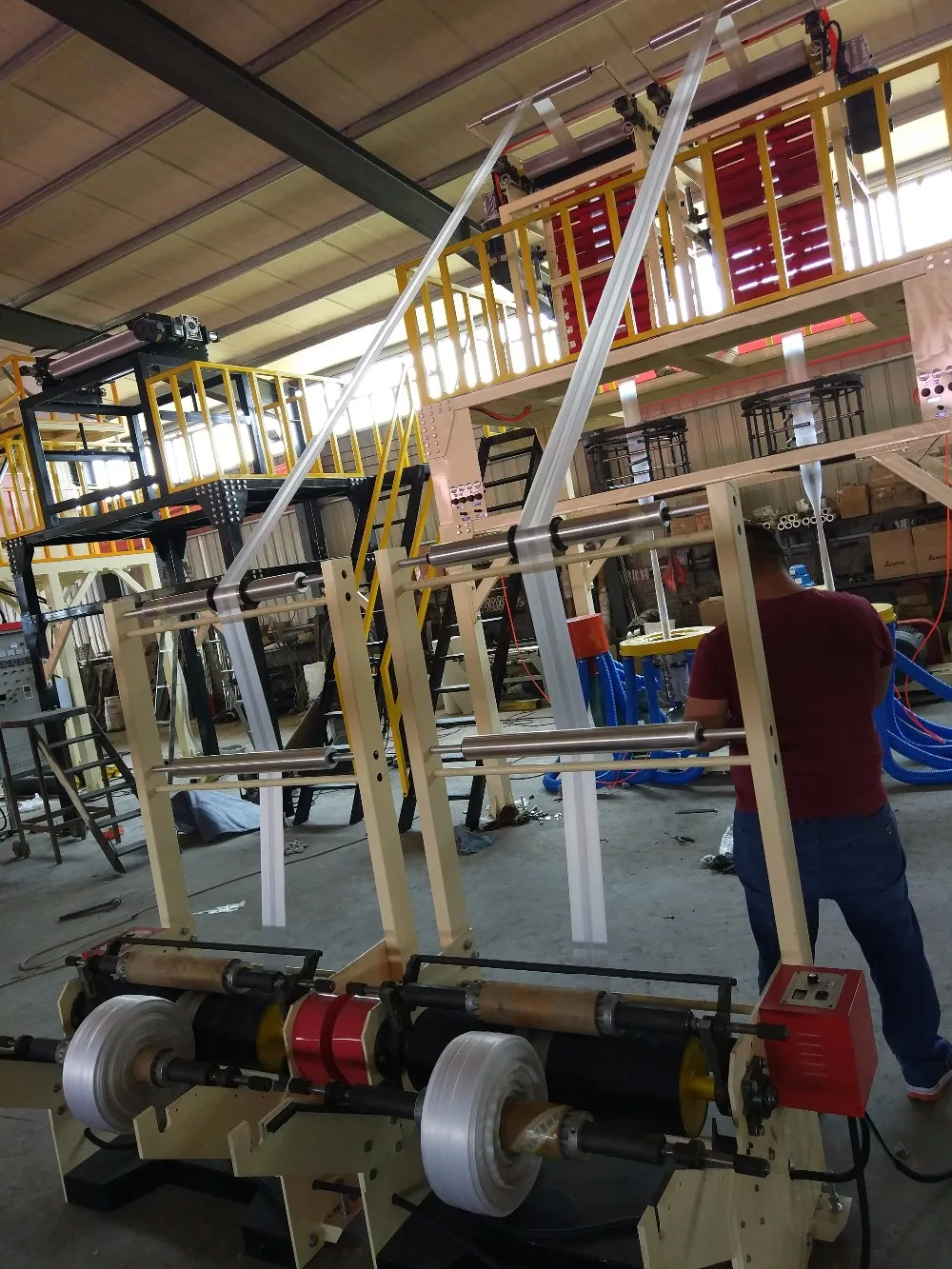

Plastic Industry Line Die Head Double Air Ring Polyethylene Blown Film Extrusion Machine
- Category: >>>
- Supplier: Hebei Chengheng Plastic Machinery Technology Co. Ltd.
Share on (1600774582663):
Product Overview
Description
Product Description
Product Application
Its extruder, cylinder and screw rods are made of superior alloy steel, that have been nitrogen treated and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.
It is applied to blowing the plastic films like low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene(LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

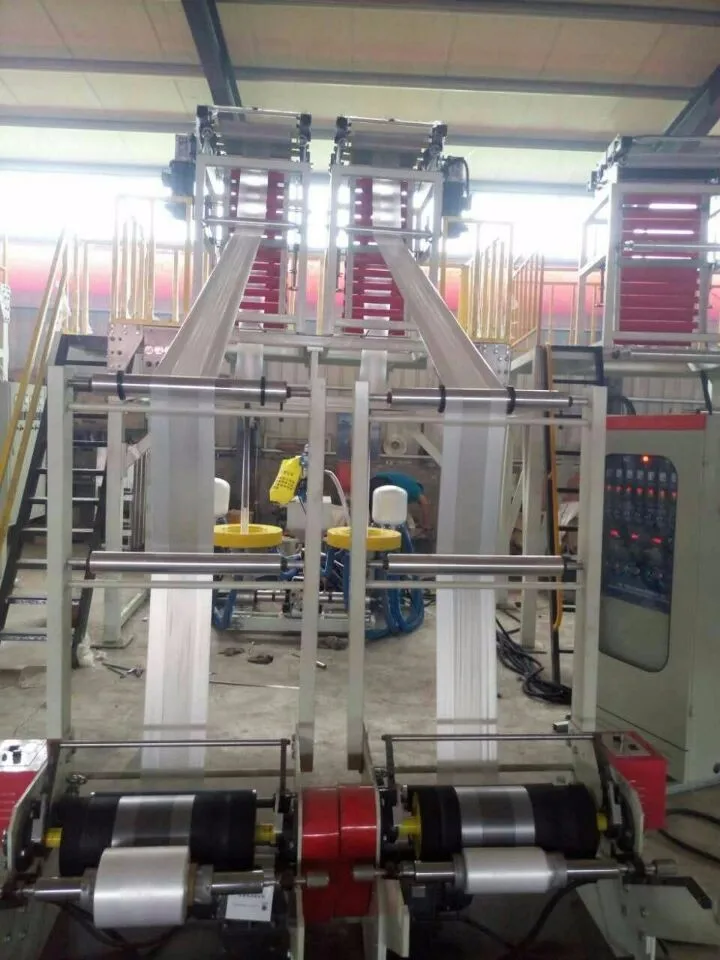

Twin head film blowing machine | ||||||
Model | W-55/500 | W-65/700 | W-75/900 | |||
Film width | 200-400mm | 250-600mm | 250-700mm | |||
Film thickness | 0.006-0.15mm | 0.006-0.15mm | 0.006-0.15mm | |||
Max output | 85kg/h | 110kg/h | 130kg/h | |||
According to different width,thickness of film, die size and raw material characteristics to change | ||||||
Raw material | HDPE/LDPE/LLDPE/PBAT/PLA | |||||
Diameter of screw | Φ55,30:1 | Φ65,30:1 | Φ75,30:1 | |||
SACM 645 ,bimetallic ,five years guarantee | ||||||
Main motor | 22kw | 30kw | 37kw | |||
100% Original three-phase variable frequency motor Equipped with inverter control | ||||||
Take up roller(mm) | 500mm | 700mm | 900mm | |||
Weight | 2500kg | 2600kg | 3500kg | |||
Machine size | 5*2.1*4.3 | 5*3.2*5.2 | 5*3.4*5.8 | |||
Main Features
1.Ceramic heater: Fast heating and save power cost
2 Simens motor and Inverter control
3 SCREW: SACM645 WITH BIAMETALICC TREATMENT 5 YEAR WARRANTTY
Optional Device:
1.Automatic Hopper Loader with dryer
2.360°rotary die head
3.automatic back to back winder
4.Film Surface Treater
5.Oscillating Take Up Unit
5.IBC(Internal Bubble Cooling Computer Control System)
6.EPC(Edge Position Control)
7.Chiller
8.Heat Slitting Device
9.Gravimetric Dosing Unit
10.Thickness Measurement
11. Mechanics screen changer
12.Edge material recycling machine
Certifications
Detailed Images
Machine Parts
Screw: SACM645
SACM645 steel with hard with nitrogen with bimetallic treatment,5years warranty
Main Features
Heater: Ceramic heater
Advantage: Fast heating and save power cost
Machine Parts

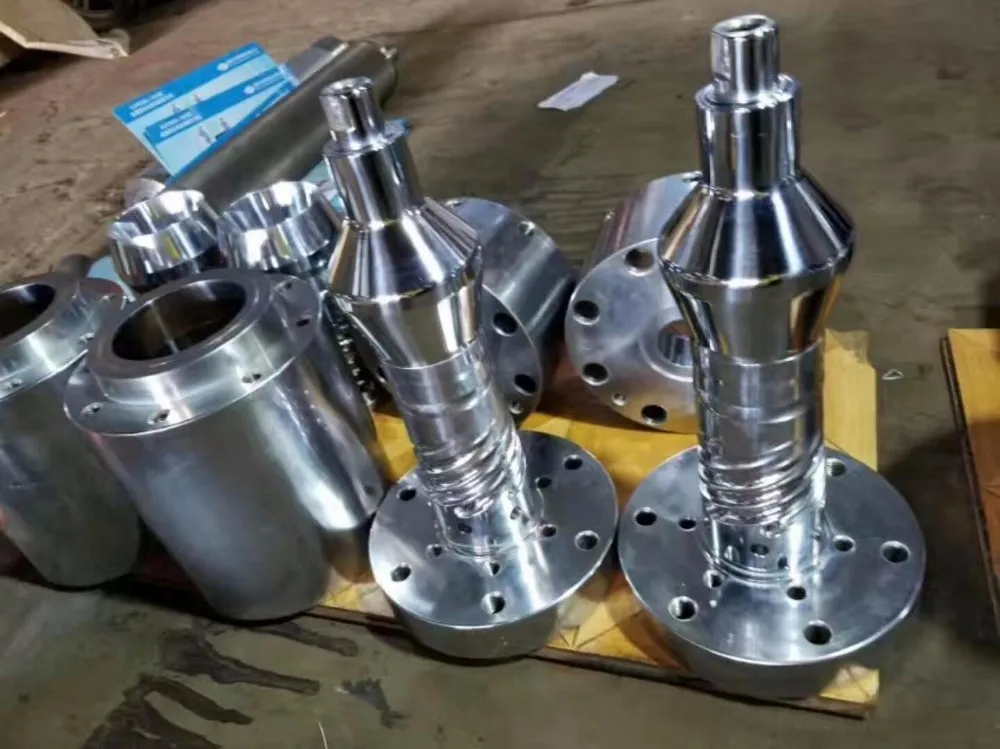

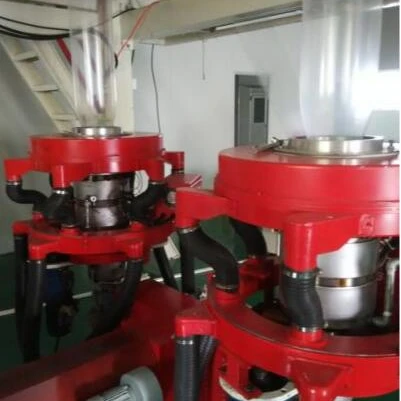

Name: Die head
Brand: Taiwan quality
High quality mould can make film thickness uniform
Main Features

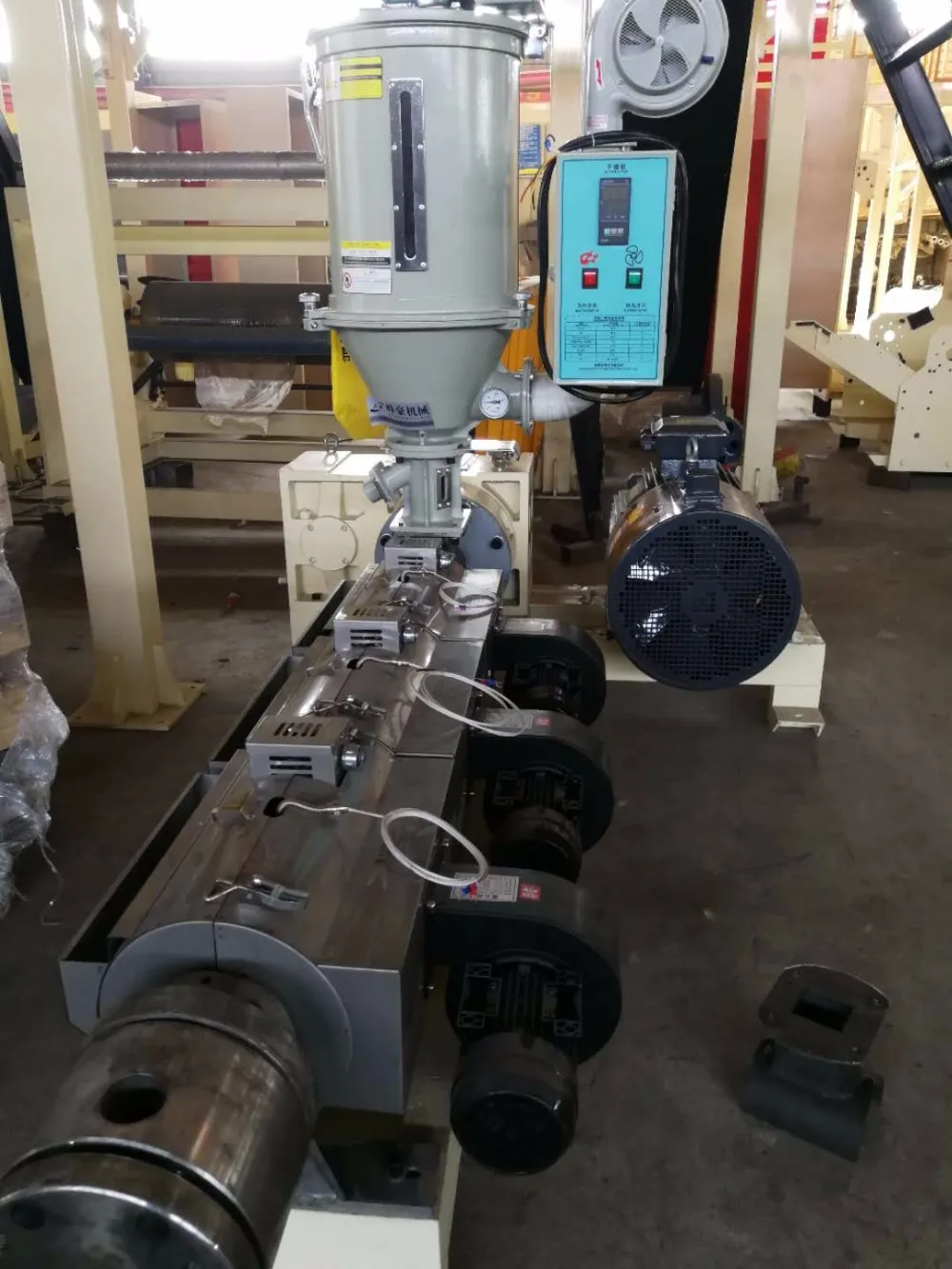

Name: auto loader with dryer
Original: China
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
FAQ
Q1:Are you a factory or trading company?
A1: We are established in 1985, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Shijiazhuang City, Hebei Province, China, about one hour by air from Beijing. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Which industries are widely used in of your machine?
A3: Those are mainly used in making plastic bags and labels in the maket. Examples of stand up pouch, zipper pouch, plastic bag for dialy necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft carboard,etc.
Q4: How about the payment term?
A4: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q5: What about your main market?
A5: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q6: How does your factory do regarding quality control?
A6: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q7:What about warranty and do the engineers available to overseas?
A7: Five year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q8:What about the service after sale?
A8: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.
A1: We are established in 1985, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Shijiazhuang City, Hebei Province, China, about one hour by air from Beijing. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Which industries are widely used in of your machine?
A3: Those are mainly used in making plastic bags and labels in the maket. Examples of stand up pouch, zipper pouch, plastic bag for dialy necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft carboard,etc.
Q4: How about the payment term?
A4: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q5: What about your main market?
A5: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q6: How does your factory do regarding quality control?
A6: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q7:What about warranty and do the engineers available to overseas?
A7: Five year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q8:What about the service after sale?
A8: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.

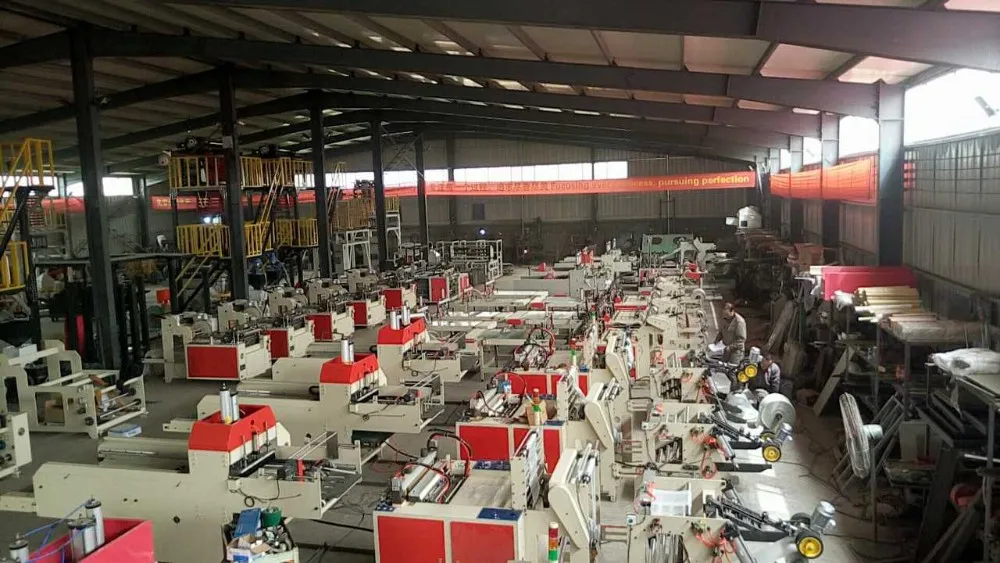

Company Profile
Hebei Chengheng Plastic Machinery Technology Co., Ltd.
Hebei Chengheng Plastic Machinery Technology Co., Ltd.located in the northern China plastic processing and distributioncenter--Ningjin plastic industrial zone.
We are professional in various plastic flexible packaging machine, such as plastic film blowing machine, bag making
machine,printing machine and so on. we have produced these machines for over 15 years. We own the strict management system and experience workers.We can offer your suitable plan base on need by our professional and technical experts.
Our products are exported to Central Asia, South America, Middle East, and southeast Asia. Such as American, United
Kingdom,Mexico, Saudi abia.Jordan, Pakistan, Vietnam, Thailand, Peru, Bangladesh, West African, Egypt,UAE, and other country.
We own excellent and professional service team, to provide you perfect after-sales service system and provide you with first-class after-sales service It allows you to have strong technical support! Life long free of charge to provide various technical services.
