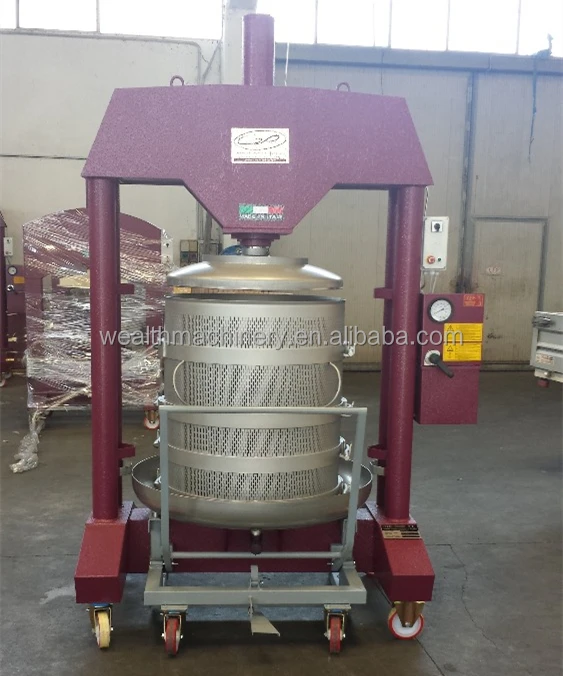

Commercial hydraulic carrot juice press machine Industrial Cold Press Juicer Basket Type Ice Grape Wine Press Machine
- Category: >>>
- Supplier: Henan Wealth Machinery Co. Ltd.
Share on (1600774597895):
Product Overview
Description
Basket Type Ice Wine Press Machine
Hydraulic Ice Grape Juice Making Machine
Product Description
Introduction of ice grape juicer machine
This hydraulic wine press is designed and developed with the Italian technology, it has a exquisite appearance and a top-grade hydraulic system that consists of original Italian pressure control table. This Grape Press Equipment is suitable for juicing dry white grapes, ice grapes and fermented red grape peels.
It can produce high end, qualified wine, dry the pomace.
Description of ice grape juicer machine
It adopts hydraulic press system to remove fruits, vegetables and other materials'water. Mainly applied to fruits, vegetables, and so on.Loading and unloading interchangable double barrels and pressing of materials to make efficiency doubled. The device is easy to operate, durable, easy maintenance, press force, high production efficiency.
Application of ice grape juicer machine
All kinds of soy products, pickled vegetables, herbs, vegetables and other processing industries for crushing dehydration, juice, desalination of the main equipment, the machine can also be used for other anti-extrusion products, solid-liquid separation;

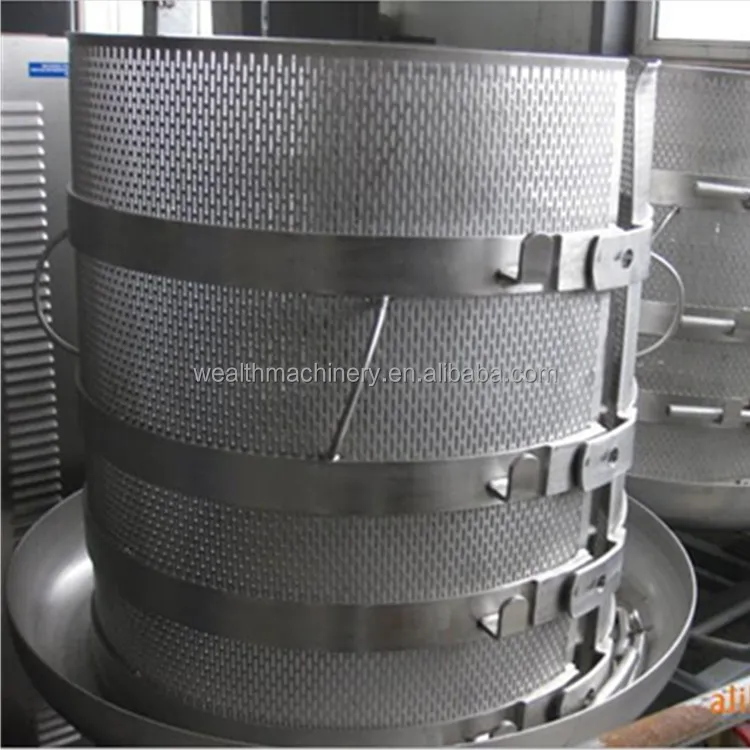

The pressure plate adopts a special process to ensure the pressure plate continuous and stableThe basket adopts a one-time molding process, the surface is polishing, easy to clean. Materilas of pressure plate, barrel and frame are made of food grade 304 stainless steel;
The hydraulic cylinder adopts four kinds of sealed form, greatly improving the service life of the fuel tank, while preventing the leakage of oil oil pollution products.Operation panel adopts hydraulic control system, intermittent time can be adjustable, the machine won't broken due to the heavry presser, life of the equipment will be extend.
Parameter of ice grape juicer machine
| Model | Capacity | Volume | Inner Bucket Diameter | Max pressure | Power | Size |
| WESYZ-90 | 90kg/h | 50L | 400mm | 30Ton | 2.2kw | 1200*642*1760mm |
| WESYZ-200 | 180-240kg/h | 100L | 500mm | 30Ton | 2.2kw | 1600*782*1928mm |
| WESYZ-400 | 300-400kg/h | 150L | 600mm | 30Ton | 3kw | 1800*786*2010mm |
| WESYZ-600 | 450-600kg/h | 200L | 700mm | 50Ton | 4kw | 1850*886*2210mm |
| WESYZ-800 | 600-800kg/h | 300L | 750mm | 50Ton | 4kw | 1900*942*2310mm |
| WESYZ-1200 | 900-1200kg/h | 400L | 800mm | 50Ton | 5.5kw | 2000*1000*2410mm |
| WESYZ-1400 | 1050-1400kg/h | 500L | 900mm | 50Ton | 7.5kw | 2200*1042*2620mm |

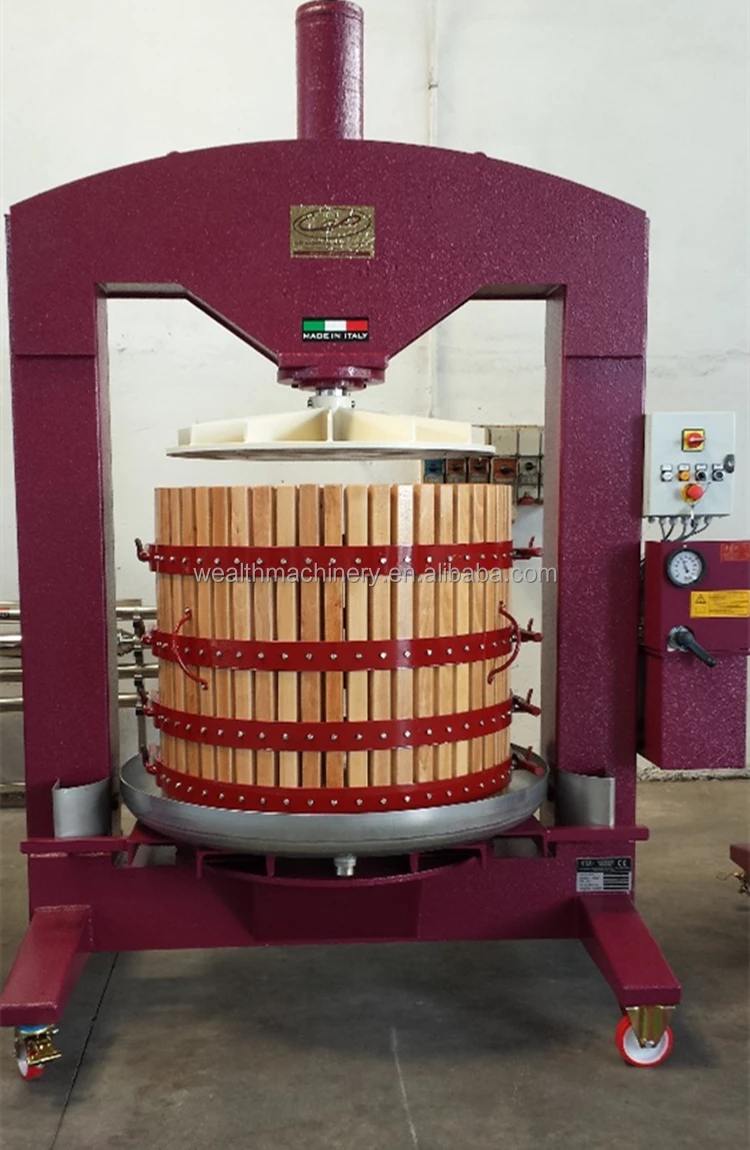

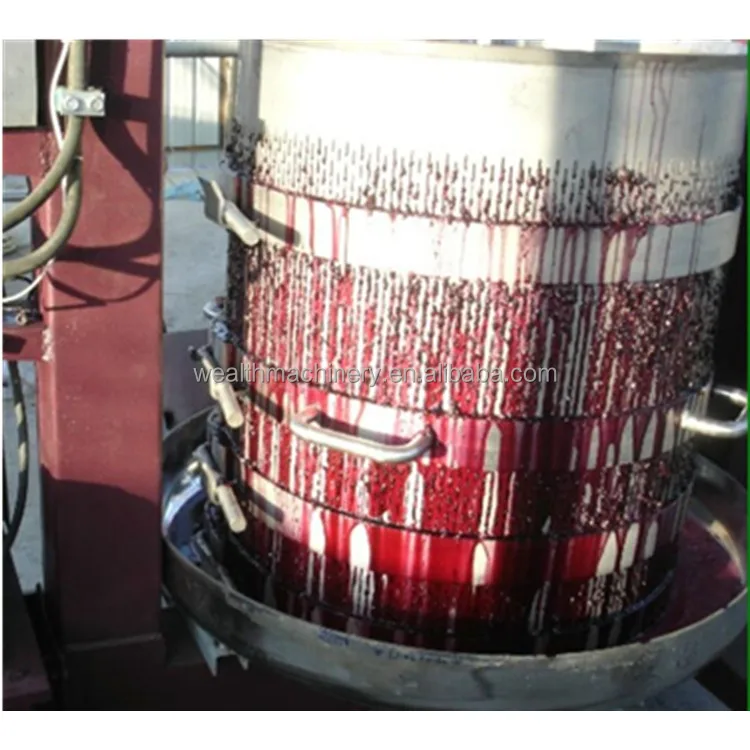

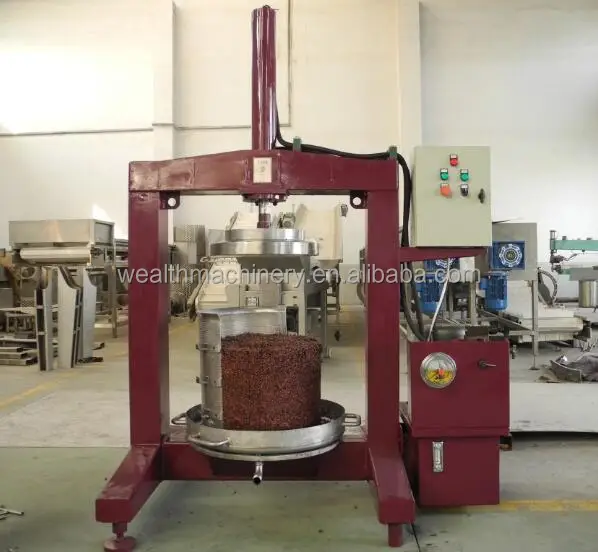

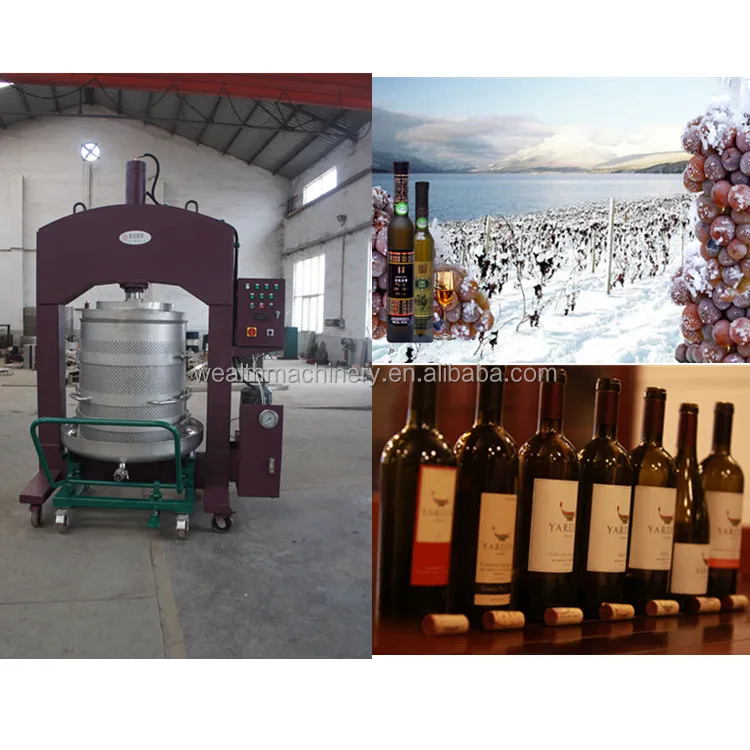

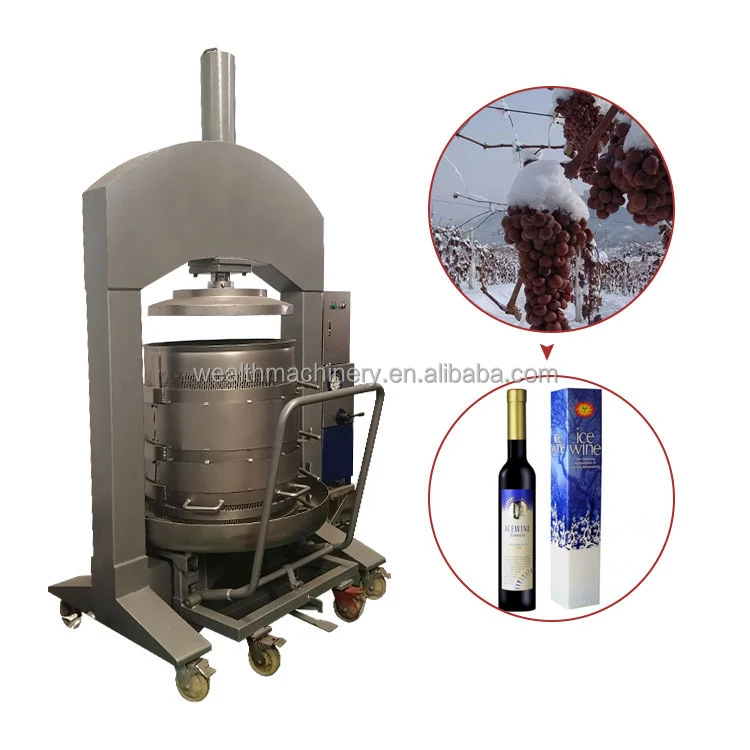

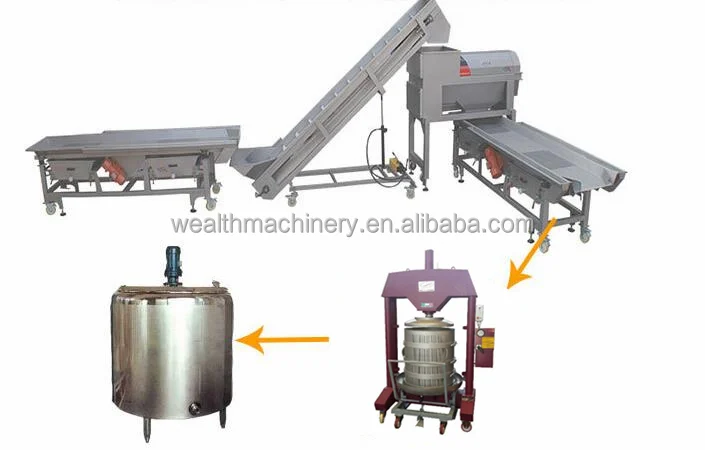

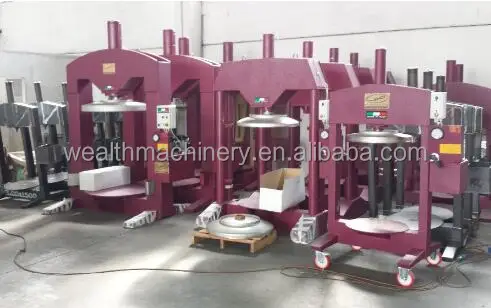

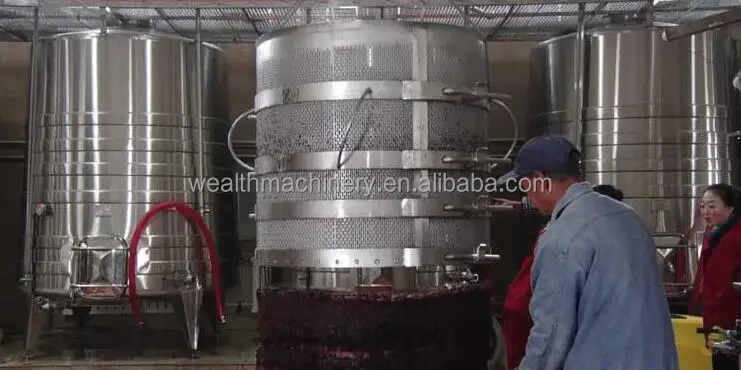

Pictures of ice grape juicer machine
Company Information
Wealth machinery company is specialized in manufacturing Juicer processing machine. Our company is located in Zhengzhou City, Henan Province. The technology, trade and service is the core of global companies, and our company is committed to global customers with high standards of product manufacturing, and a full range of technical services and efficient solution.
Our Services
Service before sale
24 hours online to answer questions that you want to know(Whatsapp, wechat, QQ, Skype, Trade Manager, etc), or you can send email to my email, I will give you a satisfying answer.
Service on sale
1.To provide customers with the new and high quality animal feed pellet machine.
2.Provide pictures that the customer desired about the animal feed pellet machine during production, in the warehouse and before transport.
3.Payment is determined by both parties.
4.Customers to choose the mode of transport.
After-sales services
We offer one year warranty for the whole machine except easy broken parts, Providing the spare parts with favorable price all the time 24 hours online service.
