chromite factory supply foudry grade chrome sand with competitive price

Share on:


Price:$420.00
Price in USD:Details

Quantity:


Product Overview

Description


chromite factory supply foudry grade chrome sand with competitive price



Product Description


 Foundry chromite sand is a natural process products of chromite through the broken screen classification, chrome ore, its main chemical composition of cr2o3, this kind of sand heated volume stability, high thermal conductivity, when in contact information with the molten metal, not only has good resistance to basic slag, not with ferric oxide and other chemical reactions, and itself has the characteristics of the solid phase sintering, can be a very good prevent the infiltration of molten metal, avoid to touch sand defects, suitable for all kinds of stainless steel, alloy steel and carbon steel gradually shape the original sand core and coating.


chromite sand.png





Advantage


1.Technology services:
A technical team with more than 20 years of casting experience can provide better technology services.



2.Guaranteed delivery time:
Worldwide logistics network, warehouses in Chinese loading ports, guarantee the delivery time.



3.Chrome ore raw materials:
Chrome ore raw materials are from the best chrome ore-no longer "remaining".



4.Customizable size:

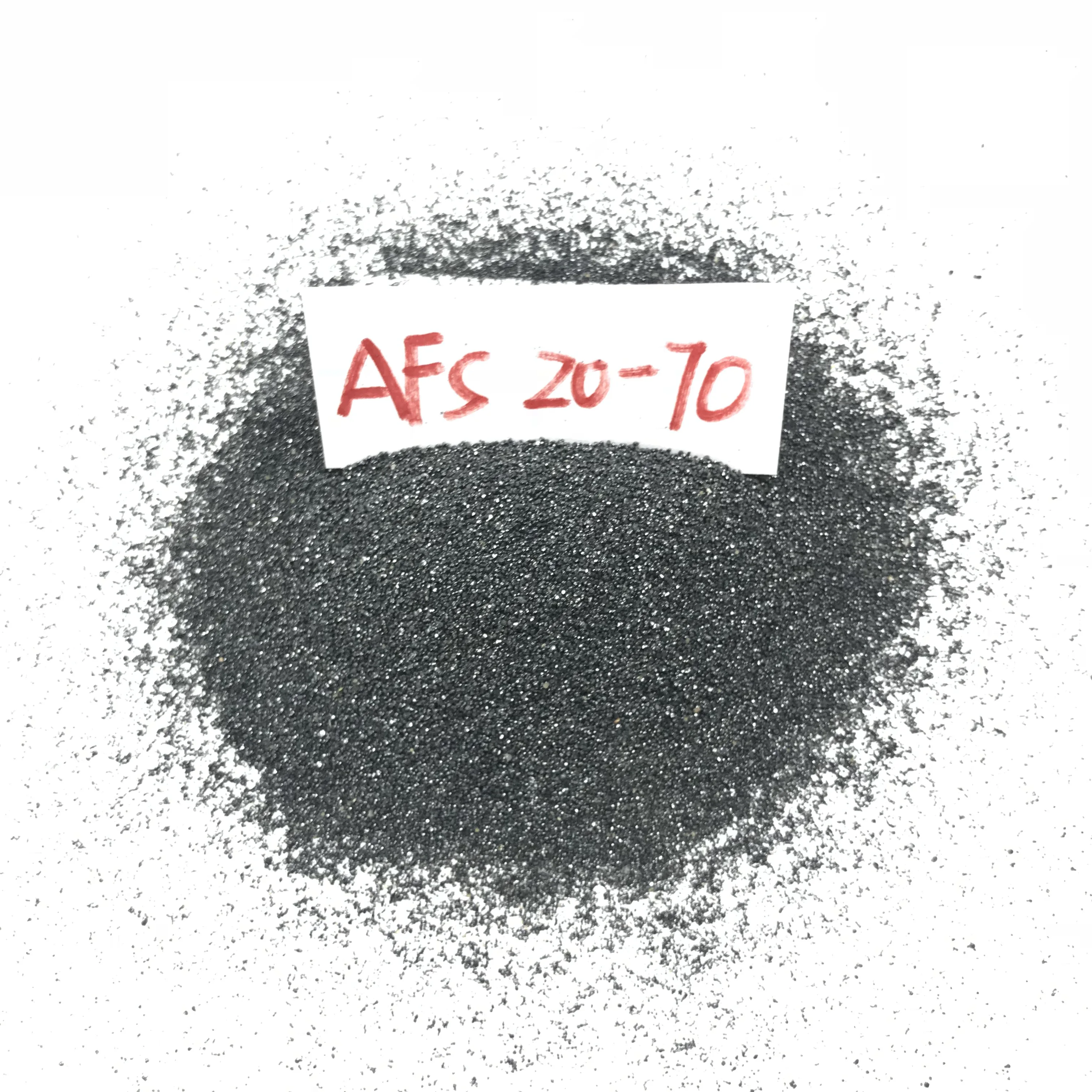

AFS (approximately 25-70), the particle size distribution of sand can be customized according to customer requirement.



5.Cleanliness:
The turbidity is less than 100ppm (the sand is very clean), and it doesn’t have low melting point material. We often upgrade and replace sand cleaning equipment to ensure the cleanliness of Chromite sand.





Physical & Chemical





































































Chemistry



Index



Physics



Index



Cr2O3



≥46.0%



Bulk Density



2.5-3g/cm³



SiO2



≤1.0%



PH Value



7-9



Fe2O3



≤26.5%



Cr/Fe



1.55:1



CaO



≤0.30%



Filling Density



2.6 g/cm³



MgO



≤10%



Percent Moisture



≤0.1



AI2O3



≤15.5%



The sintered



1600°C



P



≤0.003%



Sintering Temperature



2180°C



C



≤0.003%



Melting Point



>1800°C



Regular size



AFS 25-35 AFS25-30 AFS30-35 AFS35-40 AFS40-45 AFS45-50 AFS50-55 AFS55-60 AFS60-65






Application


 Chromite Sand in the foundry industry


Its properties enable the material to be used in high duty grey iron and steel foundries as core and mould making sand. Its high thermal conductivity gives it good chilling properties, low thermal expansion gives rise to good dimensional stability. Its basicity being close to neutral allows the use of a wide range of resin bonding systems and inorganic binders, it has a high refractoriness and a broad sieve distribution.


Chromite Sand in the steel industry


In steel production, Chromite Sand is used as well filler for protection of the sliding gate in large steel holding ladles.


Chromite Sand in the glass industry


When ground to a fine flour, Chromite Sand is used for the production of green glass beverage containers.







Production


 Step1: chrome ore raw material is processed by water washing.


 Step2, drying raw materials to remove water;


 Step3, drying raw materials into the vibrating screen, screening out the size of the customer needs;


Step4, the size of the sieve for magnetic separation, the purpose of iron and silicon removal. After magnetic separation, the chromium content reached more than 46% and the silicon content was less than 1%.


Step5: package the finished product.







Packaging & Shipping


 200# 325# 400# powder Chromite 200# 325# 400# powder Chromite 200# 325# 400# powder Chromit







Customer visit







Why choose us


 1. We are a manufacturer, which can control the cost easier than trade company also can give you answer more quickly.


 2. As a manufacturer, we know much in technique and can give you more support in technique problem.


 3. Professional and experienced service team, specialized in abrasive production ,more than 10 years.


 4.Our products are complete in specifications with various of sizes.


 5. We enjoy a good reputation in the customers in domestic and overseas markets.


 6. Large production capacity, short lead time of products.


 7. 24*7 online service.
