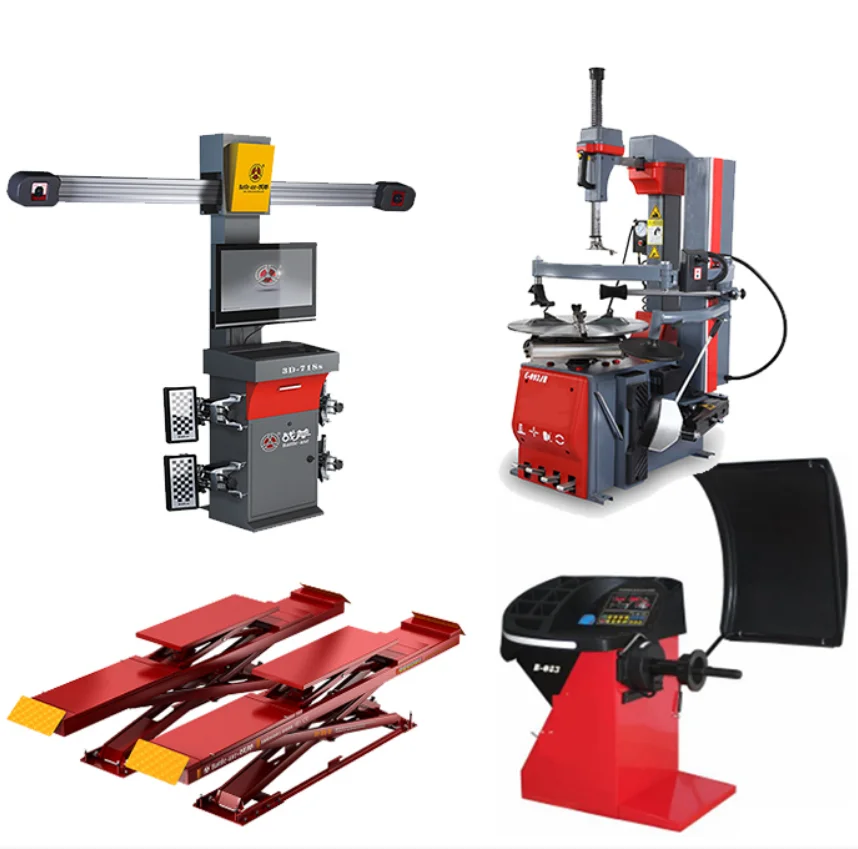

Car specific equipment combination wheel alignment machine tire changer scissor lift wheel balancer combo machine
- Category: >>>
- Supplier: Sice Automobile Technology (Shanghai ) Co. Ltd
Share on (1600775103206):
Product Overview
Description
Product Description
Features

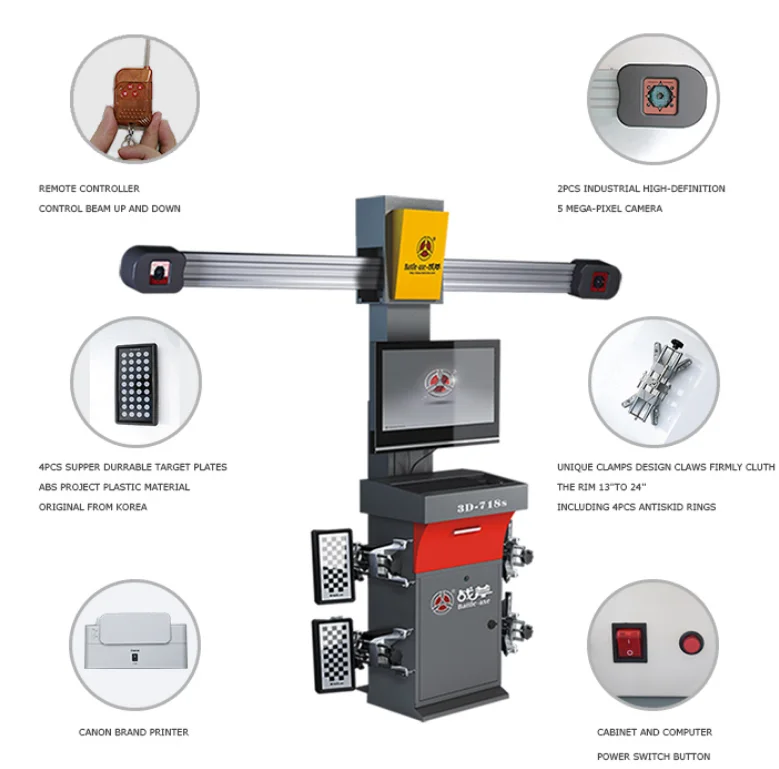

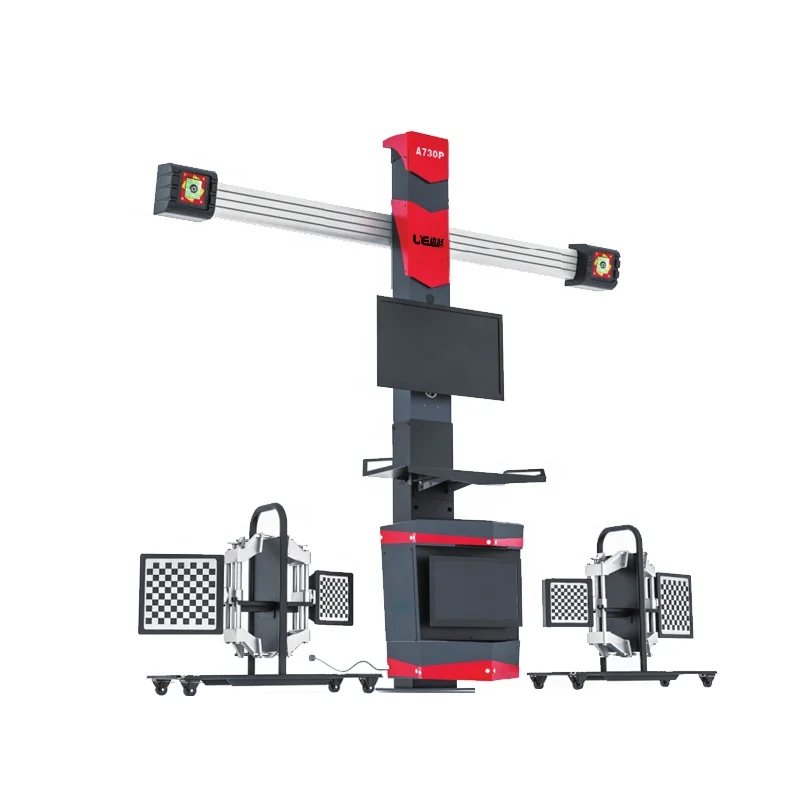

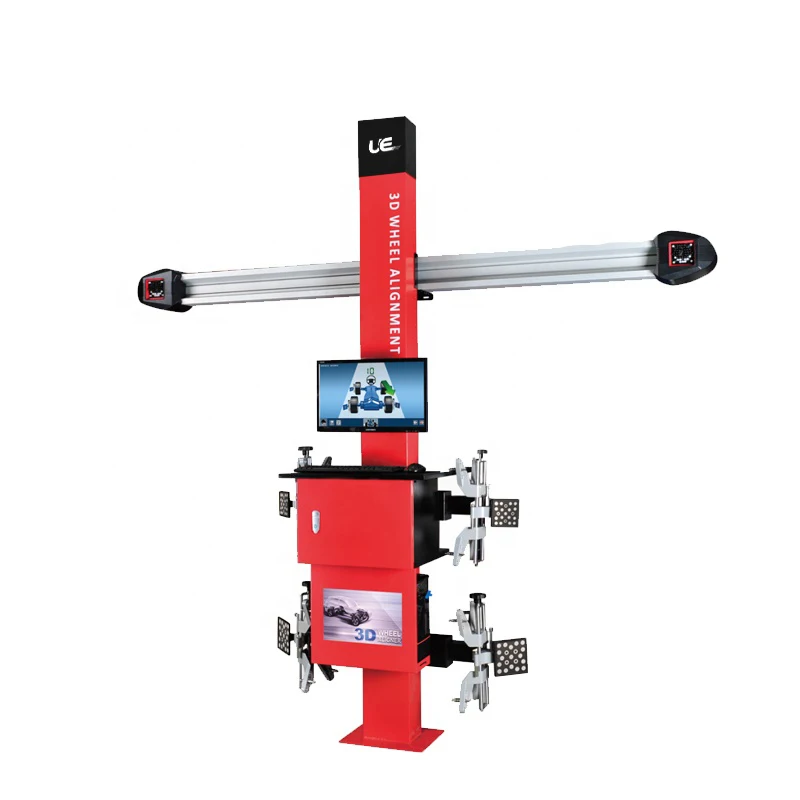

Adjust camera beam up and down through remote controller, Camera beam Length:2782mm |
Column lift height: 1450-2110 |
32''TV &19''LCD show Measuring data & Parking Turntable Function |

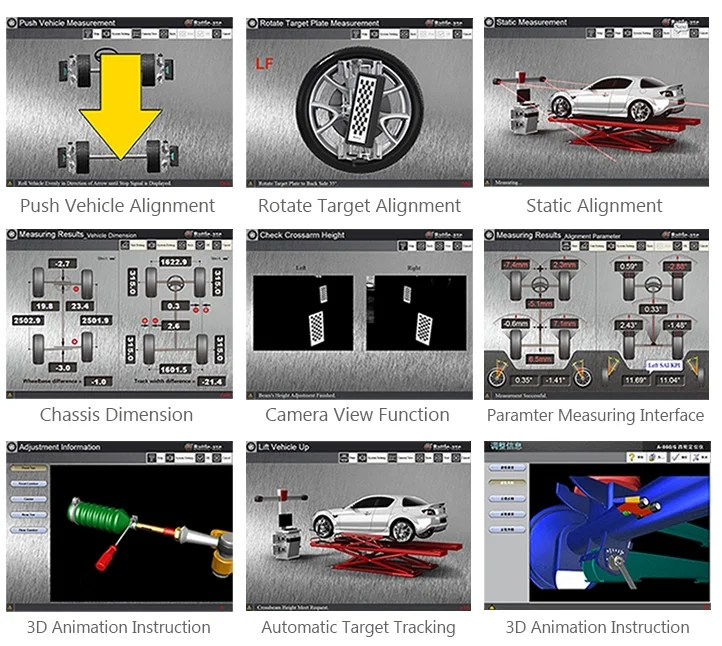

with static measuring,Turn Wheels & Static Alignment measuring function |
2pcs 5 Mega pixel camera |

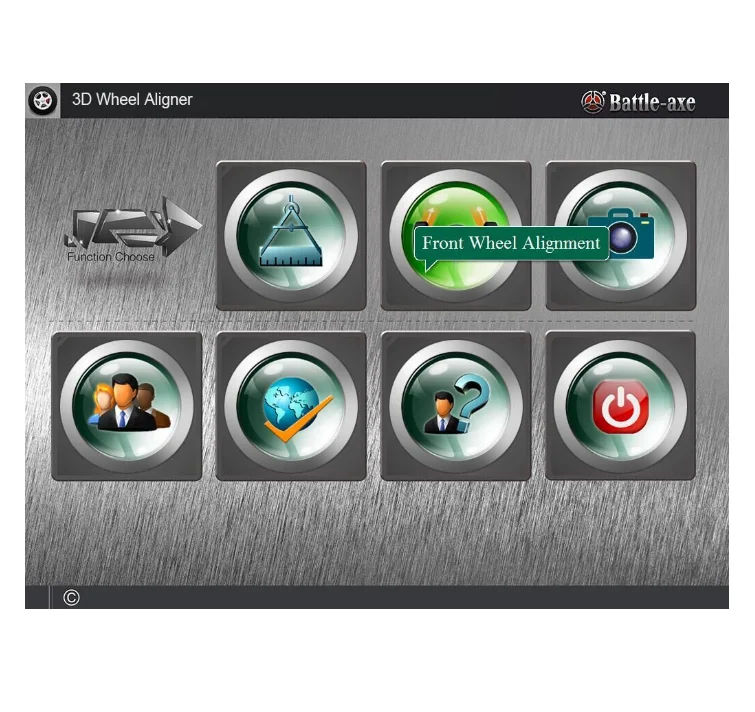

One interface show all parameters of front wheel and rear wheel(Toe,Camber,castor etc) |
with Track width and Wheelbase measuring interface also |
Calibration data Saved inside of Camera instead of Software |
No need to Re-calibartion even Exchange Camera Inside Processor |
With Parking Camera Function |
Product Parameters
Parameters | Precision | Resolution | Measure Range |
SAI/KPI | ±3′(±0.05º) | 0.6′(0.01º) | ±20º |
CASTOR | ±3′(±0.05º) | 0.6′(0.01º) | ±20º |
CAMBER | ±2′(±0.03º) | 0.6′(0.01º) | ±10º |
TOE | ±2′(±0.03º) | 0.6′(0.01º) | ±10º |
THRUST ANGLE | ±2′(±0.03º) | 0.6′(0.01º) | ±10º |
TRACK WIDTH | ±2mm | 0.1mm | 1200-2200mm |
WHEELBASE | ±2mm | 0.1mm | 1600-4200mm |
WHEEL OFFSET | ±2mm | 0.1mm | ±200mm |
LATERAL DEVIATION | ±2mm | 0.1mm | ±200mm |
CASTOR OFFSET | ±2mm | 0.1mm | ±200mm |
RIM SIZE | 12''-24 | // | // |
