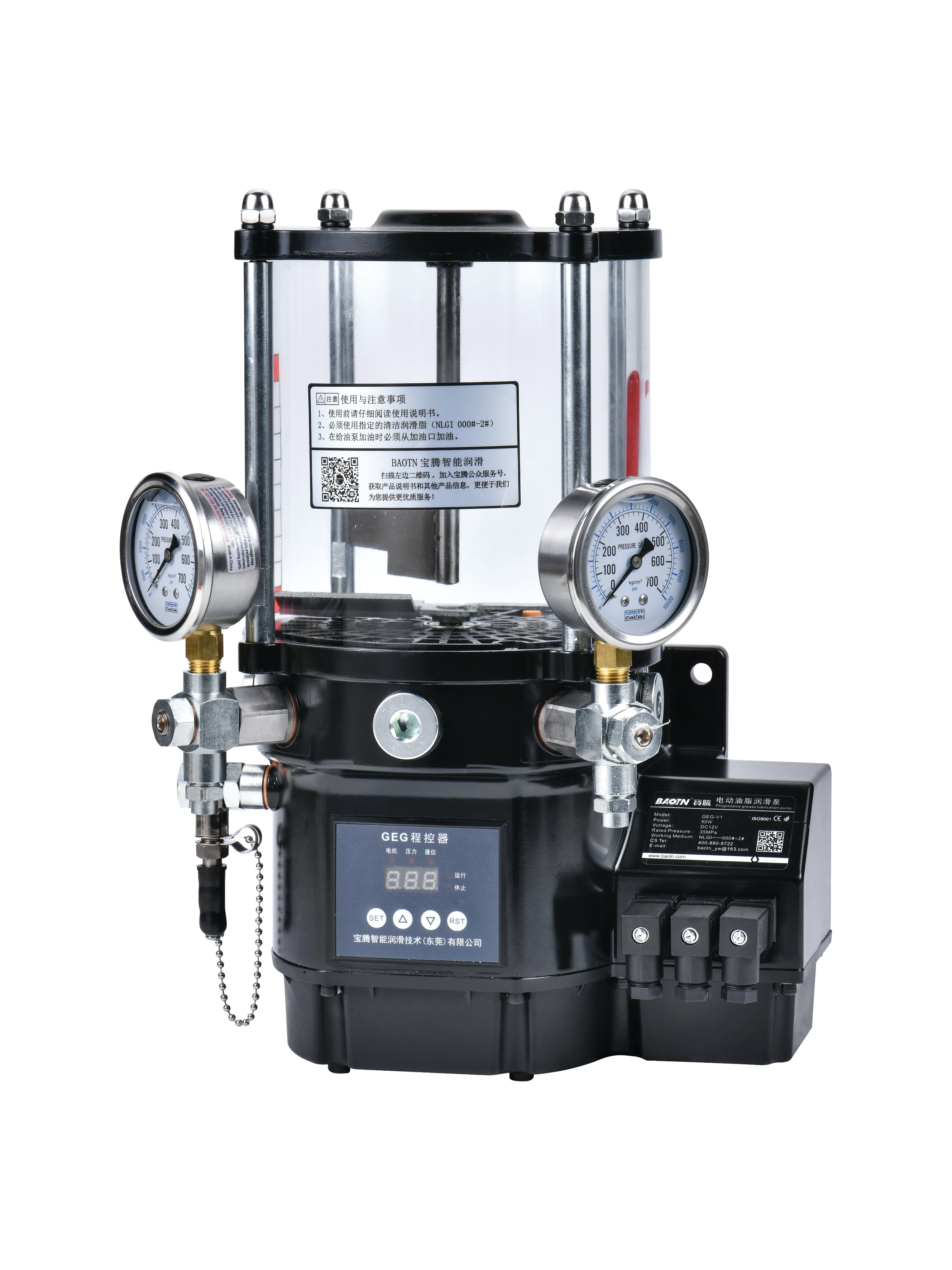

Baotn Grease Lubrication System Centralized Lubrication Digital Grease Lubrication Pump Progressive Type Grease Lubication Pump
- Category: >>>
- Supplier: Baotn Intelligent Lubrication Technology (dongguan) Co. Ltd.
Share on (1600775170975):
Product Overview
Description
Product Overview
GTB-A13-226
1. The system is configured with 3 action modes.
2. a Lubricating: when turning on, execute lubricating timing.
b Intermittent: execute intermittent timing after lubricating is completed.
c Memory: in case of power on after power off, resume incomplete intermittent time.
3. Lubricating time and intermittent time can be adjusted. (Built-in locking function, and lubricating and intermittent time
after setting is locked).
4. Provided with liquid level switch and pressure switch (optional). When oil volume or pressure is insufficient, the beeper
makes sound, send alarm and offers abnormal signal output.
5. a When pressure is insufficient, Erp is displayed.
b When liquid level is insufficient, Ero is displayed.
6. The system time can be configured, LUB lubricating time: 1-999 (seconds), INT intermittent time: 1-999 (minutes) (tailored if

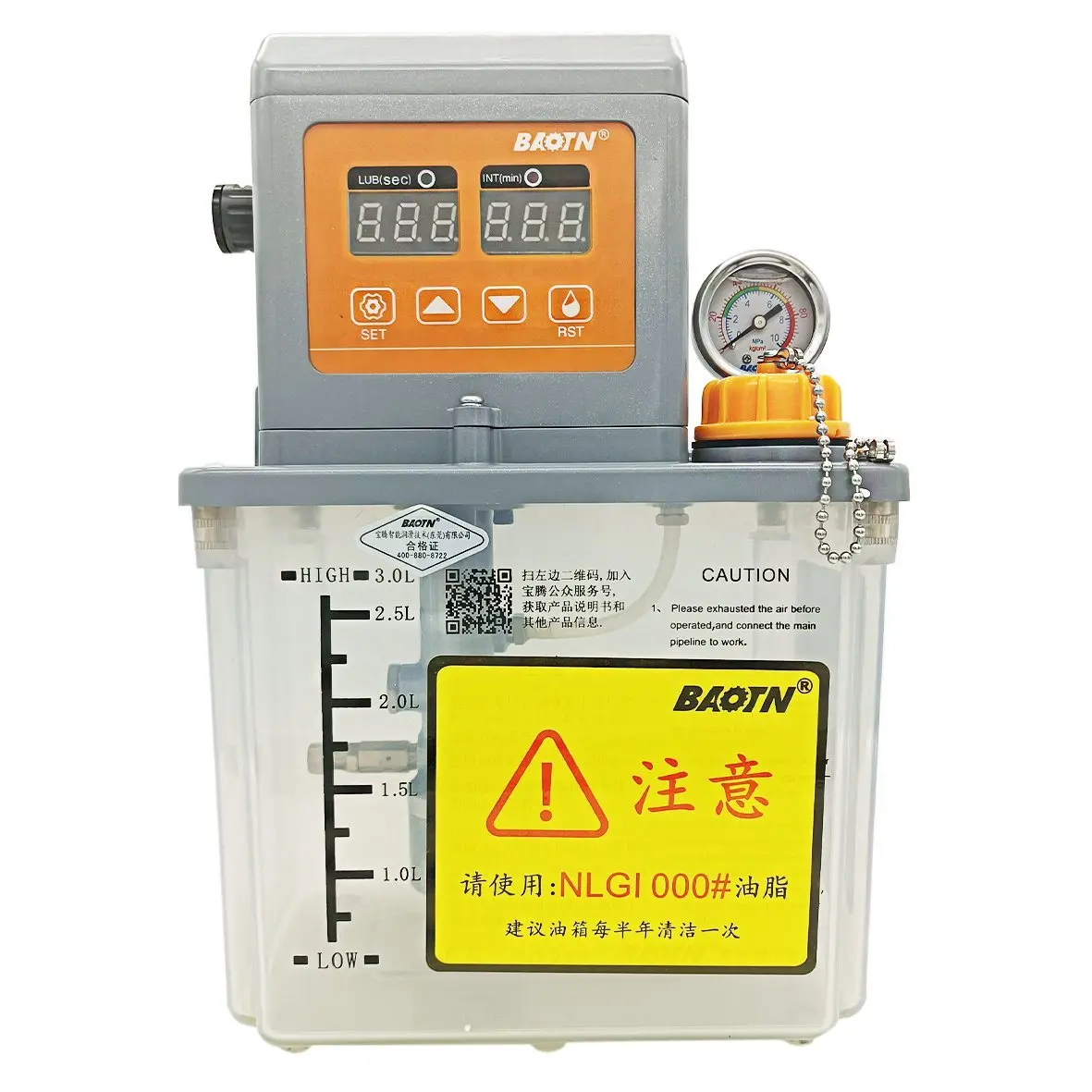

specially required) The panel indicator displays lubricating and intermittent status.
7. The system uses RST key to force lubricating or eliminate abnormal reporting signal.
8. Overflow is provided to protect oil injector and pipeline from being damaged by high pressure.
2. a Lubricating: when turning on, execute lubricating timing.
b Intermittent: execute intermittent timing after lubricating is completed.
c Memory: in case of power on after power off, resume incomplete intermittent time.
3. Lubricating time and intermittent time can be adjusted. (Built-in locking function, and lubricating and intermittent time
after setting is locked).
4. Provided with liquid level switch and pressure switch (optional). When oil volume or pressure is insufficient, the beeper
makes sound, send alarm and offers abnormal signal output.
5. a When pressure is insufficient, Erp is displayed.
b When liquid level is insufficient, Ero is displayed.
6. The system time can be configured, LUB lubricating time: 1-999 (seconds), INT intermittent time: 1-999 (minutes) (tailored if
specially required) The panel indicator displays lubricating and intermittent status.
7. The system uses RST key to force lubricating or eliminate abnormal reporting signal.
8. Overflow is provided to protect oil injector and pipeline from being damaged by high pressure.

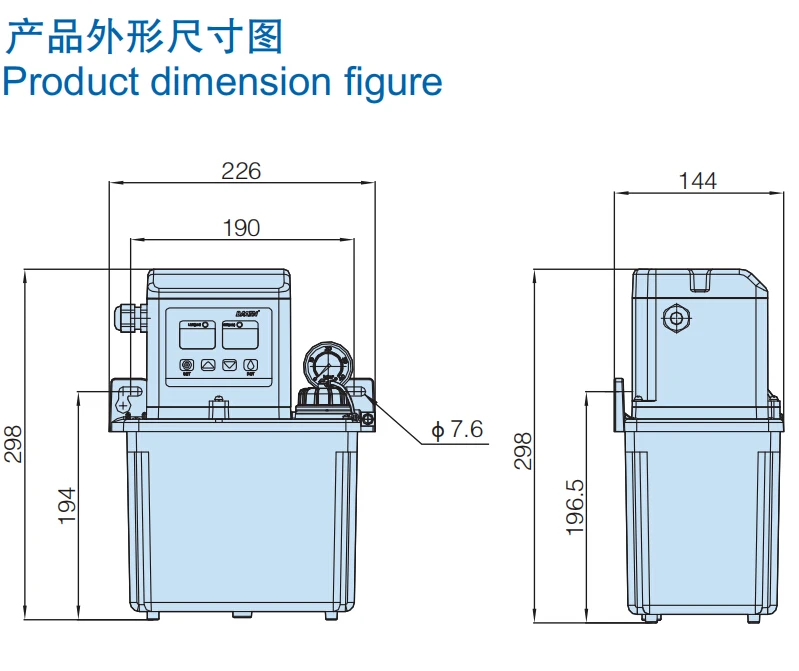

Right elevation
Left elevation
Front elevation

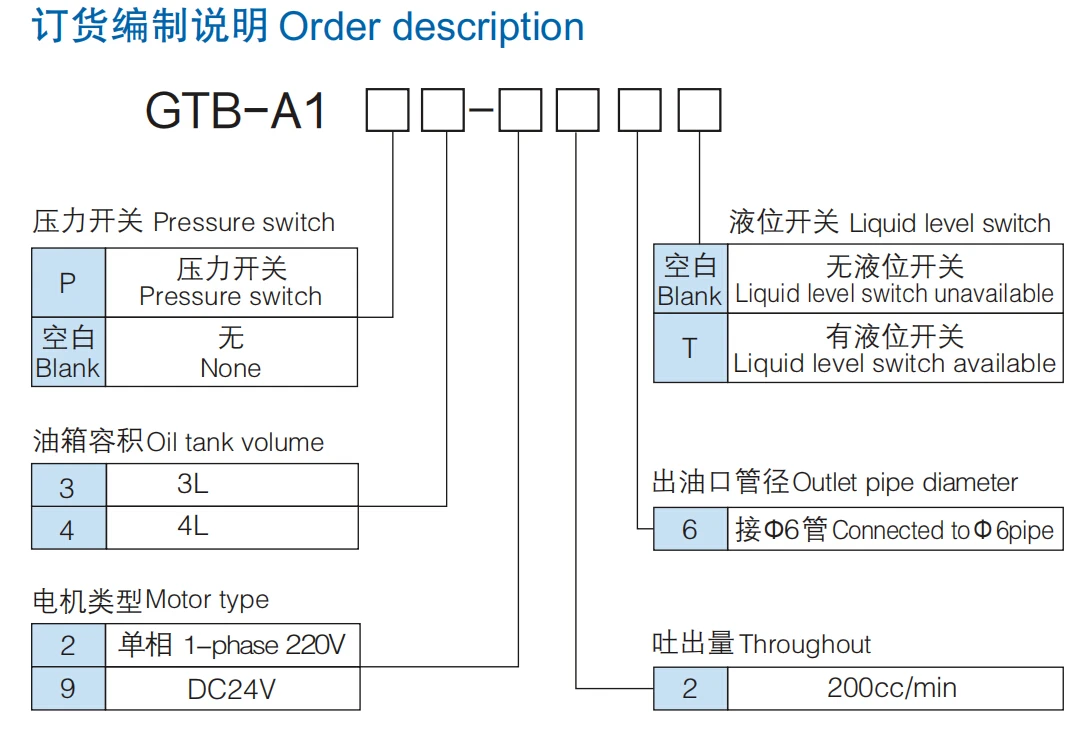

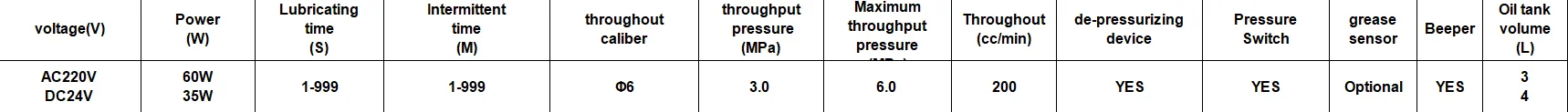

PRODUCT SPECIFICATIONS
