Price:$2,990.00 - $3,230.00

Quantity:


Product Overview

Description

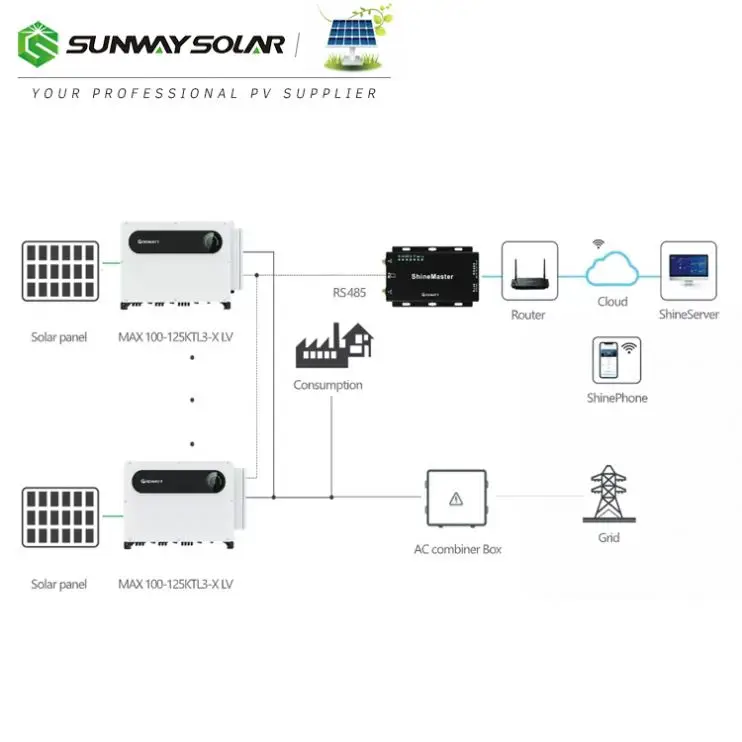

Growatt MAX 100K-125KTL3-X LV inverters are ideal for commercial roofs and large distribution projects.

– Maximum efficieny up to 98,8%
– 10 MPP Trackers
– Type II Surge Arrester for AC and DC side
– Including Smart I/V scan and diagnosis




Specification


Datasheet
MAX 100KTL3-X LV
MAX 110KTL3-X LV
MAX 120KTL3-X LV
MAX 125KTL3-X LV
Input data (DC)




Max. DC voltage
1100V



Start Voltage
195V



Nominal voltage
600V



MPP voltage range
180-1000V



No. of MPP trackers
10



No. of PV strings per MPP tracker
2



Max. input current per MPP tracker
32A



Max. short-circuit current per MPP tracker
40A



Output data (AC)




AC nominal power
100000W
110000W
120000W
125000W
Max. AC apparent power
110000VA
121000VA
132000VA
137500VA
Nominal AC voltage (range*)
400V/380V, (340-440VAC)



AC grid frequency (range*)
50/60 Hz (45-55Hz/55-65 Hz)



Max. output current
158.8A @400V 167.1A@380V
174.6A@400V 183.8A@380V
190.5A @400V 200.5A@380V
198.5A@400V 208.9A@380V
Adjustable power factor
0.8leading…0.8lagging



THDi
<3%



AC grid connection type
3W+N+PE



Efficiency




Max.efficiency
98.8%



European efficiency
98.4%
98.5%


MPPT efficiency
99.9%



General data




Dimensions (W / H / D)
970/640/345mm



Weight
84kg



Operating temperature range
-30 °C ... +60 °C



Nighttime power consumption
<1W



Topology
Transformerless



Cooling
Smart cooling



Protection degree
IP66



Relative Humidity
0~100%



Altitude
4000m



DC connection
H4/MC4 (Max.6mm²)



AC connection
OT Terminal (Max. 240mm²)



Display
LED/WIFI+APP



Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN
Yes/Yes /Optional/Optional/Optional/Optional



Warranty: 5 years / 10 years
Yes /Optional

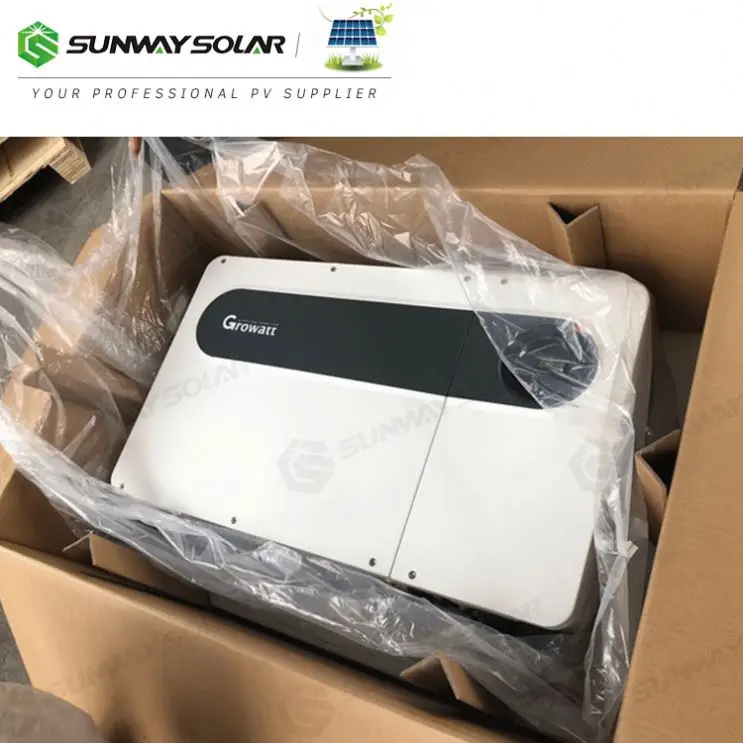

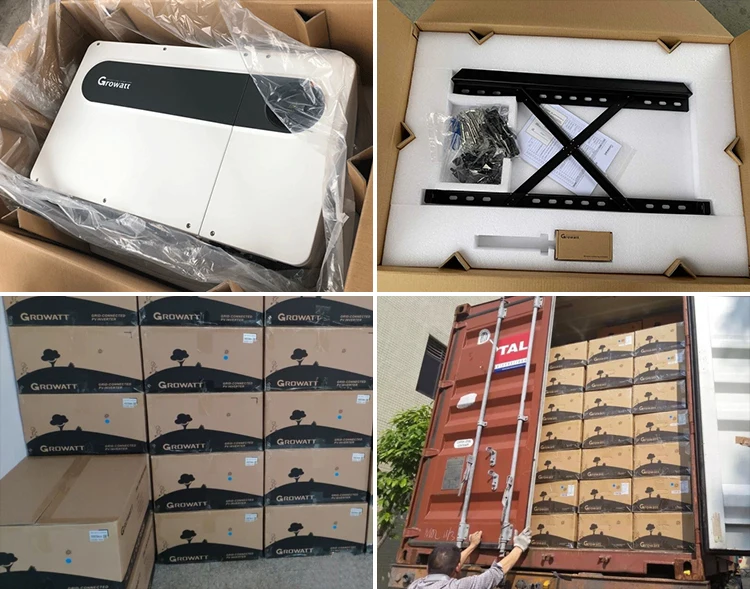

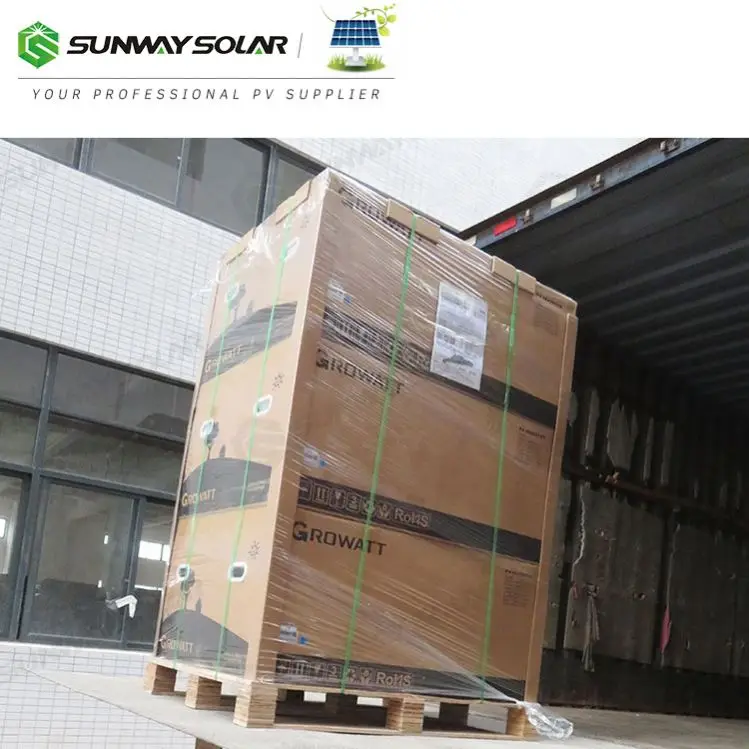

Product Packaging

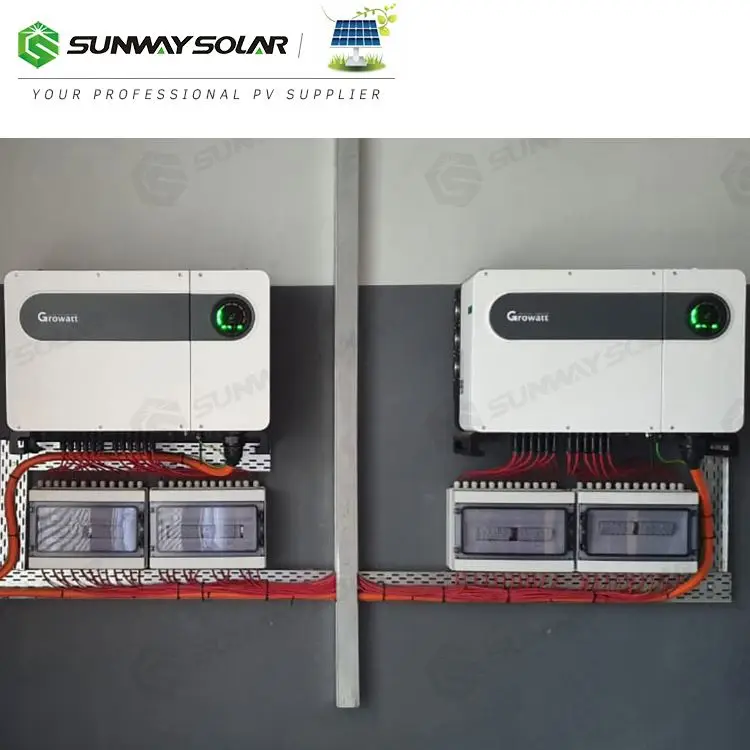

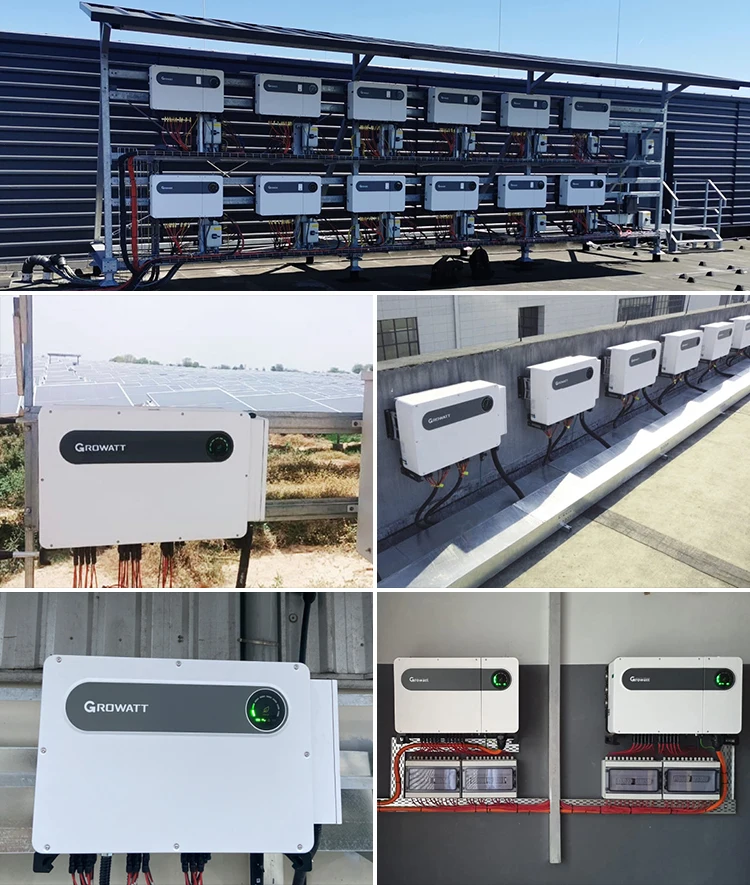

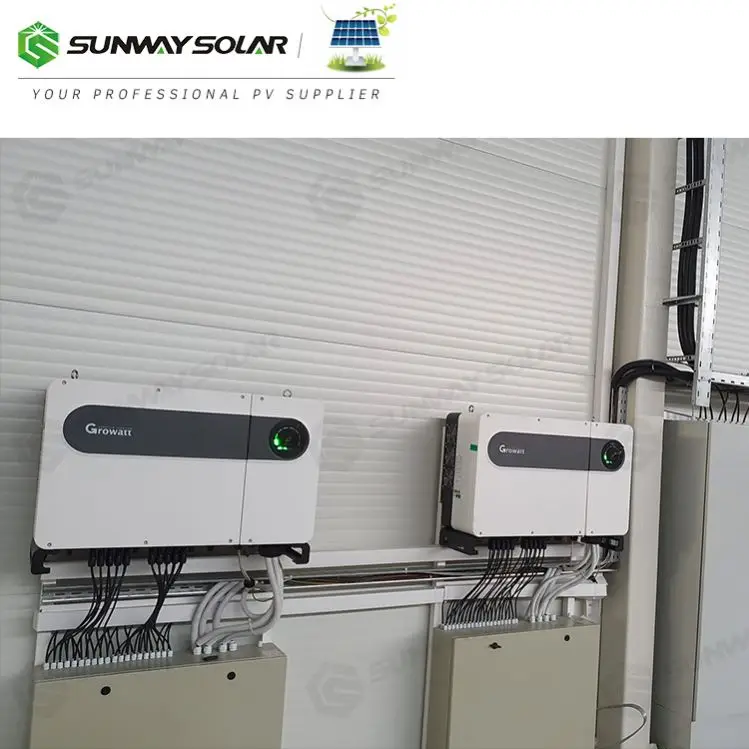

Project Case
