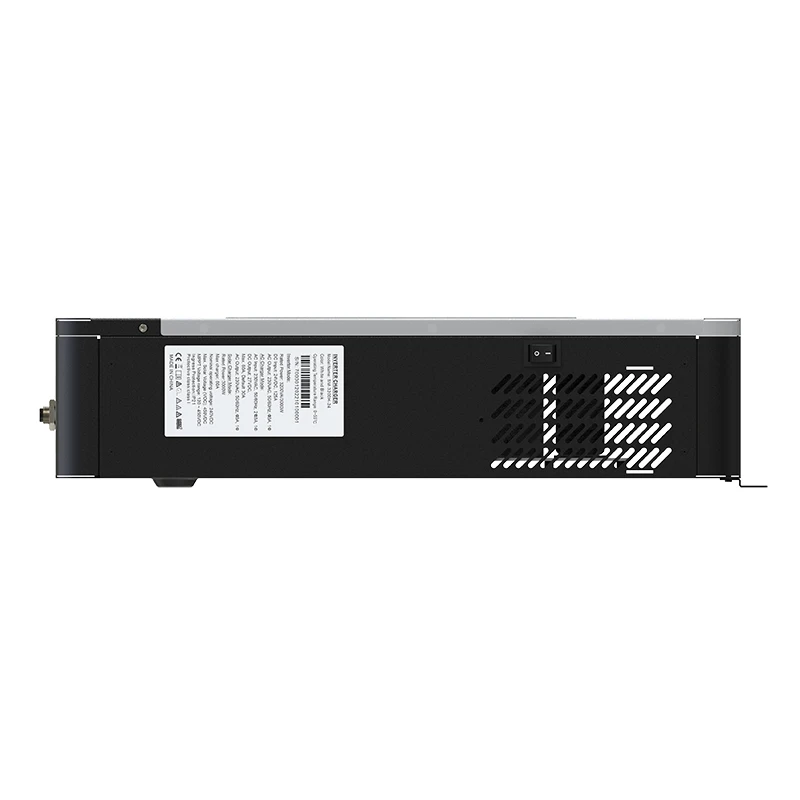

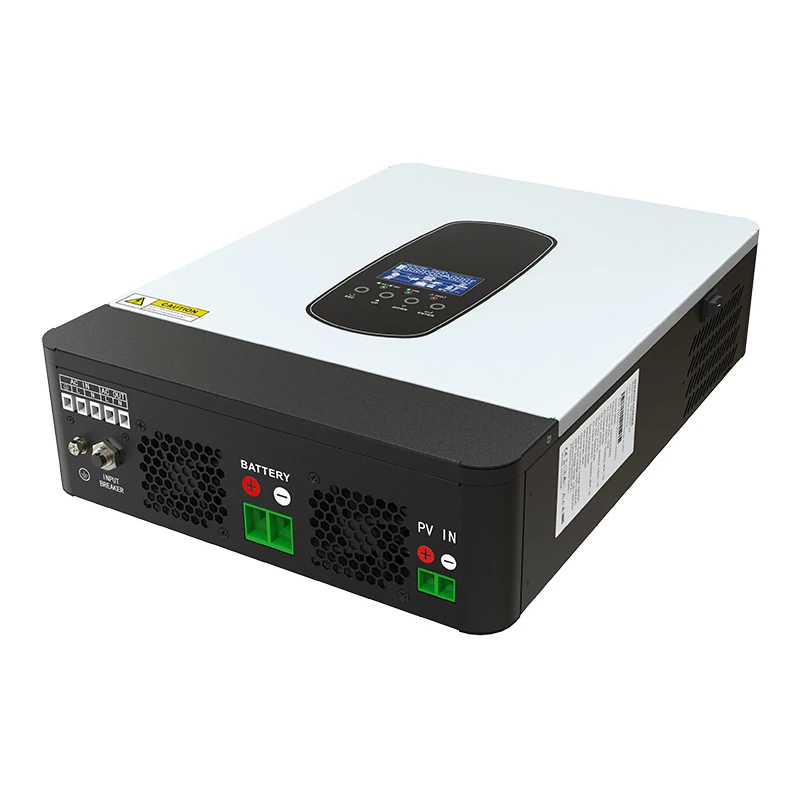

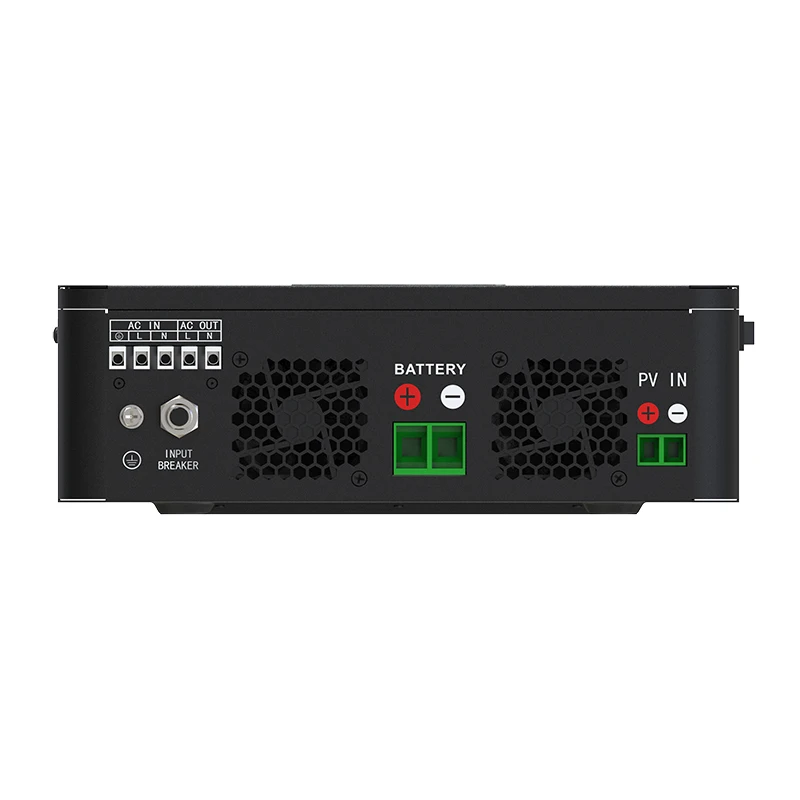

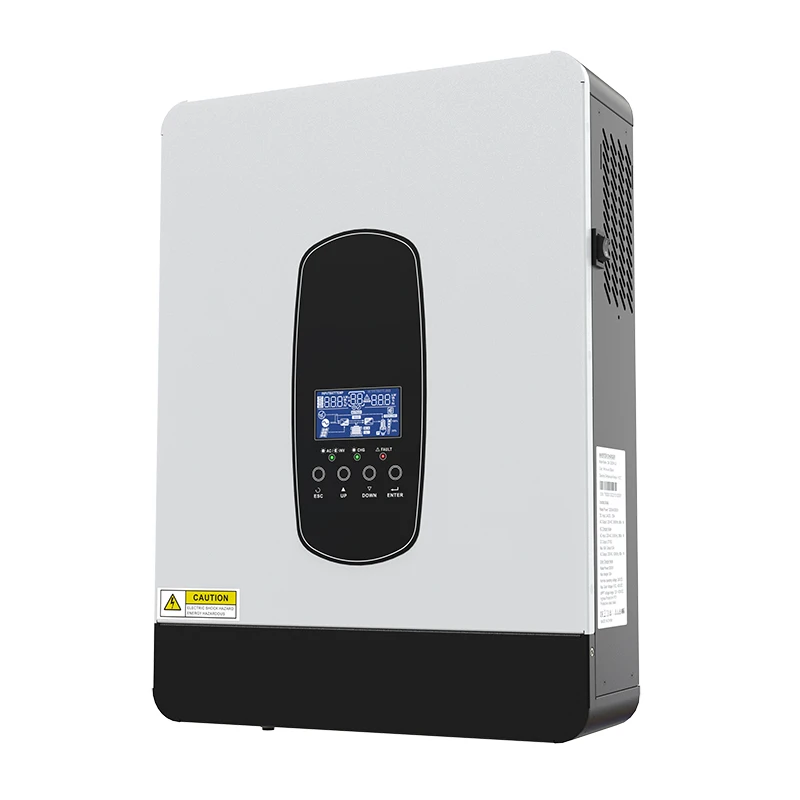

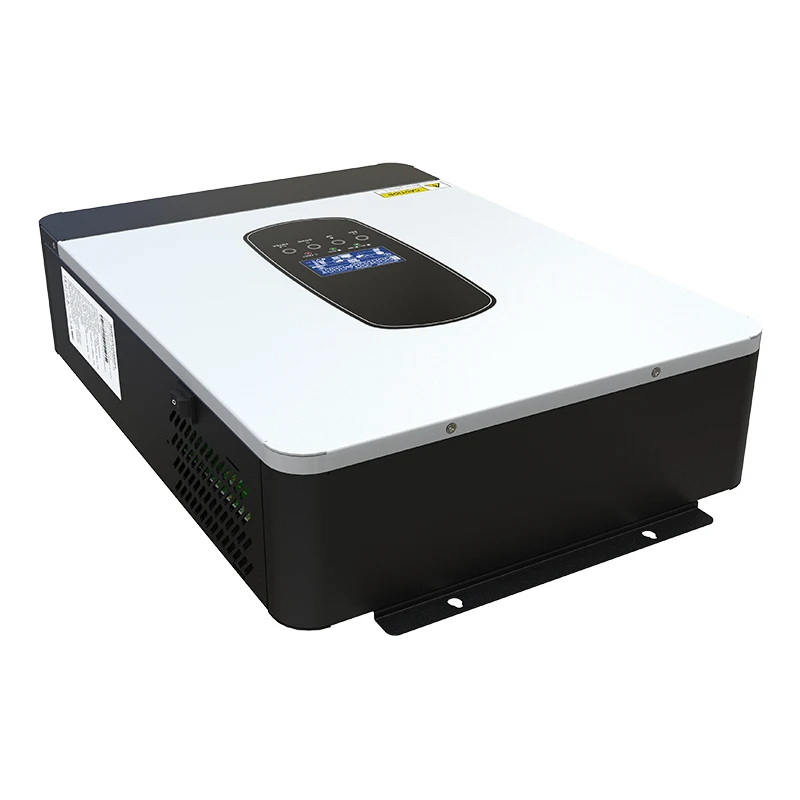

3.2KVA/3KW 24VDC Off Grid Hybrid Solar Inverter with 55 450VDC PV Working Voltage and 80A MPPT Charge Controller

Product Overview

Description

3.2KVA/3KW 24VDC Off Grid Hybrid Solar Inverter with 55-450VDC PV Working Voltage and 80A MPPT Charge Controller

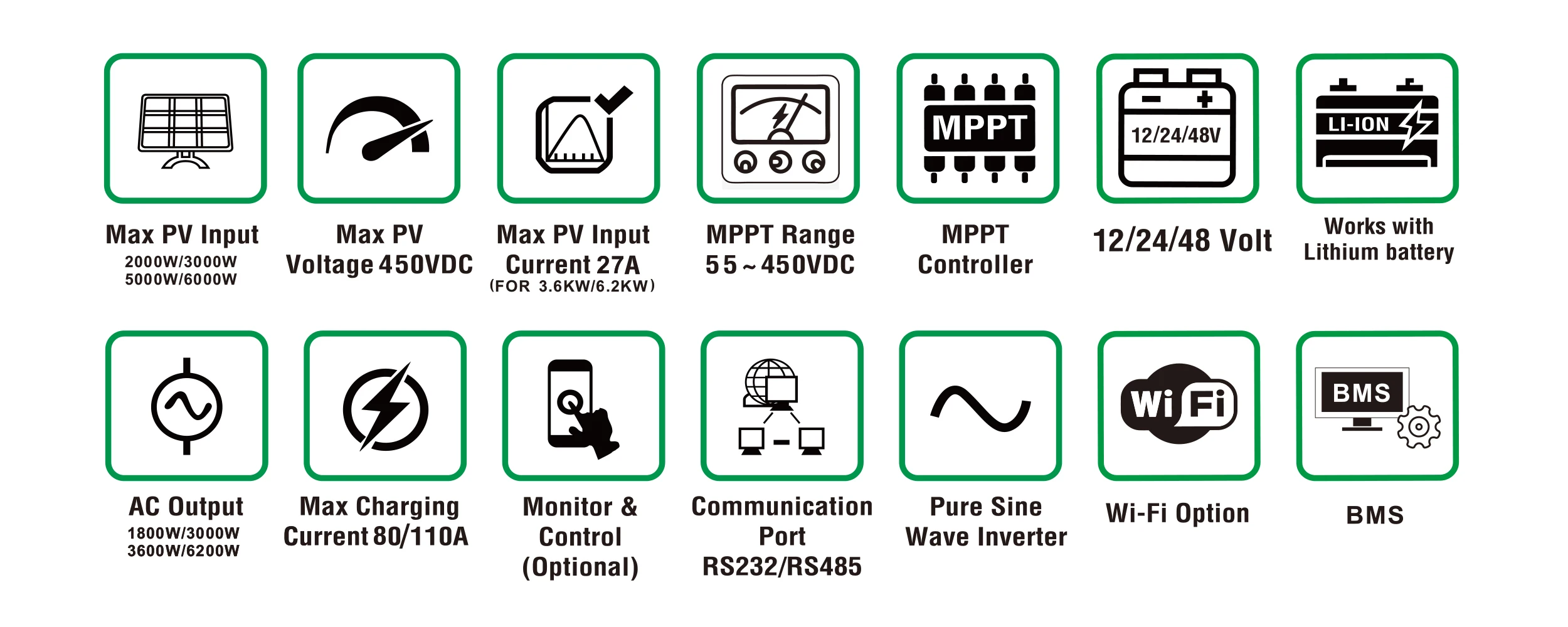

Pure sine wave inverter

Programmable supply priority for PV , battery or Grid

High PV input voltage range(55~450VDC)

Built-in Max 110A(3.6KW&6.2KW) MPPT solar charge

Compatibe with lithium-ion battery

Support BMS communication with Lithium battery

Smart battery charge design to optimize battery life

Overload,high temperature,inverter output short circuit protection

Cold start function

Intelligent fan speed adjustment

Built-in anti-dusk kit for harsh enviromen(optional)

WIFI&GPRS available for IOS and android

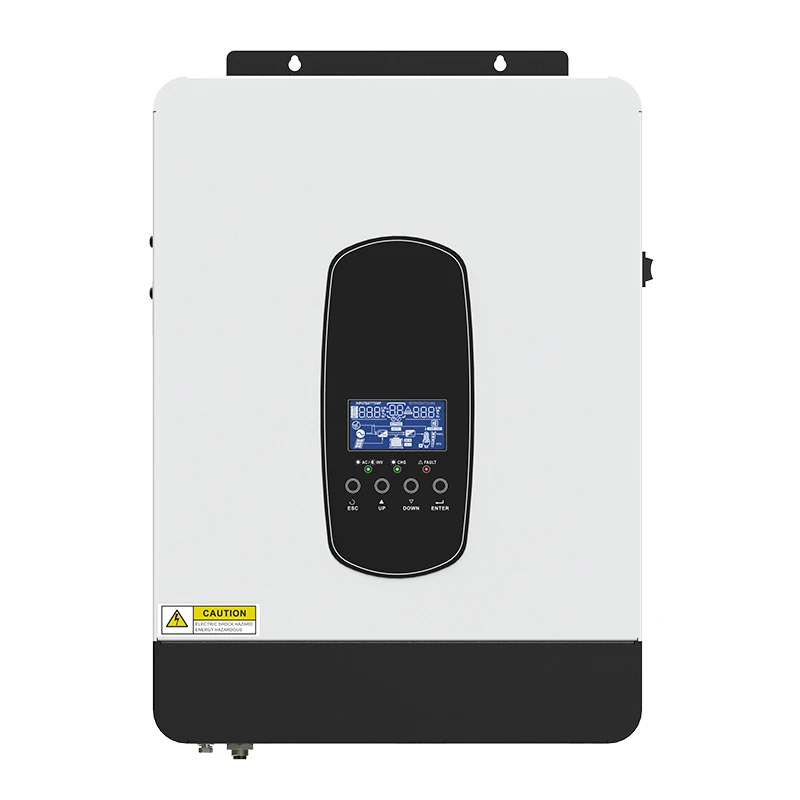

MODEL	SP-2200	SP-3200	SP-4000	SP-7000
Rated Power	2200VA/1800W	3200VA/3000W	4000VA/3600W	7000VA/6200W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)	230VAC±5%
Surge power	4400VA	6400VA	8000VA	14000VA
Transfer Time	10ms (for personal computers) 20ms (for home appliances)
Wave form	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	12VDC	24VDC	24VDC	48VDC
Floating Charge Voltage	13.5VDC	27VDC	27VDC	54VDC
Overcharge Protection	15.5VDC	31VDC	31VDC	61VDC
Maximum charge current	60A		80A
SOLAR CHARGER
MAX.PV Array Power	2000W	3000W	5000W	6000W
MPPT Range@ Operating Voltage	55-450VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Charging Current	80A		110A
Maximum Efficiency	98%
PHYSICAL
Dimension.D*W*H(mm)	405*286*98mm		423*290*100mm	423*310*120mm
Net Weight (kgs)	4.5kg	5.0kg	7.0kg	8.0kg
Communication Interface	RS232/RS485(Standard) GPRS/WIFI(Optional)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(No-condensing)
Operating Temperature	-10℃ to 55℃
Storage Temperature	-15℃ to 60℃

Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 2% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~50pcs sample order is available. Low MOQ,1 pcsfor sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
