New Custom made Fully Automatic Fast Speed PP Sheet Manual Servo Drive System Thermoforming Machine China
- Category: >>>
- Supplier: Ruian Litai Machinery Co. Ltd.
Share on (1600775243058):
Product Overview
Description
Product Paramenters
Technical Parameters | ||||||||
Station | Four stations | Three station | ||||||
Model | TTF-700AF | TTF-520AF | TTF-700A | TTF-520A | ||||
Forming Area | 700mm x 550 mm | 520mm x 400 mm | 700mm x 550 mm | 520mm x 400 mm | ||||
Forming Depth (Max.) | 120mm | 110mm | 120mm | 110mm | ||||
Sheet thickness | 0.2-2.0mm | |||||||
Forming Speed (Max.) | 35times/min | 30times/min | 35times/min | 30times/min | ||||
Air pressure | 0.6-0.8mpa | |||||||
Air consumption | 3.6 m³/min | 3.0 m³/min | 3.6 m³/min | 3.0 m³/min | ||||
Water consumption | 0.7 m³/h | |||||||
Sheet width (Max.) | 730mm | 550mm | 730mm | 550mm | ||||
Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | |||||||
Power supply | AC 380V, 50Hz, Three-phase, Four-wire | |||||||
Used power | 105Kw | 55Kw | 95Kw | 50Kw | ||||
Rated power | 210Kw | 110Kw | 190kw | 100Kw | ||||
Heating power | 118Kw | 75Kw | 118Kw | 75Kw | ||||

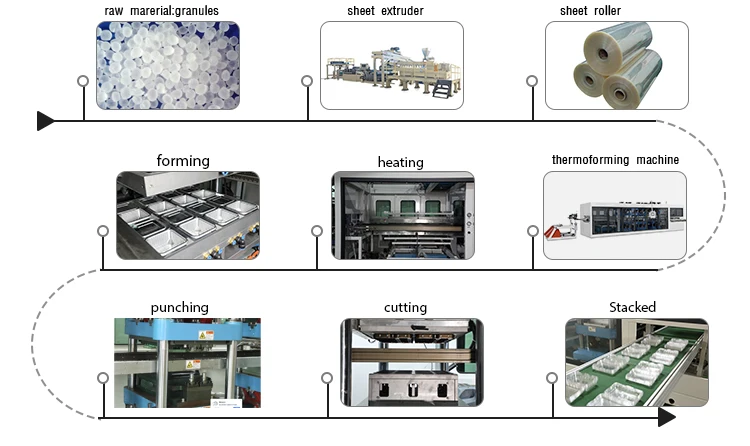

Procedure | Feeding-Heating- Forming-Punching-Cutting-Stacking-Recycle | Feeding-Heating- Forming-cutting-stacking-Recycle | ||||||
Dimension | L14000*W4700*H2750mm | L11000*W4600*H2700mm | L13000*W4700*H2750mm | L9700*W4600*H2700mm | ||||
Weight | About 25.0T | About 11.0T | About 19.0T | About 9.0T | ||||
Main Electrical Components | ||||
MODEL/PARTS | TTF520A/AF | TTF700A/AF | ||
Filter | CKD(Japan) | |||
Forming Valve | NORGER(UK) | |||
Touch Screen | DELTA | KUNLUN TONGTAI | ||
Proximity Switch | ROCKWELL(USA) | |||
Temperature Control Module | WEST(UK) | |||
AC Contactor/Circuit Breaker/Button | SCHNEIDER(France) | |||
Intermediate Relay | IDEC(Japan) | |||
Intermediate Relay Base | OMRON(Japan) | |||
PLC/Servo Motor | DELTA(Taiwan) | |||
Safety Door | - | Panasonic(Japan) | ||
Sheet Sagging Detection | - | Sick(Germany) | ||
Products Description
Application:
TTF series full-automatic thermoforming machine is the core product that LITAI Machinery is committed to R&D and popularize at present. It integrates forming, punching, cutting and stacking processes into one machine. It is widely used and suitable for most of the customer requested, just like lunch boxes, plastic trays, plastic lids and other products, which has many industry-leading
advantages:
1. the oven is four times the index length of the forming area, which is conductive to full plasticizing and speeding up the forming speed;
2. Fast mould change, one key open and lock mould, greatly improve the work efficiency;
3. Automatic working stations adjustment, accurate and rapid;
4. Various stacking solutions can meet the requirements of different shapes and speed;
5. Full servo motor and various safety devices.
All above mentioned but not limit to, make high precision & efficiency, energy saving, super stability, easy operation and low noisy etc..
advantages:
1. the oven is four times the index length of the forming area, which is conductive to full plasticizing and speeding up the forming speed;
2. Fast mould change, one key open and lock mould, greatly improve the work efficiency;
3. Automatic working stations adjustment, accurate and rapid;
4. Various stacking solutions can meet the requirements of different shapes and speed;
5. Full servo motor and various safety devices.
All above mentioned but not limit to, make high precision & efficiency, energy saving, super stability, easy operation and low noisy etc..
Main Function
1.positive and negative pressure forming device.
2.vacuum forming device.
3.touch screen computer temperature module point to point control function.
4.air control device.
5.cooling device.
6.die, mold temperature control function.
7.automatic punching and cutting function.
8.automatic stack counting function.
9.edge automatic rewinding function.
10.safety protection device.
2.vacuum forming device.
3.touch screen computer temperature module point to point control function.
4.air control device.
5.cooling device.
6.die, mold temperature control function.
7.automatic punching and cutting function.
8.automatic stack counting function.
9.edge automatic rewinding function.
10.safety protection device.
Sample:

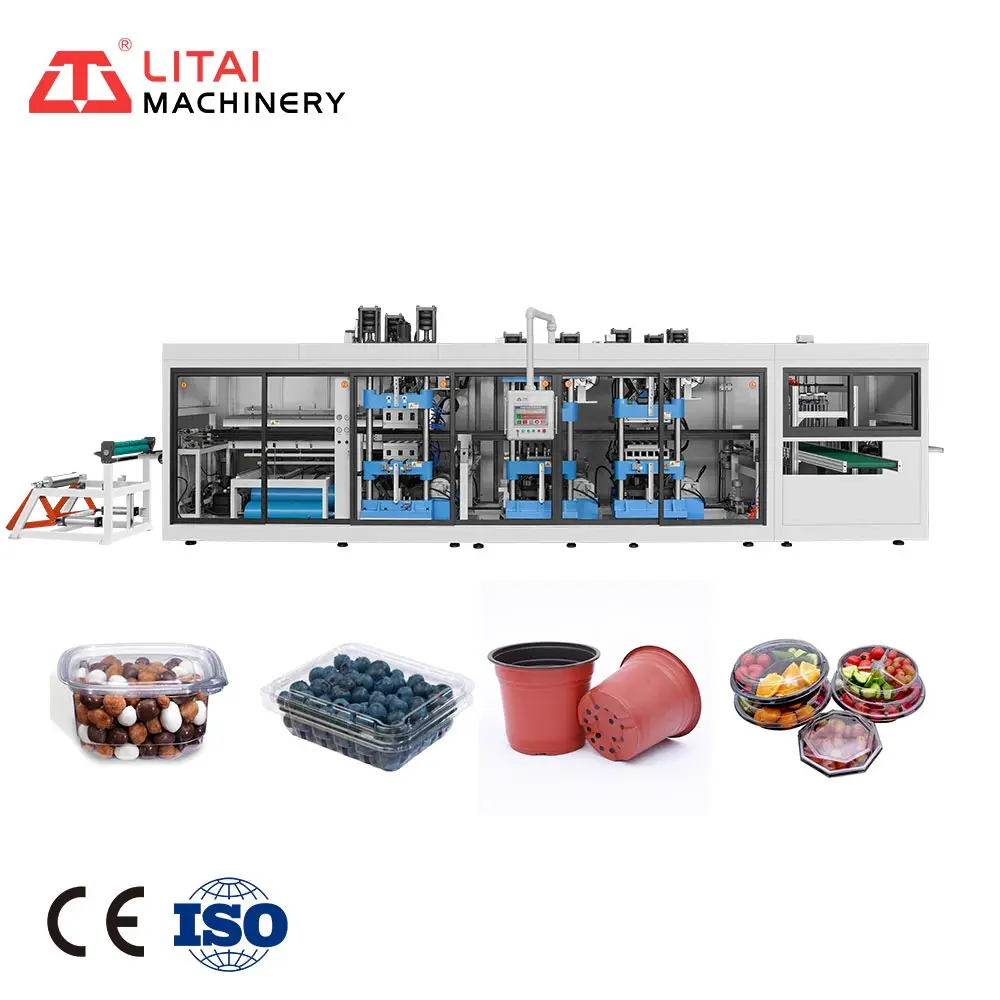

Whether processing PP, PET, PS, polyvinyl chloride, PE, OPS, degradable materials, or other materials for molding products, This Type of thermoforming machine suitable to high demand of food packaging products:lid,fresh tray,moon cake tray,disposable food tray and boxes,instant noodle bowl lid, the tea/coffee cup lid,beverage cups,ice cream cups,jelly cups, boxes,household plastic packaging containers,pharmaceutical/medical/wine/electrical appliances plastic packaging.
Cosmetic tray
Egg tray
Disposable lunch box
Plastic fruit box
Coffee cup lid
Plastic bowl
SUMMARY OF MACHINE
1. Every station is driven by the eccentric crank linkage structure.
2. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
3. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
4. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
5. There is a rapid mould change device, which shortens the time for mould change extremely.
6. Each servo motor has overload protection for machine’s overworking.
7. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
8. There is an alarm function of the sliding doors.
Why Choose Us
What is features and advantages of our plastic thermoforming machine?
1. Fully servo driven machine.no noise.no vibration,thermoforming good and fast.
2. Fully machine in compact structure,taking small floor space;
3. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
4. Furnaces automatic removal device,can be turned down at any time during production without breaking the sheet reaching without wasting materials;
5. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the oven roast slices.
6. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
7. Auto cutting,auto counting,auto transmission by PLC.
8. Labor saving,only 1-2 workers packing.
2. Fully machine in compact structure,taking small floor space;
3. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
4. Furnaces automatic removal device,can be turned down at any time during production without breaking the sheet reaching without wasting materials;
5. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the oven roast slices.
6. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
7. Auto cutting,auto counting,auto transmission by PLC.
8. Labor saving,only 1-2 workers packing.
