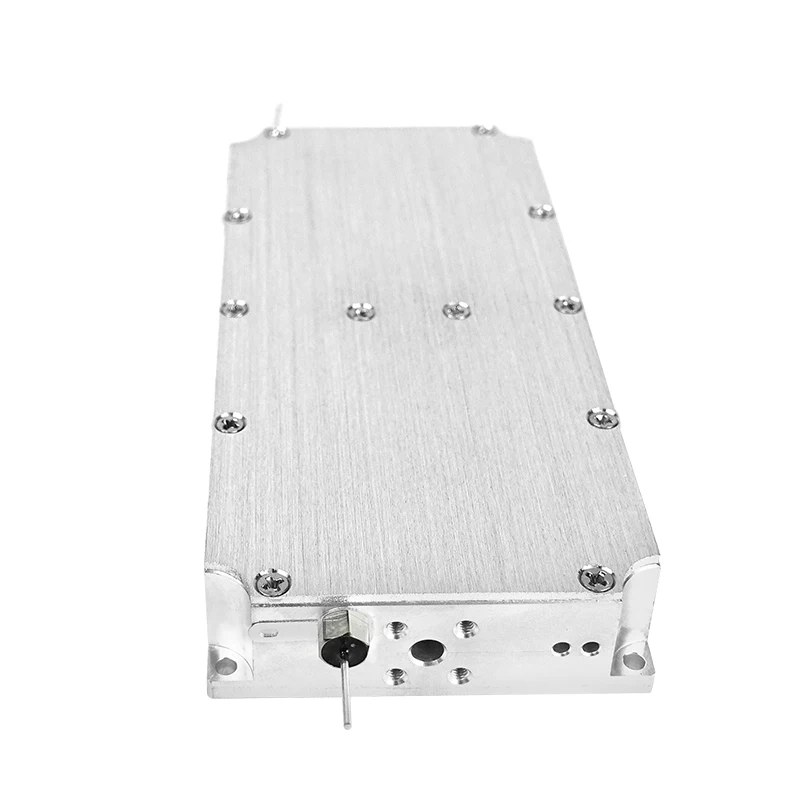

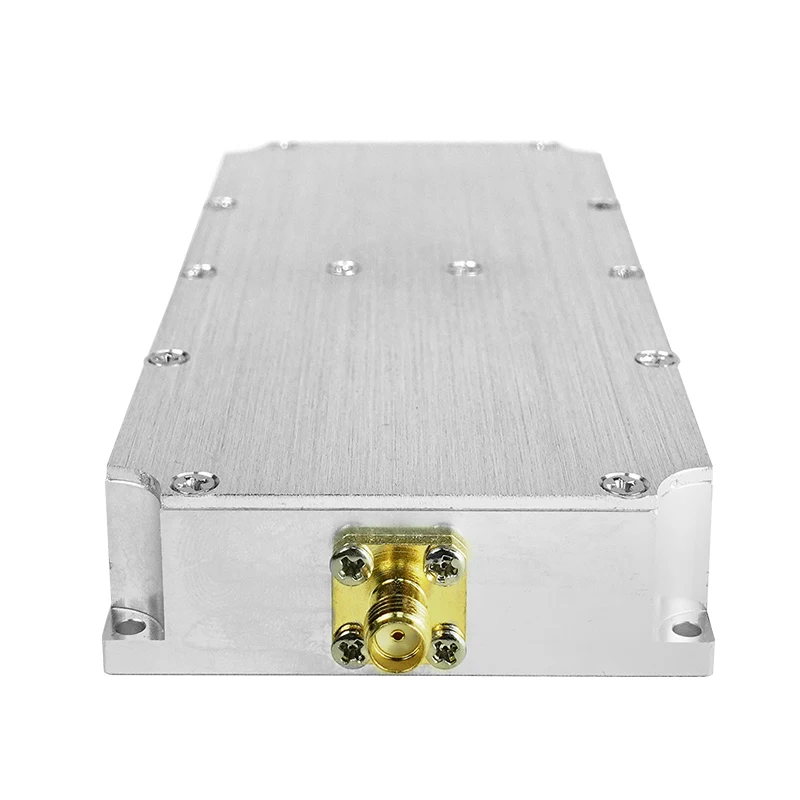

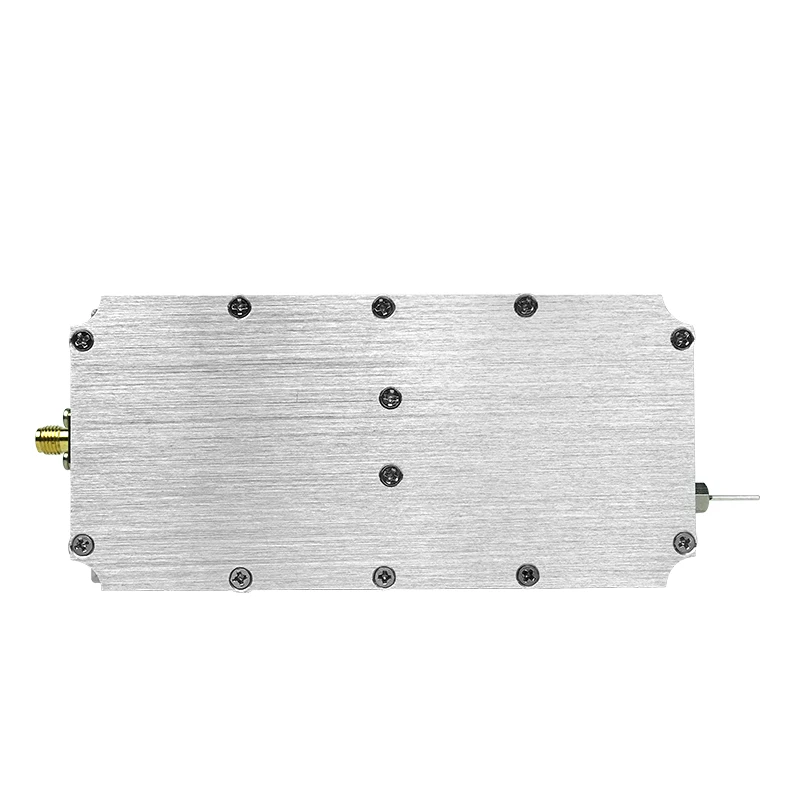

1.5G 30W Anti Drone Module UAV Anti System RF Module
Model：RX-1530
It is a wireless anti drone module dedicated to 1570- 1620 MHz signals. This module has the advantages of high average output power ( 30 W output in stable operation), good in-band flatness, and small offset between upper and lower side bands.
Regular type with signal source，if you want without signal source type also can offer（input signal 0-10dBm）.
Regular type with signal source，if you want without signal source type also can offer（input signal 0-10dBm）.
Product details
Origin:Guangdong, China Brand :Rongxin
Name: Anti drone module MHZ: 1.5 G,Customize
Power: 30 w KHZ: 1570 - 1620
Quality Warranty:12 months Key word:Anti drone system
Name: Anti drone module MHZ: 1.5 G,Customize
Power: 30 w KHZ: 1570 - 1620
Quality Warranty:12 months Key word:Anti drone system
Main performance index
Index | Numerical value | Unit | Note | |||||||
Min | Typical | Max | ||||||||
Signal frequency | 1570 | 1620 | MHz | |||||||
Output power | 44.5 | 45 | 45.5 | dBm | ||||||
Band flatness | 1 | dB | ||||||||
Work current | 2.9 | A | ||||||||
Work voltage | 28 | 32 | V | |||||||
Work efficiency | 38 | % | ||||||||
Thermally offset of upper band | 8 | MHz | Module surface temperature: 85°C | |||||||
Thermally offset of bottom band | 8 | MHz | Module surface temperature: 85°C | |||||||
Weight | 0.22 kg | |||||||||

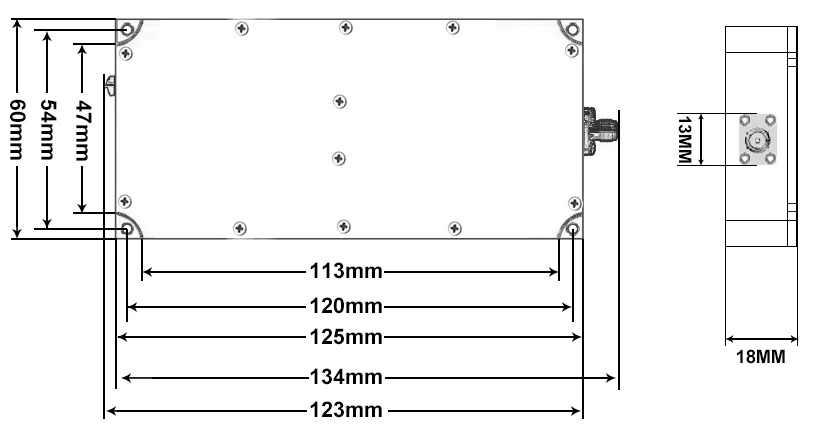

Dimension | 136*60*18 mm | |||||||||
Note: 1. The positive terminal is connected to the core capacitor, and the negative terminal is connected to the edge of the shell. 2. Connect the power when the antenna is connected; otherwise, the module may be damaged. Before powering on the module, check whether the power voltage is within the allowable range. | ||||||||||
