Top Selling Silver Coated Copper Foil Bus bar for high Current Switch

Silver Brazed Copper Foil Busbar For High Current Switch

Our Flexible Copper foild copper Busbar is used in power distribution cabinets due to its easy installation, increased conductive surface area, excellent electrical conductivity, thermal compensation, shock absorption, and noise reduction. It is created using a high molecular diffusion welding process that involves the diffusion of copper molecules at a specific pressure and temperature. This results in a welded joint without the use of soldering. If you require drawings, samples, or technical specifications, we can design them for you and provide a competitive price.

According to the size of the drawings with 0.05mm copper foil superposition, using polymer diffusion welding, surface silver or tin, used in coal mine explosion-proof switch.

Description of pressure welding / brazing

The bare copper wire or tin plated copper wire braid (stranded wire) is made by cold pressing. The contact surface can be tinned or silver plated according to customer requirements.
Single line diameter 0.20mm: standard product.
0.10mm: it can be processed according to customer's requirements.
Technical parameter

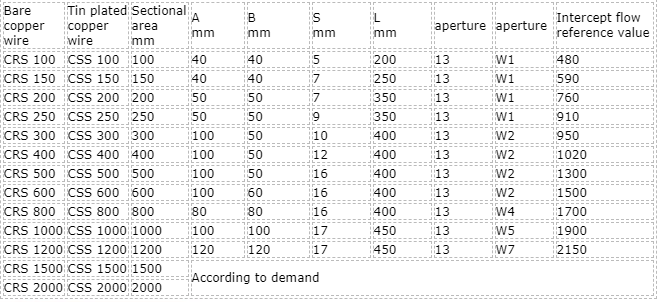

See table below.
The width, length, sectional area and borehole are not included in the following table, and can be processed according to customer requirements.
The allowable carrying capacity is the reference value. This value is related to the installation and use conditions of the soft connection.

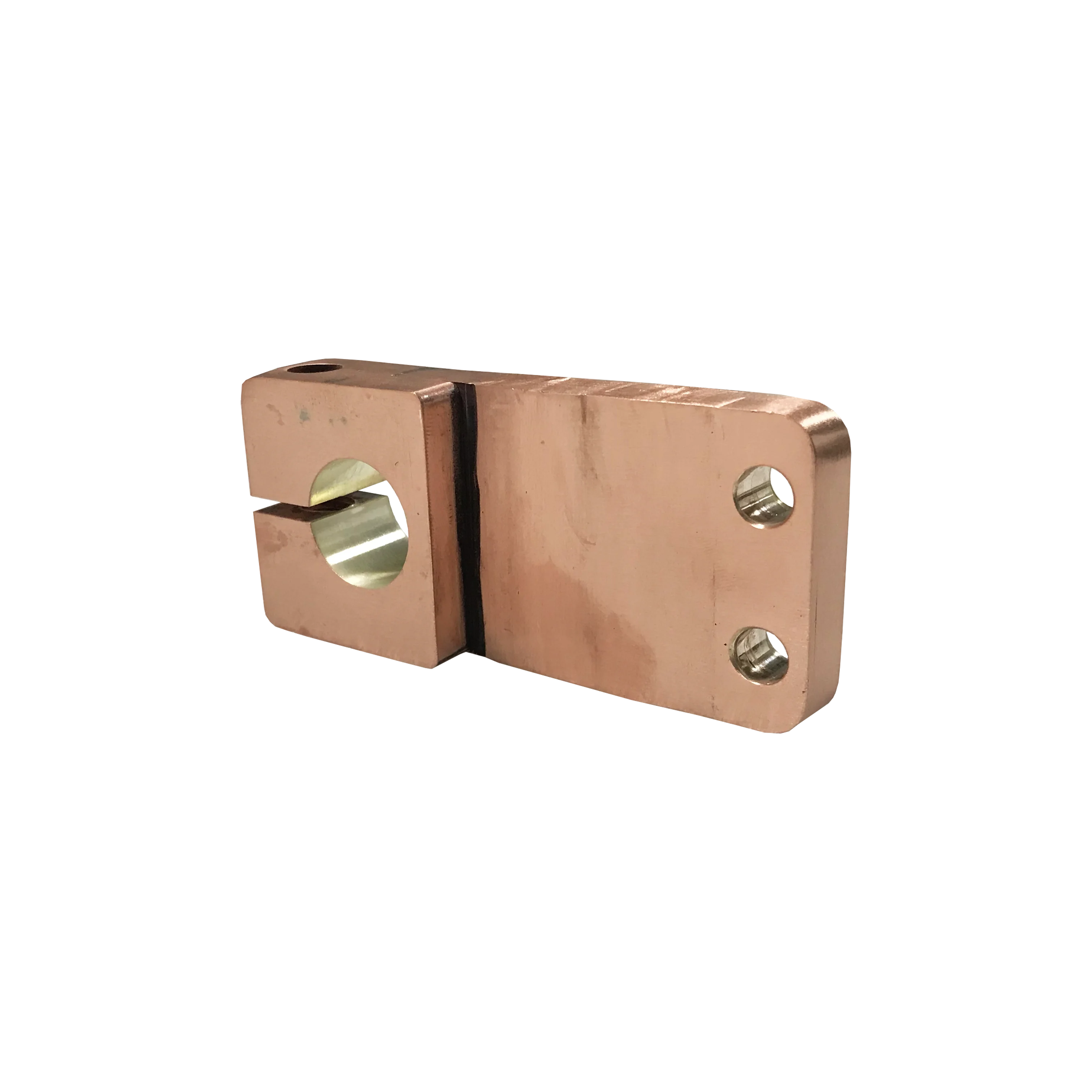

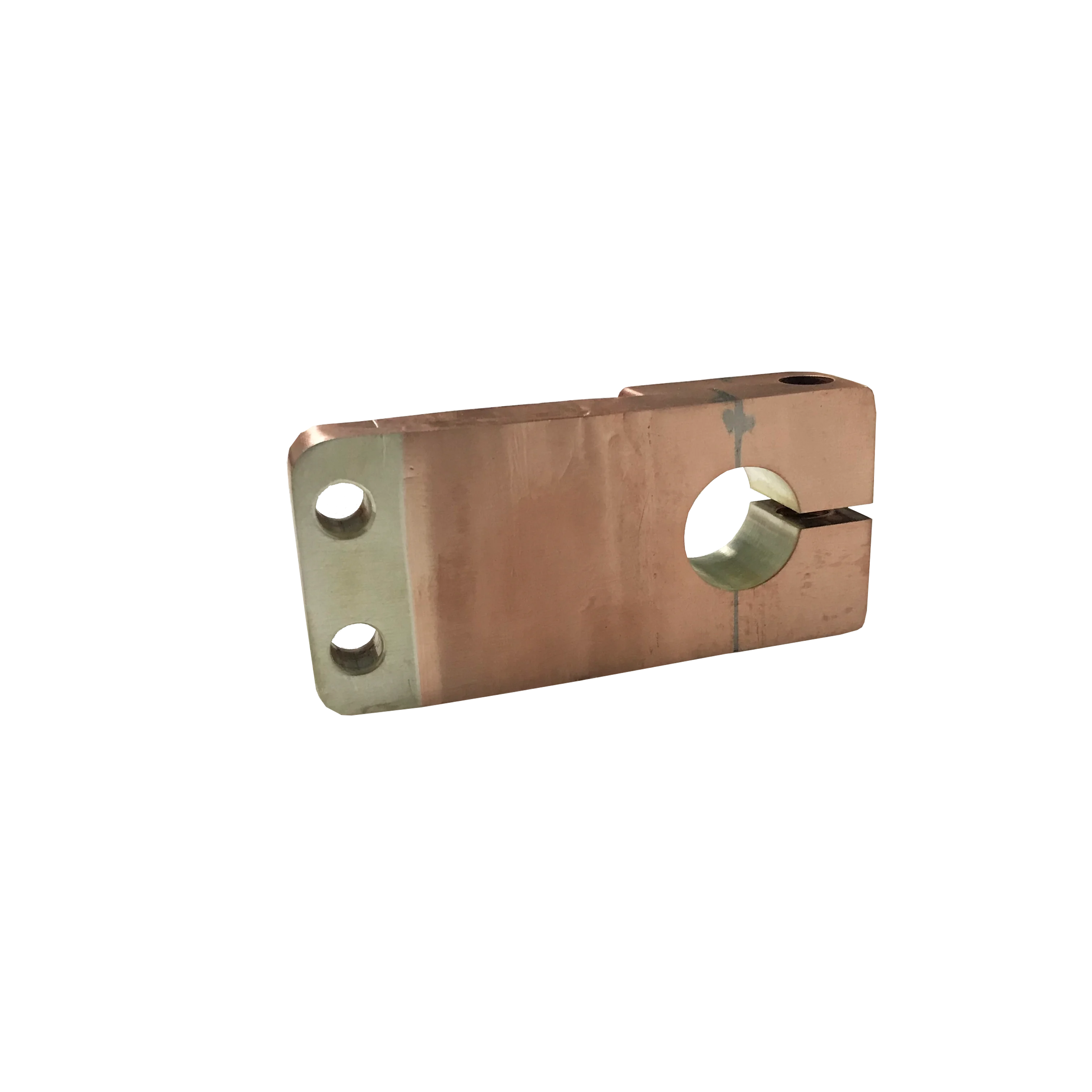

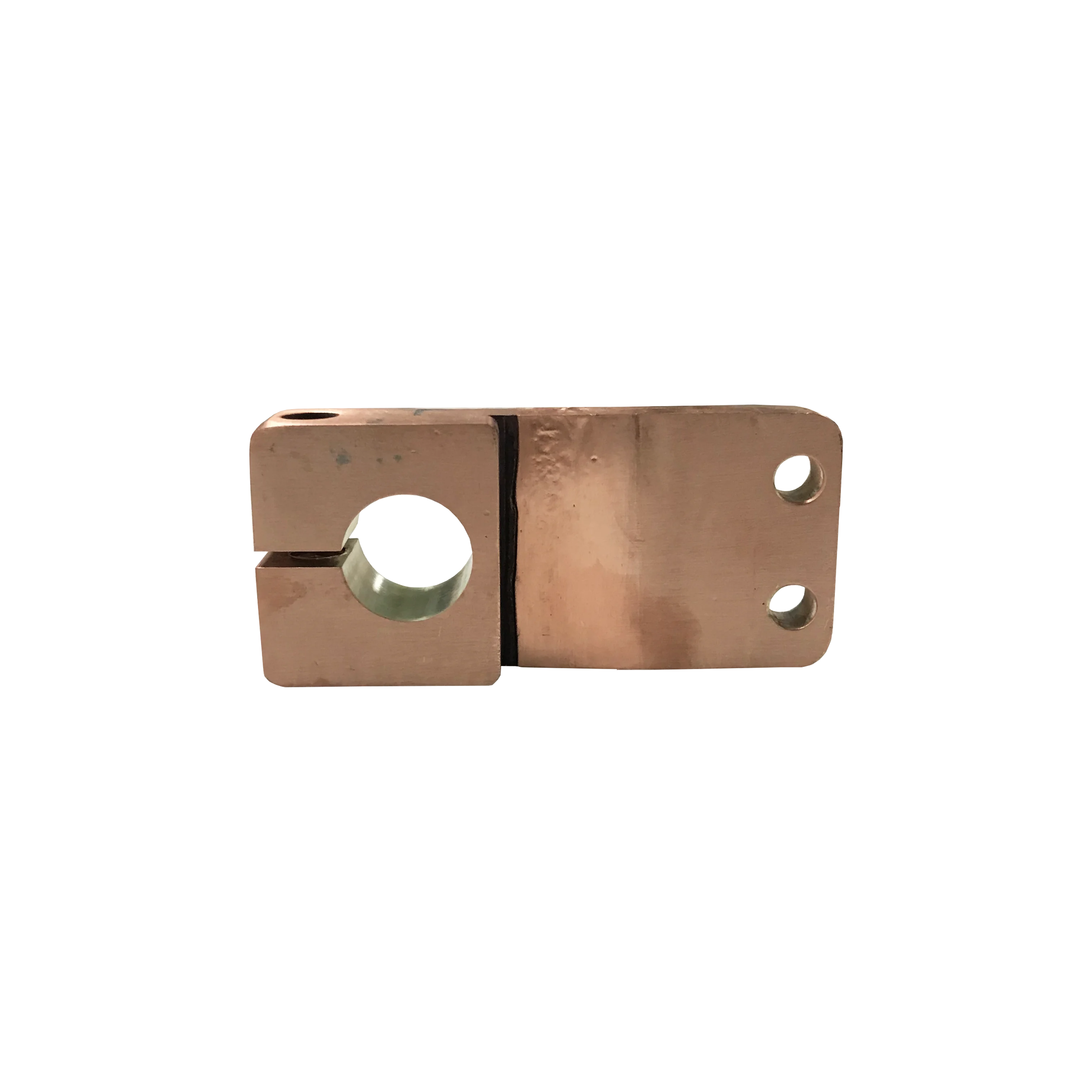

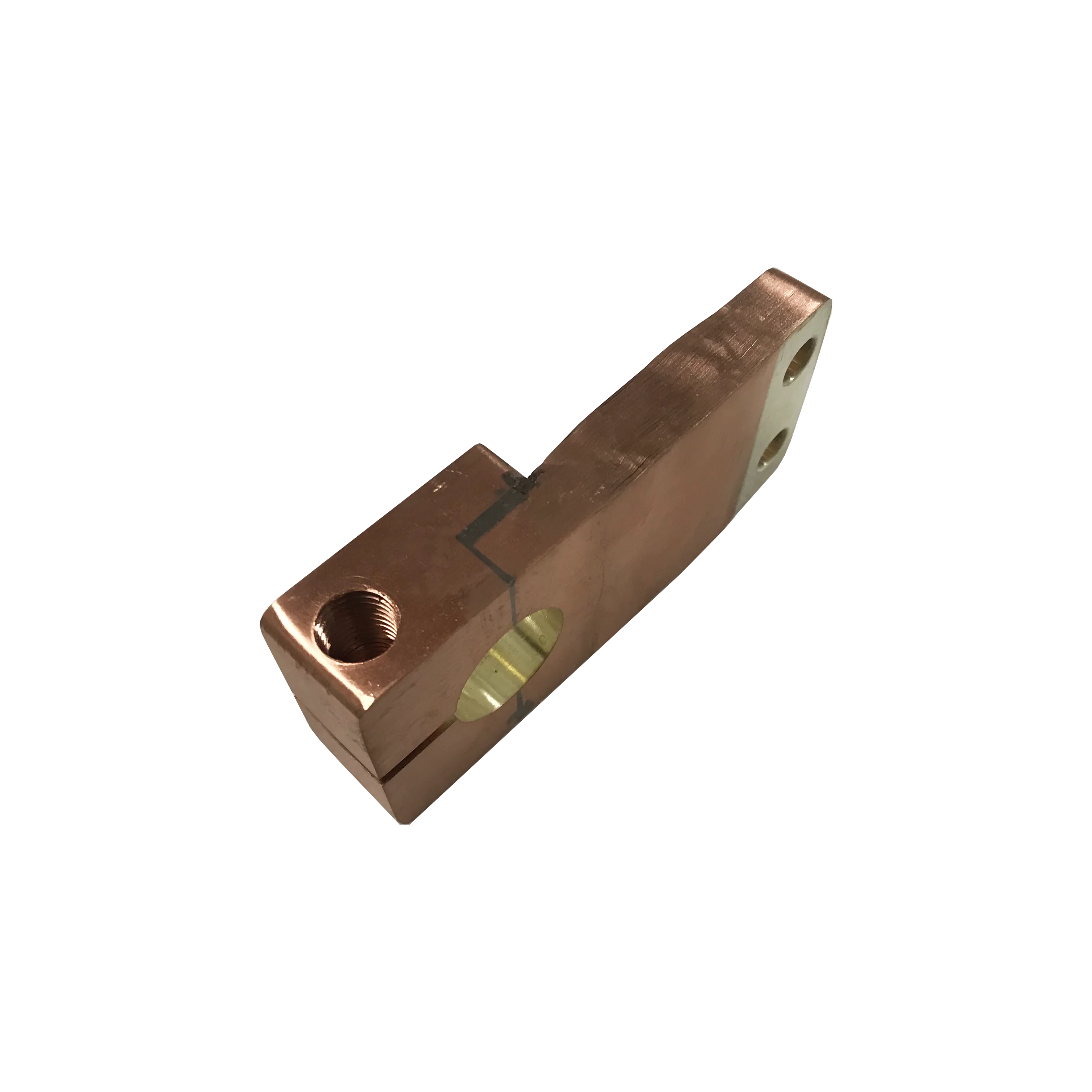

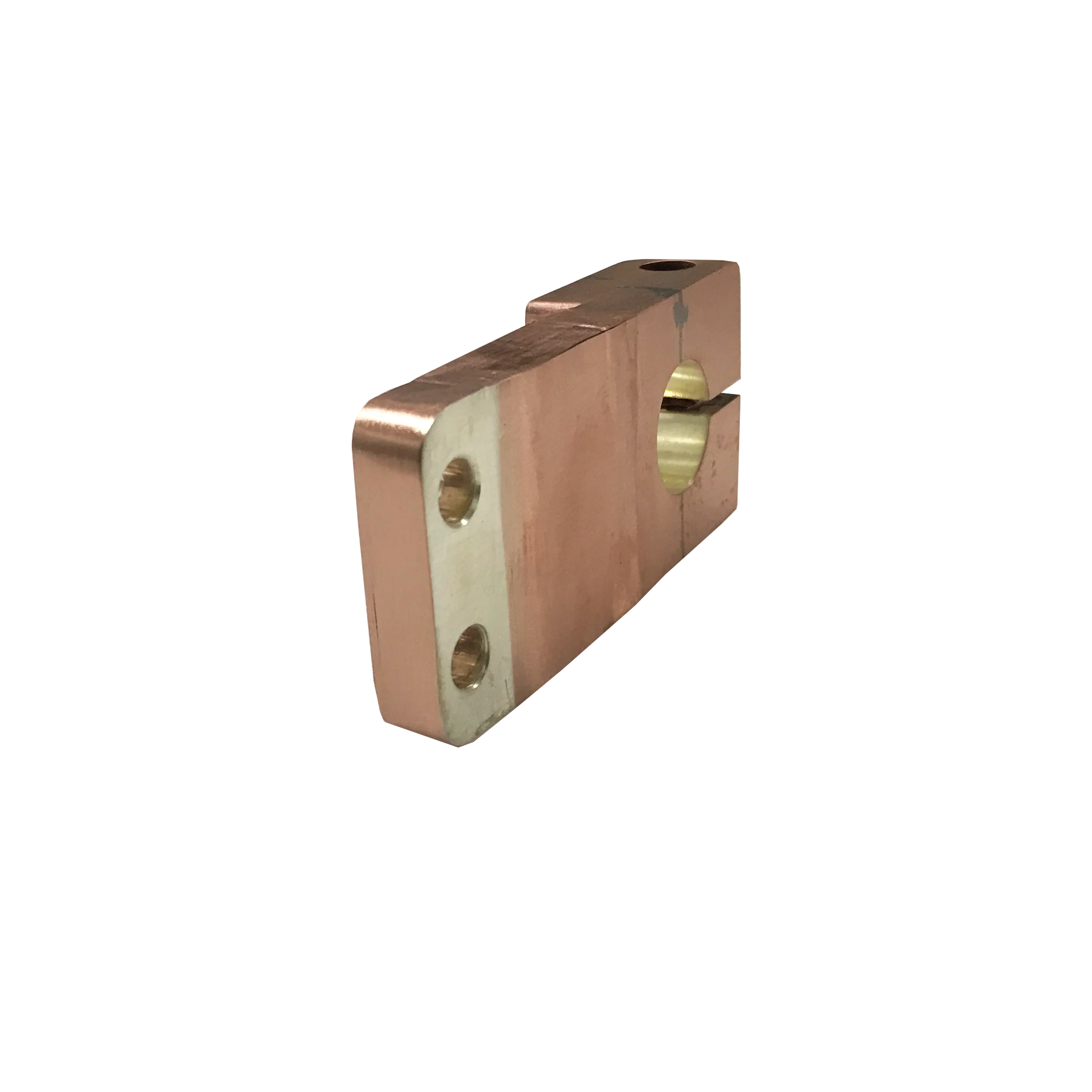

Product Pictures
