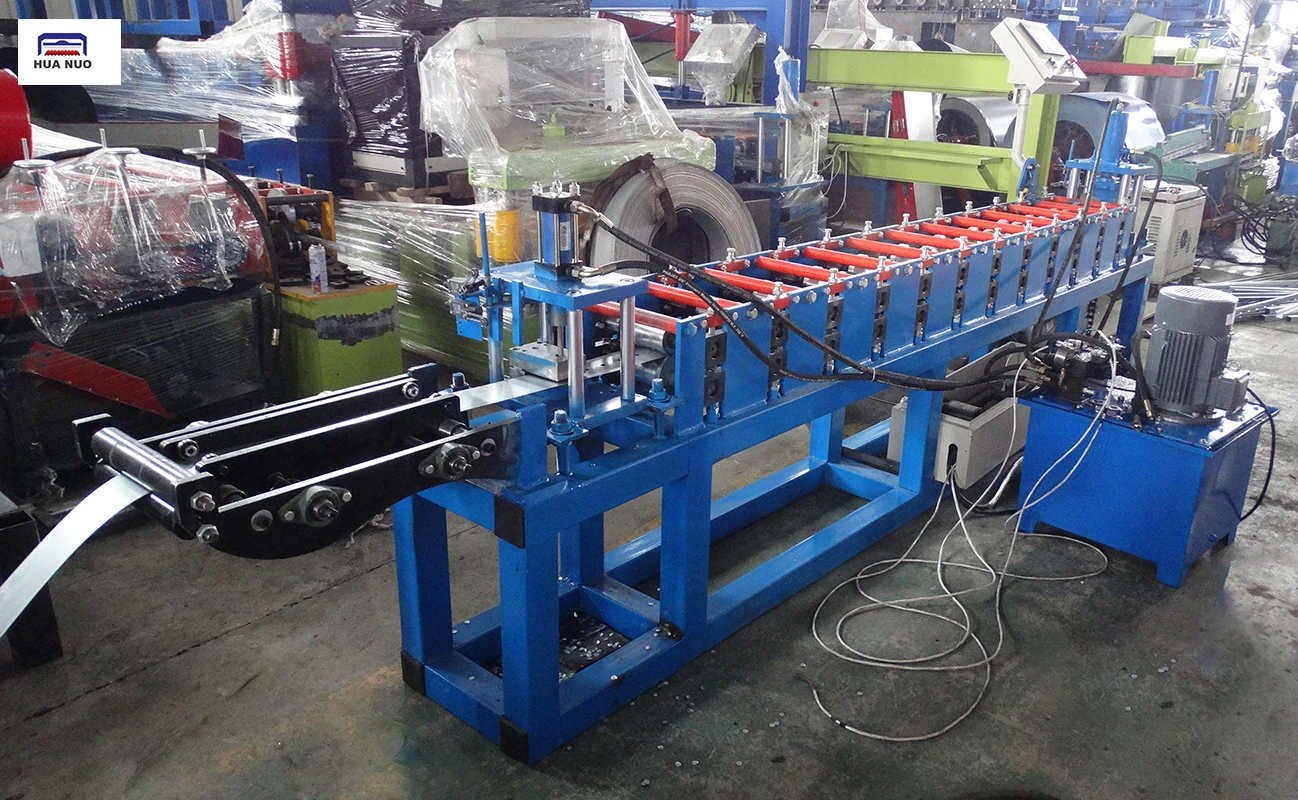

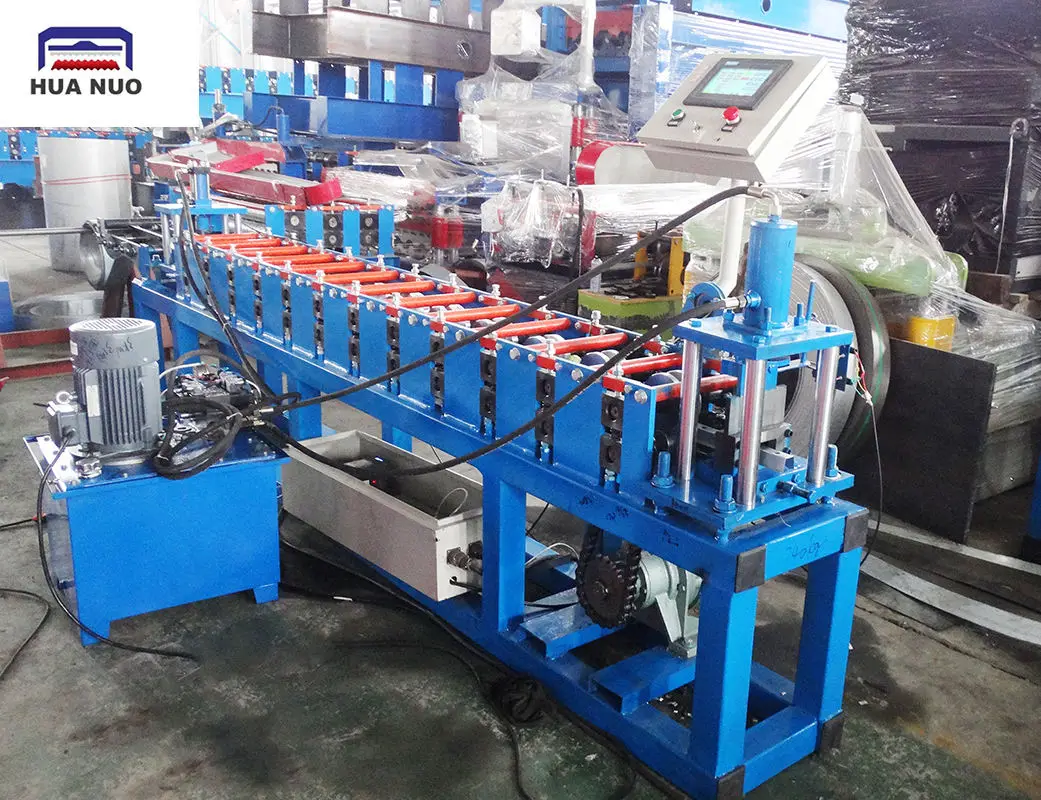

Automatic Lines Sheet Metal Stud and Track Light Keel Ceiling Roll Forming Machines

The total length of the equipment

Length 4500mm width 800mm height 1200mm

Equipment weight

2.5tons

The motor power

Motor 5.5Kw pump station 4Kw working voltage 380V or customized

Production speed

10--30 m/min

The transmission way

1 inch chain drive

rack

Large frame: 350H section steel

shaft

11 row axis diameter 70 mm solid shaft

The thickness of the plate

14 mm

Set of

Galvanized pipe finishing, electrostatic spraying

Wheel material

45# steel hard chrome plating

The molding part

Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast.

Numerical control system

Easy control king, letter letter press button screen, counter,

shear

Iron plate welding frame, hydraulic cylinder automatic shear, hydraulic cylinder automatic pressure

In the thickness of the plate

0.3 mm - 0.8 mm

Into the plate width

 mm

accessories

Two sets of feeding rack, vulnerable parts

Warranty period

12 months
