Product Overview

Description

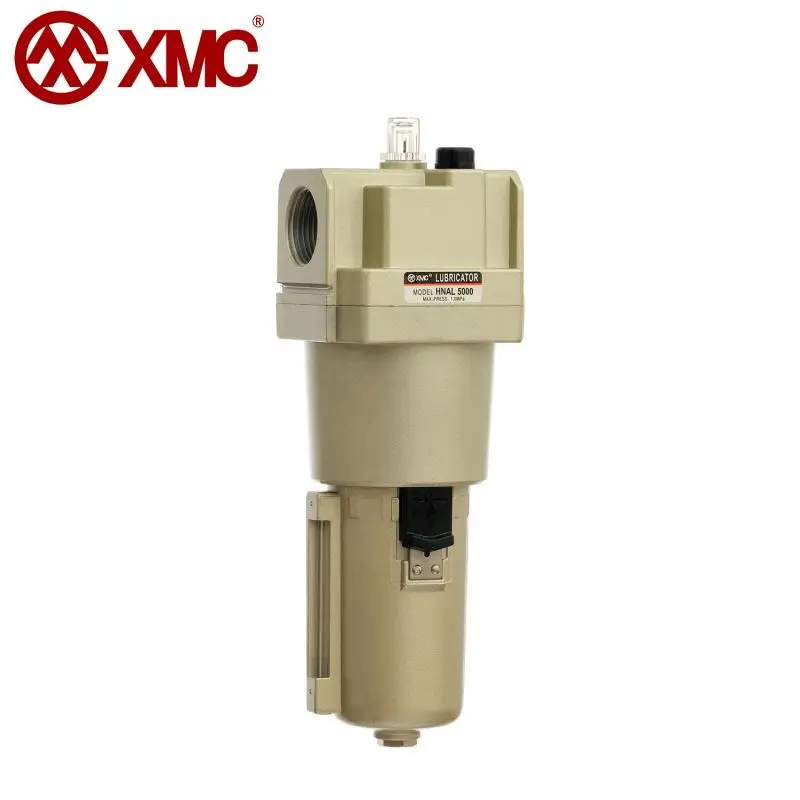

XMC HNAL5000-10 NPT 1 Inch Aluminum Alloy pneumatic components large diameter air filter regulator oil cup lubricator





Model Code





Specification



Order No.
HNAL5000-10
Ensured Pressure Resistance
1.5MPa (15kgf/cm2)
Highest Working Pressure
1.0MPa (10kgf/cm2)
Ambient and Fluid Temperature
5~60℃
*Filter Precision
25μm
Recommended Oil Use
Turbine No.1 Oil ISOVG32
Container Material
Aluminum Die Casting
Protective Cover
Available
Pressure Regulating Range
0.05~0.85MPa (0.5~8.5kgf/cm2)
Valve Type
With Overflow


*5μm, 50μm available in addition (Optional)

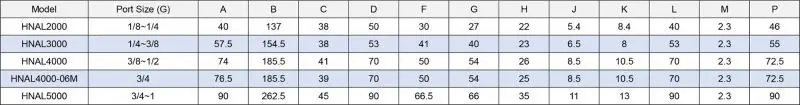

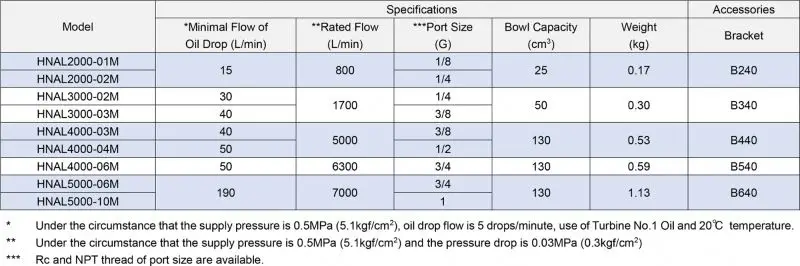

Model Table

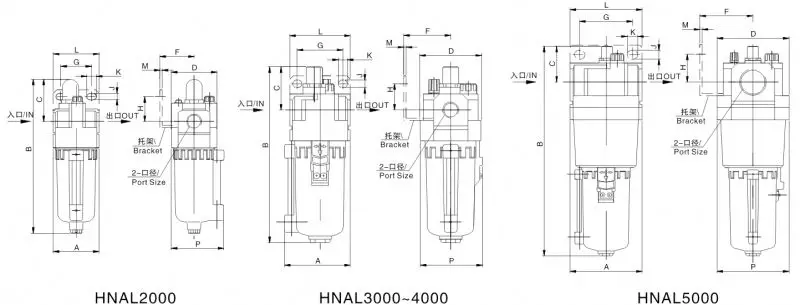

Overall Dimension Drawing (mm)







Overall Dimension Drawing (mm)
