auto friction material black color composite fiber auto disc plate clutch facing
- Category: Auto Transmission Systems >>>
- Supplier: Taizhou,Maite,Friction,Materials,Co.,Ltd.
Share on:
Product Overview
Description

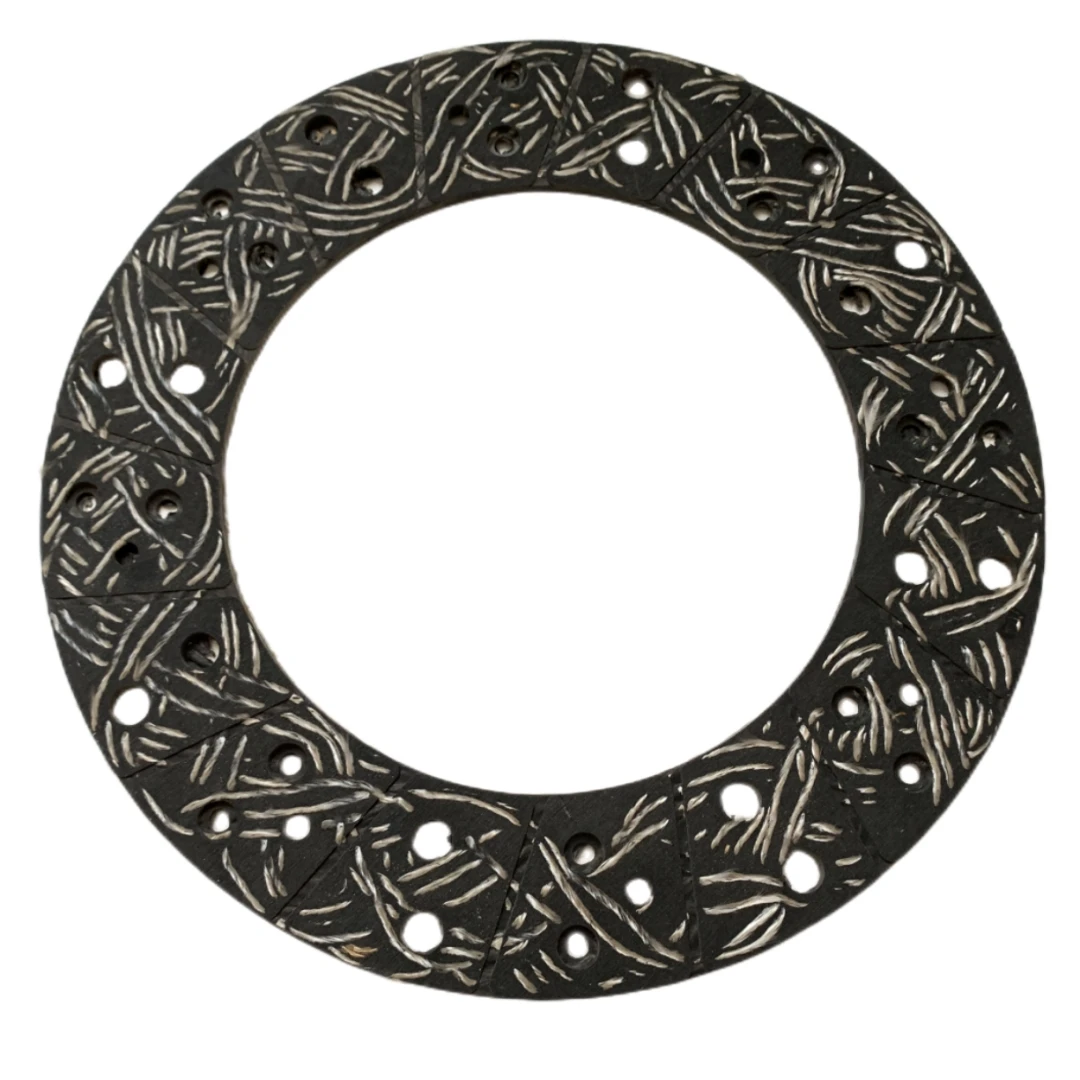

Product Description
Product Type | Auto Clucth Disc |
Car Model | Small and medium-sized vehicles |
Warranty | 12 Months |
Place of Origin | Jiangsu, China |
Certification | IS09001:2015 |
Material | non asbestos, glass fiber yarn |
Application | All Models |
Min Diamete | 140 mm |
Max Diamete | 430 mm |
Thickness | 3mm-5mm |
Usage | Heavy Duty Trucks, Car, Racing Cars, Tractors |
HS Code | 8708939000 |
Packing Detail | Neutral packing and Carton, can print customer's required brand Logo on the carton. |
Delivery Detail | 30 DAYS FOR 20 FEET CONTAINER |
General Standard for Non-Asbestos Clutch Facings | ||||||||
Product name | Clutch facing | |||||||
Density | 2.00±0.1g/cm² | |||||||
Hardness | HRL40-90 | |||||||
Bending strength | ≥50 (N/mm2) | |||||||
Maximum strain | ≥15 (10-³mm/mm) | |||||||
Rotary burst strength(200×130) | Normal Temp ≥12000R/Min;200ºC≥10000R/Min | |||||||

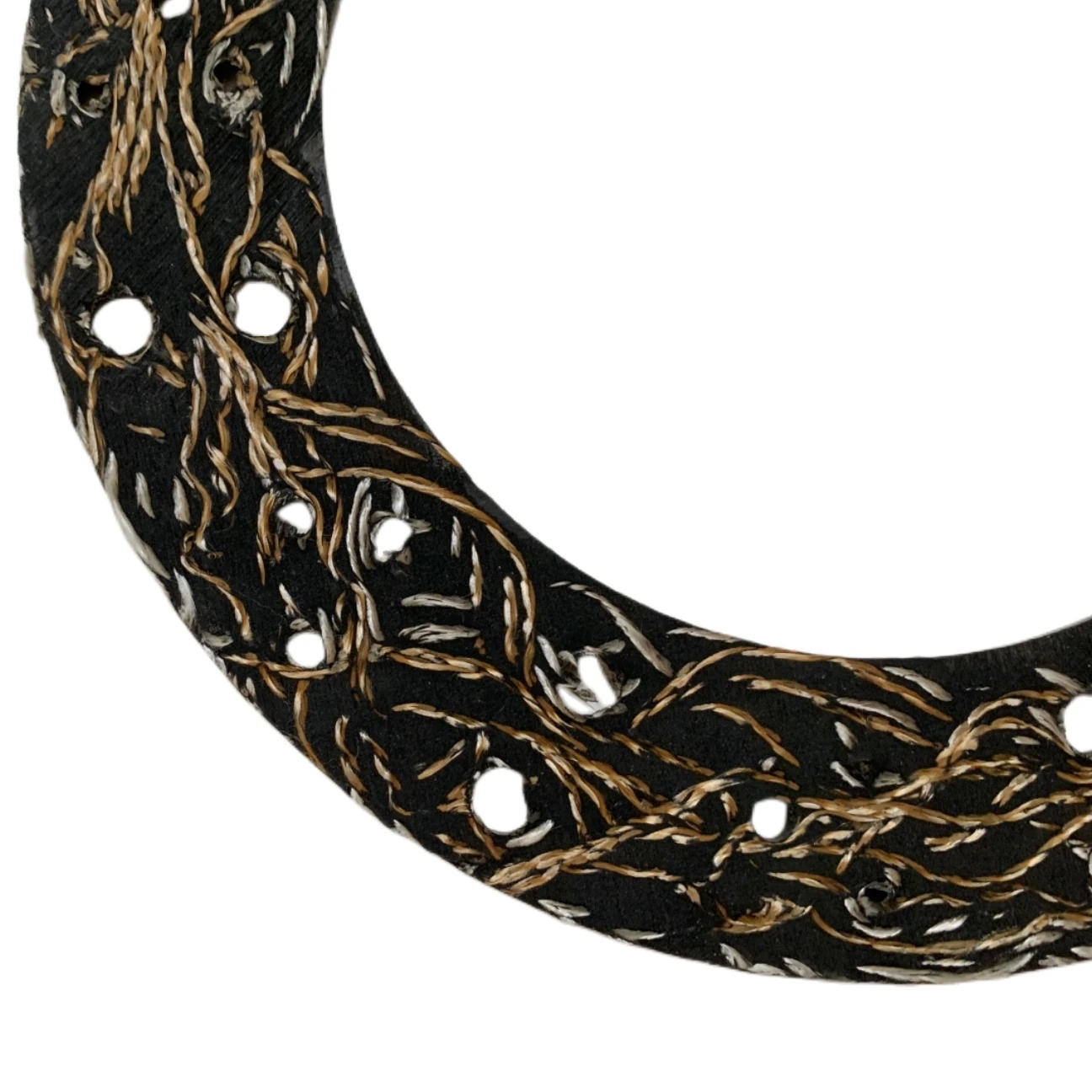

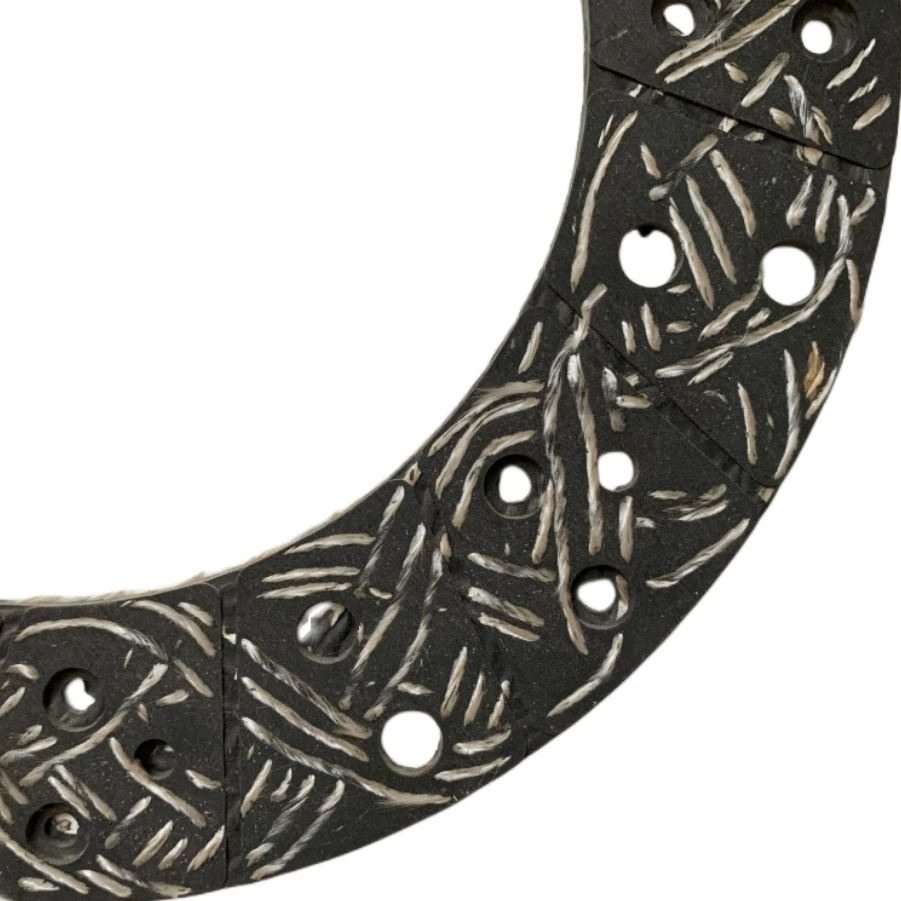

Specifications | Clutch Facing with glass fiber and cooper wire as backbone, temperature-reistance resin, high temperature endurance. | |||||||
Friction Wear Capability | ||||||||||||
Temp ºC | 100 | 150 | 200 | 250 | 300 | +150 | ||||||
Friction rate(μ) | 0.43±0.07 | 0.43±0.08 | 0.43±0.09 | 0.43±0.10 | 0.43±0.11 | 0.43±0.07 | ||||||
Wear Rate(ν). 10-7cm3/(N·m) | ≤0.18 | ≤0.20 | ≤0.25 | ≤0.40 | ≤0.45 | / | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

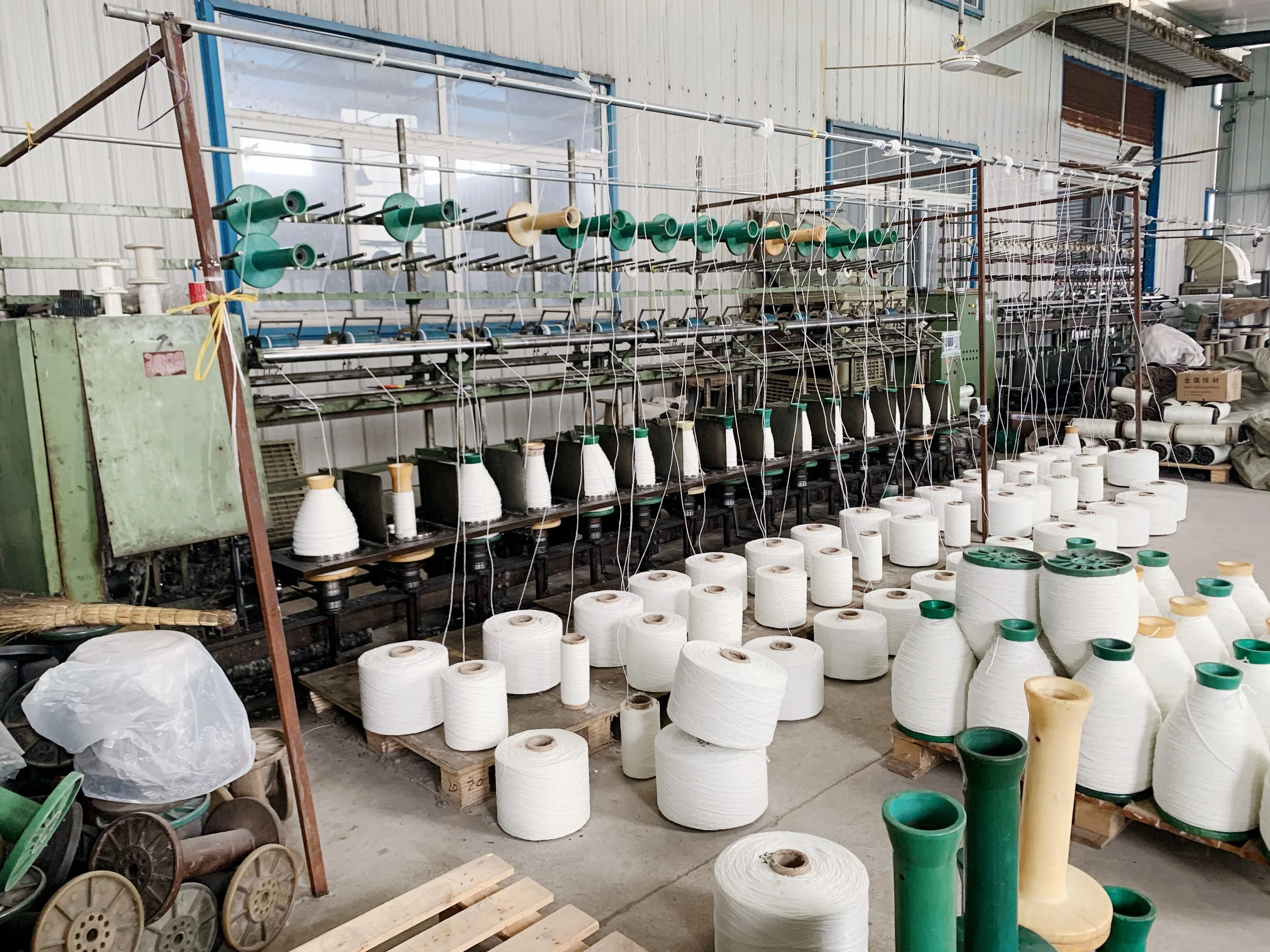

Taizhou Maite Friction Material CO,LTD. is an professional manufacturer with factory specializing in manufacturing of brake materials and friction materials for more than 10 years, which is located in Taizhou, Jiangsu Province, China.
We focus on developing high-quality braking materials, such as asbestos and non-asbestos brake lining roll, brake belts and clutch facings for market. We also produce non-asbestos yarn for clutch facings composite yarn including core spun yarn,composite yarn, glass fiber yarn and others high-performance yarns. Our company have passed ISO9001 international quality system certification.
Our products are popular and have been exporting to North-America, Europe, Middle-East and Asia market. We have earned trust and praise from domestic and overseas customers.
With competitive prices and good service,we are looking forward to doing business with you.
Certifications
FAQ
Q1. What is your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
EXW, FOB, CFR, CIF.
Q4: How about your delivery time?
Generally, it will take 20 to 40 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5: Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6: What is your sample policy?
We can supply the sample if we have ready parts in stock.
Q7: Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
EXW, FOB, CFR, CIF.
Q4: How about your delivery time?
Generally, it will take 20 to 40 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5: Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6: What is your sample policy?
We can supply the sample if we have ready parts in stock.
Q7: Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
