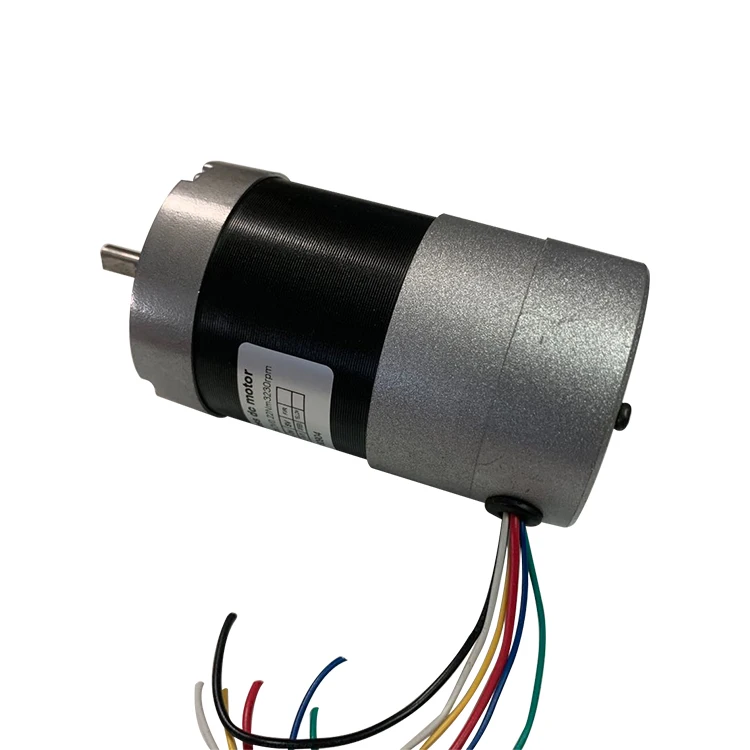

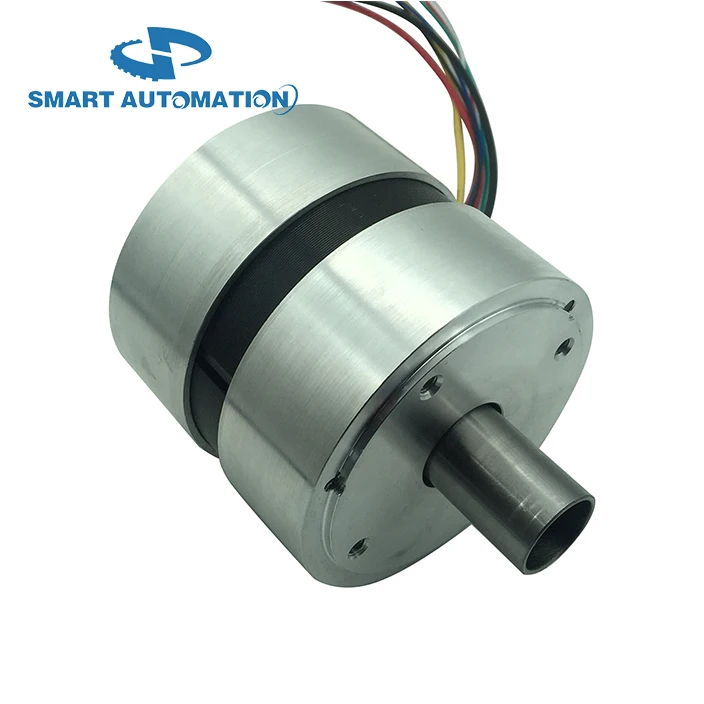

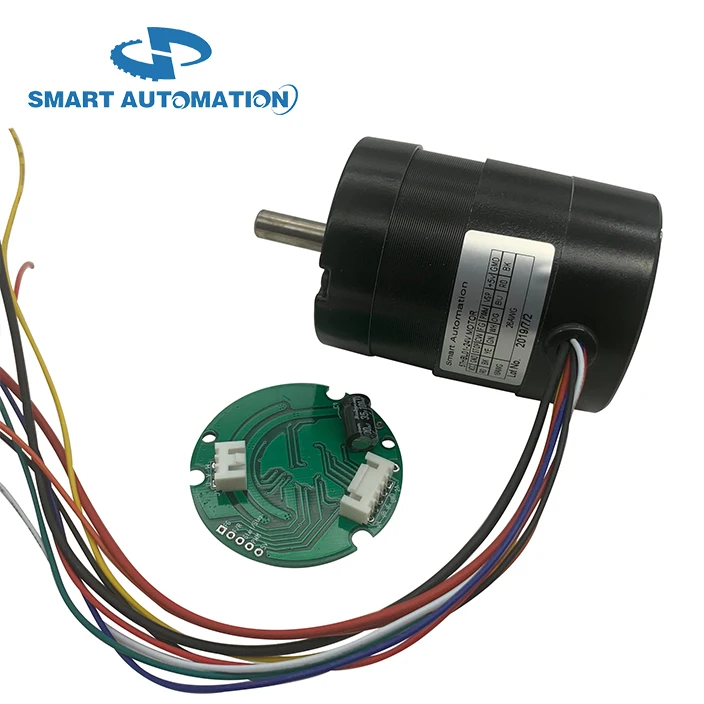

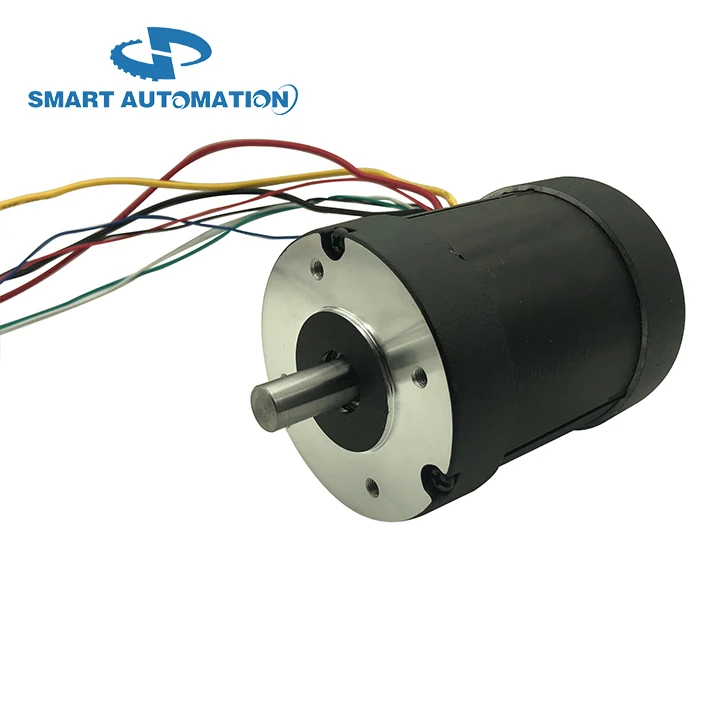

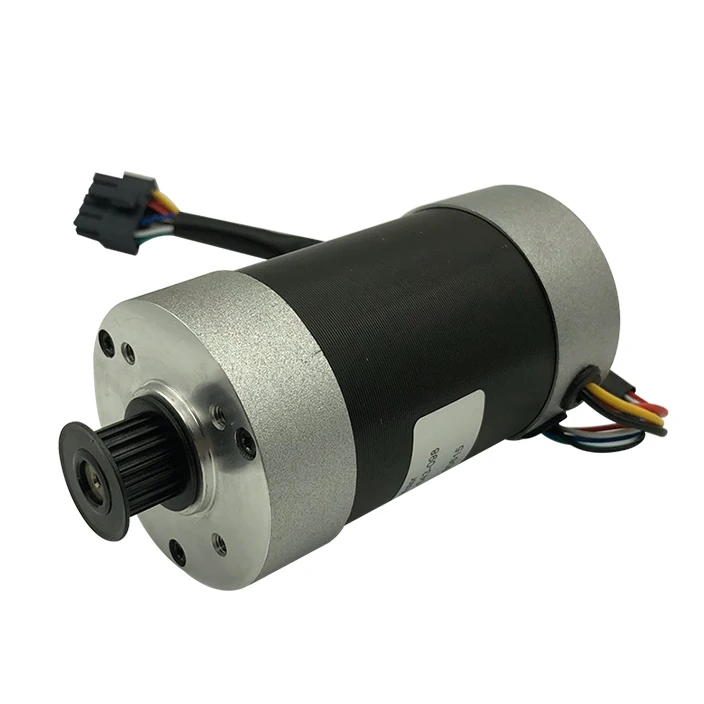

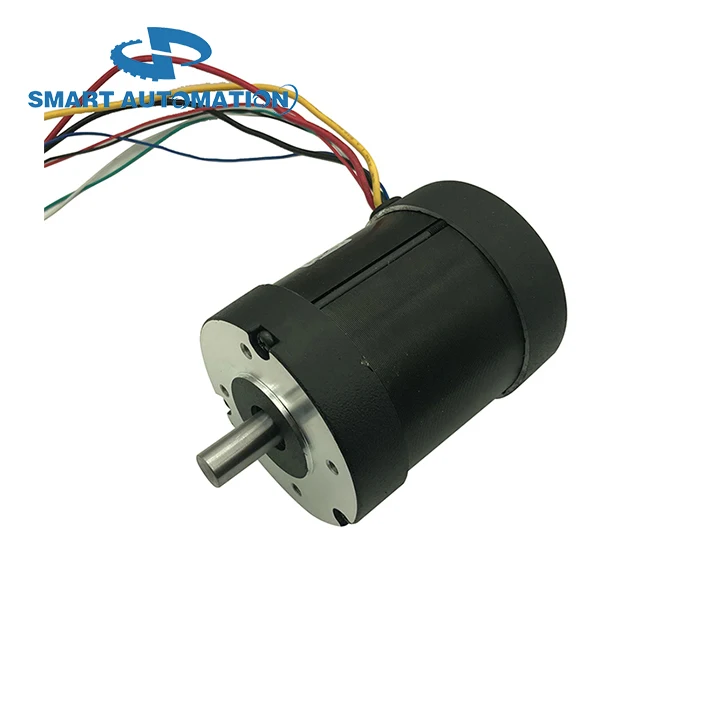

Custom Brushless dc Coffee Grinder Motor for coffee bean grinding machine, rated torque upto 3Nm

Product Overview

Description

Brushless Dc Motor for Coffee Machines



Options

Rated voltage: 12V 24V 36V 48V upto 230VDC

Rated speed: 800rpm upto 12000rpm

Rated torque: 50mNm upto 3Nm

Customized Shaft Flange and Motor Performance



Below is only standard models, pls contact us for customized motors.

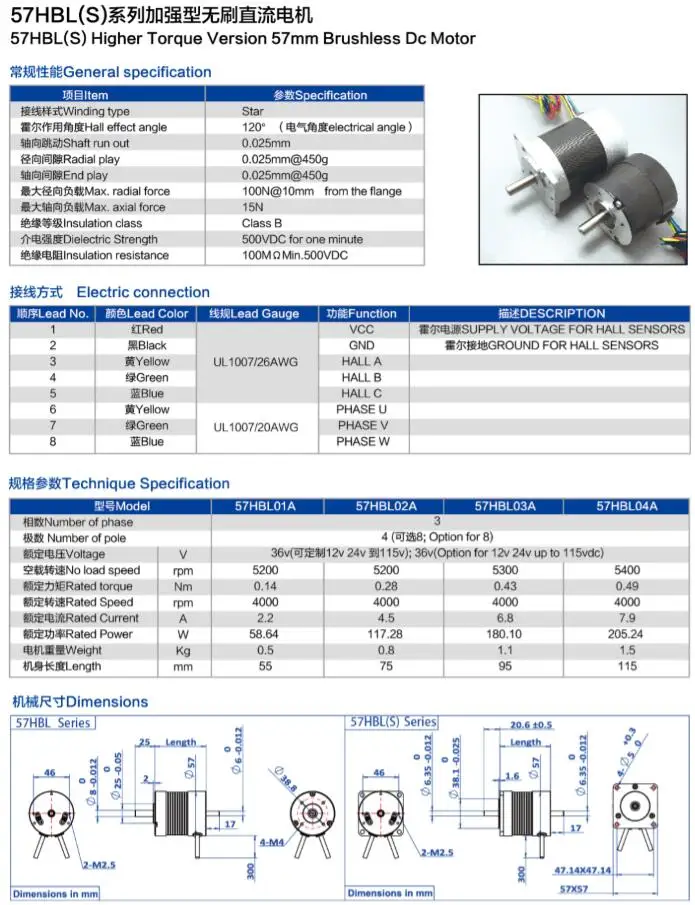

57mm Series Brushless Dc Motor for Coffee Grinder



General specification:



Item	Specification
Winding type	Star
Hall effect angle	120degree electrical angle
Shaft run out	0.025mm
Radial play	0.025mm@460g
End play	0.025mm@4000g
Max.radial force	75N@10mm from the flange
Max.axial force	15N
Insulation class	Class F
Dielectric Strength	500VDC for one minute
Insulation resistance	100MΩMin.500VDC

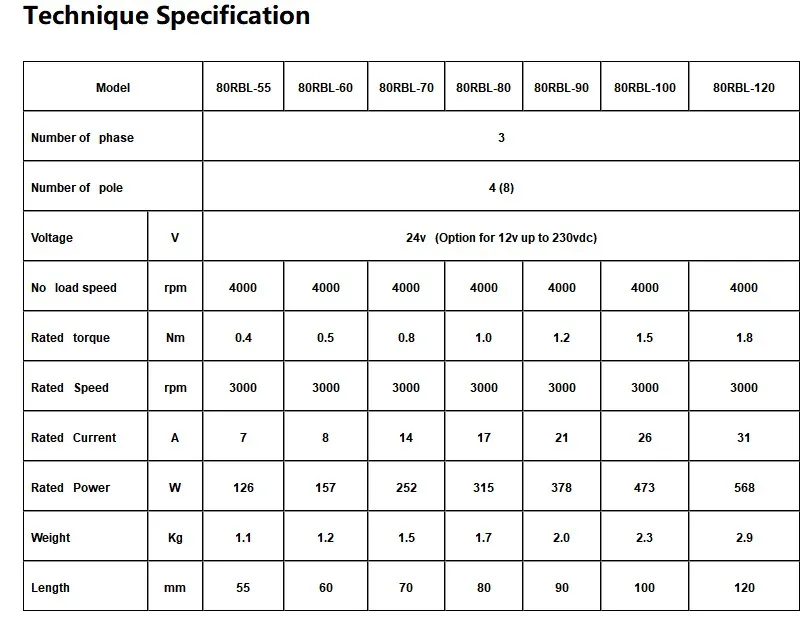

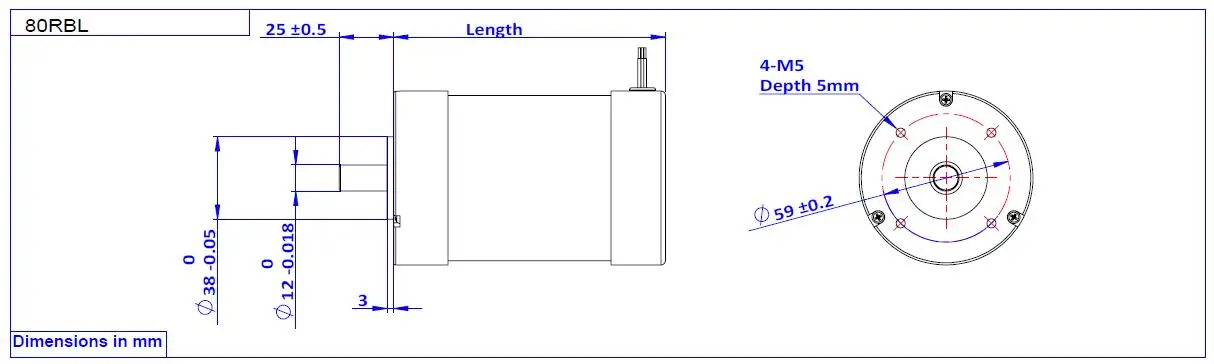

80mm Series Brushless Dc Motor for Coffee Grinder
