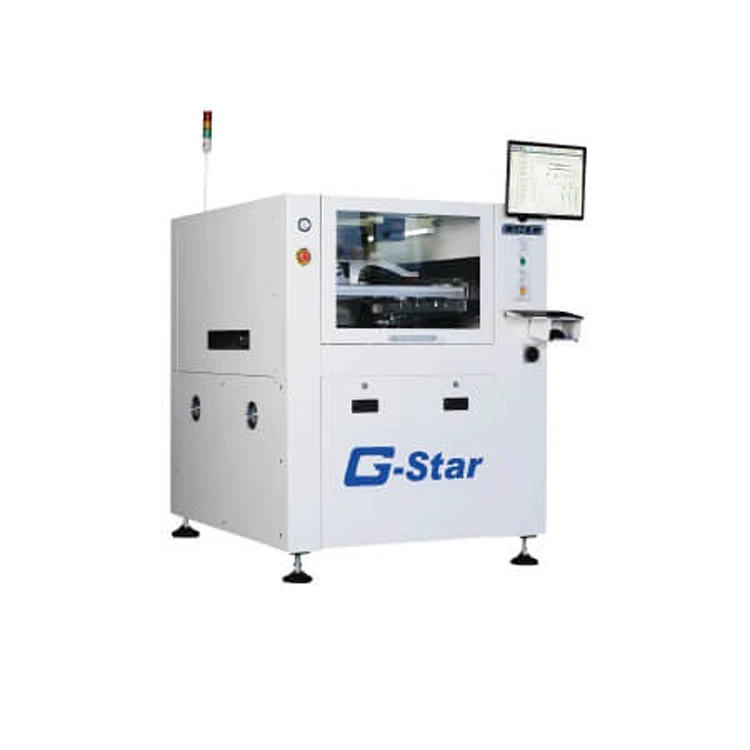

High Quality Full Model Style Smt Solder Paste Printer Smt Full Automatic Stencil Printer for PCB Assembly
- Category: >>>
- Supplier: Shenzhen Chengyuan Industrial Automation Equipment Co. Ltd.
Share on (1600775952971):
Product Overview
Description
Products Description

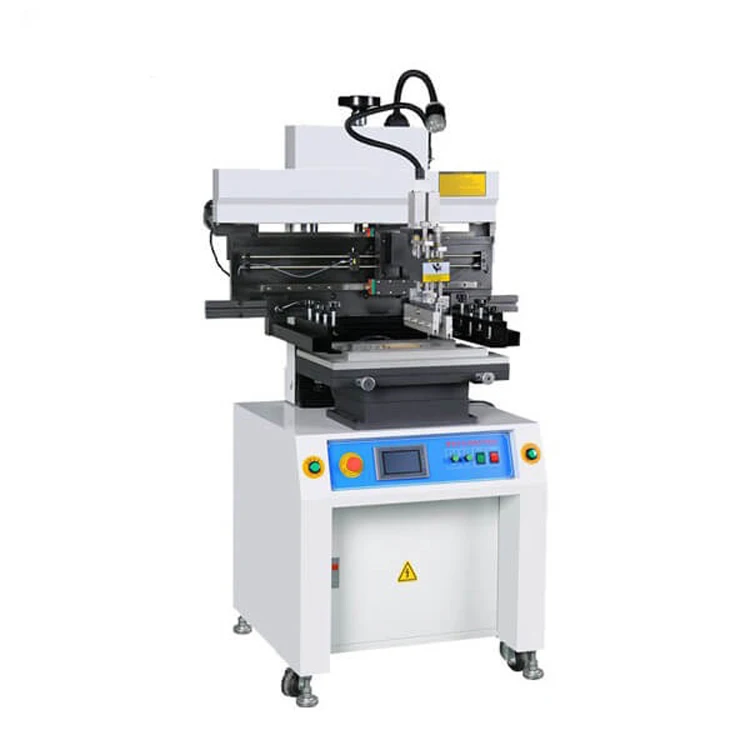

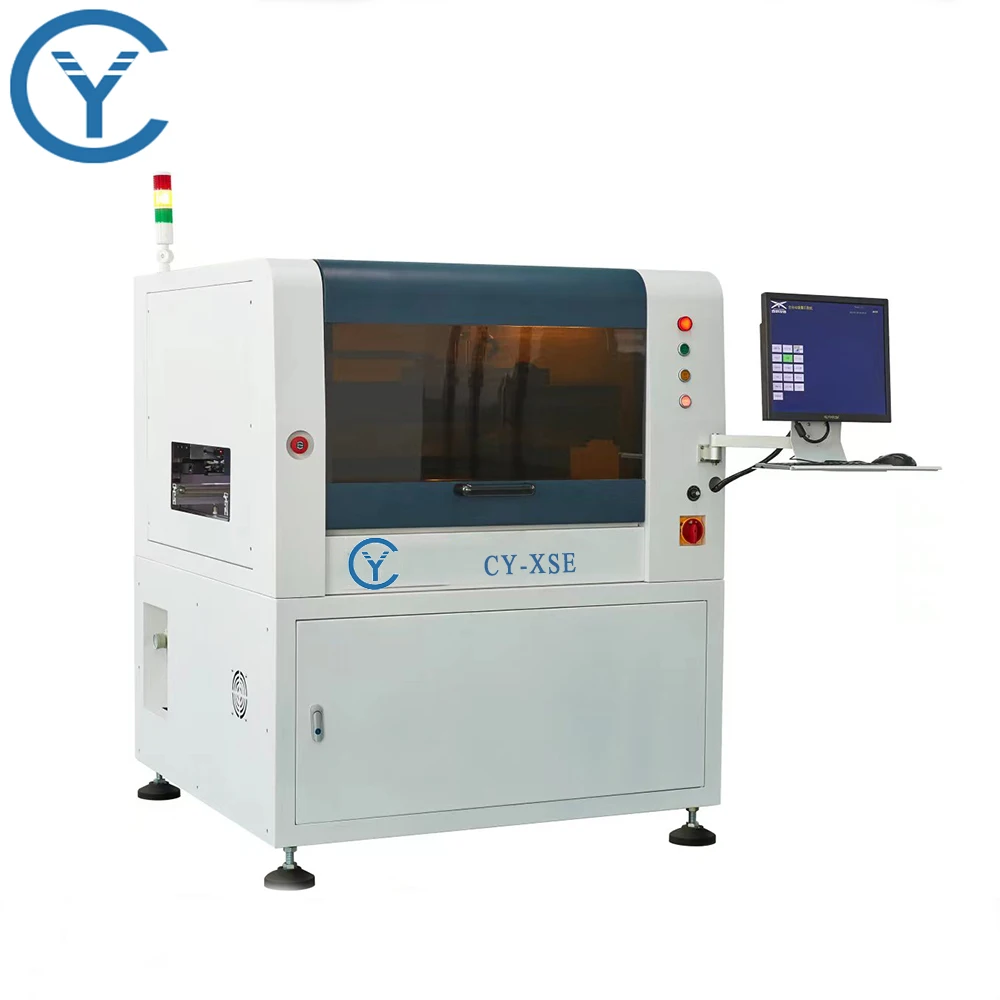

CY series Full Automatic SMT stencil printer CY-XSE
Features

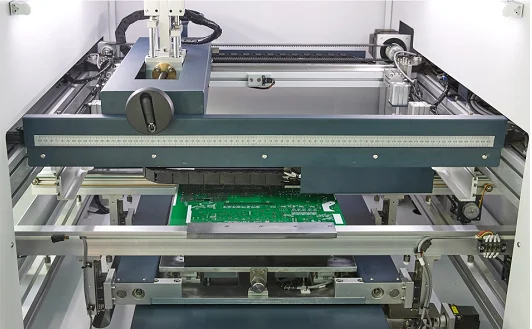

1.Intelligent scraper / steel mesh bracket
Gantry scraper beam, suspended scraper head, automatic lifting of scraper. The steel mesh bracket is suitable for the steel mesh of all semi-automatic printing machines.
Gantry scraper beam, suspended scraper head, automatic lifting of scraper. The steel mesh bracket is suitable for the steel mesh of all semi-automatic printing machines.

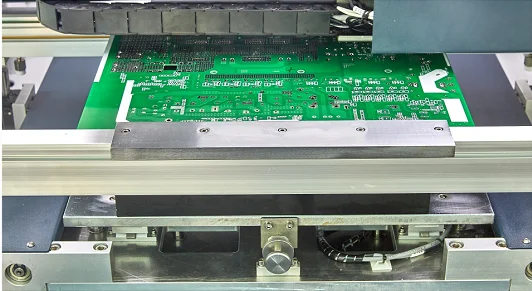

2.PCB board transmission system
One stage conveying system, PCB board automatic positioning, motor driven precision ball screw automatic clamping device.
One stage conveying system, PCB board automatic positioning, motor driven precision ball screw automatic clamping device.
3.Image and optical system
The coaxial light with uniform high brightness and adjustable brightness function are adopted, so that all types of mark points can be well identified, and it is suitable for various types of PCBs with different colors, such as tin plating, copper plating, gold plating, tin spraying, FPC, etc.
The coaxial light with uniform high brightness and adjustable brightness function are adopted, so that all types of mark points can be well identified, and it is suitable for various types of PCBs with different colors, such as tin plating, copper plating, gold plating, tin spraying, FPC, etc.
4. Special platform calibration function
Reliable structure, convenient adjustment, with three-axis linkage automatic deviation correction function
Reliable structure, convenient adjustment, with three-axis linkage automatic deviation correction function
5.Operation interface
It adopts Windows XP operation interface and has good man-machine dialogue function. The program file has the functions of teaching and navigation, and the operation interface has the functions of operation log / fault recording / fault self diagnosis / optical alarm, which is simple to operate.
It adopts Windows XP operation interface and has good man-machine dialogue function. The program file has the functions of teaching and navigation, and the operation interface has the functions of operation log / fault recording / fault self diagnosis / optical alarm, which is simple to operate.
Intelligent scraper / steel mesh bracket
of all semi-automatic printing machines.
Indepedent Cleaning system
Image and optical system
The coaxial light with uniform high brightness and adjustable brightness function are adopted, so that all types of mark points can be well identified, and it is suitable for various types of PCBs with different colors, such as tin plating, copper plating, gold plating, tin spraying, FPC, etc.
Classify | Item | Specification | ||||
Operating system | Windows XP system | |||||
Signal connection | SMEMA connection | |||||
Vision specification | Up and down dual field of view, high-performance CCD and image processing system | |||||
Repeat printing accuracy | ||||||
Printing accuracy | ±0.025mm | |||||
Cycle time | Printing cycle | ＜8s/pc | ||||
PCB specification | Stencil size | 370*370-737*737mm | ||||
Frame fixing | Cylinder | |||||
PCB size | Min: 50*50mm Max:400*340mm | |||||
PCB thickness | 0.4-6mm | |||||
PCB weight | ≤3kg | |||||
PCB Support mode | Magnetic thimble | |||||
Transmission system | One stage transmission | |||||
Transmission direction | ||||||
Transmission SPC | Transmission height | 900±40mm | ||||
Platform adjustment angle | Z：±2° | |||||
Printing Spc | Squeegee Pressure | 0.5-10kg | ||||
Down-release speed | 0-20mm/s | |||||
squeegee angle | 60° | |||||
Stencil wiping mode | Free combination of dry / wet modes | |||||
Software | Free maintenance and upgrade | |||||
Air source | 4-6kgf/cm² | |||||
Power supply | AC220V, 50/60Hz, 2.5Kw | |||||
Dimensions | 1120*1320*1510mm | |||||
