Price:USD 7,000.00

Quantity:


Product Overview

Description



ZGYZMN

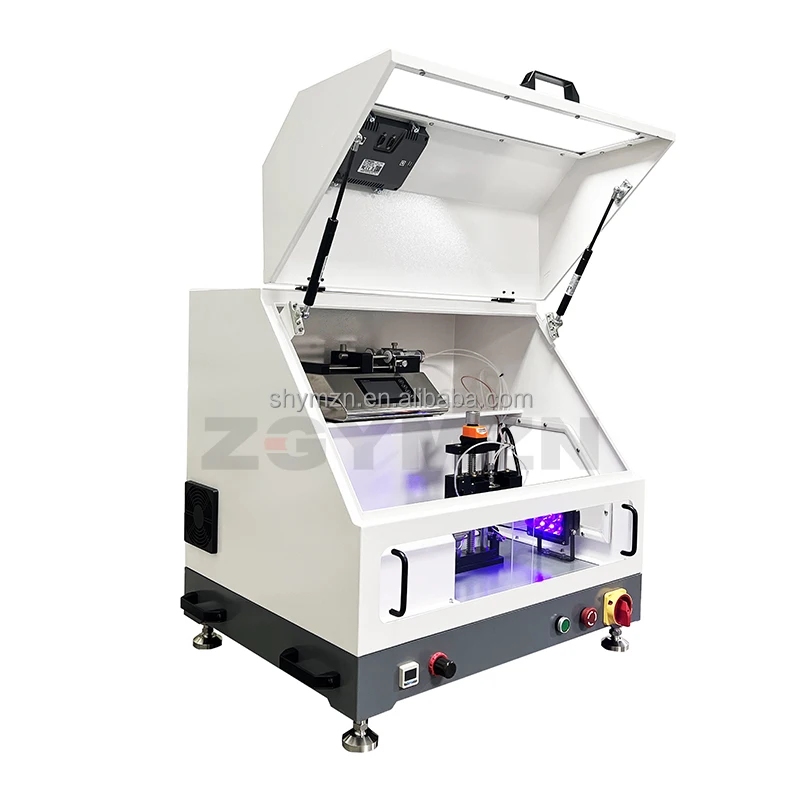

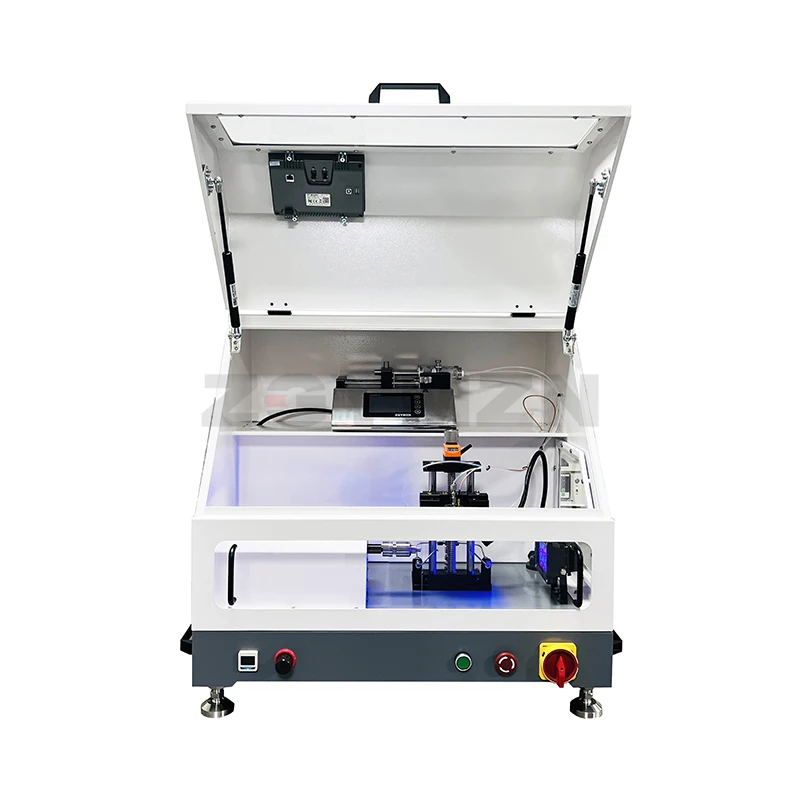

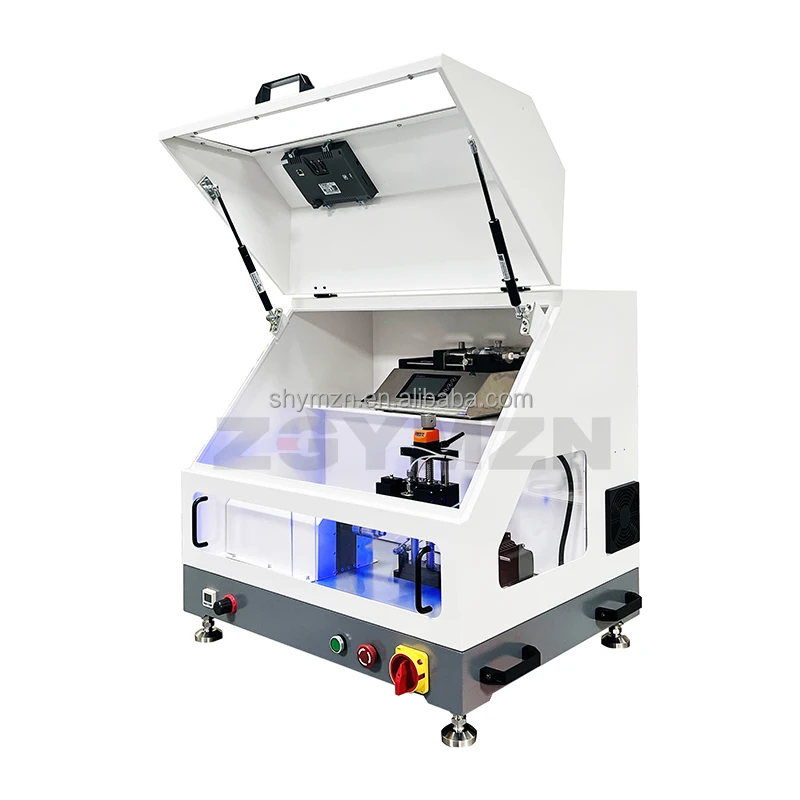

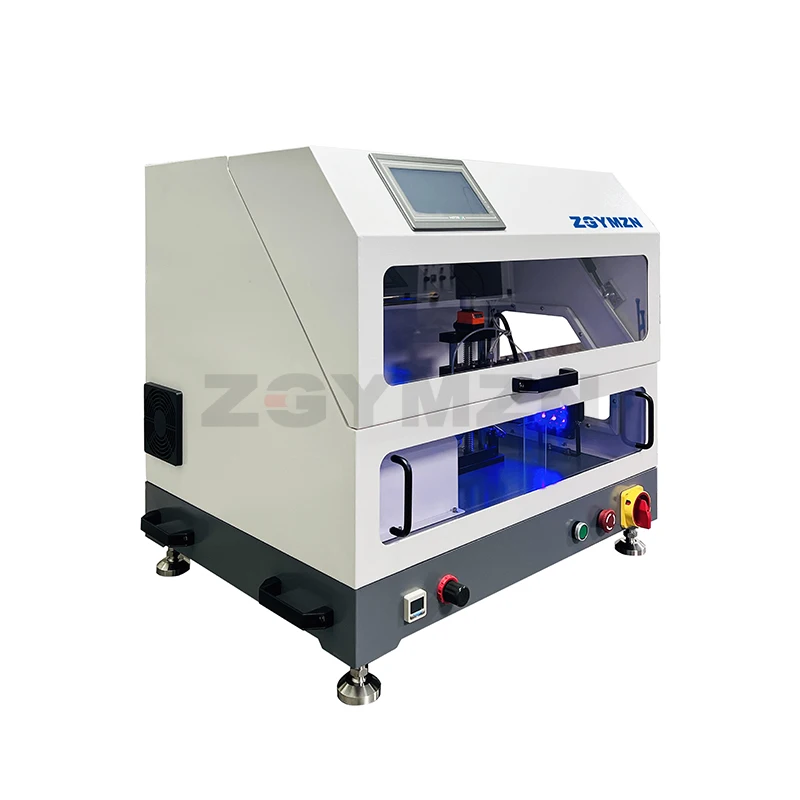

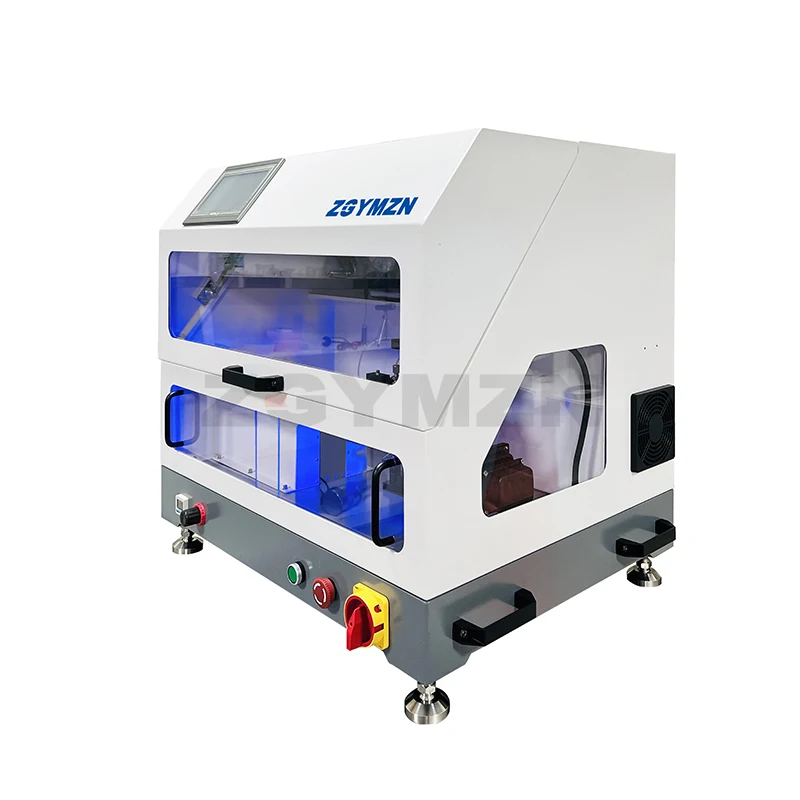

ULTRASONIC DRUG ELUTING STENT SPRAY COATING SYSTEM

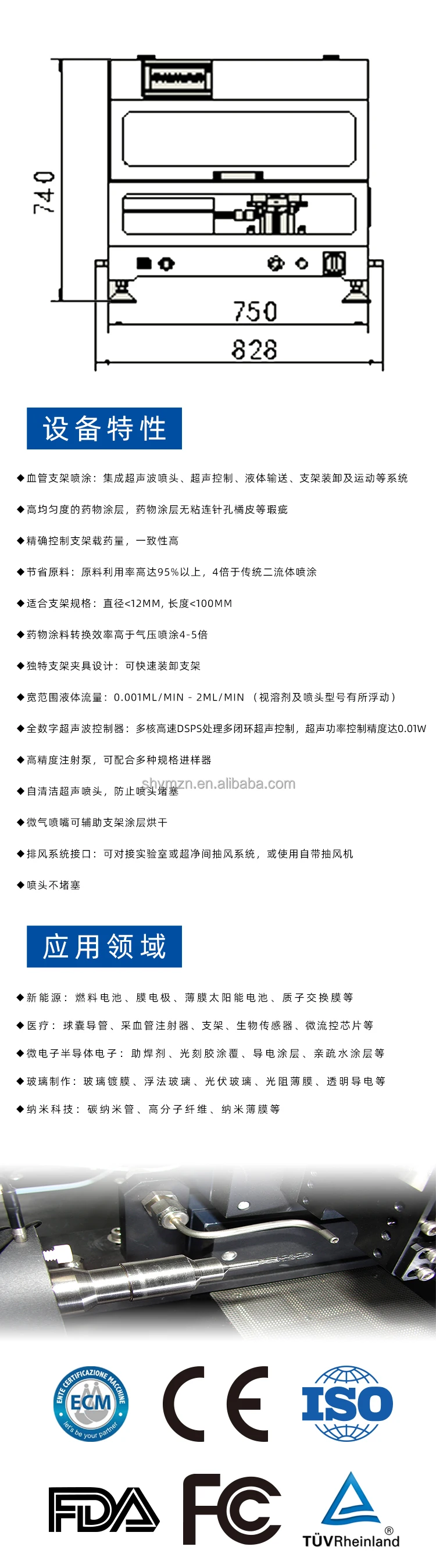

Specification


Length
750MM
Width
828MM
Height
740MM
Spray area
100MM




EQUIPMENT CHARACTERISTICS

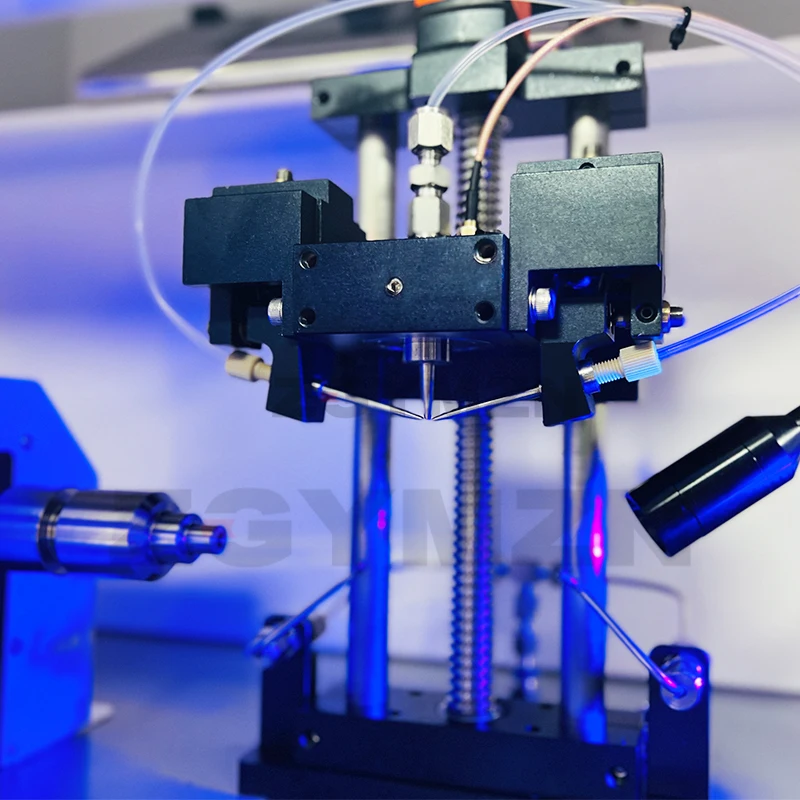

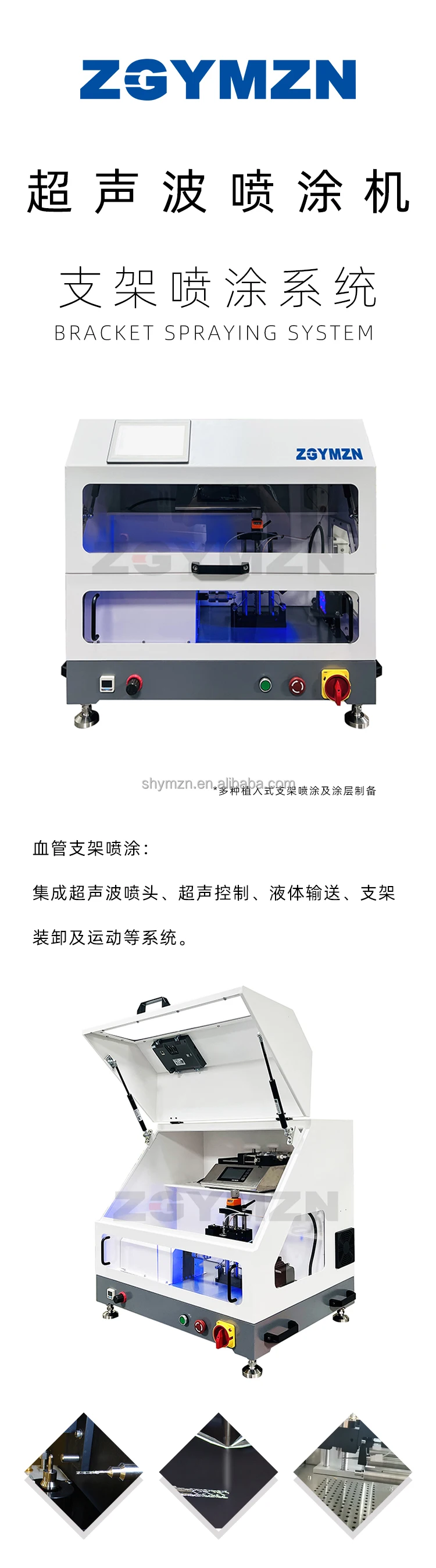

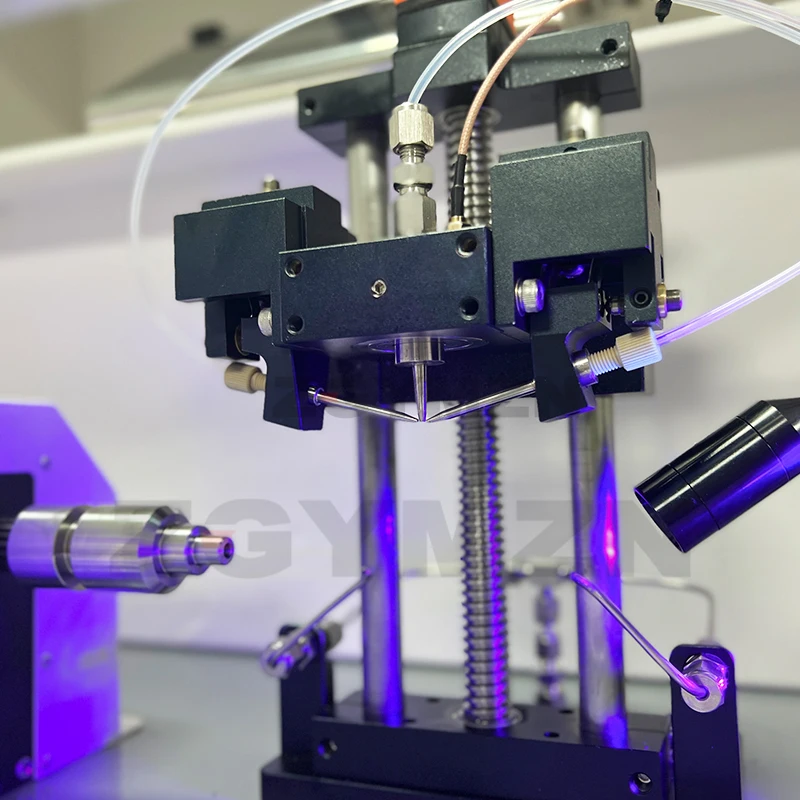

◆Stent spraying: integrated ultrasonic nozzle, ultrasonic control, liquid delivery, stent loading and unloading and movement systems.

◆High uniformity of drug coating, drug coating without defects such as adhesion, pinholes and orange peel.

◆Accurately control the drug loading of the stent with high consistency.

◆Save raw materials: the utilization rate of raw materials is over 95%, which is 4 times that of traditional two-fluid spraying.

◆Suitable bracket specification: diameter < 12MM, length < 100MM

◆The drug conversion efficiency of coating is 4-5 times higher than that of pneumatic spraying.

◆Unique bracket fixture design: the bracket can be quickly loaded and unloaded.

◆Wide range of liquid flow: 0.001ML/MIN-2ML/MIN (depending on the solvent and nozzle model, it fluctuates).

◆All-digital ultrasonic controller: multi-core high-speed DSPS processing multi-closed-loop ultrasonic control, the ultrasonic power control accuracy reaches 0.01W

◆High-precision injection pump, which can cooperate with various specifications of injector.

◆Self-cleaning ultrasonic nozzle to prevent nozzle blockage.

◆Micro-nozzle can assist the drying of bracket coating.

◆Exhaust system interface: it can be connected with the exhaust system of laboratory or ultra-clean room, or use its own exhaust fan.

◆Nozzle is not blocked


Application field:
◆ new energy: fuel cell, membrane electrode, thin film solar cell, proton exchange membrane, etc
◆ medical treatment: balloon
catheter, blood collection syringe, stent, biosensor, microfluidic chip, etc
◆ Microelectronics Semiconductor Electronics: flux, photoresist coating, conductive coating, hydrophilic and hydrophobic coating, etc
◆ glass production: glass coating, float glass,
photovoltaic glass, photoresist film, transparent conductive, etc
◆ nanotechnology: carbon nanotubes, polymer fibers, nano films, etc
