Automatic Glass Straight Line Polishing Grinding Beveling Miter Processing Edger Glass Edging Machine(BXM351P)
- Category: >>>
- Supplier: Foshan Tiangang Technology Manufacturing Co. Ltd.
Share on (1600776288366):
Product Overview
Description
Product Description
Main character:
- 3 wheels for polishing, 5 for grinding, 1 for bottom edge
- Automatic / Manual Operation
- PLC control
The glass beveling machine BXM351P is a new model machine released in 2014.
The glass beveling machine BXM351 can finish coarse grinding, fine grinding and polishing in one process. It adopts pneumatical polishing, the chamfering spindles can move forward and backward wholely, and the angles can adjust wholely. Stable stainless steel water tank can offer the best waterproof purpose.
The glass beveling machine use chain conveyor and updated pressing plates to stabilize the quality of glass or mirror in different size and thickness.
The feeding speed of glass can be adjusted with the operation by means of the mechanical step-less transmission.

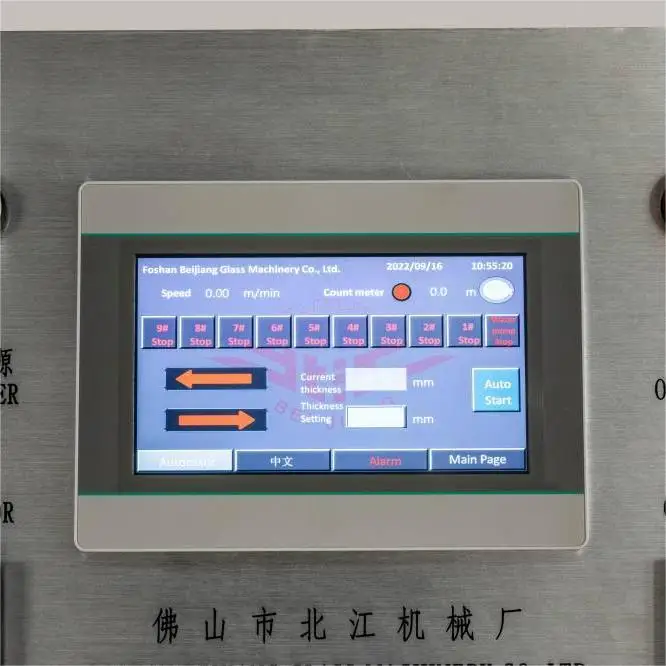

HMI(human machine interface) screen control makes it easier to operate. The graphic and data can be set on the screen, with automatic or manual adjusting for processing the glass/mirror bevel edge with round-bottom edge.
Main Specification
The glass beveling machine use chain conveyor and updated pressing plates to stabilize the quality of glass or mirror in different size and thickness.
The feeding speed of glass can be adjusted with the operation by means of the mechanical step-less transmission.
HMI(human machine interface) screen control makes it easier to operate. The graphic and data can be set on the screen, with automatic or manual adjusting for processing the glass/mirror bevel edge with round-bottom edge.
Main Specification
| Item | specification |
| Voltage/Frequency | 380V/220V/415V, 50Hz/60Hz |
| Working Speed | 0.5-7.2(m/min) |
| Min. Glass | 40*40(mm) (angle≥8°) |
| Max. Glass | 3000×3000(mm) |
| Thickness | 3-20(mm) |
| Bevel Angle | 3°- 20° |
| Bevel width | 0-40(mm) |
| Total Power | 23.75kw |
| Weight | 4410kg |
| Height of worktable | 850mm |
| Dimension | 7900×1200×2600(mm) |

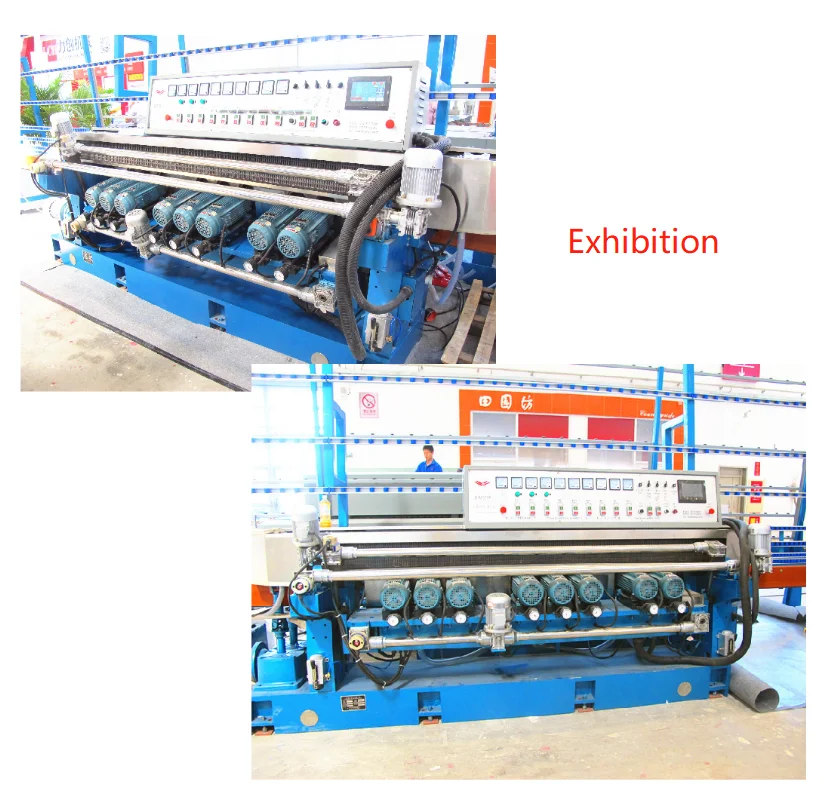

Product Overviews

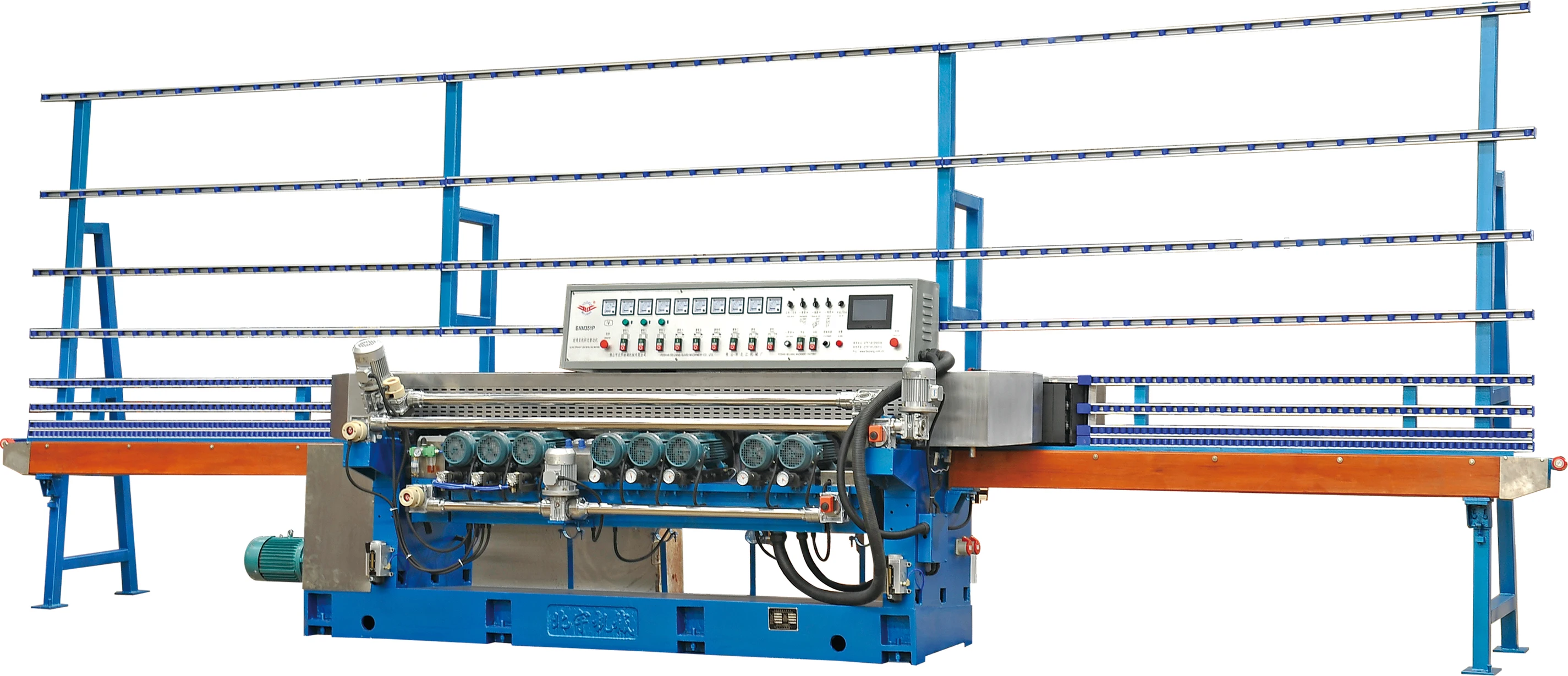

Glass Straight Line Beveling Machine
BXM351P

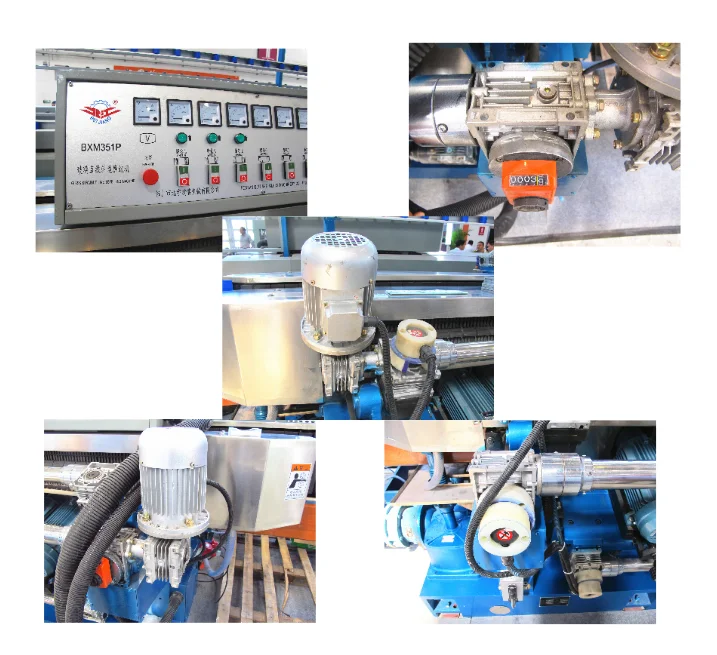

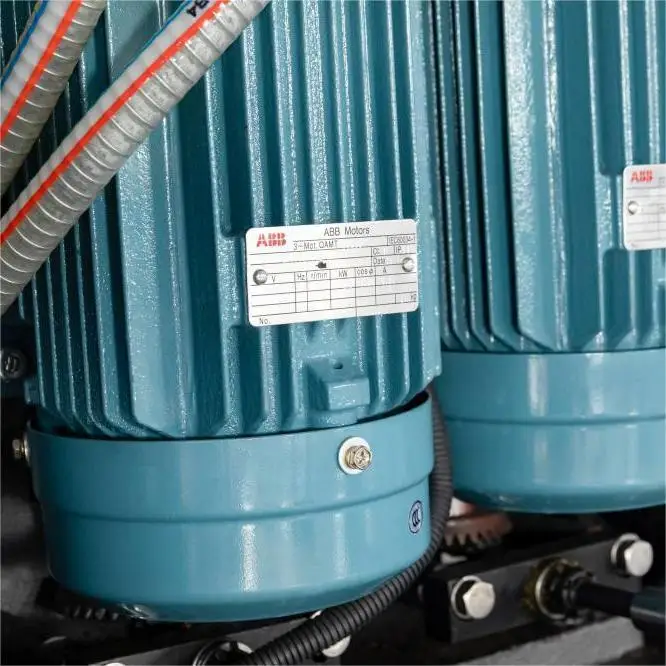

Detailed Images

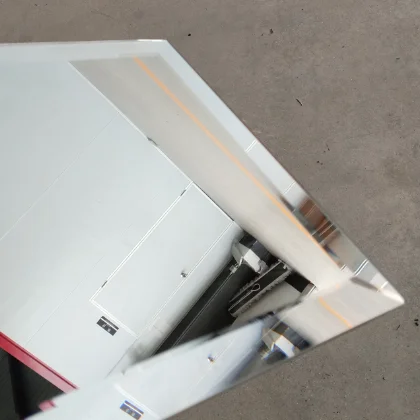

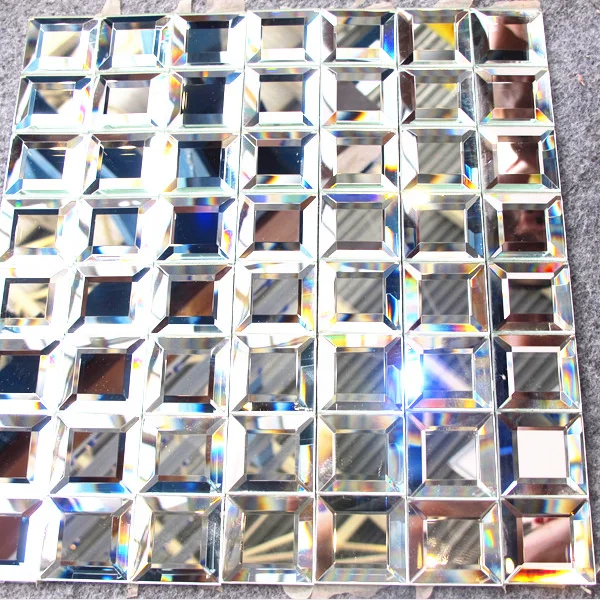

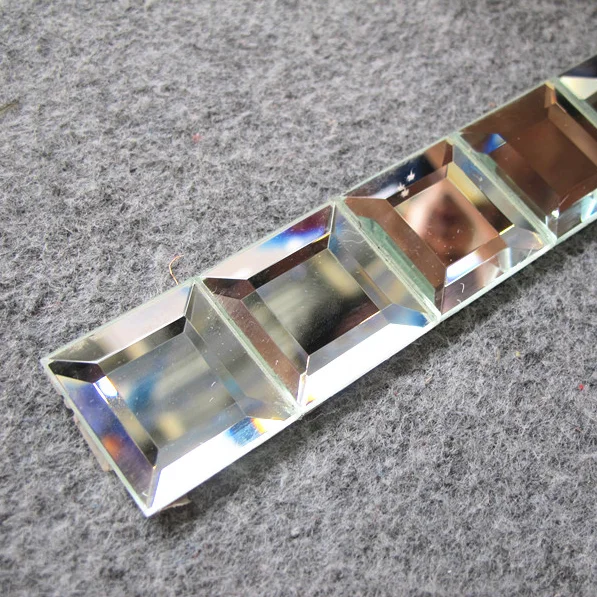

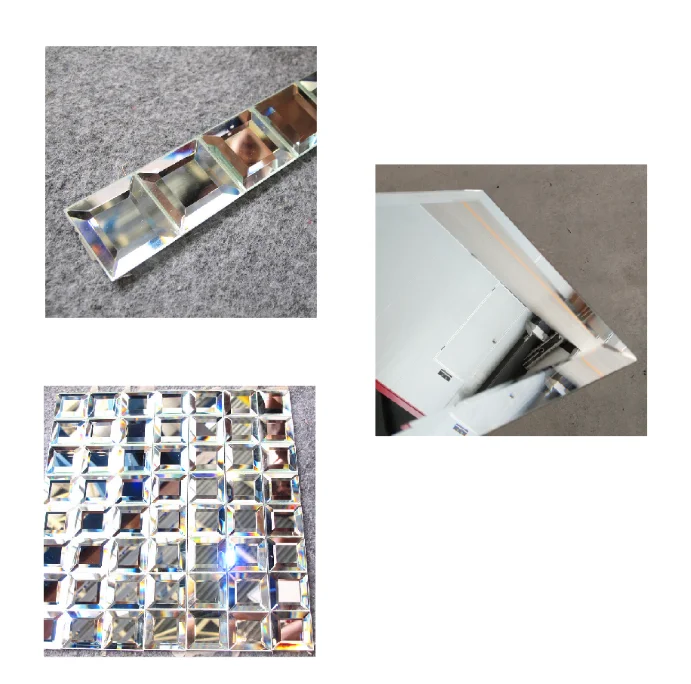

Glass finish edging
Packaging & Shipping
Package: exporting wooden case. 1. Body-1pcs 2. Parts- 1 pcs.
Packing size: Packing size: 3900*1250*1850mm , 2700*1100*350mm each 1pcs
-Warranty: 6 month + spare parts ( wheels, polishing power, screw ect.)
- Payment: 30% deposit before porduce and 70% deposit before shipment.
Certifications
Company Information
Our company Foshan Rigang Industrial Co., Ltd. formerly known as Foshan Beijiang Glass Machinery Co., Ltd. has worked on glass edging machines for over 30 years, covering an area of 50 acres. BEIJIANG is our own brand.
The proportion of middle and senior technical personnel in our company is 30%. With strict inspection systems and scientific adjustment methods to control the quality in the manufacturing process, products are sold all over the country and the world. And our company is one of the earliest glass machinery manufacturers in China. Also, Our company is one of the best high-tech enterprises in China.
Our Services
FAQ
Q1: I knew nothing about this machine, what kind of machine I should choose?
Very easy to choose. Just tell us what you want to do by using Glass Machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send you videos. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during the warranty period, what should I do?
We will supply free parts during the machine warranty period if the machine has some problems. While we also supply free lifelong after-sales service. So any doubts, just let us know, we will give you solutions.
