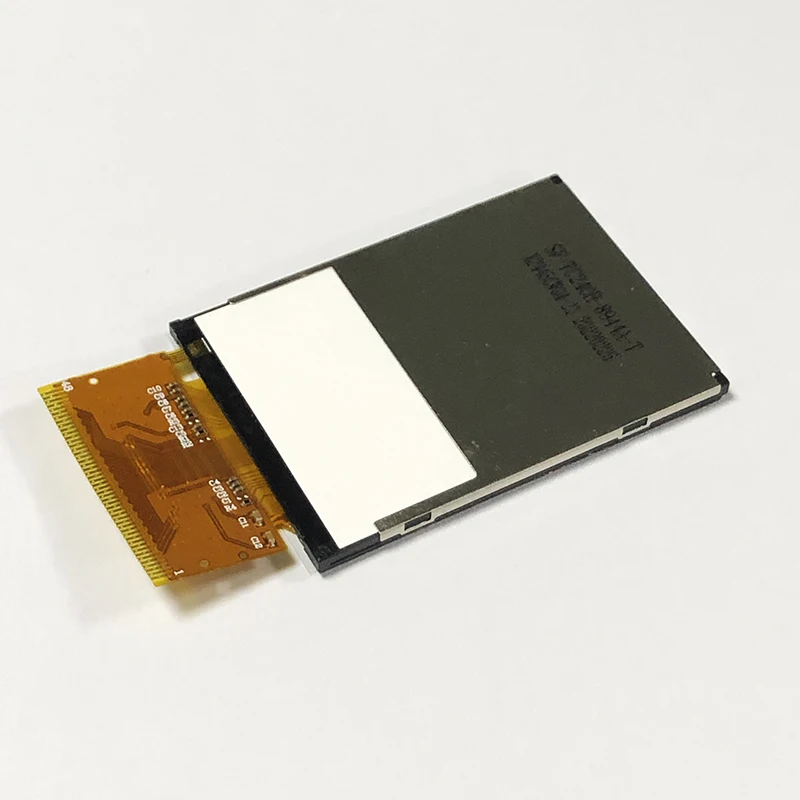

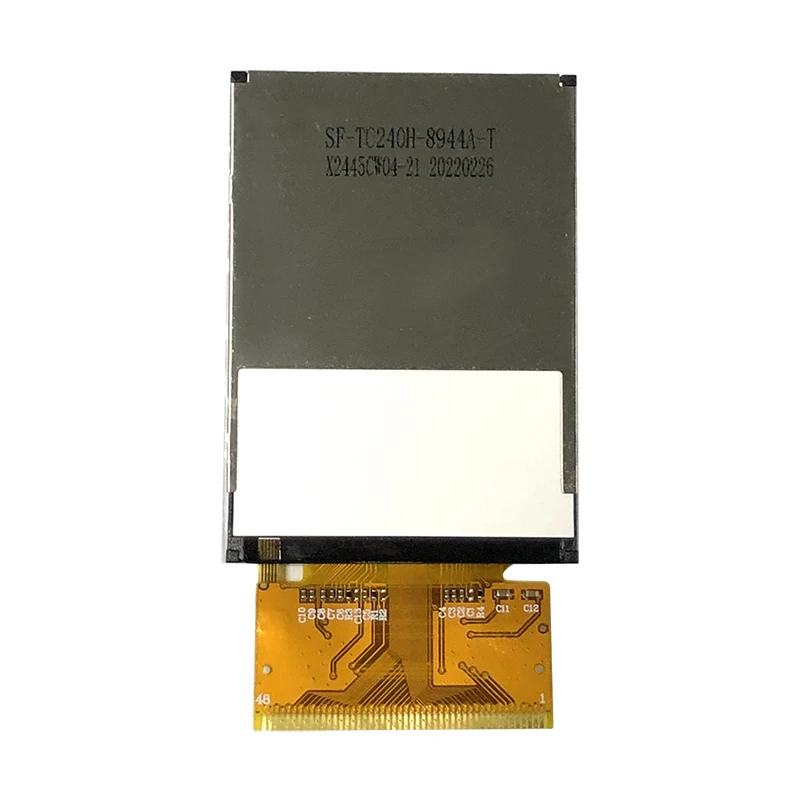

2.4 inch qvga 240x320 tft lcd ili9341 MPU/RGB interface with lcd touch screen
- Category: >>>
- Supplier: Shenzhen Saef Technology Ltd.
Share on (1600776702014):
Product Overview
Description
Product Description
Display Type | 2.4 inch TFT lcd display | Display mode | Transmissive |
Resolution | 240x320 | Driver IC | ILI9341 |

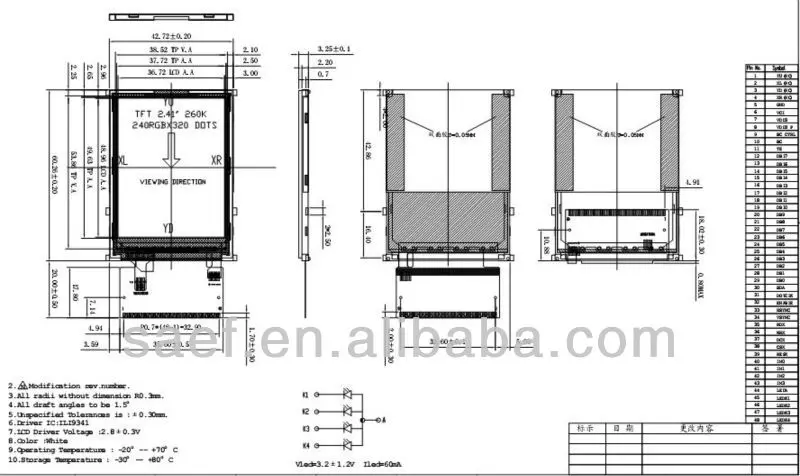

Outline Dimensions | 42.72*60.26*3.4 mm | Luminous Intensity for LCM | 180Cd/m2 |
Interface Type | MPU8/16/9/18bit/RGB | Backlight | White LED |
Operating voltage | +2.6V~3.3V | Viewing Angle | 12 O'clock |
Operating Temp | -10°C~+60°C | Storage Temp | -20°C~+70°C |
Supply Voltage | 3.0~3.4V | Supply Current | 60mA |
Uniformity for LCM | 80% | Power dissipation | 288mW |

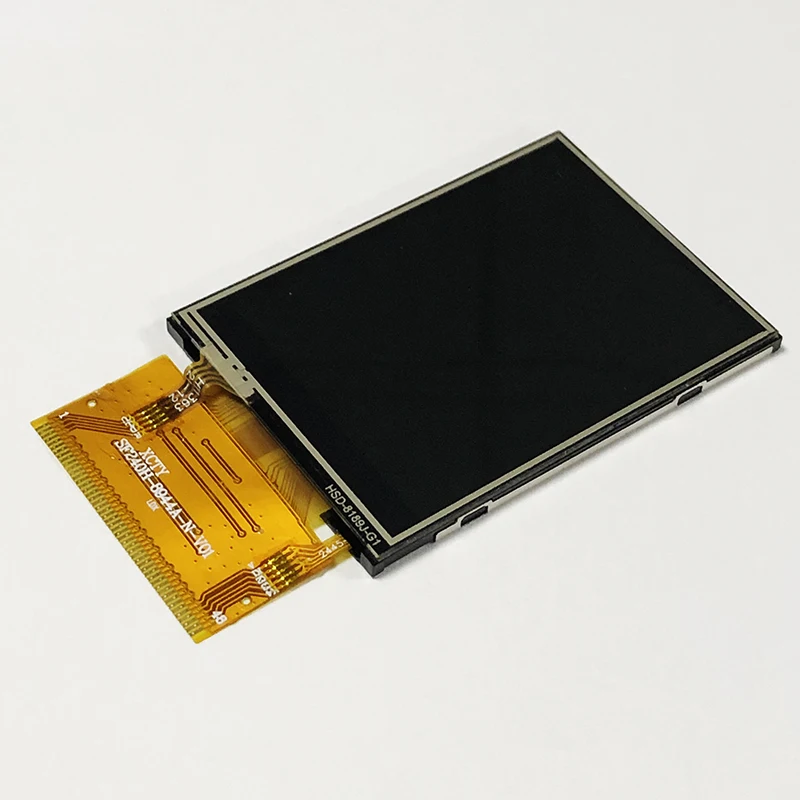

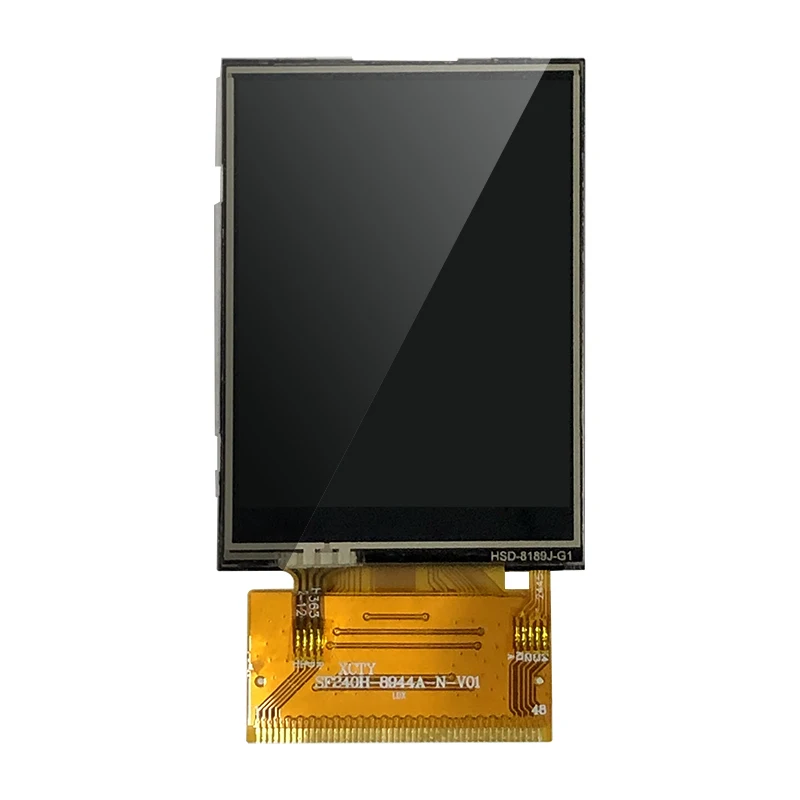

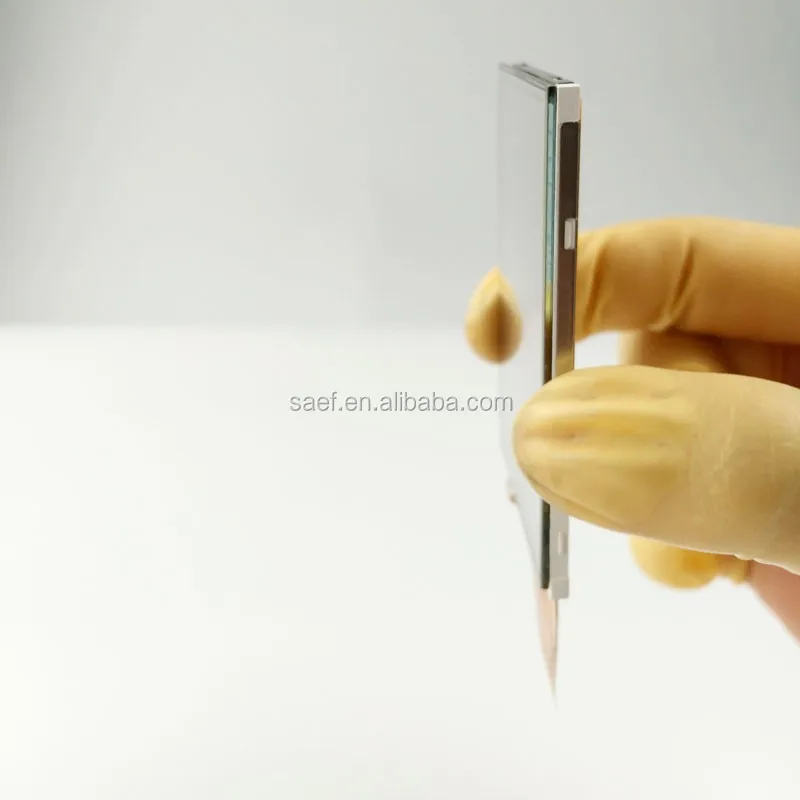

Detailed Images
Applications
Company Strength
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time
Our Client
About Us
For SAEF Technoloy Ltd ,Found in 2007, SAEF TECH is an experienced LCD/LCM manufacturer. With good quality, professional service, and competitive price, we have been qualified by many wellknown companies around the world. Our strategic customers include LG in Korea(white goods & remote controller), Uniden in Japan(scanner), Cisco in USA(conference phone), Jabil in UK(industrial meter & instrument), Vtech in HK(IP phone in conference room), Ametek in Germany(bulldozer dash board), AML in USA(banking system), Spectrum mfg in Canada(meter), etc.
