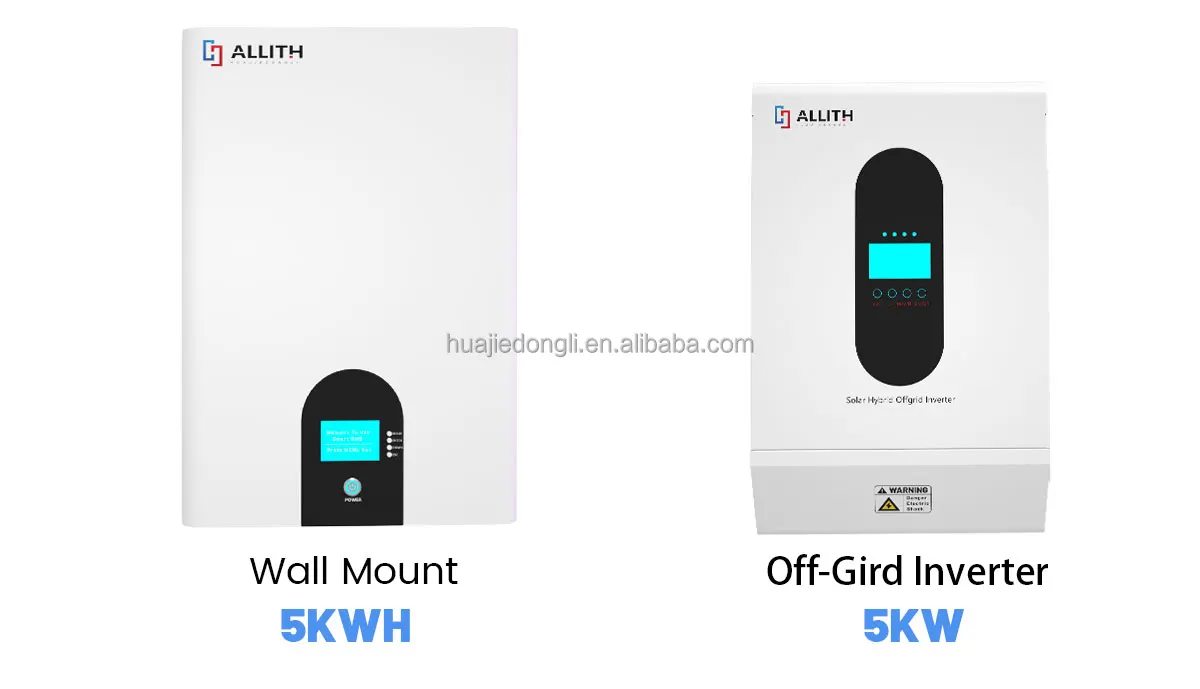

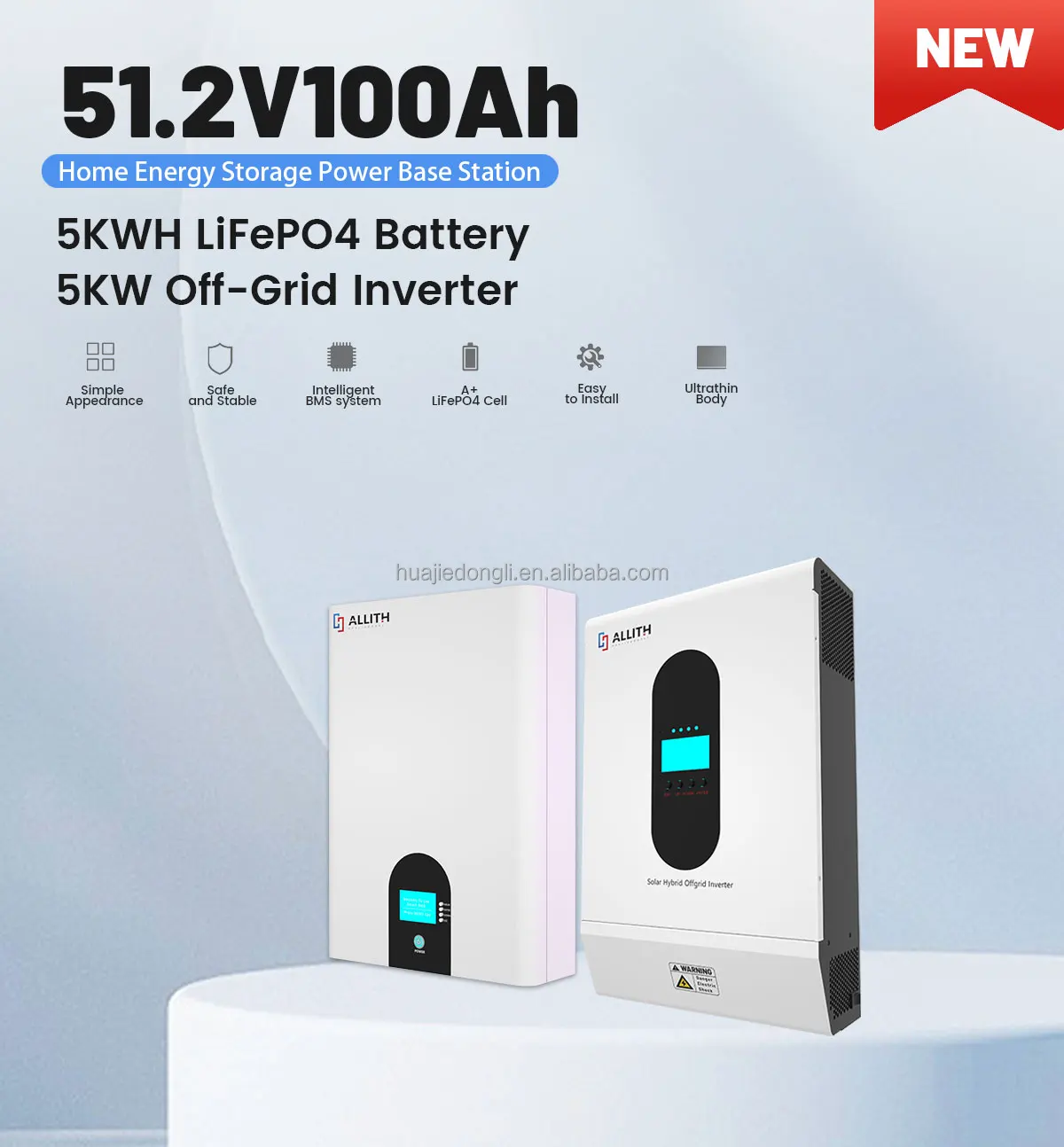

Powerwall 5Kwh 10Kwh power wall 51.2v 48V 100Ah LiFePO4 Lithium Ion Battery Pack solar home energy storage battery
- Category: >>>
- Supplier: Dongguan Huajiedongli Technology Co. Ltd.
Share on (1600776915073):
Product Overview
Description
Product Paramenters
Model number | HJ-PW-512100 |
Type of Battery | Lithium Iron Phosphate |
Warranty/Cycle Life | Warranty 10 Years/6000 Cycle Time |
Charging | CC/CV |
Standard Voltage | 51.2V |
Standard capacity | 100Ah |
Display | Voltage display |
Battery assembly method | 16S1P |
Charging cut-off voltage | 58.4V |
Discharge cut-off voltage | 43.2V |
Maximum continuous charging current | 100A |
Maximum continuous discharging current | 100A |
Net weight of battery pack | 46Kgs |
Size | 602*413*153 mm(L*D*H） |

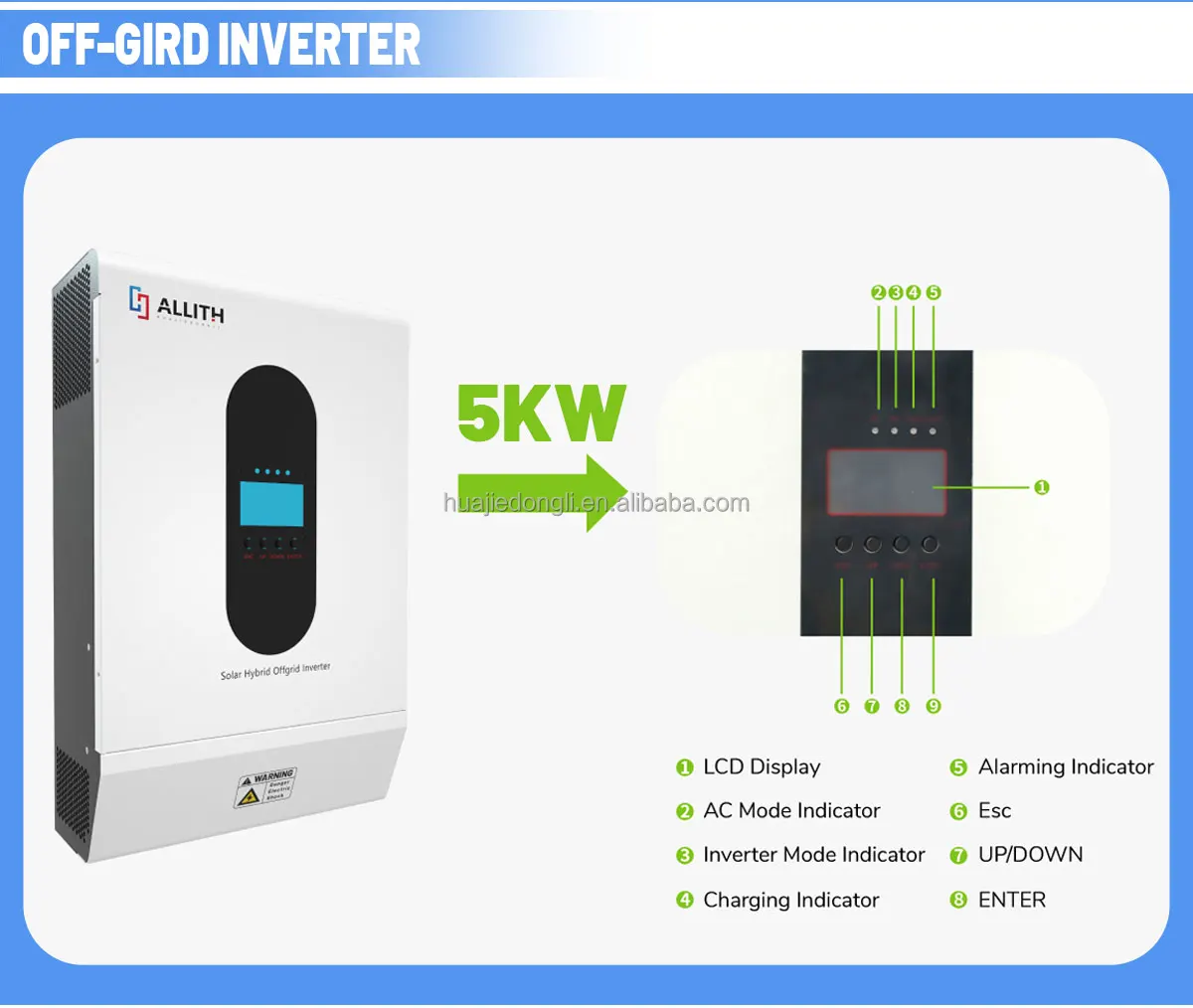

Model Number | OH-5000TH-48 |
Type of battery | Lithium/Lead-acid |
Battery Rating voltage | 48VDC |
PV max input power | 5500W |
PV rating output power | 5000W |
PV Max Voc | 500VDC |
PV max charging current | 0-80A(To be set) |
MPPT voltage range | 120-430VDC |
MPPT tracker | 1 |
AC Rating input votage | 220VAC |
AC Rating input current | 22.7A |
AC Rating output power | 5000W |
AC Rating outputvoltage | 220VAC(208/220/230/240 Vac |
Summt efficiency | >93% |
Products Description

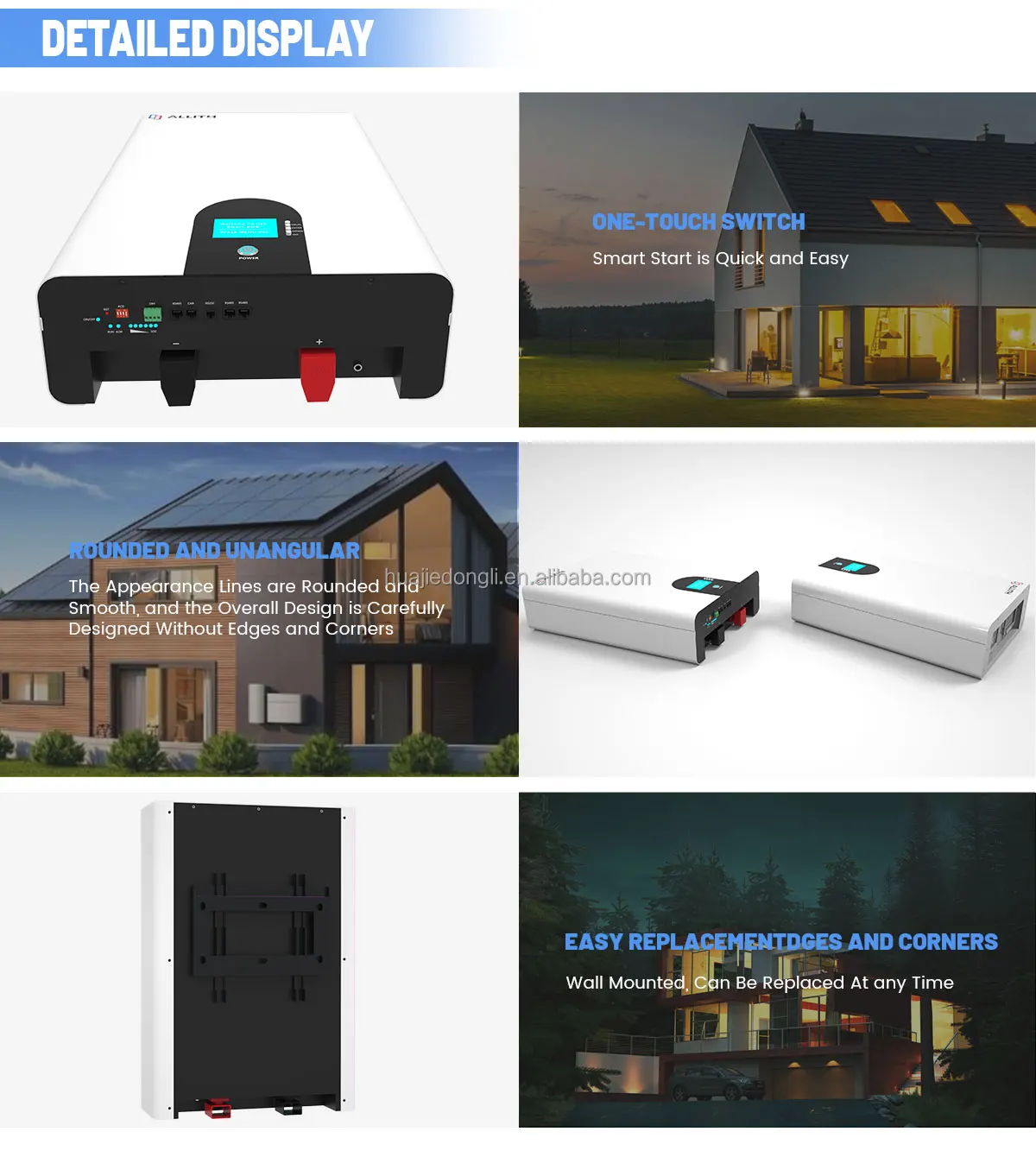

ALLITH Offers wallmount lithium (LFP) battery modules in a manner to save space while being elegant and stylish.
Modules are available in 5.12KWh, 10.24KWh, 15.36KWh models Up to 32 Battery modules can be placed in parallel to reach the desired energy storage capacity.
These battery modules can only be used for 48Vdc applications and cannot be placed in series.

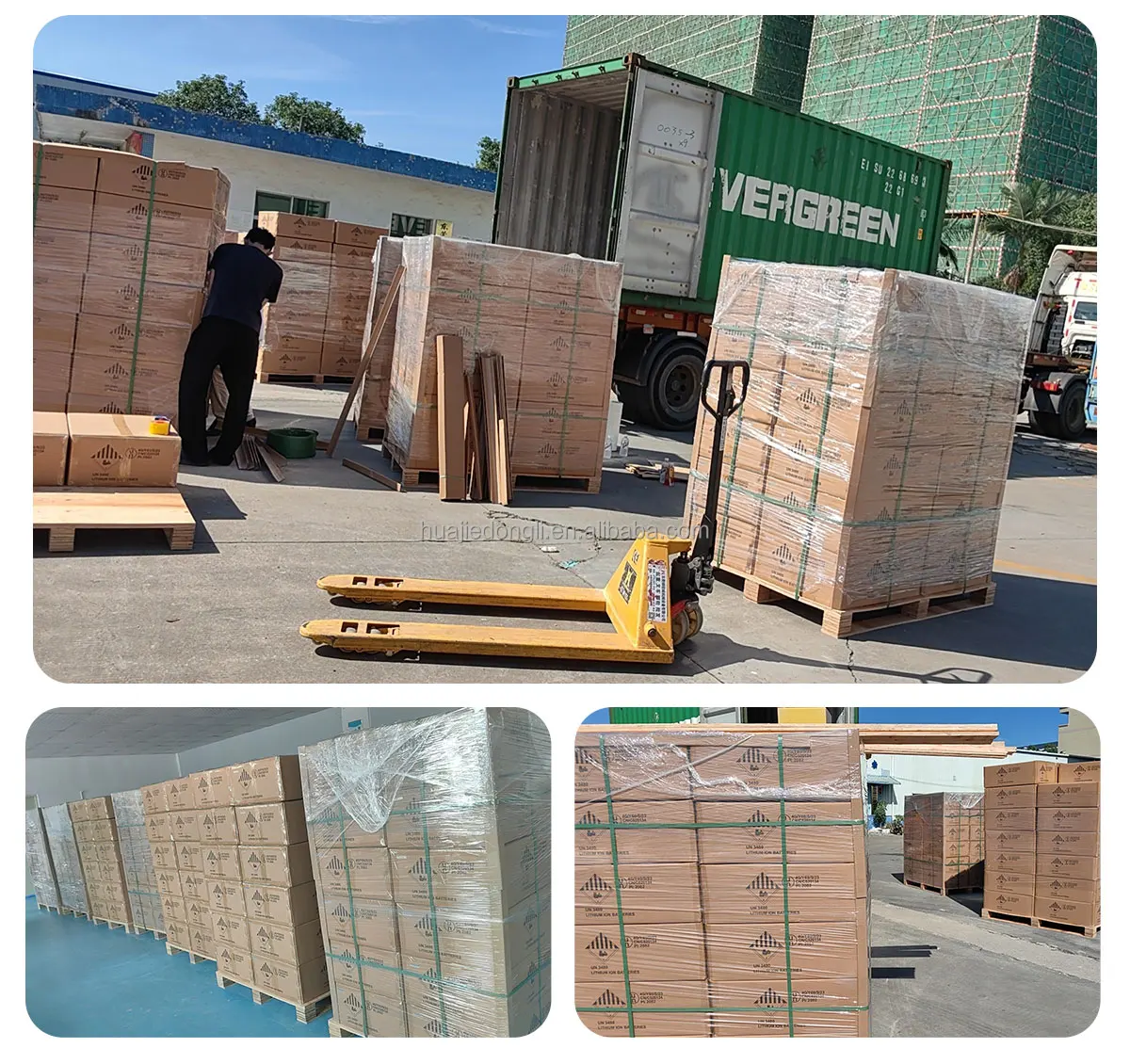

Packing & Delivery
