Spray Dryer for Chinese Traditional Medicine Extract rotary atomizer
- Category: >>>
- Supplier: Changzhou,Pengdong,Drying,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Rotary Atomizer Spray Dryer Description
LPG Rotary atomizer spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.

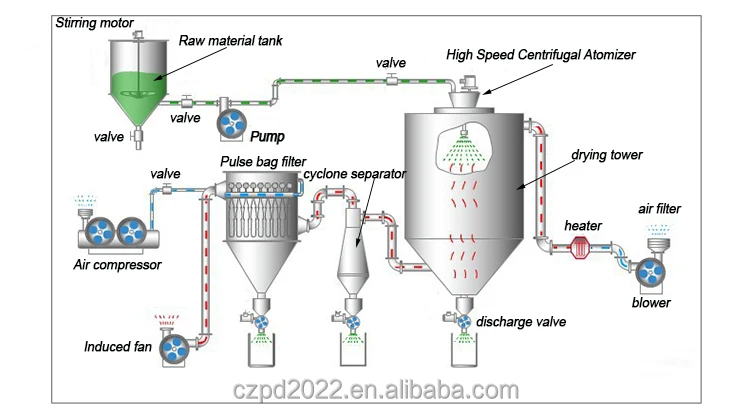

Rotary Atomizer Type Spray Dryer Working Principle
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
Product Display

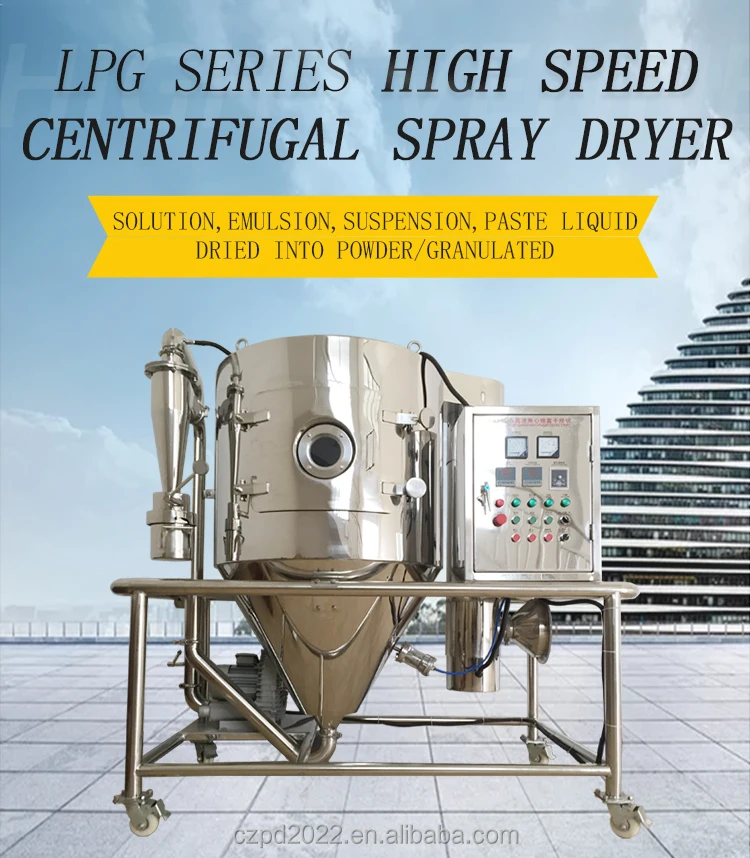

LPG-5 High speed centrifugal Spray Dryer
Water evaporation: 5kg/h
Material: SUS304
Discharge method:cyclone separator discharge
Button+frequency conversion speed control
A small integrated model suitable for laboratory and trial production
Material: SUS304
Discharge method:cyclone separator discharge
Button+frequency conversion speed control
A small integrated model suitable for laboratory and trial production
LPG-25 High speed centrifugal Spray Dryer
Water evaporation: 25kg/h
Material: 304 stainless steel
Collecting method: double cyclone and water film dust removal
Heating mode: Electric heaters
Material: 304 stainless steel
Collecting method: double cyclone and water film dust removal
Heating mode: Electric heaters
LPG-50 High speed centrifugal Spray Dryer
Water evaporation capacity: 50kg/h
Material: 316L(contact part of material)
Receiving method:double cyclone cloth bag dust removal
Heating method:steam electrothermal compensation heating
Material: 316L(contact part of material)
Receiving method:double cyclone cloth bag dust removal
Heating method:steam electrothermal compensation heating
LPG-100 High speed centrifugal Spray Dryer
Water evaporation capacity: 100kg/h
Material: 304 stainless steel
Receiving mode: cold air centralized receiving
Heating method: heat exchange type gas hot blast furnace heating
Material: 304 stainless steel
Receiving mode: cold air centralized receiving
Heating method: heat exchange type gas hot blast furnace heating
LPG-200 High speed centrifugal Spray Dryer
Water evaporation capacity: 200kg/h
Material: Contact 304 stainless steel
Receiving mode: cold air centralized receiving
Heating mode:direct fired hot blast furnace heating
Material: Contact 304 stainless steel
Receiving mode: cold air centralized receiving
Heating mode:direct fired hot blast furnace heating
LPG-300 High speed centrifugal Spray Dryer
Water evaporation capacity: 200kg/h
Material: 304 stainless steel
Receiving method: main tower+cyclone+cloth bag dust removal
Heating mode: direct fired hot blast furnace heating
Material: 304 stainless steel
Receiving method: main tower+cyclone+cloth bag dust removal
Heating mode: direct fired hot blast furnace heating

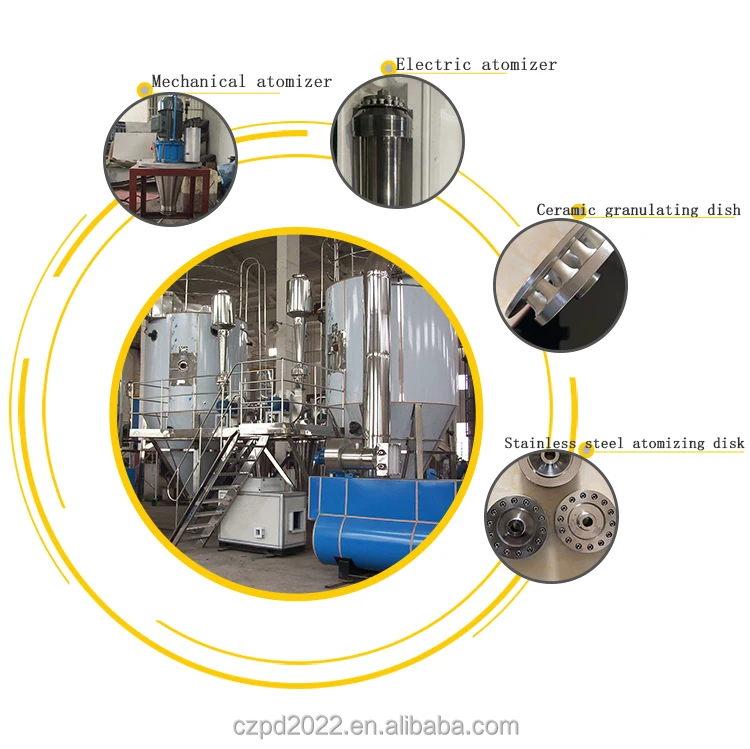

Details Images
Product Paramenters
Model | 5 | 25 | 50 | 100 | 150 | 200-5000 | |||||
Inlet air temperature | ≤ 350°C | ||||||||||
Outlet air temperature | 80-90°C | ||||||||||
Evaporate capacity (kg/h) | 5 | 25 | 50 | 100 | 150 | 200-5000 | |||||
Atomizer type | compressed air drive | mechanical drive | |||||||||
Rotary speed | 25000 | 22000 | 21500 | 18000 | 18000 | 15000 | |||||
Diameter of atomizer disc (mm) | 50 | 120 | 120 | 120 | 150 | 180-500 | |||||
Heating source | Electricity | Electricity/LPG/Natural gas/Oil/Steam | |||||||||
Electric-heating power (kw) | 9 | - | - | - | - | - | |||||
Dry powder yield (%) | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | |||||
Company Profile
Manufacturing Technique

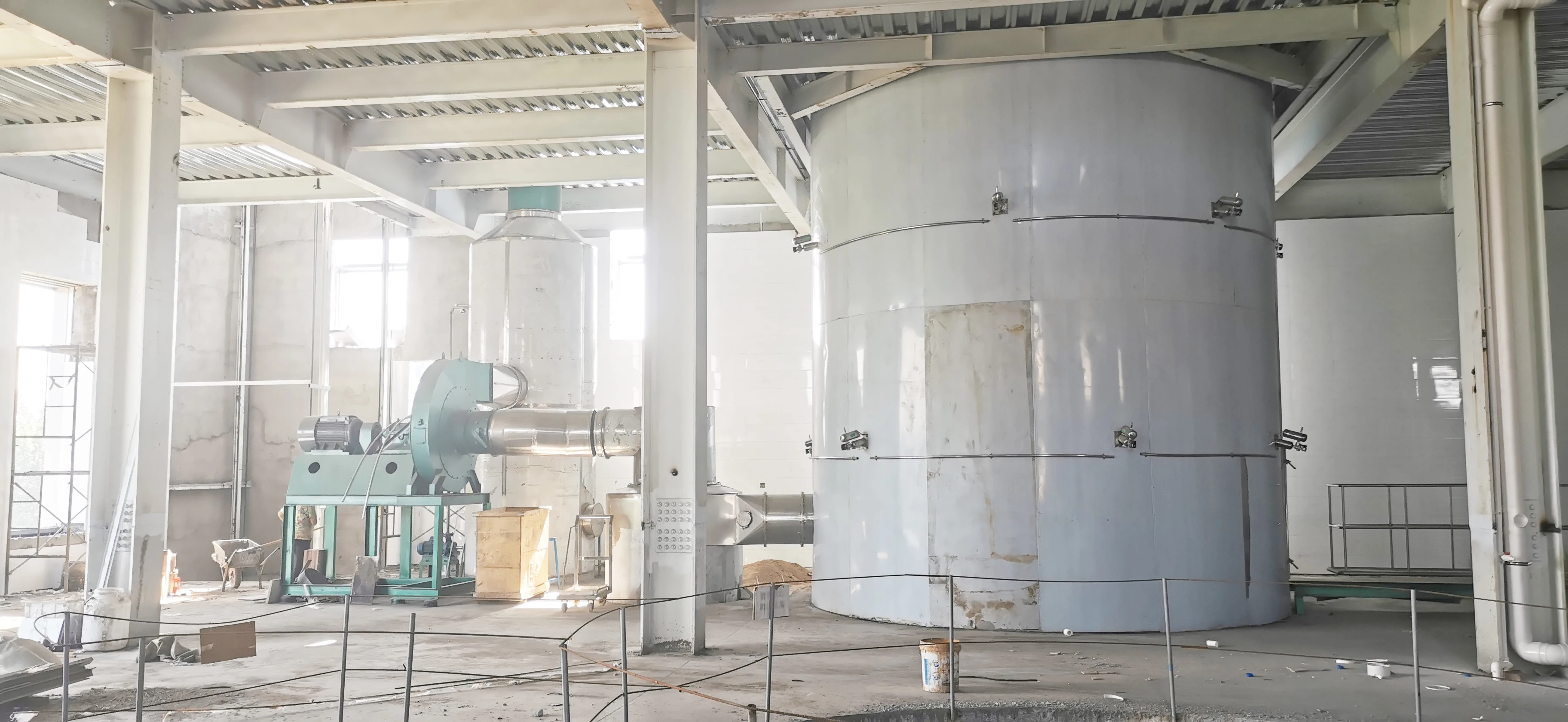

Customer Photos
FAQ
Special Notice:
In order to quota you the right spray dryer, we would like to get the following information include in your inquiry:
-What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
-What is the capacity per hour you need (kg/h)?
-What is the initial moisture and final moisture of finished products you require to get?
-What about the maximum heat temperature of raw material?
-What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
-Provide us your country’s electricity information, such as phases, voltage, HZ?
-How about dust collect requirements?
-Other special requirements?
-What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
-What is the capacity per hour you need (kg/h)?
-What is the initial moisture and final moisture of finished products you require to get?
-What about the maximum heat temperature of raw material?
-What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
-Provide us your country’s electricity information, such as phases, voltage, HZ?
-How about dust collect requirements?
-Other special requirements?
Frequently Asked Questions
Q: What if there is a problem with the machine?
A: 24 hours prompt response to emails and phone calls. We provide free replacement if the part damage is due to non-human factors within 12 months. If more than 12 months, the customer should bear the round-trip freight and accessories.
Q: How long is the warranty period of your equipment?
A: Our warranty period is generally one year.
Q: What's your payment term?
A: Our usual payment terms are: 30% TT in advance, 70% TT before shipment. Other methods can also be accepted after negotiation and agreement of both parties.
Q: Does your price include shipping?
A: Our usual price is based on FOB Shanghai, if you require CIF, please give us your delivery port, we will give you the CIF price.
Q: What kind of after sale service you can provide?
A: We have professional after sale service team who
can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
A: 24 hours prompt response to emails and phone calls. We provide free replacement if the part damage is due to non-human factors within 12 months. If more than 12 months, the customer should bear the round-trip freight and accessories.
Q: How long is the warranty period of your equipment?
A: Our warranty period is generally one year.
Q: What's your payment term?
A: Our usual payment terms are: 30% TT in advance, 70% TT before shipment. Other methods can also be accepted after negotiation and agreement of both parties.
Q: Does your price include shipping?
A: Our usual price is based on FOB Shanghai, if you require CIF, please give us your delivery port, we will give you the CIF price.
Q: What kind of after sale service you can provide?
A: We have professional after sale service team who
can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
