Accurate filling or delivery of the essence liquid by the magnet drive gear dosing pump
- Category: >>>
- Supplier: Suzhou Macxi Fluid Technology Co. Ltd.
Share on (1600777775085):

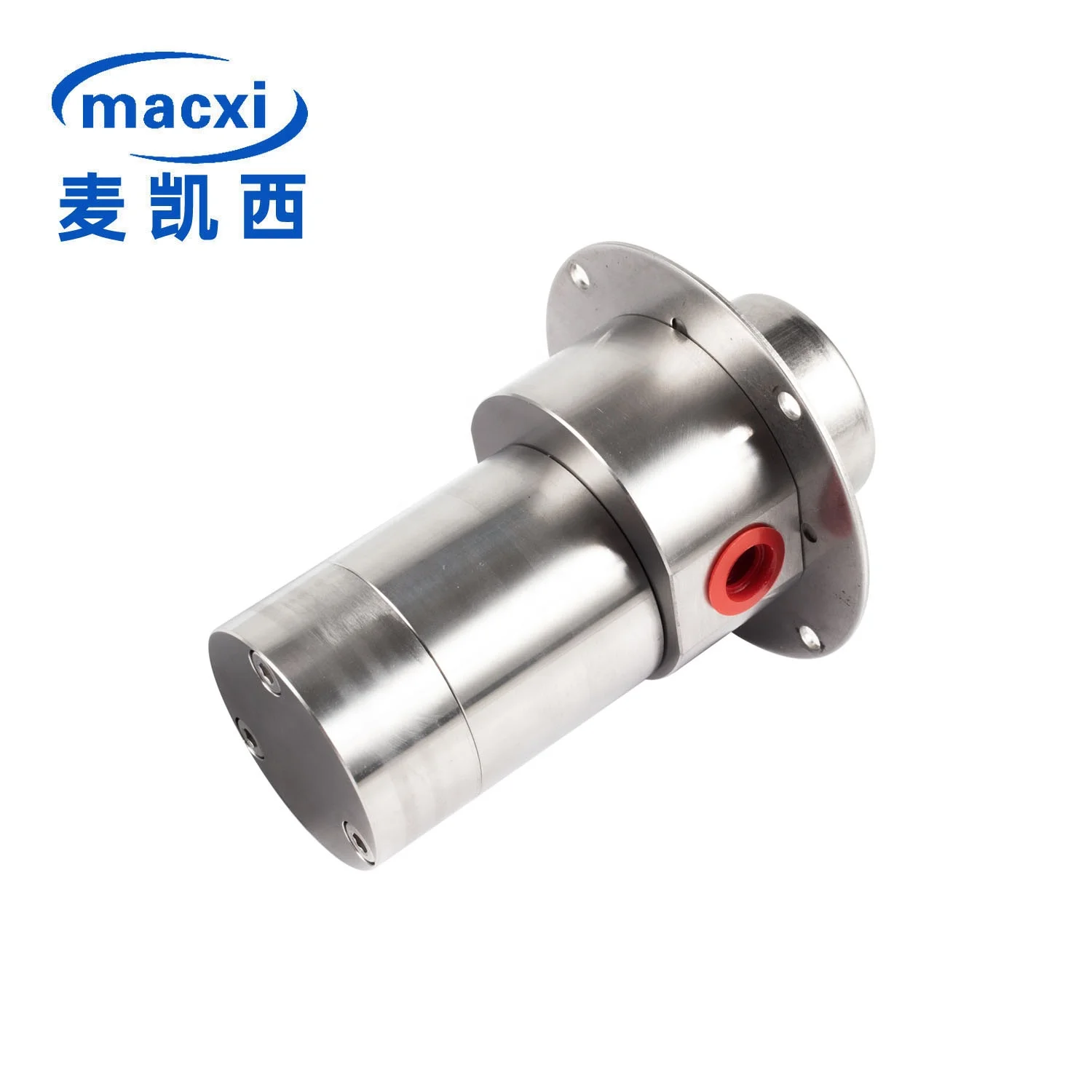

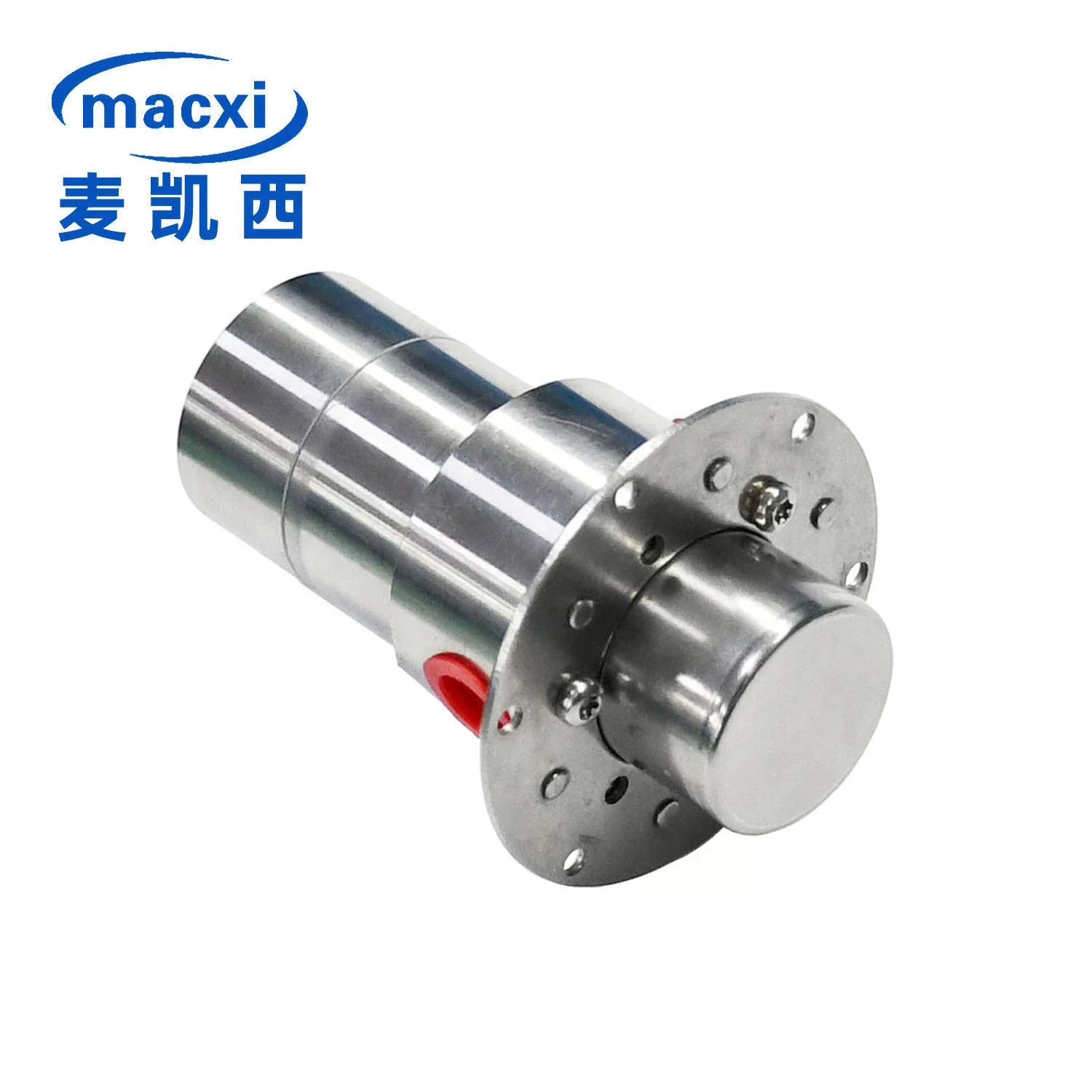

Product Overview
Description
Products Description
Products Description

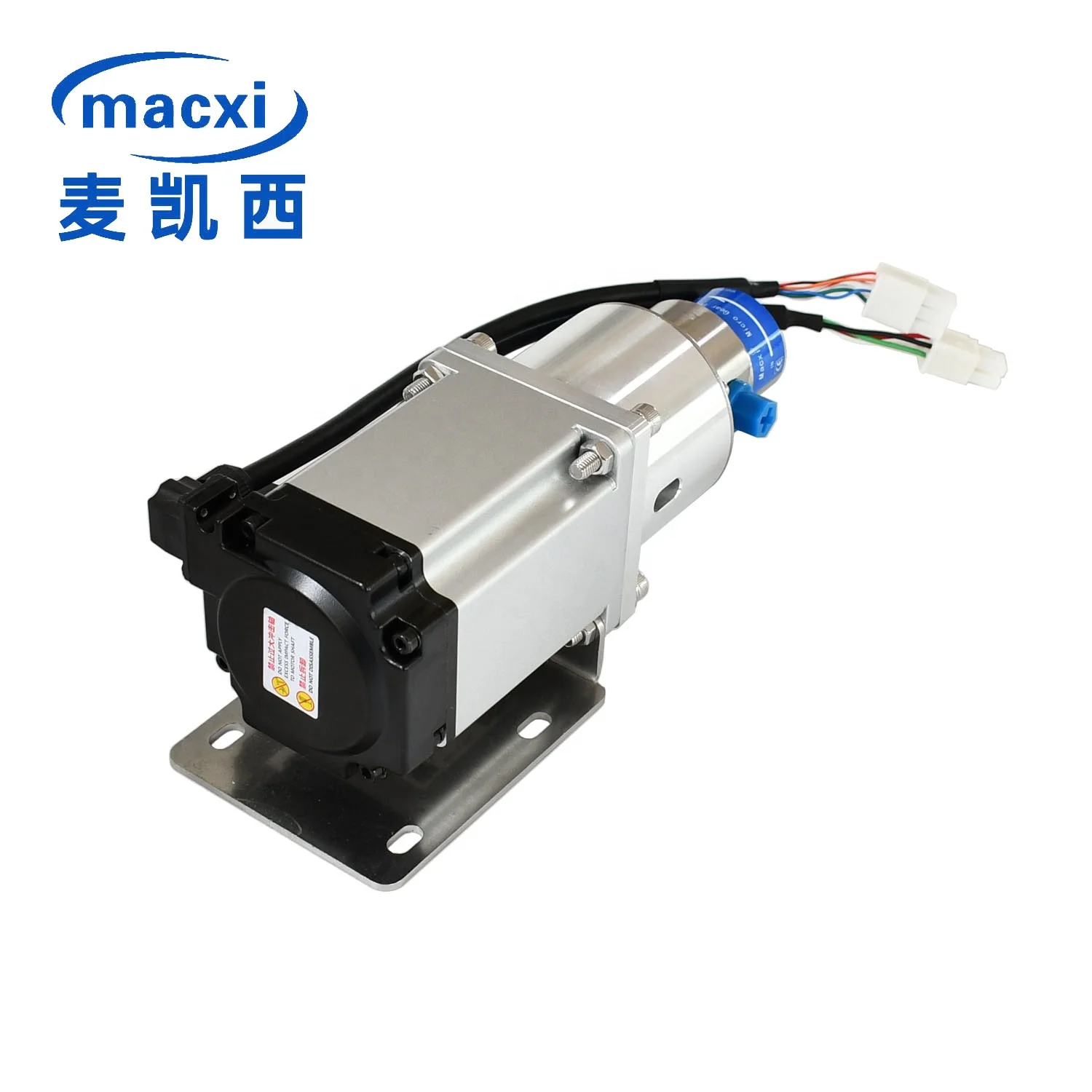

The gear pump is driven by servo motor. The closed-loop control of position, speed and torque is realized to improve the quantitative accuracy of gear pump. Good high-speed performance and stable low-speed operation can improve the gear pump's larger flow regulation range. It can withstand three times of the rated load. It is especially suitable for occasions with instantaneous load fluctuation and quick start-up. Low noise, low heat.
Attentions:
1.400 Mesh filter shall be installed at the inlet of gear pump.
2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.
Product Model
Pump Head | Motor | ||||||||
M | 0.07 | S | 57 | BL | 120W | ||||
"M"means by magnetic drive | Pump revolution,Unit:ml/rev,note 1 for details | Pump body materials,note 2 details | Pump head spec,Unit:mm,note 3 | Motor Type,Note 4 | Motor Power | ||||
Notes:
1. Pump output volume: 0.07,0.15,0.3,0.6,0.9,1.5,3.0,6.0,12.0 ,20.0,30.0,40.0,50.0(Unit:ml/rev)
2."S" means pump body material is 316L, gear and shaft sleeve are PEEK, seal with PTFE, the rest others are 316L.
"T" means pump body material is 316L, gear and shaft are Tungsten steel, shaft sleeve is PEEK, seal with PTFE, the rest others are
316L.
"P" means pump body material is PPS, gear materail and shaft sleeve are PEEK, seal with FFKM, the rest others are Hastelloy.
"H" means the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the
pump flow material is Hastelloy, the appearance and size is same as 316L pump, details product parameters refer to 316L pump head.
3. Pump head range: 57, 72, 88. Model 57 has 0.07,0.15,0.3,0.6,0.9,1.5 ml/rev;Model 72 has 1.5,3.0 ml/rev;Model 88 has
3.0,6.0,12.0 ml/rev;Model 145 has 20.0,30.0,40.0,50.0 ml/rev.
4.Motor:HS: Stepper Motor; BL: External drive DC brushless; BLa:Built-in drive DC brushless; BLb:Built-in drive DC brushless
(potentiometer)DC:Brush motor; Y:Common asynchronous motor; YB:Explosion proof asynchronous motor; SM:Servo motor YP: General
asynchronous frequency conversion YBP: Explosion proof asynchronous frequency conversion, SMP: Servo frequency conversion.
2."S" means pump body material is 316L, gear and shaft sleeve are PEEK, seal with PTFE, the rest others are 316L.
"T" means pump body material is 316L, gear and shaft are Tungsten steel, shaft sleeve is PEEK, seal with PTFE, the rest others are
316L.
"P" means pump body material is PPS, gear materail and shaft sleeve are PEEK, seal with FFKM, the rest others are Hastelloy.
"H" means the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the
pump flow material is Hastelloy, the appearance and size is same as 316L pump, details product parameters refer to 316L pump head.
3. Pump head range: 57, 72, 88. Model 57 has 0.07,0.15,0.3,0.6,0.9,1.5 ml/rev;Model 72 has 1.5,3.0 ml/rev;Model 88 has
3.0,6.0,12.0 ml/rev;Model 145 has 20.0,30.0,40.0,50.0 ml/rev.
4.Motor:HS: Stepper Motor; BL: External drive DC brushless; BLa:Built-in drive DC brushless; BLb:Built-in drive DC brushless
(potentiometer)DC:Brush motor; Y:Common asynchronous motor; YB:Explosion proof asynchronous motor; SM:Servo motor YP: General
asynchronous frequency conversion YBP: Explosion proof asynchronous frequency conversion, SMP: Servo frequency conversion.
Product Paramenters
product Model：M1.50S57SM400W
Pump Model | Motor Type | L1 (mm) | L2 (mm) | L3 (mm) | The max pressure (bar) (test medium: water) | Weight(kg) | Rated Current（A） | Imp.&Exp. Size | Rated Flow(L/H) |
M0.07S57 | SM400W | 223.1 | 92.4 | 31.2 | 2 | 2.38 | 2.6 | G1/8 | 12.6 |
M0.15S57 | 225.4 | 94.7 | 33.5 | 5 | 2.38 | 27 | |||
M0.30S57 | 225.4 | 94.7 | 33.5 | 6 | 2.38 | 54 | |||
M0.60S57 | 229.6 | 98.9 | 37.7 | 2.39 | 108 | ||||
M0.90S57 | 233.8 | 103.1 | 41.9 | 2.41 | 162 | ||||
M1.50S57 | 242.8 | 112.1 | 50.9 | 6 | 2.44 | G1/4 | 270 |
Pump Head Parameters | Motor Paramerers | ||||
Fluid Viscosity | 0.2~1500cps | Rated Power | 220V | ||
Ambient Temperature | -40℃-110℃(If the temperature of the conveying medium is over 70 °C, please make a special request.) | Rated torque | 1.27Nm | ||
Static Sealing | PTFE | Rated Power | 400W | ||
Pump Body | 304 / 316L | ||||
Gear | Gear PEEK, gear shaft 304 / 316L | ||||
The values in this table are for reference only.
Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

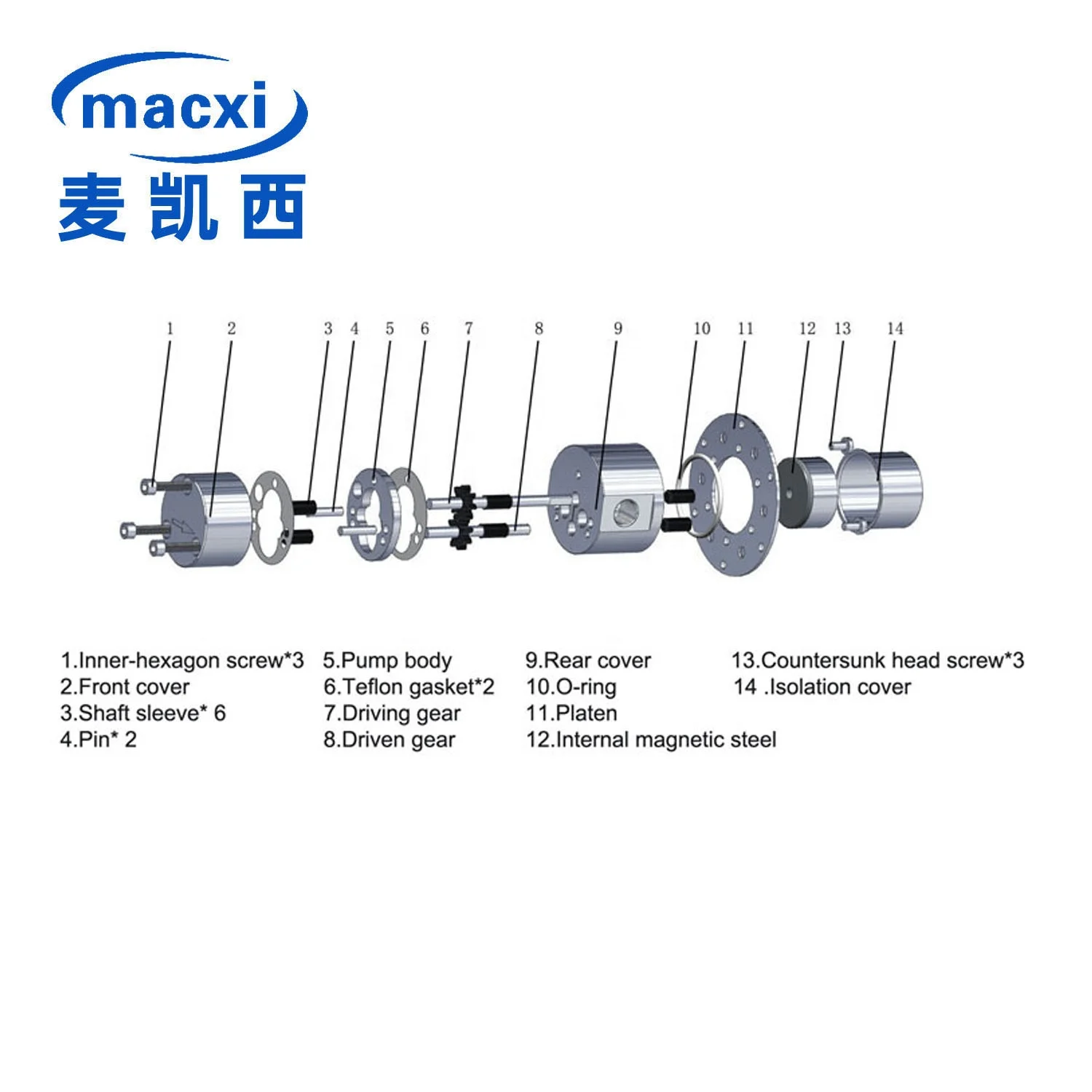

1.Inner-hexagon screw*3
2.Front cover
3.Shaft sleeve*6
4.Pin*2
5.Pump body
6.Teflon gasket*2
7.Driving gear
8.Driven gear
9.Rear cover
10.O-ring
11.Platen
12.Internal magnetic steel
13.Countersunk head screw*3
14.Isolation cover
Product Advantages
No pulse, high precision.

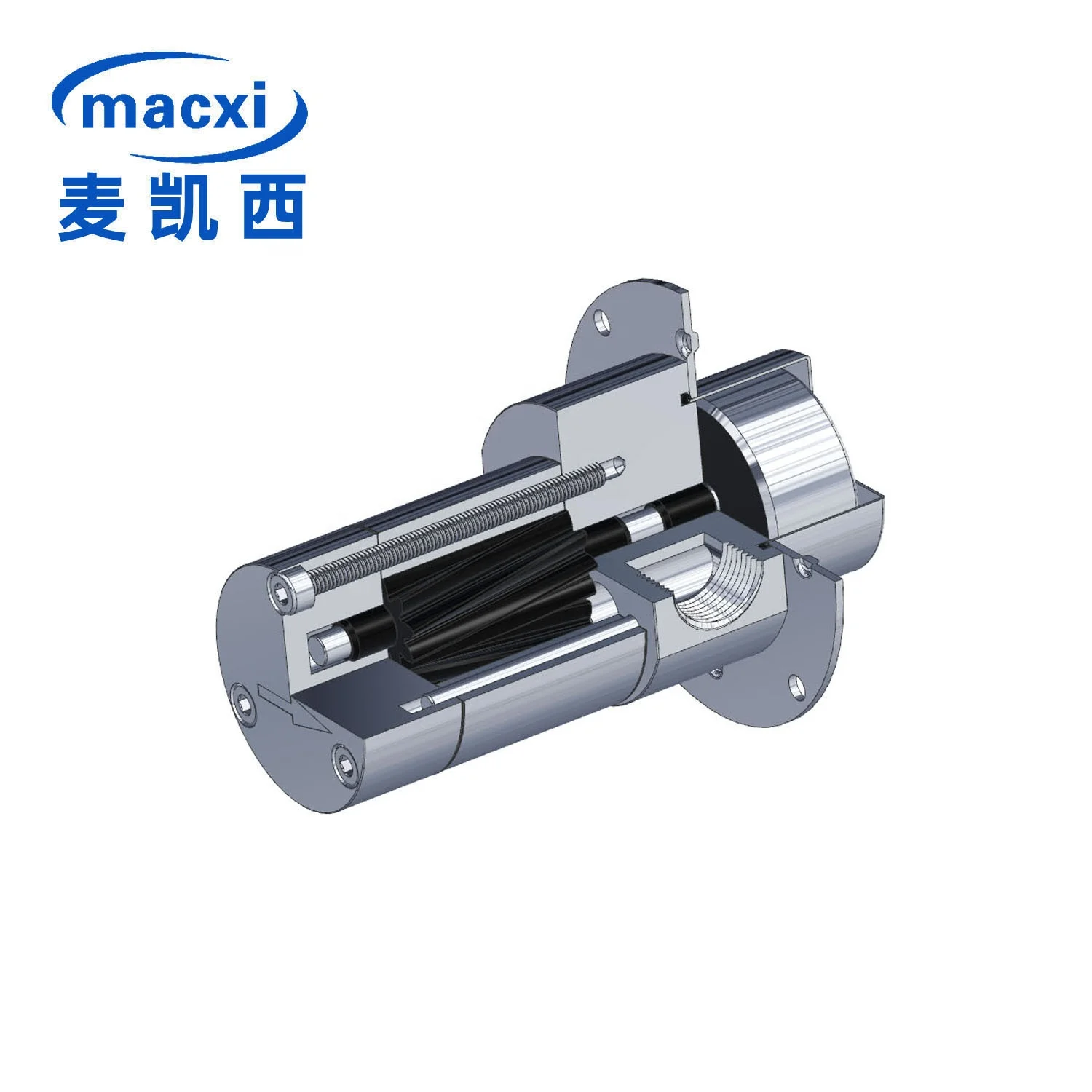

the external gear design makes the pump flow relatively unaffected by the system pressure,and the flow output has no pulsation, which can accurately measure the flow, and has strong repeatability.
Stable transmission.
Gear transmission can ensure constant instantaneous transmission ratio.
Zero leakage.
no packing seal or mechanical seal, no wearing parts, using magnetic drive, static seal,truly achieve zero leakage
Corrosion resistance.
304 / 316L, Hastelloy and engineering plastics can be selected as pump body materials,which can be used in most chemical media.
Efficient and convenient, long service life
adopt the way of motor direct drive, reduce the vulnerable parts. High efficiency and energy saving, simple maintenance, low installation cost, long service life.
Applicability.
suitable for high differential pressure, high system pressure and wide range of medium viscosity.
long service life.
The magnetic drive design of the non dynamic seal makes the shaft end no longer need the dynamic seal, which ensures the leakage free operation of the pump. The solid and stable shaft support can ensure the accurate meshing of the gear when the pump is running at high speed, ensure the smooth operation of the pump, the high accuracy of metering and the long service life of the pump.
Diversified drive mode.
magnetic drive gear metering pump can be directly connected with DC brushless motor,2-pole and 4-pole AC motor without reducer. The flow control of the pump can be realized by the controller of AC, DC, brushless DC and other motors. We can provide a variety of standard driving methods to meet the needs of customers.
A wide range of applications.
magnetic drive gear pump in the design, manufacture and application of a large number of use of magnetic drive, pump and motor technology. It has the advantages of no pulsation, long life and no leakage. These advantages make our products widely used in chemical, medical, laboratory, water treatment, food and other industries.
Applicable conditions.
All kinds of liquids, high precision fluid transportation, high repeatability, continuous small flow without pulsation
It is used in aviation equipment, aircraft, spacecraft, chemical laboratory, chemical reagent adding, film manufacturing, pharmaceutical machine equipment, various lasers, micro cooling device of sighting instrument,tobacco flavoring adding, inkjet printing machine manufacturing, inkjet printer manufacturing, high-performance color printing machine and other industries
Industrial machinery and equipment | Water treatment | Food and cosmetics |
Inkjet printing/painting | Mask making | Food and Beverage filling |
Oil transportation | Booster pressure | Filling of perfume cosmetics |
Sand mill/Grinding | Circulating cooling | Quantitative Transport |
